Measurement Range: 0-15mA (10mA model), 0-75mA (50mA model), 0-300mA (200mA model)
Power Supply: ±12V to ±15V (±5%)
Secondary Output Voltage: 5V
Accuracy: ≤±0.5% at 25°C
Linearity: <1% FS
Insulation Voltage: 2.5kV (Primary–Secondary)
Response Time: ≤120ms
Operating Temperature: -40°C to +80°C
Load Resistance: ≥10kΩ
Current Consumption: <30mA
Compact Perforated Structure: No insertion loss
| Availability: | |
|---|---|

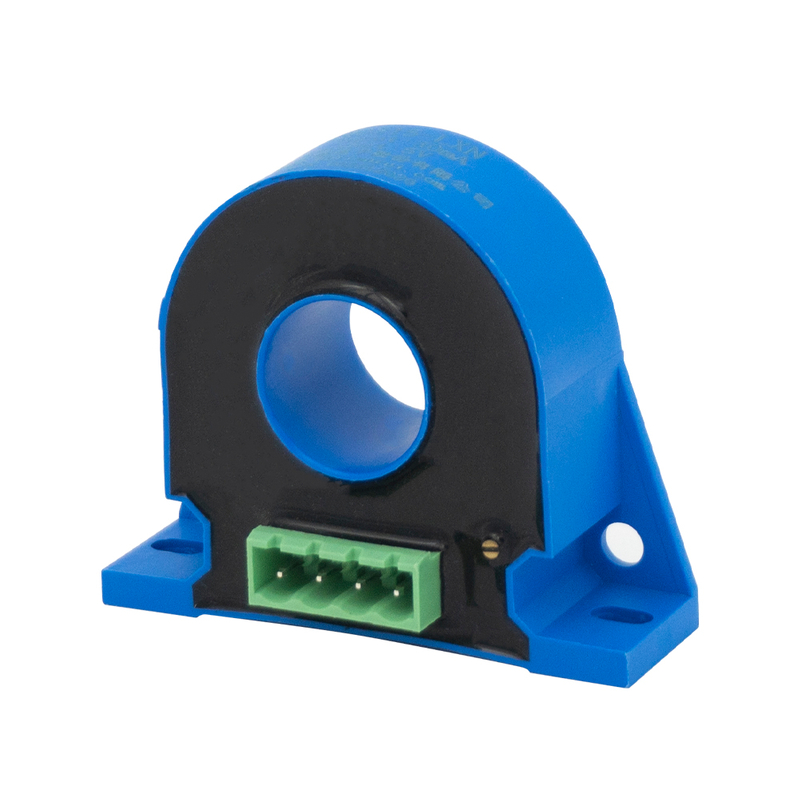

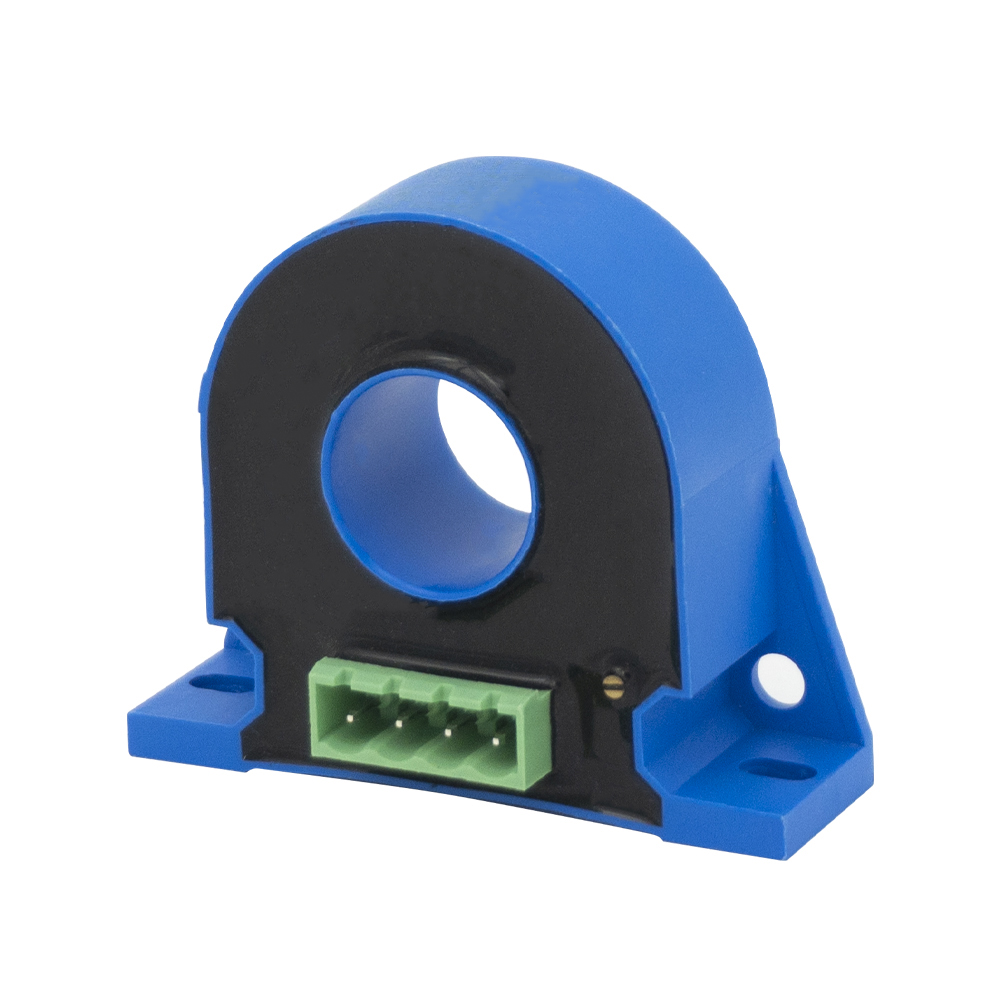

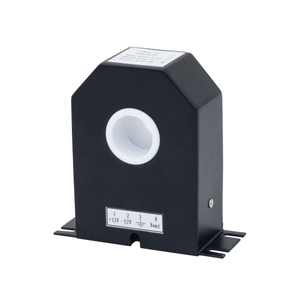

TR0215-LXN
TR
* Small current measurement performance is stable.
* Excellent accuracy, good linearity.
* Wide measuring range and strong overload capacity.
* Perforated structure, no insertion loss.
* The signal system.
* Line detection.
* Leakage Monitoring System.
* Current difference measurement.
Specification | 10mA/5V | 50mA/5V | 200mA/5V | Unit | |
IPN | Primary Rated Input Current (DC) | 10 | 50 | 200 | mA |
IP | Primary Current Measurement Range | 0-15 | 0-75 | 0-300 | mA |
VSN | Secondary rated output voltage(DC) | 5 | V | ||
VC | The Power Supply Voltage | ±12-15(±5%) | V | ||
IC | Current Consumption | <30 | mA | ||
Vd | Insulation Voltage | Between primary and secondary circuits:2.5kV/50Hz/1min | |||
εL | Linearity | <1 | %FS | ||
X | Precision | TA=25℃:≤±0.5 | % | ||
V0 | Offset Voltage | TA=25℃:≤±50 | mV | ||
VOT | Offset Voltage Temperature Drift | Ip =0 TA =-40-+80℃:≤±1.5 | mV/℃ | ||
Tr | Response Time | ≤120 | mS | ||
TA | Working Temperature | -40-+80 | ℃ | ||
TS | Storage Temperature | -45-+85 | ℃ | ||
RL | Load Resistance | TA=25℃:≥10 | kΩ | ||


Note: | ||

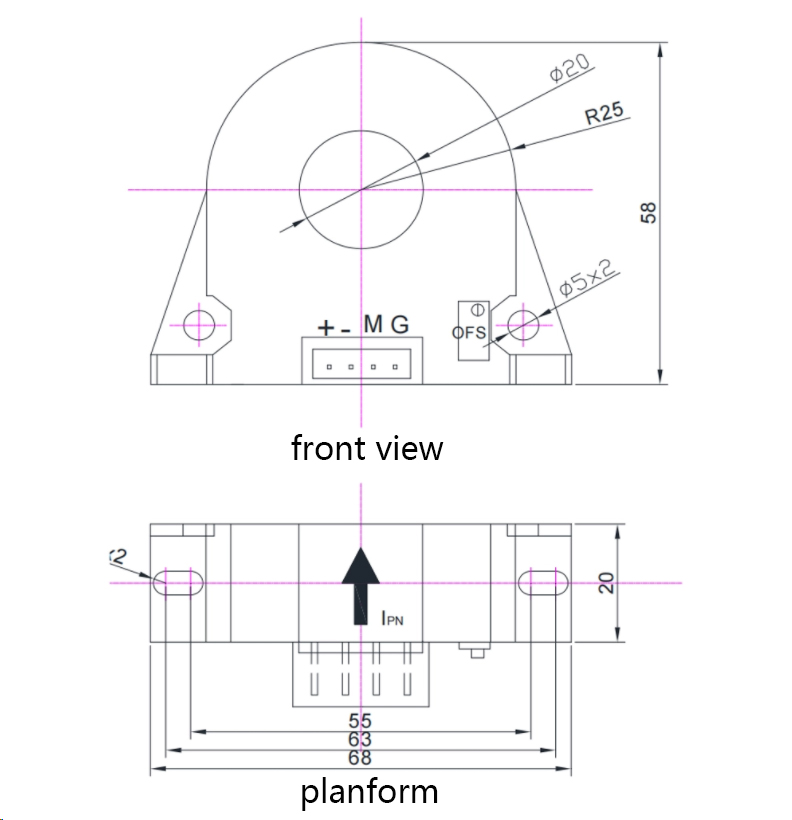

IPN: | Primary current input direction | |
+ : | Positive 12V/15V power supply | |
- : | Negative 12V/15V power supply | |
M : | Secondary signal output | |
| G : | Power ground | |
| OFS: | Zero adjustment | |
The current sensor should be wired correctly, otherwise it may damage the internal components of the sensor.
* Small current measurement performance is stable.
* Excellent accuracy, good linearity.
* Wide measuring range and strong overload capacity.
* Perforated structure, no insertion loss.
* The signal system.
* Line detection.
* Leakage Monitoring System.
* Current difference measurement.
Specification | 10mA/5V | 50mA/5V | 200mA/5V | Unit | |
IPN | Primary Rated Input Current (DC) | 10 | 50 | 200 | mA |
IP | Primary Current Measurement Range | 0-15 | 0-75 | 0-300 | mA |
VSN | Secondary rated output voltage(DC) | 5 | V | ||
VC | The Power Supply Voltage | ±12-15(±5%) | V | ||
IC | Current Consumption | <30 | mA | ||
Vd | Insulation Voltage | Between primary and secondary circuits:2.5kV/50Hz/1min | |||
εL | Linearity | <1 | %FS | ||
X | Precision | TA=25℃:≤±0.5 | % | ||
V0 | Offset Voltage | TA=25℃:≤±50 | mV | ||
VOT | Offset Voltage Temperature Drift | Ip =0 TA =-40-+80℃:≤±1.5 | mV/℃ | ||
Tr | Response Time | ≤120 | mS | ||
TA | Working Temperature | -40-+80 | ℃ | ||
TS | Storage Temperature | -45-+85 | ℃ | ||
RL | Load Resistance | TA=25℃:≥10 | kΩ | ||


Note: | ||
IPN: | Primary current input direction | |
+ : | Positive 12V/15V power supply | |
- : | Negative 12V/15V power supply | |
M : | Secondary signal output | |
| G : | Power ground | |
| OFS: | Zero adjustment | |
The current sensor should be wired correctly, otherwise it may damage the internal components of the sensor.
