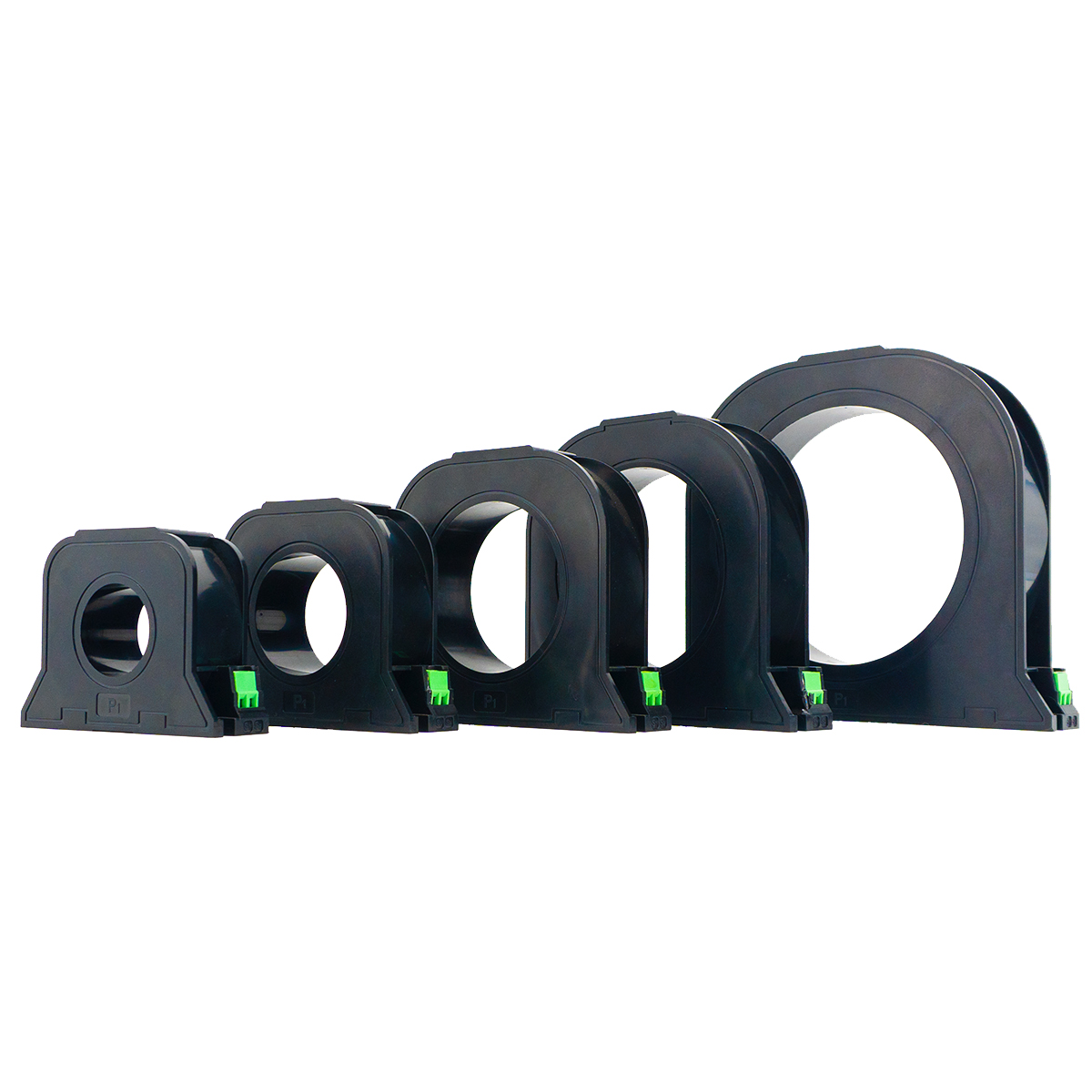

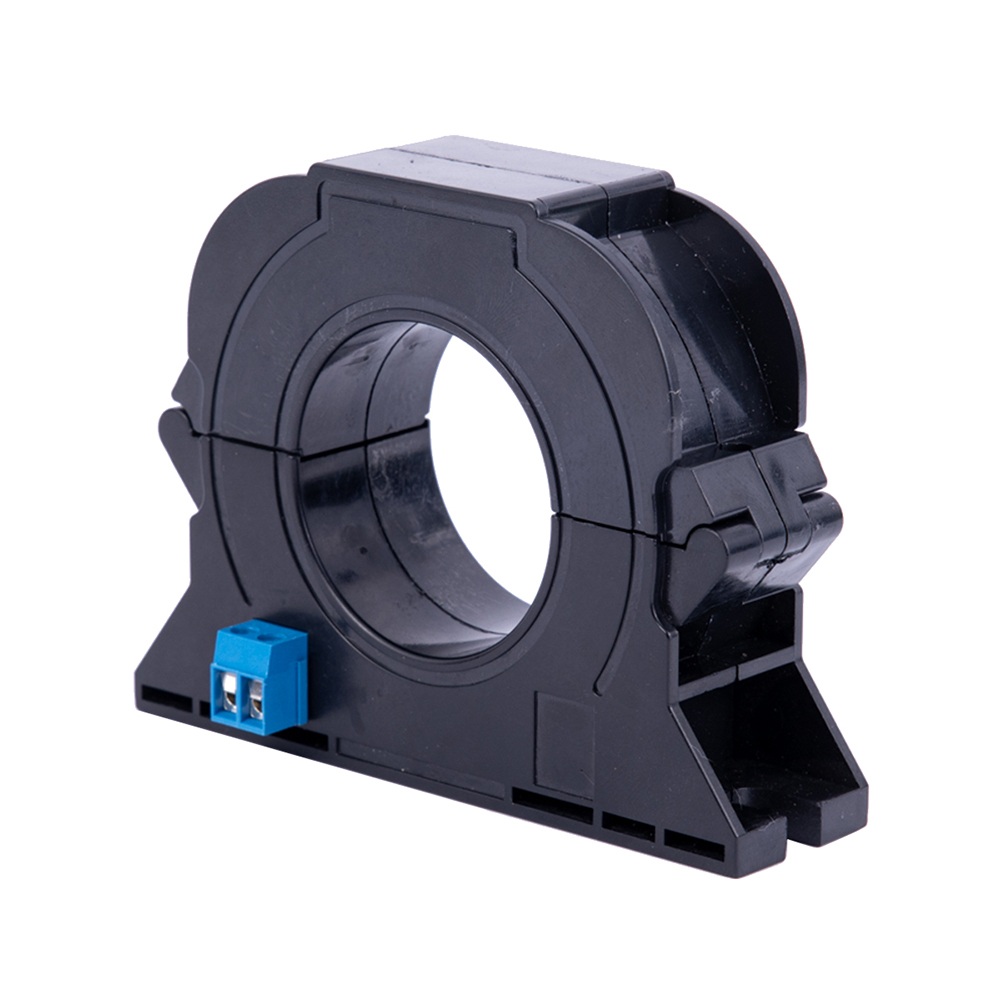

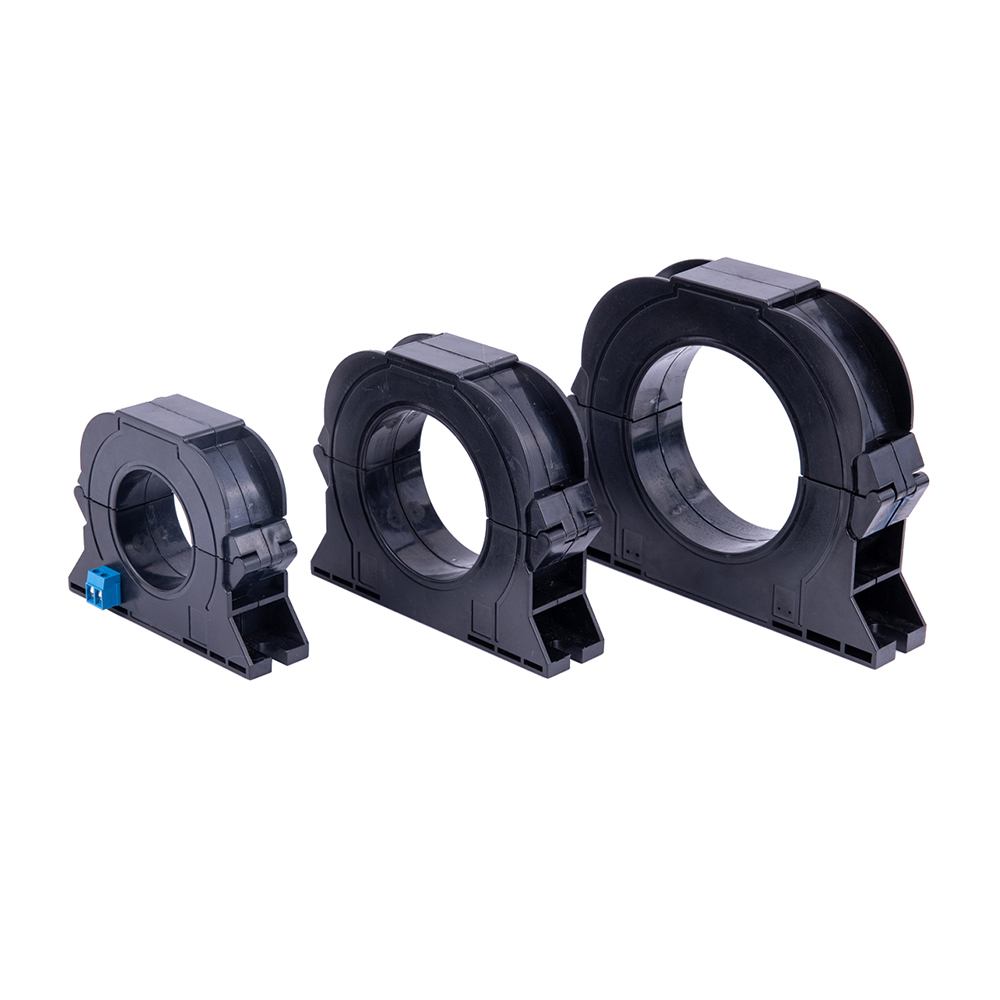

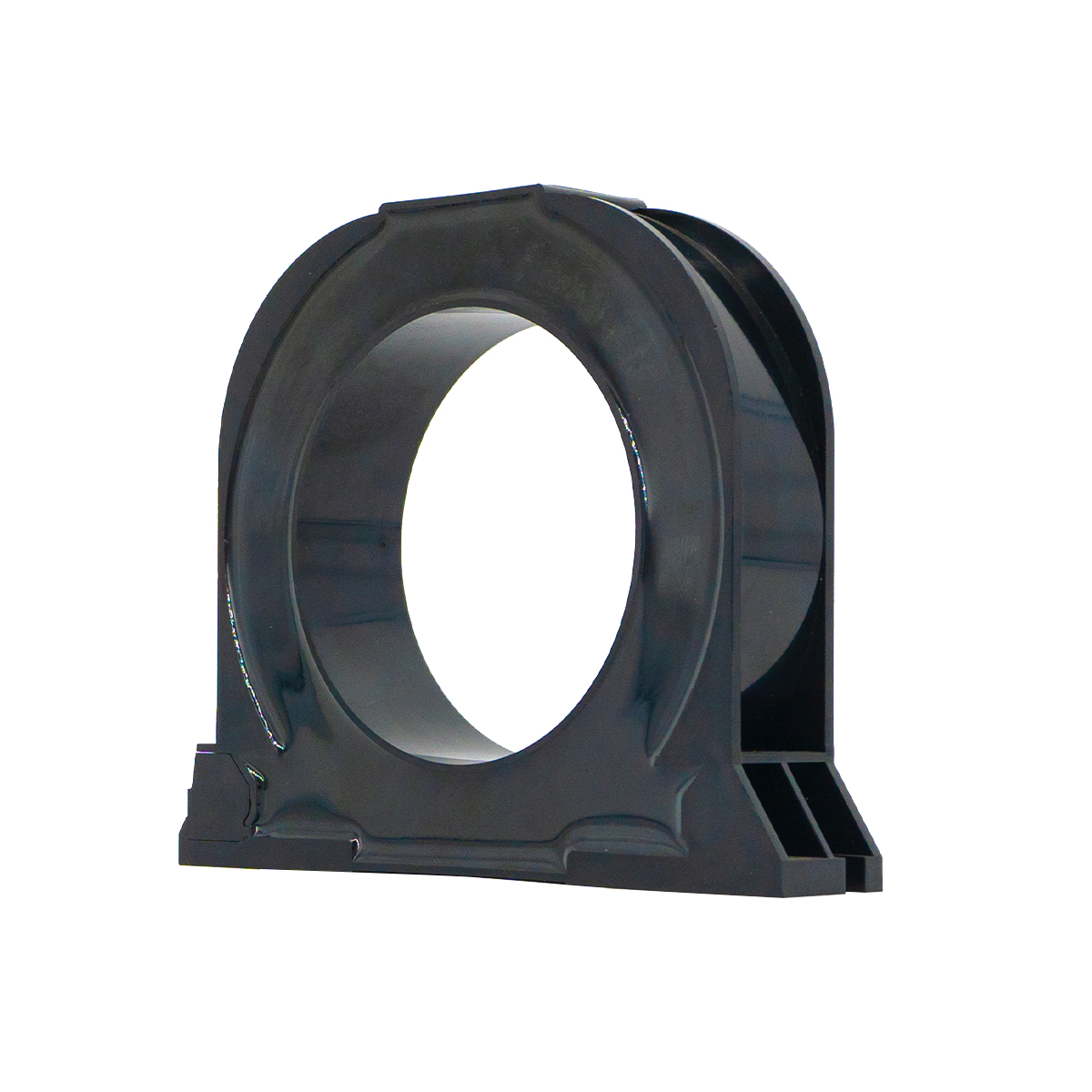

Core Balance Current Transformer

A Core Balance Current Transformer, also known as a zero-sequence current transformer, is designed for a specific purpose: detecting earth leakage or ground fault currents. Its principle relies on vector summation of magnetic fields. All three phase conductors (and the neutral, if present) pass through the window of a single toroidal (ring-shaped) core. Under normal, balanced conditions, the magnetic fields generated by the three phase currents cancel each other out, resulting in a net zero flux in the core and no output from the secondary winding. However, if a ground fault occurs, a leakage current (zero-sequence current) flows, creating an imbalance. This imbalance produces a net magnetic field, which then induces a current in the secondary winding, signaling a fault.

Key Characteristics

    1. High Sensitivity to Imbalance: It is exceptionally sensitive to small unbalanced (zero-sequence) currents, which are typically missed by standard phase-measuring CTs, making it ideal for ground fault detection.

    2. Insensitive to Balanced Loads: It deliberately ignores normal three-phase load currents, even very high ones, as long as they are balanced. This prevents nuisance tripping.

    3. Specialized Protection Device: Its sole function is safety protection, not energy measurement or load monitoring.

Common Applications

        The CBCT is a key component in electrical safety systems:

    1. Earth Fault Protection in motor circuits, switchgear, and power distribution systems.

    2. Core component of Ground Fault Relays (GFRs) and Earth Leakage Circuit Breakers (ELCBs).

    3. Protecting equipment and personnel from the dangers of insulation failure in installations like industrial plants and mining operations.
