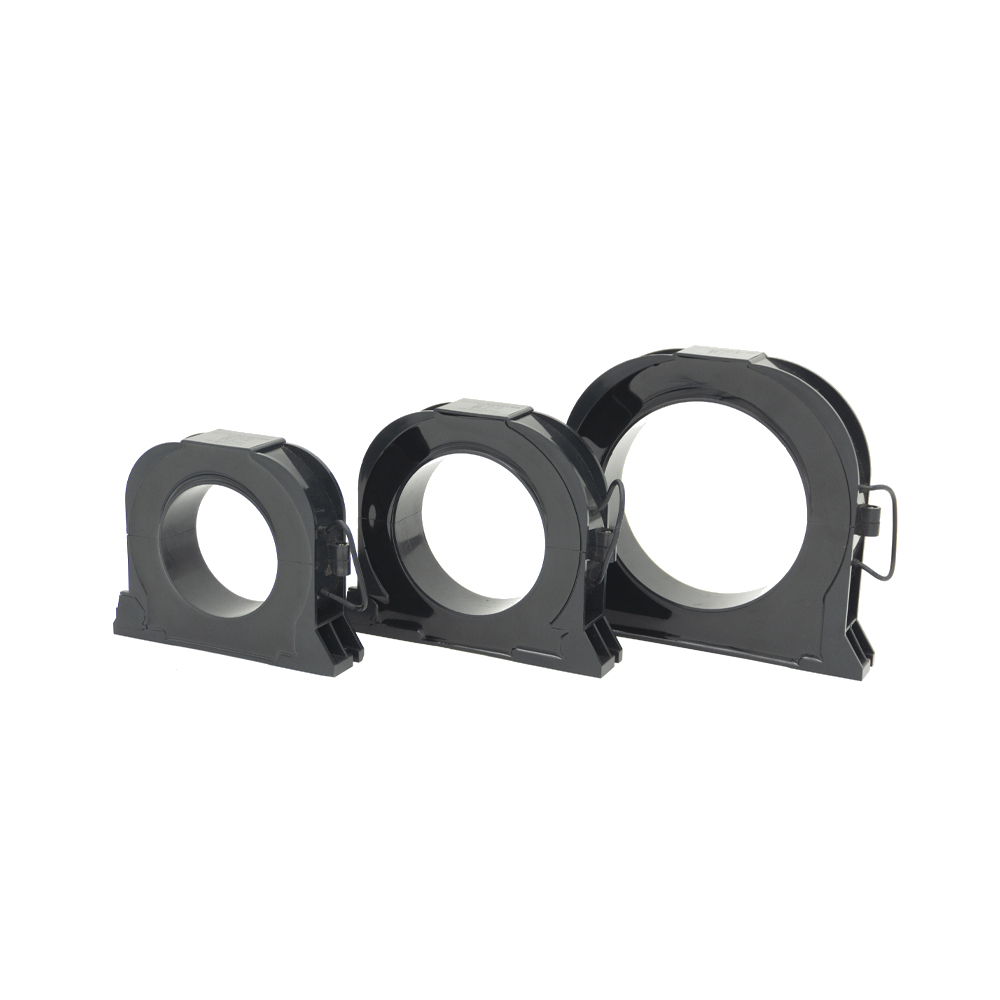

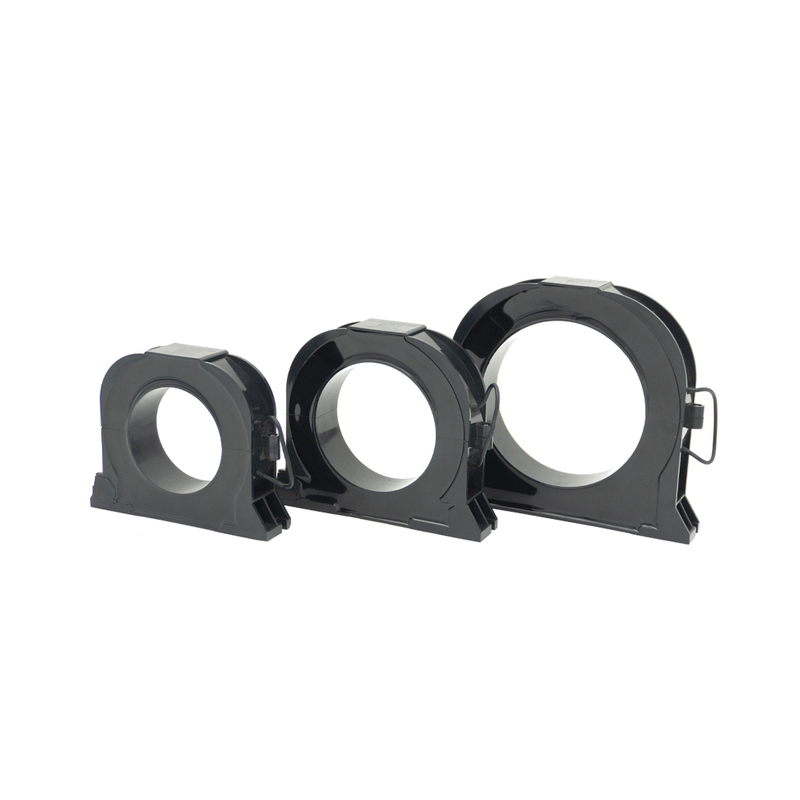

TRAK-B
TR
Product Overview
A 0–10mA Core Balance Current Transformer CBCT ( Zero Sequence Current Transformer ZCT) is a precision sensing device designed to detect leakage or residual currents in electrical power systems. It operates by measuring the vector sum of the currents flowing through three-phase conductors. Under normal balanced load conditions, the sum of all phase currents equals zero, and no output signal is generated. When a ground fault, insulation failure, or leakage occurs, an imbalance arises, and the transformer produces a corresponding secondary output signal, typically within the 0 ~ 10mA range, proportional to the fault current.
Product Features
* Split-core structure, easy to install on site and easy to operate.
* The magnetic core winding structure is cast with epoxy resin, and the end faces of the incision are matched, and the stability is good.
* Adopt high-permeability ultra-microcrystalline core, with good linearity and high sensitivity.
Product Application
Electrical fire monitoring system, fire-fighting equipment power monitoring system, rural power grid reconstruction project, intelligent power consumption system, low-current grounding system, electromagnetic relay protection, online environmental monitoring, etc.
Download Size Sheet
Residual Current Transformer.pdf
Product Parameters
| Electric performance | Operating Temperature | -40℃～+70℃ | Relative Humidity | ≤90% |
| Voltage Level | 0.4/0.66/0.72kV | Linear Range | 5%～1000% | |
| Rated Input Current | 0～1A | Rated Frequency | 50/60Hz | |
| Rated Output | 0～0.25mA or 0～1V | Power Frequency Withstand Voltage | 3kV/min | |
| Accuracy Class | 0.5, 1.0 | Insulation Strenth | 1000MΩ/500V/min | |
| Mechanical structure | Shell and Skeleton | PBT/PC Flame Retardant Grade 94-V0 | Output Method | Sheathed Lines |
| Iron Core Material | Nanocrystalline | Split-core Structure | "304"Fastening with inseparable screw | |
| Sealing and Filling | Epoxy Resin | Construction Plan | Base mounting screw fixing |
Shape and Installation Dimensions
| Product Model No. | Rated Input | Rated Output | Precision Class | Dimensions(mm) | |||||
| D | L | W | H | J | K | ||||
| TRAK-30B | 0～1A | 0～1A (0.5mA) | 0.5 1.0 | 30 | 88 | 30 | 68 | 76 | M5 |
| TRAK-45B | 45 | 116 | 33 | 86 | 92 | M5 | |||
| TRAK-65B | 65 | 130 | 33 | 105 | 110 | M6 | |||
| TRAK-80B | 80 | 160 | 33 | 128 | 143 | M6 | |||
| TRAK-100B | 100 | 188 | 33 | 154 | 178 | M6 | |||
Installation Precautions
* The live wire and the neutral wire must pass through the core hole of the transformer at the same time.
* Before the iron core is closed, ensure that the end face of the incision is clean, free of stains and impurities
* Use a torque wrench (electric/pneumatic) when tightening the screws, and set the torque to a reasonable range.
