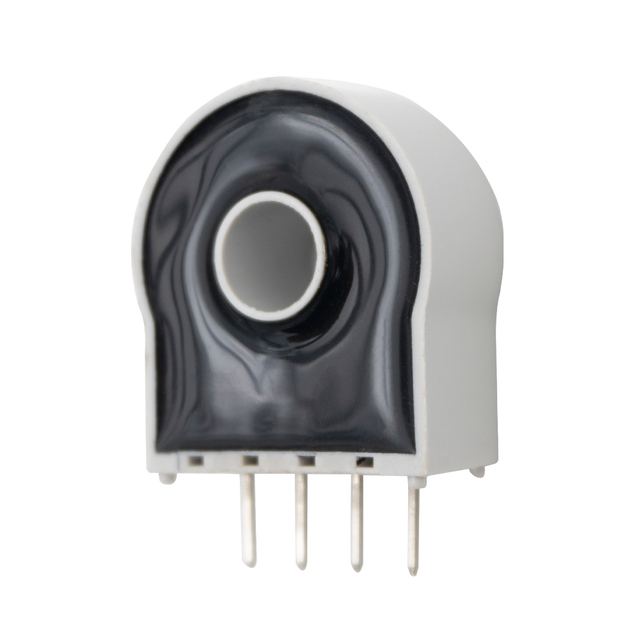

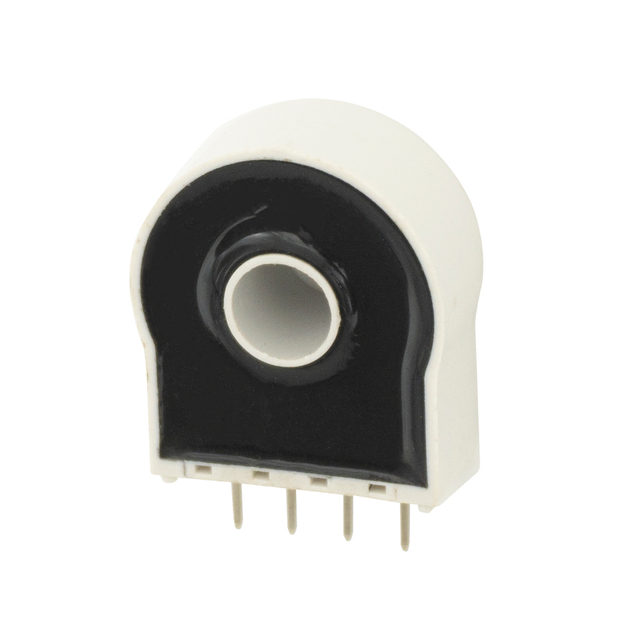

A programmable Hall-effect sensor builds upon the standard Hall effect principle, where a voltage is generated across a semiconductor when a magnetic field is applied perpendicular to its excitation current. This voltage is proportional to the magnetic field strength, which itself is proportional to the current being measured. The key differentiator is the integration of a digital interface and on-chip signal conditioning. This allows users to configure key parameters after the sensor is manufactured and installed.
Product Features
1. Post-Production Programmability: Critical parameters like sensitivity (gain), output offset, and temperature compensation coefficients can be digitally calibrated via interfaces like I²C. This enables precise tuning to match specific application needs and correct for system-level tolerances.
2. Enhanced Accuracy and Flexibility: Programmability allows for trimming initial offset errors and adjusting sensitivity, leading to higher overall measurement accuracy. A single sensor model can often be adapted to measure different current ranges, increasing design flexibility.
3. Advanced Features and Diagnostics: Many programmable versions offer built-in diagnostics (e.g., overcurrent detection, internal fault flags) and user-selectable output modes (e.g., analog voltage, PWM, digital), simplifying system integration and enhancing intelligence.
Common Applications
These smart sensors are ideal for applications requiring high precision, flexibility, and system intelligence:
1. High-Precision Industrial Motor Control and servo drives, where exact current feedback is crucial.
2. Advanced Battery Management Systems (BMS) in electric vehicles and energy storage, enabling accurate state-of-charge calculation and protection.
3. Programmable Logic Controllers (PLCs) and smart power distribution units, allowing for field configuration and adaptive control.
