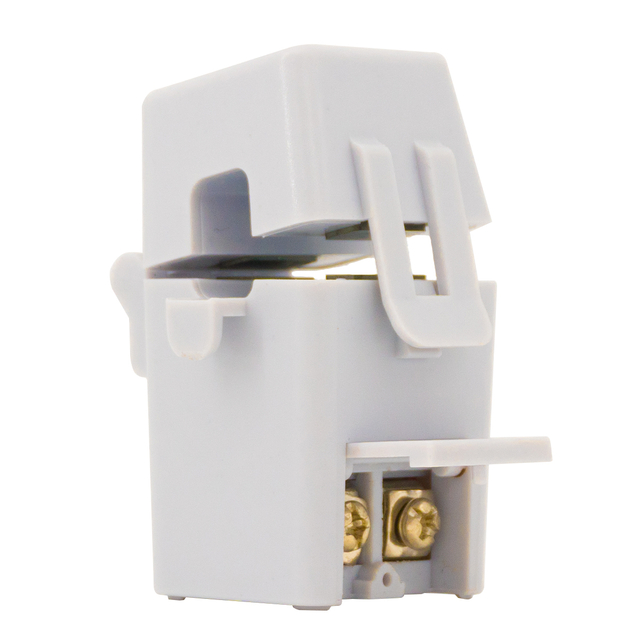

A split core current transformer (CT) is a special type of transformer designed for measuring alternating current (AC) without the need to disconnect existing wiring. Unlike traditional solid-core CTs, a split core design has a hinged or separable magnetic core that allows the device to be opened, clamped around a conductor, and then closed to form a complete magnetic circuit. This feature makes installation and maintenance significantly easier, especially in retrofit or live systems where downtime is costly or impractical.
The operating principle of a split core current transformer is the same as any current transformer: electromagnetic induction.
Primary Conductor
The conductor carrying the current to be measured acts as the primary winding, typically represented by a single turn.
Magnetic Flux in the Core
The alternating current in the conductor generates an alternating magnetic field, which passes through the magnetic core of the CT.
Secondary Winding
The split core CT has multiple turns of wire wound on the core, forming the secondary winding. As the magnetic flux changes, it induces a current in the secondary winding. This secondary current is directly proportional to the primary current but scaled down according to the turns ratio.
Measurement and Safety
The scaled current is safe to feed into meters, analyzers, or protective devices. The CT also provides galvanic isolation, ensuring that the measuring instruments remain protected from dangerous high voltages.
Because the core is split, minimizing the air gap between the two halves is crucial. High-quality designs use precision hinges, latches, or clamps to reduce flux leakage, thereby maintaining accuracy.
Split core current transformers can be classified in several ways:
By Mechanical Design
Hinged type: One side of the core opens like a clamp, then locks securely.
Detachable type: The core separates into two parts, joined by screws or fasteners.
By Function or Accuracy
General monitoring CTs: Used for load monitoring where medium accuracy is sufficient.
Metering CTs: Designed to meet accuracy standards for billing and precise energy measurement.
Protection CTs: Built to withstand high fault currents and provide reliable signals to protection relays.
By Output and Current Rating
Secondary outputs can be 1 A, 5 A, or low-level milliamp signals.
Current ratings range from tens of amperes to several thousand amperes.
By Application Environment
Indoor models for electrical panels.
Outdoor or encapsulated models for harsh environments.
Flexible rope-style split cores for large busbars or irregular conductor shapes.
Split core current transformers are widely used in modern electrical systems where easy installation and real-time monitoring are important:
Building Energy Management
In commercial and residential buildings, split core CTs are installed around branch circuits or feeders to measure power consumption. They allow facility managers to monitor energy use without shutting down power, enabling submetering and energy optimization.
Industrial Equipment Monitoring
Motors, pumps, HVAC systems, and other industrial loads can be monitored continuously with split core CTs. By detecting abnormal current patterns, the devices help identify overloads, phase imbalances, or early signs of equipment failure.
Power Distribution Systems
Split core CTs are often placed inside switchboards or distribution panels to provide current data for supervisory control and data acquisition (SCADA) systems. This supports grid stability and operational safety.
Renewable Energy and Microgrids
In solar or wind installations, split core CTs track inverter output, grid integration, and load balance. Their non-intrusive installation makes them ideal for retrofitting into distributed generation systems.
Data Centers and Critical Facilities
Because downtime is not acceptable, split core CTs enable safe installation of monitoring devices on live circuits, ensuring continuous operation while collecting essential load data.
Portable Testing and Audits
Electrical inspectors or engineers often use clamp-on split core CTs for temporary measurements in energy audits or troubleshooting tasks.
The split core current transformer addresses several practical issues faced in daily life and industry:
Minimizing Downtime
In hospitals, factories, or data centers, shutting down power for installation can cause major disruption. Split core CTs eliminate the need for outages, ensuring continuous operation.
Improving Energy Efficiency
With growing emphasis on sustainability, split core CTs help track consumption at different points in a building or factory. Facility managers can identify energy waste, optimize load distribution, and reduce utility bills.
Enhancing Safety
By enabling non-intrusive current measurement, electricians avoid direct contact with live conductors, lowering the risk of accidents.
Early Fault Detection
Monitoring abnormal current patterns helps detect motor overloads, wiring faults, or unbalanced loads early. This prevents costly equipment damage and reduces maintenance expenses.
Scalability and Flexibility
In expanding businesses or growing facilities, additional monitoring points can be installed quickly without re-wiring, making split core CTs a cost-effective solution.
Supporting Smart Grids and IoT
With integration into digital meters or IoT platforms, split core CTs provide real-time data for smart grid management, predictive maintenance, and automated energy reporting.
The split core current transformer is more than a convenient measurement tool—it is a key enabler of modern energy management, industrial monitoring, and smart grid applications. Its unique design solves the real problem of installing current measurement devices without service interruption, making it indispensable in both existing and new systems.
Looking ahead, innovations in magnetic materials, compact design, and built-in digital electronics will further improve accuracy, bandwidth, and functionality. Integration with IoT, cloud platforms, and predictive analytics will expand its role in energy efficiency, grid reliability, and sustainable development.
In short, the split core CT not only simplifies installation but also plays a central role in safer, smarter, and more efficient electrical systems—meeting the increasing demands of today’s energy-driven world.
