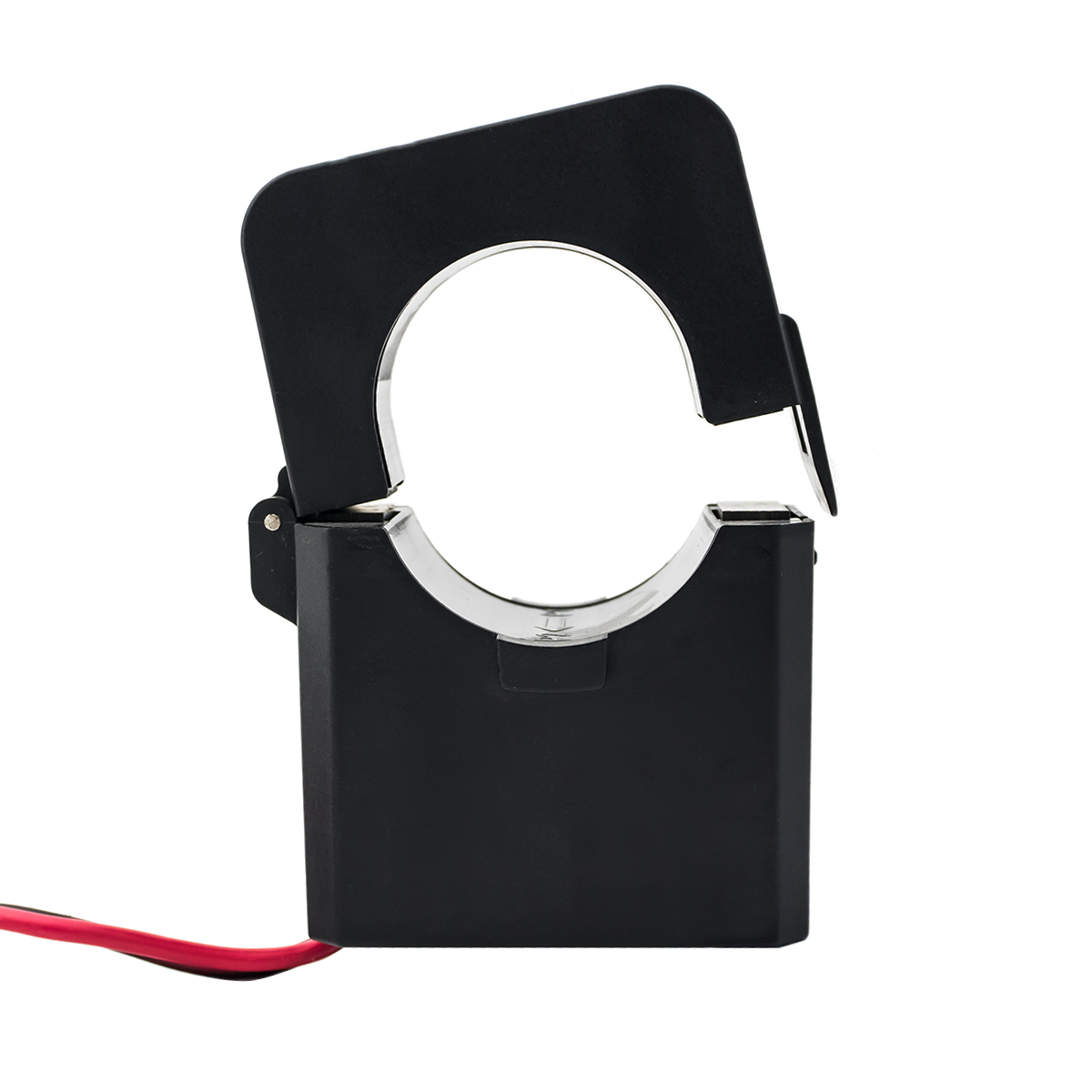

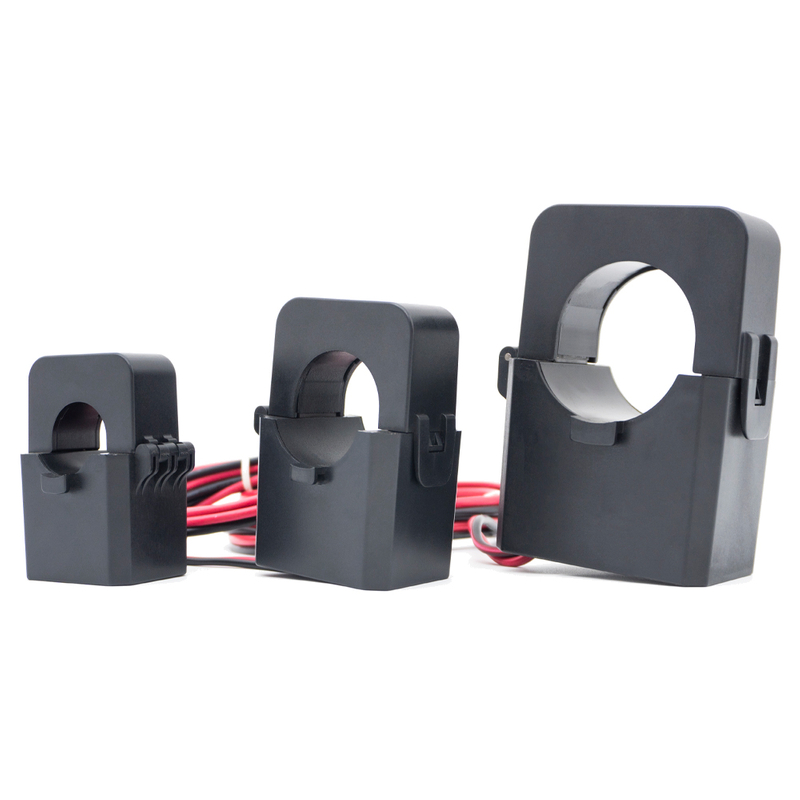

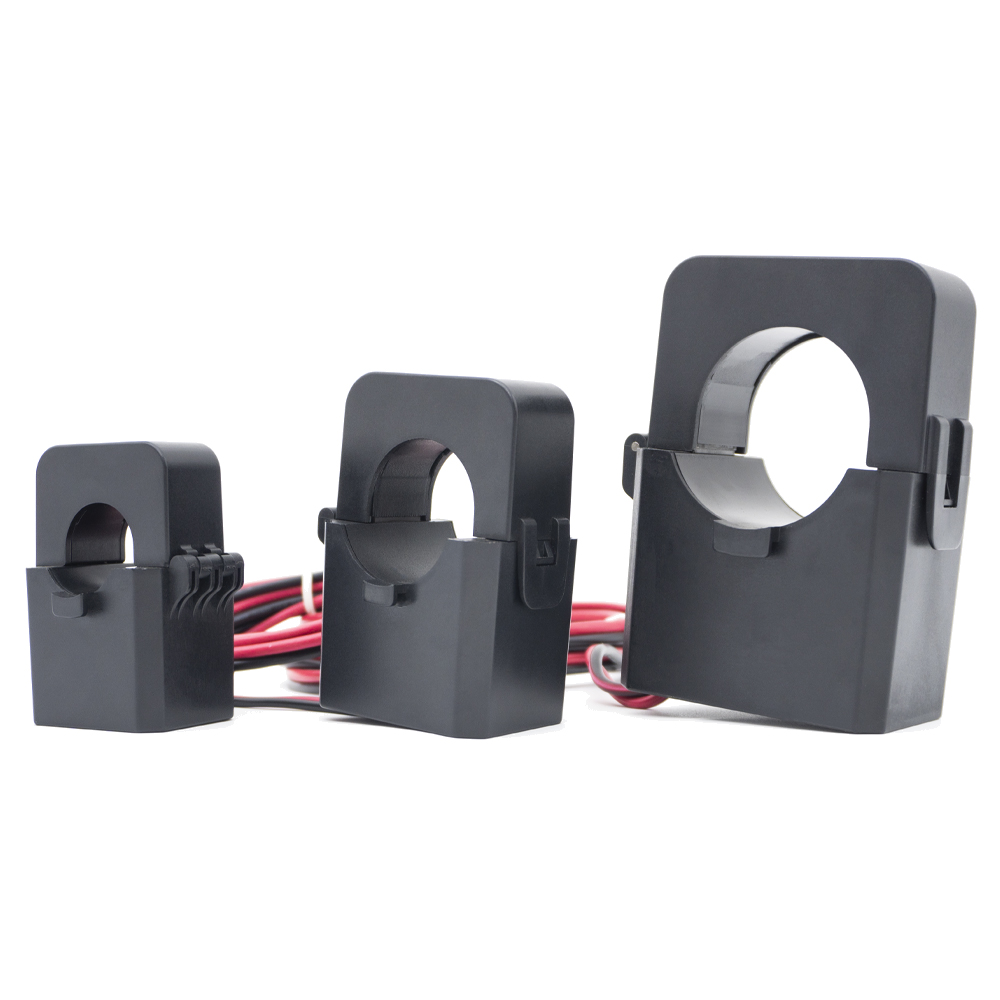

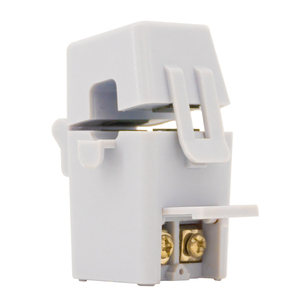

TRSK-FK
TR
Product Features
* The buckle structure is fixed and the stability is good.
* According to the cable specifications used in the main circuit, there are various core hole diameters to it .
* Wide quantity limit and strong anti-saturation ability .Rated primary current range :1~1000A,rated secondary current range :0~5 A, current transformation ratio range can reach 100:1~10000:1.
* Provide a variety of combined output methods: when outputting ampere-level current, you can use PVC wire terminals alone ,output Ma-level current, you can choose three-phrase integrated collection terminals and choose a variety of signal interfaces.
* Adopt high magnetic permeability core, good linearity and high sensitively .
Product Application
Rural power grid reconstruction project, online environmental monitoring ,smart fire-fighting power consumption, low-voltage power distribution system, smart power consumption system, electricity measurement ,power quality analysis and electrical equipment signal collection ,lighting equipment such as power installations, small current grounding systems, etc.
Download Size Sheet
Product Parameters
| Electrical performance | Operation Temperature | -40°C ~ +70°C | Relative Humidity | ≤90% |
| Voltage Level | 0.4/0.66/0.72kV | Linear Range | 5%~120% | |
| Rated Input Current | 0 ~ 1500A | Rated Frequency | 50/60Hz | |
| Rated Capacity | 0~5VA | Power Frequency Withstand Voltage | 3kV AC/1min | |
| Accuracy Class | 0.5, 1.0 | Dielectric Strength | ≥1000Ω/500V DC | |
| Mechanical structure | Shell | PA/PCFlammability rating 94-V0 | Output Method | PVC Sheathed cable/RJ12 Crystal terminal / PS/2Round head male interface |
| Winding Bobbin | PBT | Opening-closing Structure | Snap | |
| Core Material | Silicon Steel/ Manganese zinc ferrite | Construction Plan | Nylon cable ties bundled and fixed cables |
Model Definition
Typical Value and Dimension
Product Model | Rated Input | Rated Output | Accuracy Class | Dimensions(mm) | |||
D | L | W | H | ||||
TRFK-10A | 0~75A | 0~50mA(0~1.0V) | 0.2S 0.3S 0.5S 0.5S | 9.00 | 34.5 | 37.5 | 45.0 |
TRFK-16A | 0~150A | 0~100mA(0~2.5V) | 15.0 | 40.5 | 42.5 | 52.0 | |
TRFK-24A | 0~250A | 0~100mA(0~5.0V) | 22.5 | 54.0 | 47.0 | 71.0 | |
TRSK-36A | 0~500A | 0~100mA(0~7.0V) | 35.0 | 66.0 | 53.0 | 87.0 | |
TRSK-50A | 0~800A | 0~100mA(0~7.0V) | 50.0 | 88.0 | 59.0 | 114 | |
TRSK-10A | 5~100A | 0~200mA(0.5VA) | 0.5S 0.5S 1.0S 3.0S | 9.00 | 34.5 | 37.5 | 45.0 |
TRFK-16A | 5~150A | 0~1A(0.5VA 1VA) | 15.0 | 40.5 | 42.5 | 52.0 | |
TRFK-24A | 10~300A | 0~5A(0.5VA 2.5VA) | 22.5 | 54.0 | 47.0 | 71.0 | |
TRSK-36A | 10~600A | 0~5A(0.5VA 3.75VA) | 35.0 | 66.0 | 53.0 | 87.0 | |
TRSK-50A | 10~1500A | 0~5A(0.5VA 5VA) | 50.0 | 88.0 | 59.0 | 114 | |
Different Outputmods of Products
