A Miniature Current Transformer (Mini CT) is a compact type of current transformer designed for precise current measurement in limited spaces. It follows the same basic operating principles as conventional CTs but is optimized for size, efficiency, and integration into electronic systems. With the rise of smart grids, IoT devices, and energy-efficient equipment, miniature CTs have become increasingly important in both industrial and residential applications.

 Miniature Current Transformer

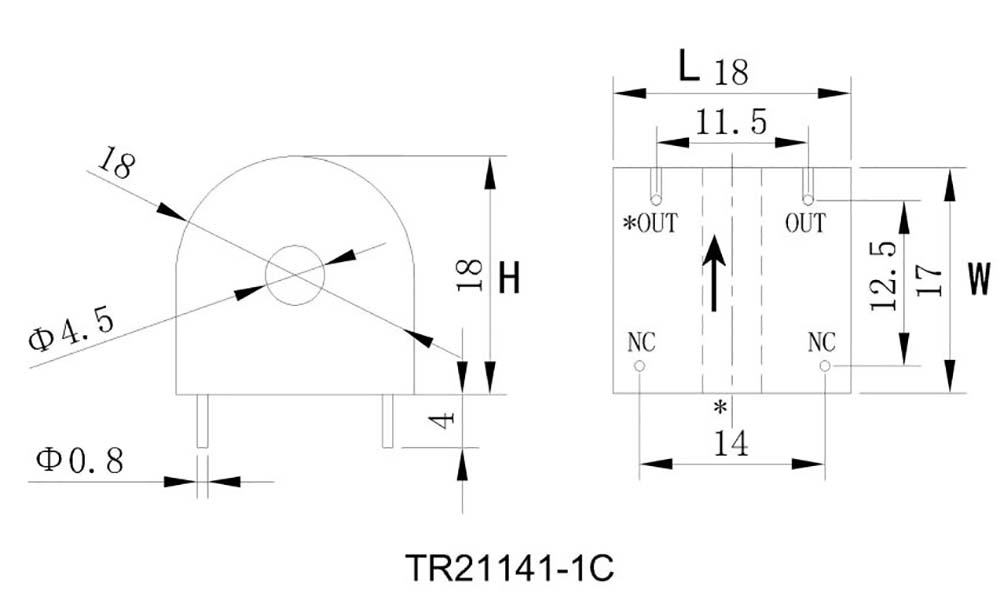

TR21141 Miniature Current Transformer


Functions and Key Features

The primary function of a miniature current transformer is to measure alternating current (AC) and provide a scaled-down signal suitable for monitoring, protection, or control purposes. Beyond simple current measurement, it ensures electrical isolation between high-voltage primary circuits and low-voltage secondary circuits, thereby enhancing safety.

Key Features include:

  1. Compact Size – Designed for installation in small devices such as smart meters, PCB-mounted circuits, and portable instruments.

  2. High Accuracy – Mini CTs can achieve class accuracy levels suitable for precise energy metering.

  3. Low Power Consumption – Optimized winding and core design reduces burden on measurement circuits.

  4. Safety Isolation – Provides galvanic isolation, ensuring that dangerous primary currents never reach sensitive electronics.

  5. Versatile Output – Depending on design, output can be in the form of current or voltage signals compatible with microcontrollers and measuring instruments.

  6. Durability – Built with high-permeability magnetic cores and encapsulated housing, allowing operation under varying temperatures and environmental conditions.


Working Principle

The working principle of a miniature current transformer is based on Faraday's law of electromagnetic induction. When alternating current flows through the primary conductor (which may be a single turn passing through the CT core), it generates a magnetic field. This magnetic flux is captured by the laminated or ferrite core, inducing a proportional current or voltage in the secondary winding.

Mathematically, the relationship can be expressed as:

Ip⋅Np=Is⋅NsI_p \cdot N_p = I_s \cdot N_sIp⋅Np=Is⋅Ns

Where:

  • IpI_pIp = Primary current

  • NpN_pNp = Number of primary turns (usually 1)

  • IsI_sIs = Secondary current

  • NsN_sNs = Number of secondary turns

Thus, the secondary current is a scaled version of the primary current. In miniature CTs, careful core material selection (such as nanocrystalline or ferrite) ensures minimal loss and high measurement fidelity even at small sizes.


Application Scenarios

  1. Smart Energy Meters
    Miniature CTs are widely used in residential, commercial, and industrial smart meters. Their accuracy and small footprint allow energy providers to record precise consumption data and enable dynamic billing or load balancing.

  2. Power Monitoring Systems
    In building automation and data centers, miniature CTs provide real-time current data to energy management systems. This helps detect abnormal loads, optimize power distribution, and reduce wastage.

  3. Motor Protection and Control
    By monitoring the current drawn by motors, Mini CTs can detect overload, stall, or fault conditions. They are integrated into motor controllers and industrial protection relays to prevent costly damage.

  4. Uninterruptible Power Supplies (UPS) and Power Electronics
    In compact power supplies and UPS systems, Mini CTs enable accurate current feedback for regulation and protection. Their fast response helps maintain system stability during load fluctuations.

  5. IoT and Smart Devices
    With the rise of smart homes and connected devices, miniature CTs play a role in plug-level energy monitoring, load identification, and efficiency optimization.

  6. Renewable Energy Systems
    In solar inverters and wind turbines, miniature CTs measure current flow to optimize power conversion and provide protection under fault conditions.


Future Trends

As global demand for energy efficiency and sustainability grows, miniature current transformers will evolve with:

  • Integration with digital circuits for direct microcontroller interfacing.

  • Improved bandwidth and linearity, enabling accurate measurement of both fundamental and harmonic components.

  • Enhanced insulation technology to meet stricter safety and compactness requirements.

  • Wide deployment in EV chargers, smart grids, and distributed generation systems.


Conclusion

Miniature current transformers are vital components in modern electrical systems, combining precision, compactness, and safety. Their working principle remains rooted in classical electromagnetic induction, yet their design has been refined to suit the needs of next-generation technologies. From smart meters to renewable energy, miniature CTs will continue to play a key role in efficient and safe energy management.
