TR
Product Features
* Open and close structure ,easy to install on site and easy to operate. Quick and easy installation or removal without disconnecting the primary cable under test, effective for safe and easy current testing.
* Wide quantity limit and strong anti-saturation ability .Input current range 0~600A.
* Flame retardant properties: According to UL94-V0.
* Protection class: IP66.
Product Application
Electrical fire monitoring system ,fire equipment power monitoring system ,intelligent power consumption system, intelligent low-voltage power grid, small current grounding system, relay protection ,motor protection system, etc. For current measurement, monitoring and protection of lines and equipment.
Download Size Sheet
F Series Split Core Current Transformer.pdf
Product Parameters
Electrical performance | Operation Temperature | -40℃ ~ +70℃ | Relative Humidity | ≤90% |
Voltage Level | 0.4/0.66/0.72KV | Linear Range | 5%～120% | |
Rated Input Current | 0 ~ 600A | Rated Frequency | 50/60Hz | |
Rated Load | ≤20Ω | Power Frequency Withstand Voltage | 3kV AC/1min | |
Accuracy Class | 0.5 | Insulation Resistance | ≥1000MΩ/500V DC | |
Mechanical structure | Shell and Skeleton | PA/PCFlammability rating 94-V0 | Output Method | Waterproof aerial plug /sheath cable |
Core Material | Silicon steel/nanocrystalline /permalloy | Sealing | Epoxy resin | |
Internal Structure | Waterproof silicon seal | Protection Class | IP65、IP66、IP67 |

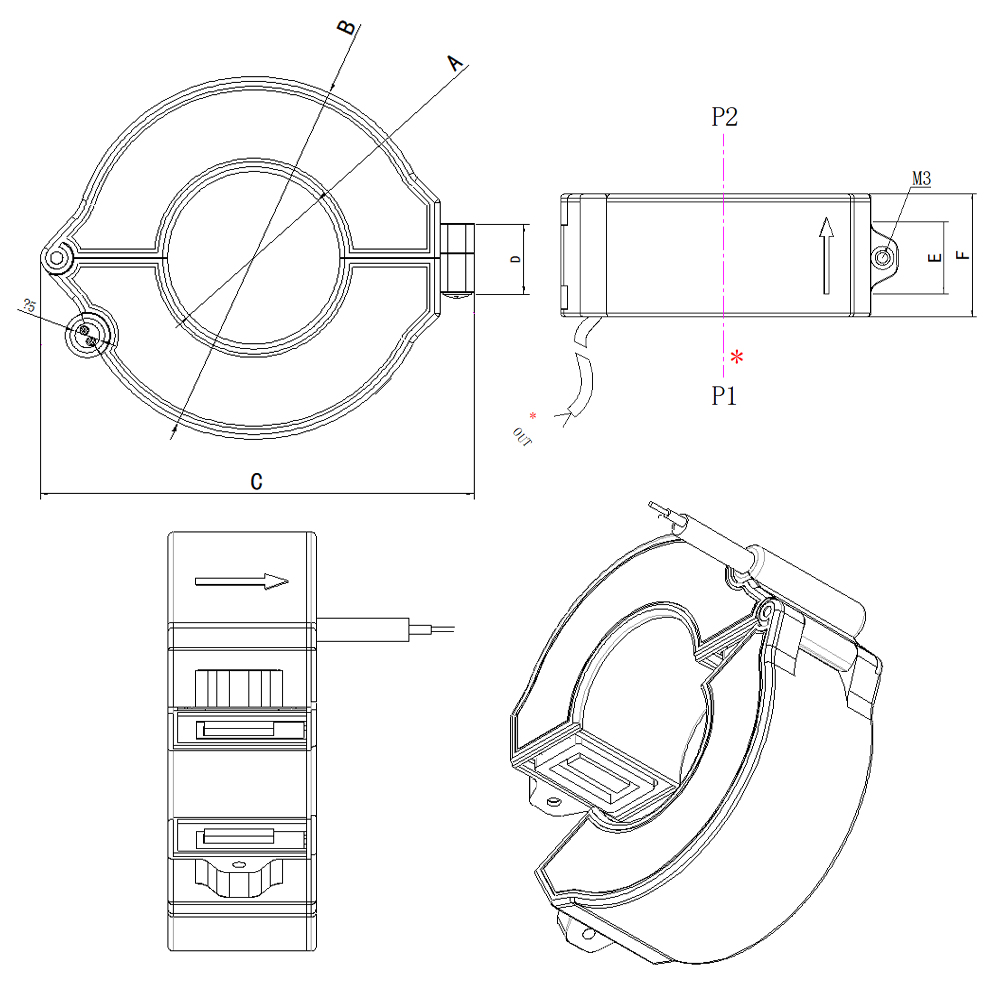

Typical Value and Dimensions
Product Model | Rated Input | Rated Output | Accuracy Class | Dimensions(mm) | |||||
A | B | C | D | E | F | ||||
TRAKL-25W | 0～300A | 0～100mA | 0.3 0.5 0.5S | 25.0 | 60.0 | 75.0 | 14.5 | 19.0 | 30.5 |
TRSKL-25W | |||||||||
TRPKL-25W | |||||||||
TRAKL-35W | 0～600A | 35.0 | 73.5 | 88.0 | 14.5 | 19.0 | 32.0 | ||
TRAKL-35W | |||||||||
TRAKL-35W | |||||||||
Installation Precuations
* Before the silicon steel core is closed ,ensure that the end face of the incision is clean ,free of stains and impurities;It must be treated with anti-rust agent.
* Use a torgue wrench (electric /pneumatic ) when tightening the screws and set the torque to a reasonable range .
