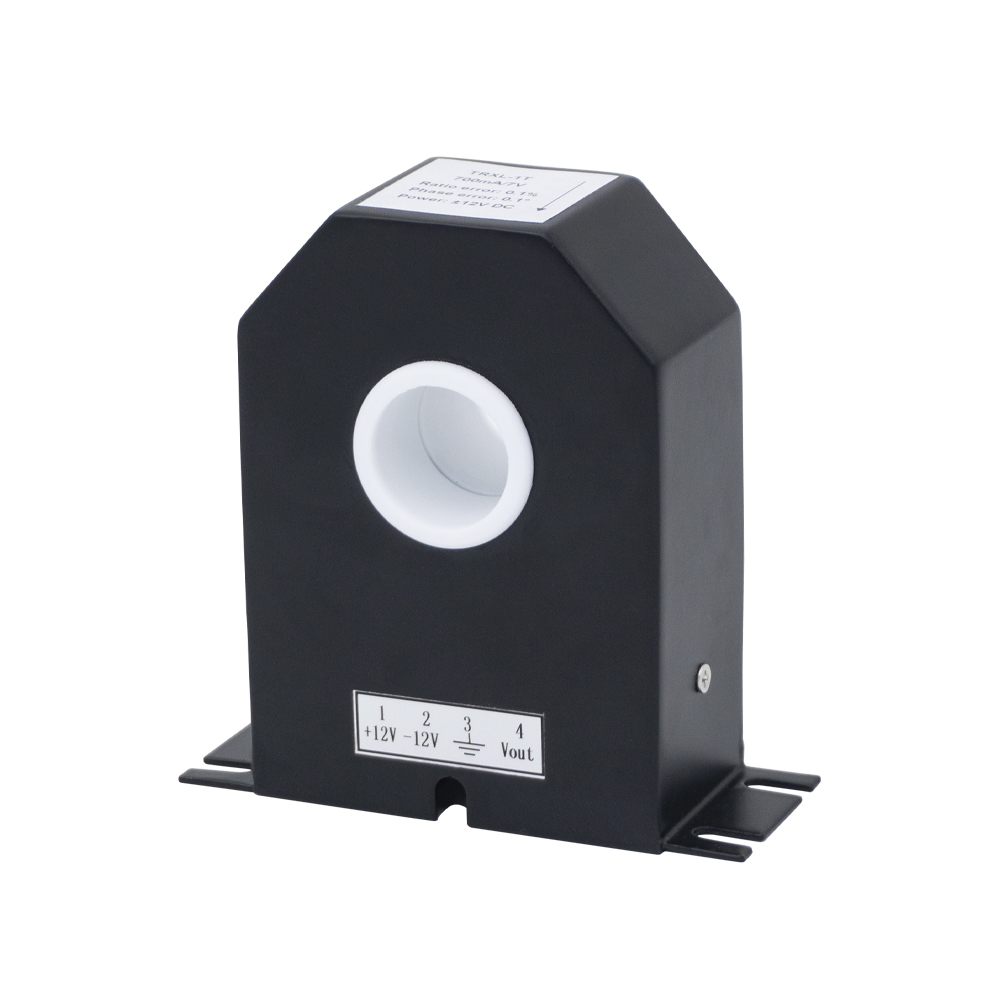

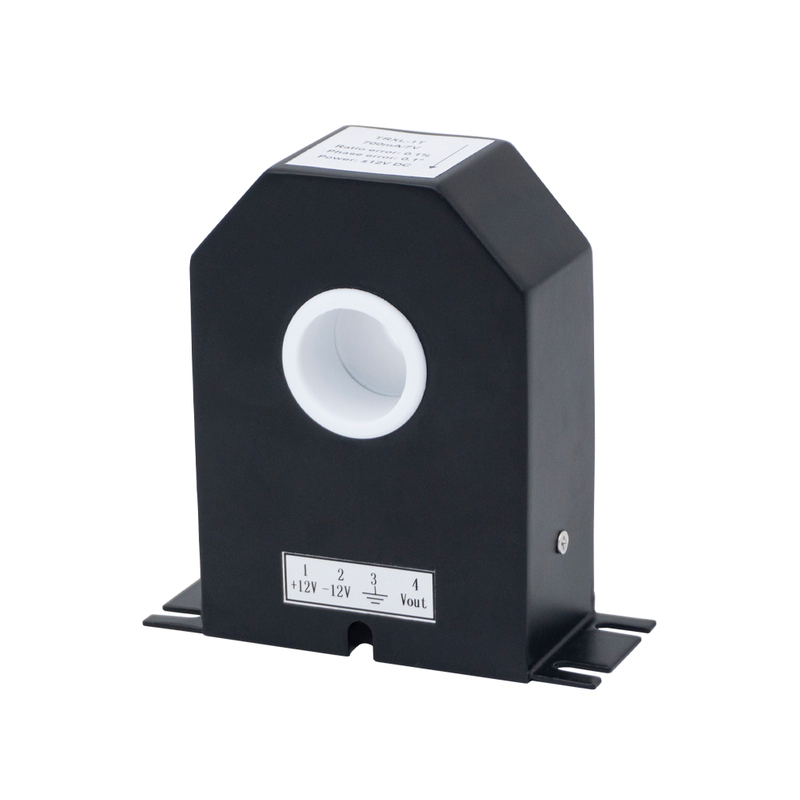

XL Series Active Zero Flux Leakage Current Sensor

TRXL series active zero flux leakage current sensor is a kind of micro-current sensor specially developed for on-line monitoring of the insulation of high-voltage electrical equipment. It selects the material with high starting permeability as the iron core, adopts the unique depth negative feedback technology and multi-layer metal shielding measures, which can compensate the iron core fully automatically and make the iron core work in the ideal zero magnetic flux state. The sensor is capable of accurately detecting industrial frequency currents from 100μA to 700mA. The phase conversion error is no more than 0.01°, with good temperature characteristics and electromagnetic field interference ability, fully meet the complex power plant site interference under the equipment sampling accuracy.

Measurement Range: 0.1mA - 1A
Rated Output: 3.53VRMS
Accuracy: ≤0.05% at rated input
Supply Voltage: ±12V
Power Consumption: Max 10mA
Operating Frequency: 50 - 400Hz
Operating Temp: -40°C to +85°C
Housing: Waterproof, anti-corrosion metal shell with epoxy resin sealing

Availability:



Inquire

Model:
TRXL
Brand:
TR

Product Description

Product Features

* Accurate measurement of μA level current with high measurement accuracy and good linearityty.

* Multiple shielding, strong anti-interference ability, can work in complex environments.

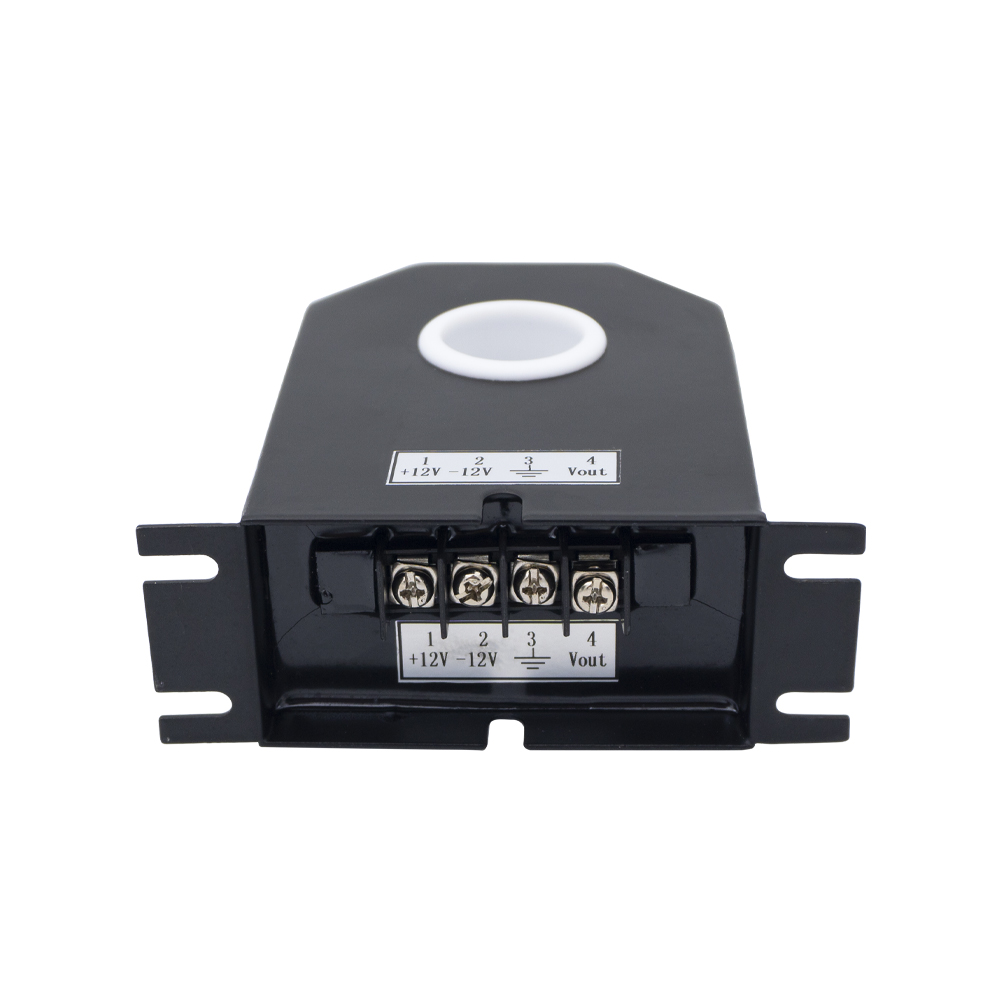

* Optional terminal outputs or aerial plug outputs.

* Special waterproof and anti-corrosion metal casing, epoxy resin sealing, can work outdoors for a long time.

Product Application

* On-line monitoring of transformer equipment.

* On-line monitoring of transformer core grounding.

* On-line monitoring of high-voltage bushing insulation.

* On-line monitoring of metal-oxide-zinc lightning arrester insulation.

* On-line monitoring of current and voltage transformers and capacitors.

* High-voltage charged display.

Product Parameters

Electric Performance Parameters	Electrical Symbol	Performance Parameter	Small signal measurement (active)
	I_N	Rated Input	500mA_RMS
	I_P	Measurable Range	0.1mA-1A
	V_OUT	Rated Output	3.53V_RMS
	X	Accuracy@I_PN	0.05%
	ε_L	Linearity	≤0.05%
	Uc	Supply Voltage	±12V
	V_off	Offset Voltage	1mV
	I_C	Max Power Consumption	10mA
	f	Operating Frequency	50-400 Hz
	T_A	Operating Temperature	-40℃-+85℃
	T_S	Storage Temperature	-40℃-+100℃
Mechanical Structure Parameters	Shell	Metal Shell	Output Mode	Socket block/waterproof aerial plug
	Metal Core Material	Nanocrystalline/Permalloy	Seal	Flexible Silicone & Epoxy
	Magnetic Screen Structure	Carbon Steel/Permalloy	Construction Plan	Base Installation Fixed

Main specification and Drawing

Product Images	Model NO.	Specification
XL-1A 80-42-110(φ26)	TRXLW-1T	10mA/10μA
	TRXLW-1T	20mA/20μA
	TRXL-1T	5mA/5V
	TRXL-1T	10mA/1V
	TRXL-1T	700mA/7V
	TRXL-1T	1A/5V
	TRXL-1T	200mA/5V-1A/5V
XL-1B 80-42-110(φ26)	TRXL-1TW	10mA/1V
	TRXL-1TW	0.5(20A)/3.53V
	TRXL-1TW	700mA/7V
	TRXL-1TW	700mA/7V
	TRXL-1TW	20A/20mA
	TRXL-1TW	10mA/1V
	TRXL-1TW	20A/20mA
	TRXL-1TW	700mA/7V
	TRXL-1TW	50A/50mA
