Why Zero-Flux Leakage Current Sensors Are Ideal for Sensitive Leakage Monitoring Systems

In modern energy and industrial environments, accurate detection of small leakage currents can mean the difference between reliable performance and costly equipment failure. A current sensor plays a central role in such monitoring systems, and among the different technologies available, the zero flux leakage current sensor has emerged as one of the most precise solutions. For companies seeking to monitor early insulation degradation or subtle fault conditions, these sensors provide the sensitivity, stability, and reliability required. Hubei Tianrui Electronics Co., Ltd., with decades of expertise in current sensing and relay protection, continues to deliver advanced solutions for grid and industrial applications where leakage monitoring is critical.

What is zero-flux sensing and how does it detect leakage?

Principle of operation: flux balancing and null detection

The zero-flux principle, also known as magnetic balance or null detection, is based on maintaining a condition where the magnetic flux inside the sensor’s core is always zero. The current to be measured generates a magnetic field in the core. A compensation or feedback coil then applies an opposing magnetic field, controlled by an electronic circuit, until the flux is fully cancelled. The control signal required to achieve this balance is directly proportional to the measured current. This feedback method enables extremely high accuracy and linearity, making it ideal for leakage measurements where currents can be extremely small.

Differences from Hall and Rogowski methods

Compared with conventional Hall effect sensors, zero-flux sensors show far lower offset drift and higher long-term stability. Hall sensors are suitable for general current detection but can be affected by temperature variation and limited linearity when measuring very small currents. Rogowski coils, another widely used method, excel in high-frequency and large-current measurement but lack the low-frequency accuracy and DC measurement capability that leakage monitoring often requires. A zero flux leakage current sensor combines the best of both worlds by offering wide bandwidth along with unmatched precision for DC and low-frequency leakage detection.

Advantages of zero-flux current sensors for leakage monitoring systems

High linearity and very low offset

Leakage detection often requires distinguishing sub-milliamp signals from background noise. High linearity ensures the measurement remains accurate over a wide current range, while low offset allows for the detection of extremely small leakage currents without false alarms. This capability supports asset health monitoring by identifying early warning signs before insulation or equipment deterioration becomes severe.

Wide dynamic range

In real-world systems, leakage currents can vary from small capacitive discharges to larger fault conditions. A zero flux leakage current sensor can capture both scenarios within the same device, avoiding the need for multiple sensors. Engineers benefit from having a single measurement system capable of monitoring subtle variations and responding to sudden faults.

Immunity to external interference and stability

Industrial sites and utility grids are exposed to strong electromagnetic fields, switching noise, and fluctuating temperatures. Zero-flux sensors are designed with excellent common-mode rejection and thermal stability, ensuring accurate readings regardless of harsh surroundings. This immunity reduces false positives and builds confidence in continuous monitoring solutions.

System design: building an online leakage monitoring solution with zero-flux sensors

Sensor siting, cabling and rejection techniques

For leakage monitoring systems, the physical placement of the current sensor is critical. Sensors should be installed around grounding conductors, feeder lines, or busbars where leakage paths may occur. Proper cabling and shielding ensure that common-mode noise does not distort the measurement. Using a zero flux leakage current sensor with inherent rejection capabilities further simplifies system design and improves reliability.

Signal conditioning and integration

Once leakage currents are captured, the signals must be conditioned, digitized, and transmitted to monitoring systems. Integration with SCADA, PLCs, or cloud-based platforms allows operators to analyze leakage trends in real time. Zero-flux sensors, with their high-accuracy output, support advanced digital processing such as harmonic separation and power quality monitoring.

Algorithms and analysis

Modern monitoring systems go beyond simple threshold alarms. By applying algorithms that analyze leakage trends over time, classify harmonic content, and distinguish between benign capacitive leakage and harmful insulation degradation, engineers gain actionable insights. Zero-flux sensors provide the accuracy necessary to support these advanced analytics.

Calibration, testing & verification for sensitive leakage measurements

Factory calibration and on-site zeroing

High-quality zero-flux sensors are factory calibrated to meet strict specifications. However, system-level factors may still require on-site zeroing to eliminate offsets caused by installation conditions. Simple zeroing procedures ensure that measurements start from a true baseline.

Periodic verification and drift checks

Even though zero-flux technology minimizes drift, periodic verification remains part of good maintenance practice. By logging validation events and performing scheduled checks, operators ensure measurement consistency throughout the sensor’s lifecycle. This is especially important in safety-critical applications where early detection of leakage is directly tied to operational reliability.

Interpreting results

Not all leakage currents are equally dangerous. For example, small capacitive leakage in long cables may be harmless, whereas increasing leakage in motors or transformers may indicate insulation breakdown. Having a sensor with high resolution allows maintenance teams to interpret these differences with confidence, supporting predictive maintenance programs and reducing downtime.

Choosing between zero-flux and other sensors: a procurement checklist

Accuracy, linearity, and bandwidth

When selecting a current sensor for leakage monitoring, accuracy and linearity are top priorities. For applications requiring both DC and AC measurements across a wide frequency range, zero flux leakage current sensors stand out. Buyers should carefully review datasheets to confirm specifications align with system needs.

Form factor, mounting, and compliance

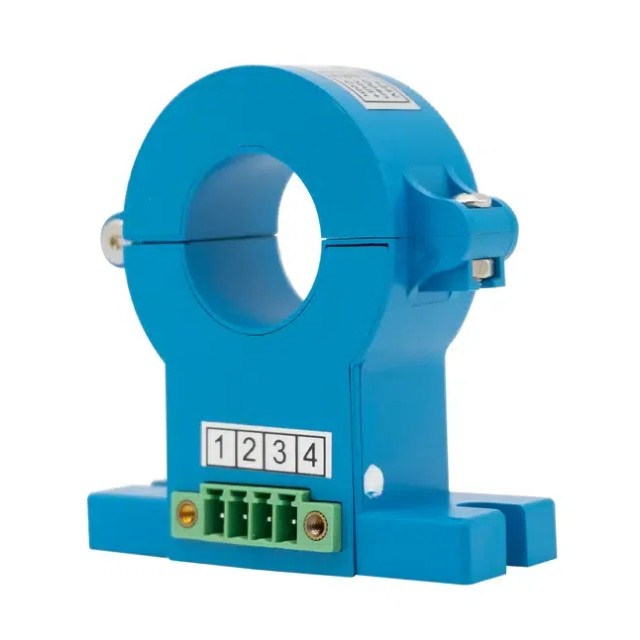

Depending on the installation environment, compact form factors or split-core designs may be necessary for retrofits. Compliance with insulation voltage ratings, safety standards, and industry certifications ensures that the sensor not only delivers performance but also meets regulatory requirements. Evaluating mounting options and connector types can streamline installation.

Vendor support and lifecycle services

Beyond specifications, long-term support from the vendor is critical. Services such as firmware updates, recalibration, and technical assistance enhance the lifetime value of the product. Hubei Tianrui Electronics, with over two decades of experience and a strong patent portfolio, provides customers with reliable product performance and trusted support across the lifecycle of their monitoring systems.

Conclusion

For asset health monitoring teams, test engineers, and utility specifiers, the choice of current sensor determines the success of leakage detection systems. A zero flux leakage current sensor delivers unmatched accuracy, wide dynamic range, and long-term stability, making it the preferred solution for sensitive applications. By integrating these sensors into online monitoring platforms, companies can identify early-stage insulation degradation, avoid costly outages, and ensure equipment safety. Hubei Tianrui Electronics Co., Ltd. continues to provide high-quality current sensor solutions for demanding industrial and utility applications. To learn more about our zero-flux technology or request trial units, please contact us.
