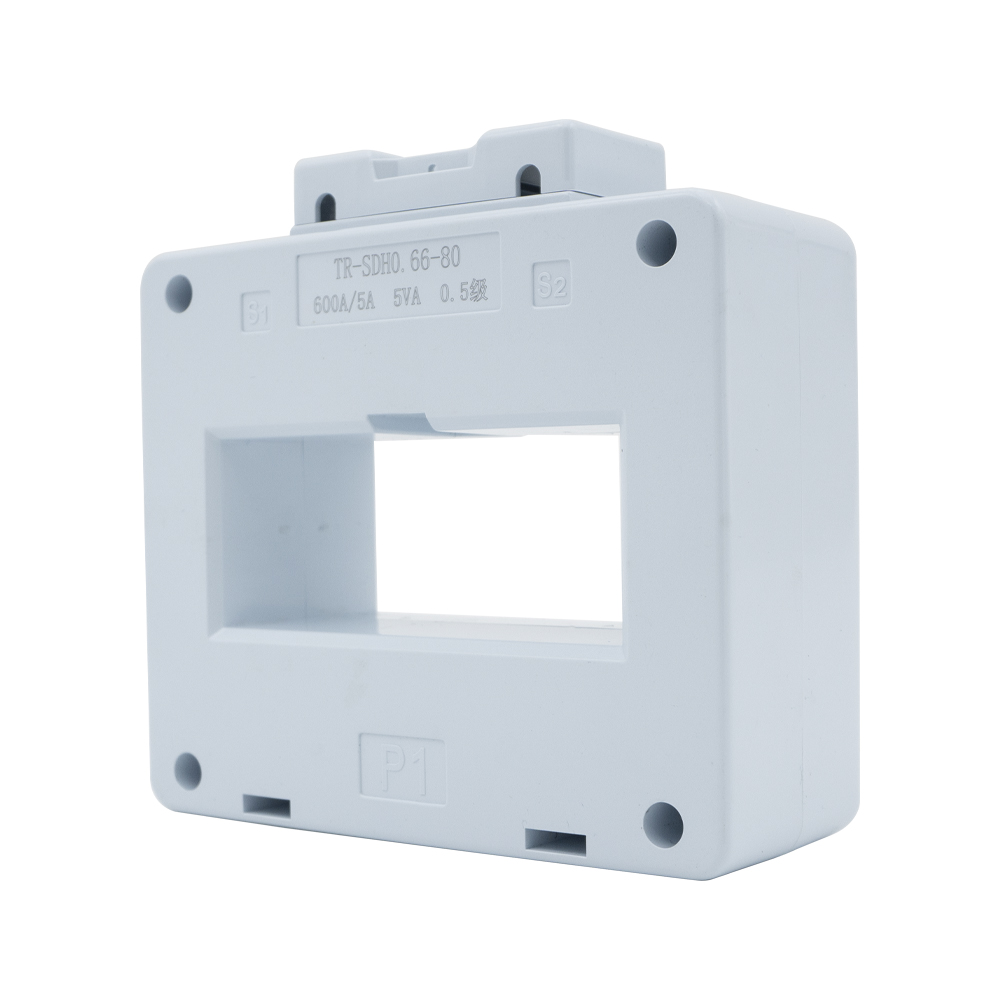

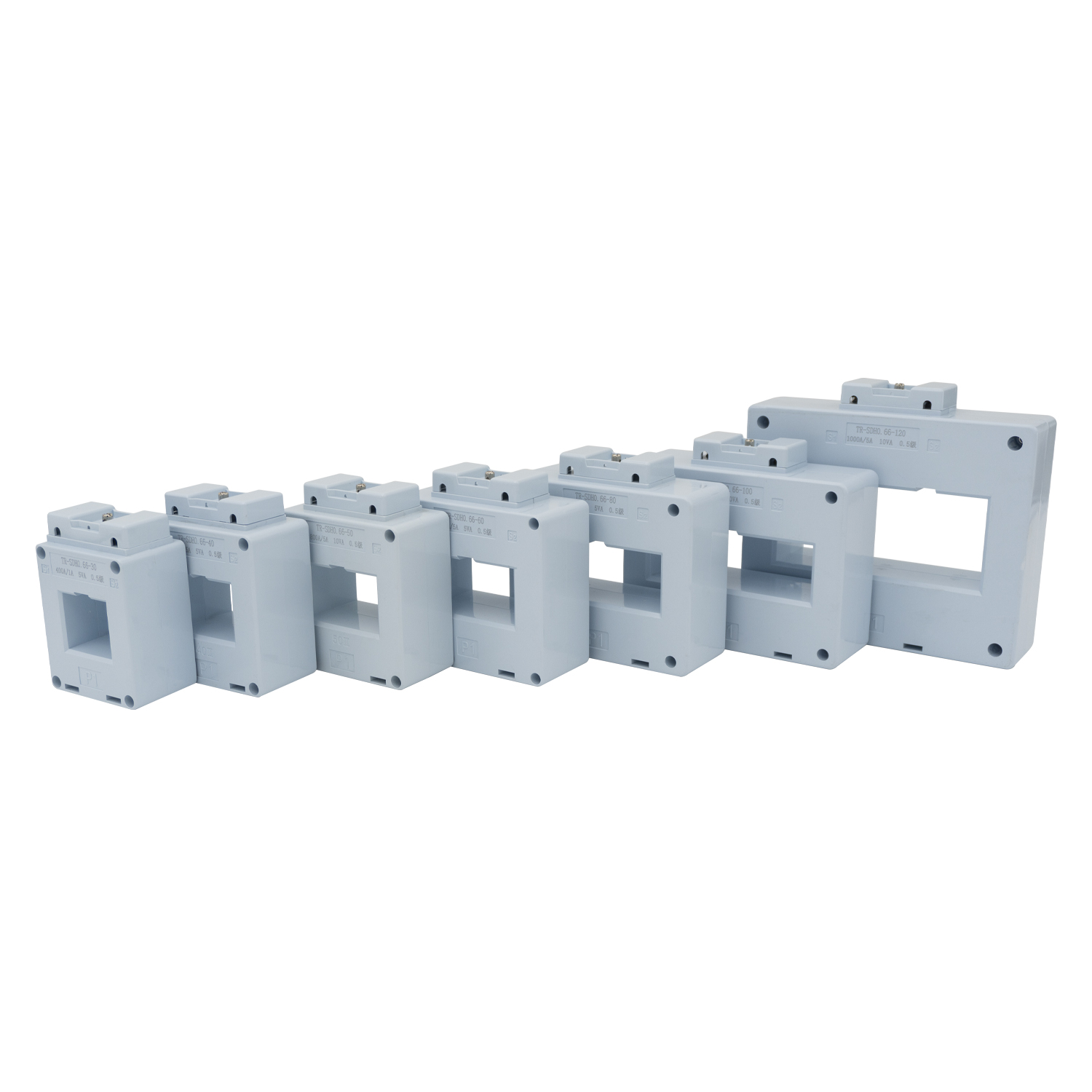

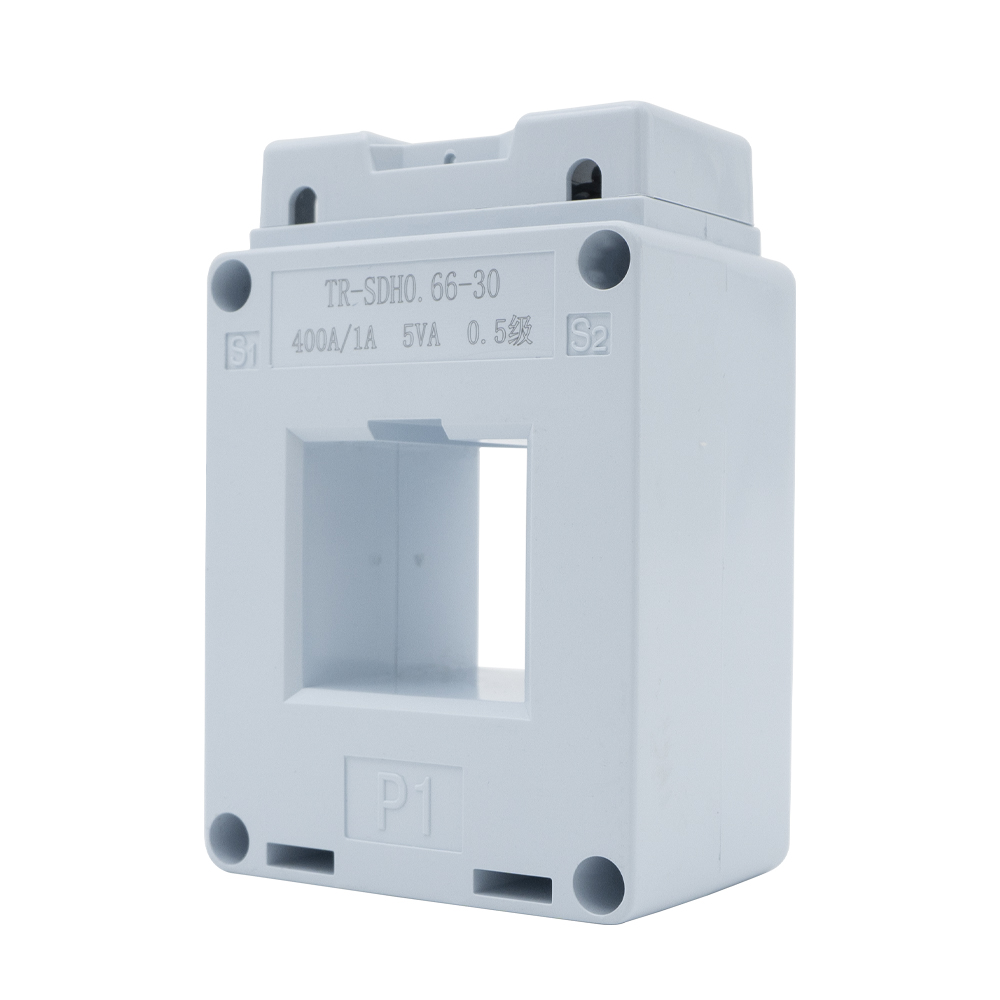

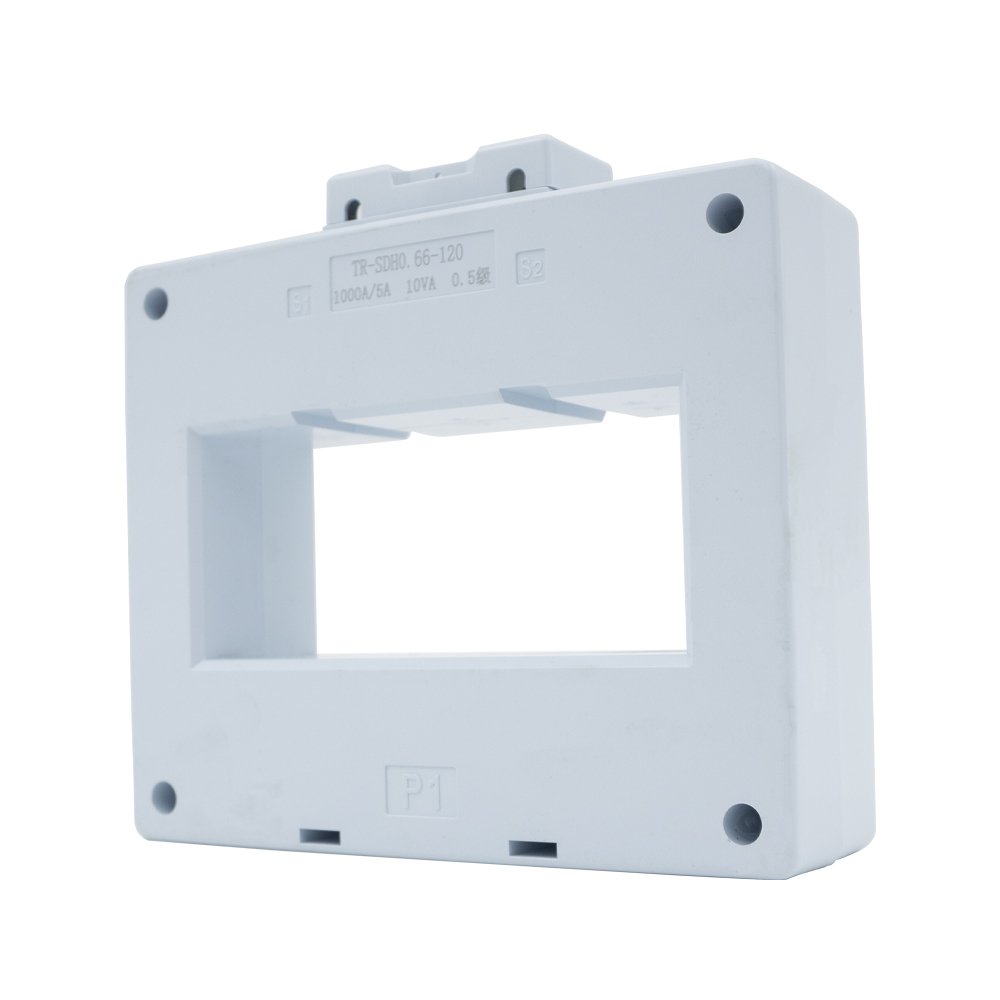

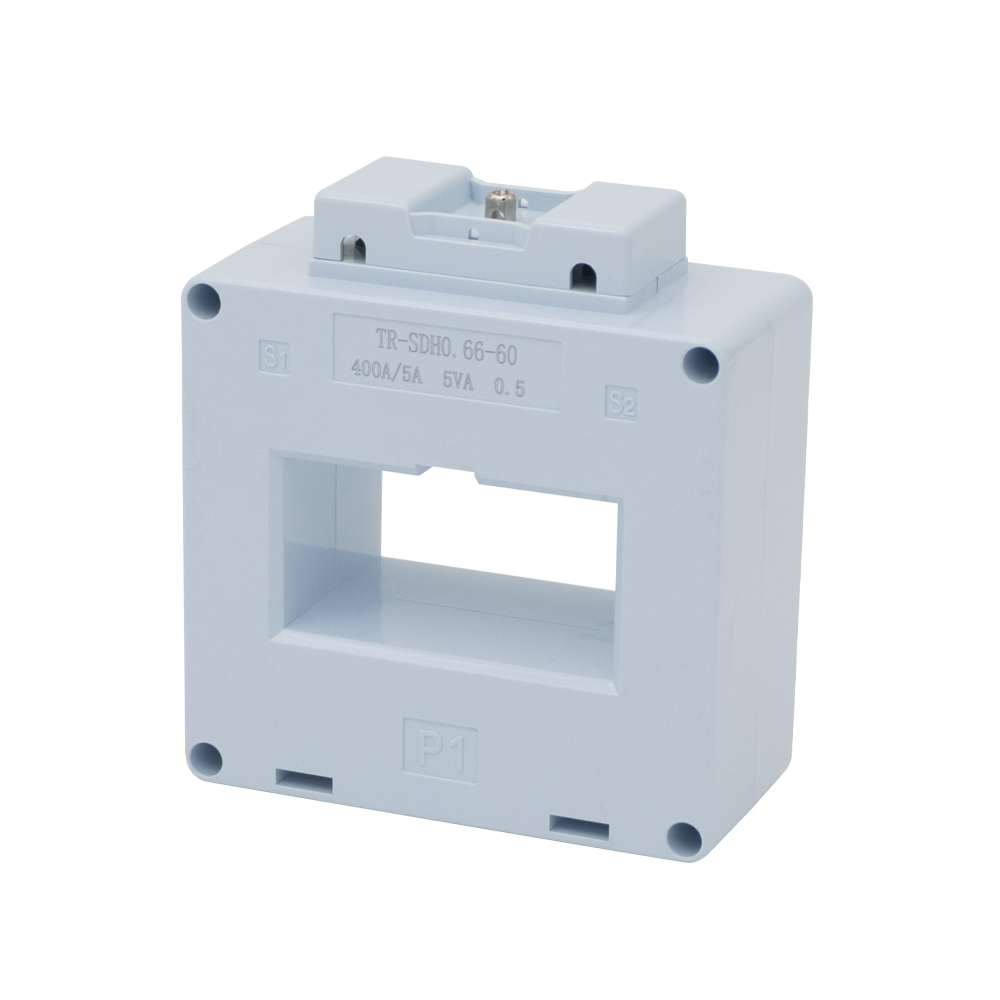

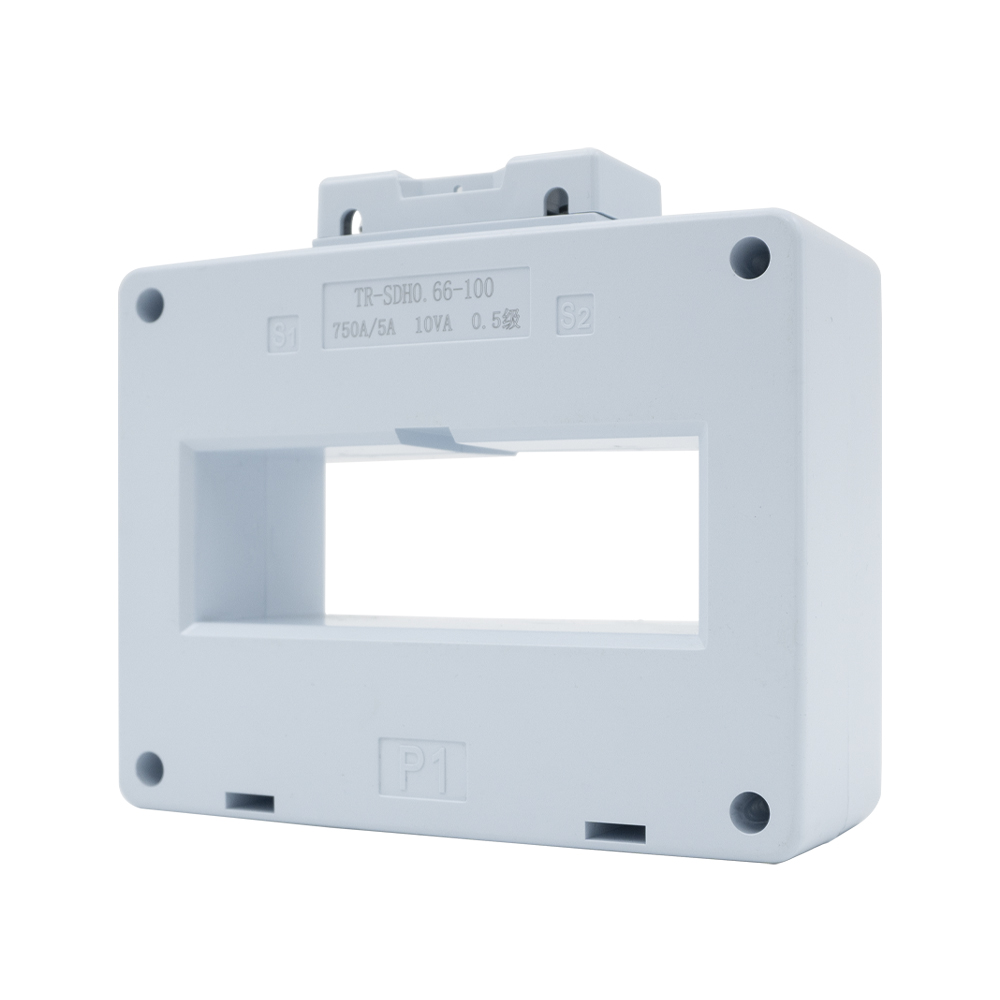

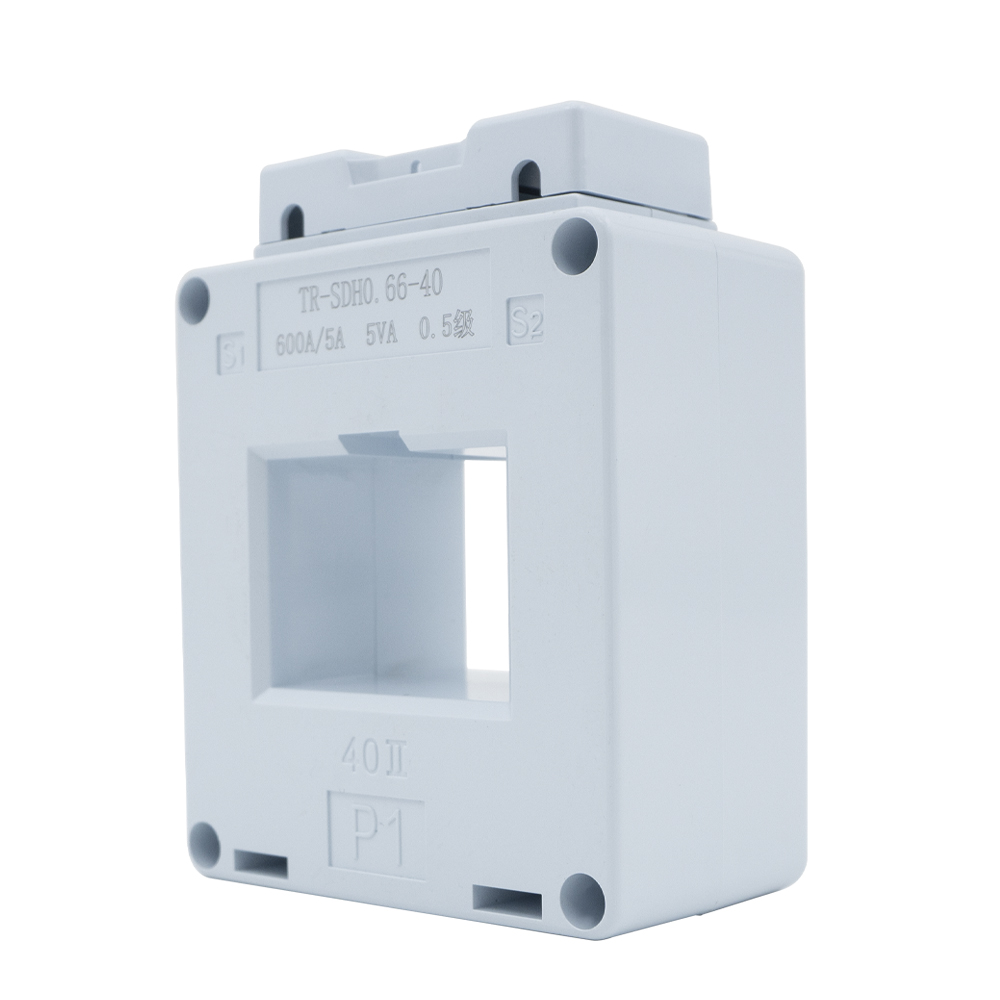

TR-SDH Busbar Type Series Current Transformer

The TR-SDH Busbar Type Series Current Transformer is a specialized CT designed for direct installation on busbars in low-voltage power distribution systems. It converts high primary currents into proportional, manageable secondary currents for metering, monitoring, and protective relays. Featuring a compact structure, easy mounting, and high measurement accuracy, this series ensures safe and efficient operation without interrupting the system. Widely used in switchgear, distribution panels, and energy management systems, the BHSDH Busbar Type Series Current Transformer provides reliable performance, durability, and long service life, making it ideal for modern power networks requiring precise current measurement and dependable protection solutions.
Availability:
Inquire

Product Features

*  Wide current measurement range .

*  High performance indiex ,low cost with good quality.

*  Flexible installation and strong applicability .

*  Support customizatin service.


Product Application

TR-SDH series current transformers are used in the protection test of GCS low-voltage draw-out switchgear, domino combined switchgear and high-power electrical equipment, and are suitable for AC circuits with rated voltage below 0.66kV.


Product Parameters


Electrical performance

Operation Temperature

-40℃～+70℃

Relative Humidity

≤90%

Voltage Level

0.66kV

Power Factor

COSφ=0.8

Rated Input Current

5～6000A

Rated Frequency

50/60Hz

Accuracy Class

0.2S,0.2,0.5,0.5S,1

Working Frequency

50Hz-60Hz

Rated Capacity

2.5～30VA

Power Frequency

Withstand Voltage

3kV AC 2mA/min

Shell

PC plasic

Output Method

Fixed terminal output

Rated Secondary Output

1-5A

Application

Indoor

Primary Turns

1-10T

Tolerance

±1mm


Typical Value

Physical

Products

Current Ratio

Rated Secondary Load(VA)

1.0 Class

0.5 Class

0.5S Class

0.2 Class

0.2S Class
TR-SDH0.66-30
 150/5(1)A 2.5 -- -- -- --
200/5(1)A 2.5 2 -- -- --
250/5(1)A 5 5 2.5 2.5 2.5
300/5(1)A 5 5 5 5 5
400/5(1)A 5 5 5 5 5
TR-SDH0.66-40
 150/5(1)A 5 1.5 -- -- --
200/5(1)A 5 2.5 -- -- --
250/5(1)A 5 5 5 5 5
300/5(1)A 5 5 5 5 5
400/5(1)A 5 5 5 5 5
500/5(1)A 5 5 5 5 5
600/5(1)A 5 5 5 5 5
TR-SDH0.66-50 200/5(1)A 5 5 2.5 2.5 2.5
250/5(1)A 5 5 5 5 5
300/5(1)A 5 5 5 5 5
400/5(1)A 5 5 5 5 5
500/5(1)A 5 5 5 5 5
600/5(1)A 5 5 5 5 5
750/5(1)A 10 10 10 10 10
800/5(1)A 10 10 10 10 10

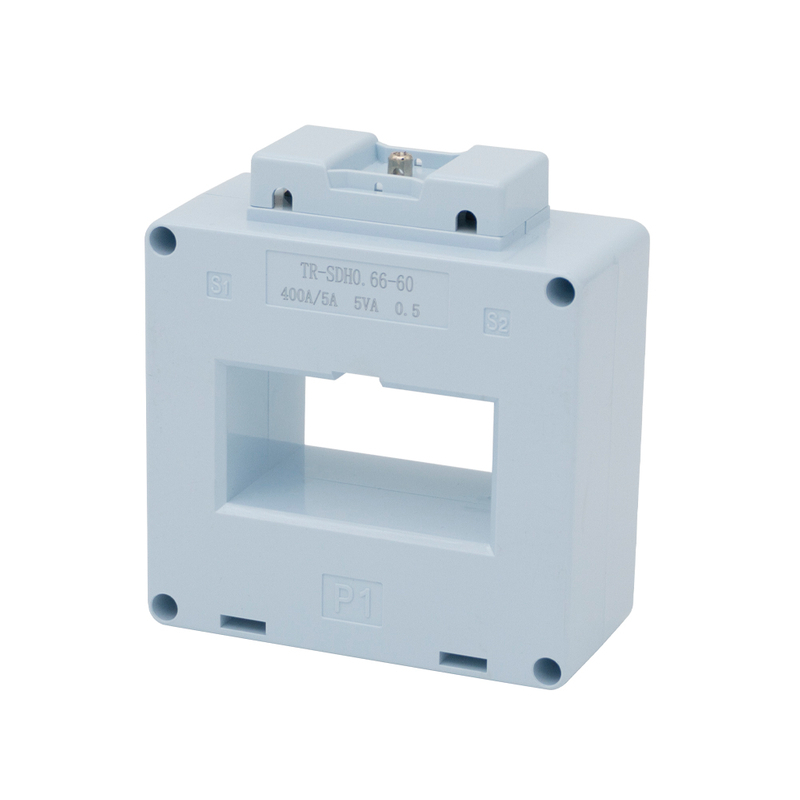

TR-SDH0.66-60 400/5(1)A 5 5 5 5 5
500/5(1)A 5 5 5 5 5
600/5(1)A 5 5 5 5 5
750/5(1)A 10 10 10 10 10
800/5(1)A 10 10 10 10 10
1000/5(1)A 10 10 10 10 10
1200/5(1)A 10 10 10 10 10
1500/5(1)A 10 10 10 10 10
TR-SDH0.66-80
 600/5(1)A 5 5 5 5 5
750/5(1)A 10 10 10 10 10
800/5(1)A 10 10 10 10 10
1000/5(1)A 10 10 10 10 10
1200/5(1)A 10 10 10 10 10
1500/5(1)A 10 10 10 10 10
2000/5(1)A 20 20 20 20 20
TR-SDH0.66-100 750/5(1)A 10 10 10 10 10
800/5(1)A 10 10 10 10 10
1000/5(1)A 10 10 10 10 10
1200/5(1)A 10 10 10 10 10
1500/5(1)A 10 10 10 10 10
2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
TR-SDH0.66-120 1000/5(1)A 10 10 10 10 10
1200/5(1)A 10 10 10 10 10
1500/5(1)A 20 20 20 20 20
2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
TR-SDH0.66-130 800/5(1)A 10 10 -- -- --
1000/5(1)A 10 10 10 10 10
1200/5(1)A 10 10 10 10 10
1500/5(1)A 10 10 10 10 10
2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
5000/5(1)A 30 30 30 30 30
TR-SDH0.66-150 1000/5(1)A 10 10 10 10 10
1200/5(1)A 10 10 10 10 10
1500/5(1)A 10 10 10 10 10
2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
5000/5(1)A 30 30 30 30 30
6000/5(1)A 30 30 30 30 30
TR-SDH0.66-180 1500/5(1)A 10 10 10 10 10
2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
5000/5(1)A 30 30 30 30 30
6000/5(1)A 30 30 30 30 30
TR-SDH0.66-200 2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
5000/5(1)A 30 30 30 30 30
6000/5(1)A 30 30 30 30 30
TR-SDH0.66-220 2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
5000/5(1)A 30 30 30 30 30
6000/5(1)A 30 30 30 30 30
TR-SDH0.66-260 2000/5(1)A 20 20 20 20 20
2500/5(1)A 20 20 20 20 20
3000/5(1)A 20 20 20 20 20
4000/5(1)A 30 30 30 30 30
5000/5(1)A 30 30 30 30 30
6000/5(1)A 30 30 30 30 30

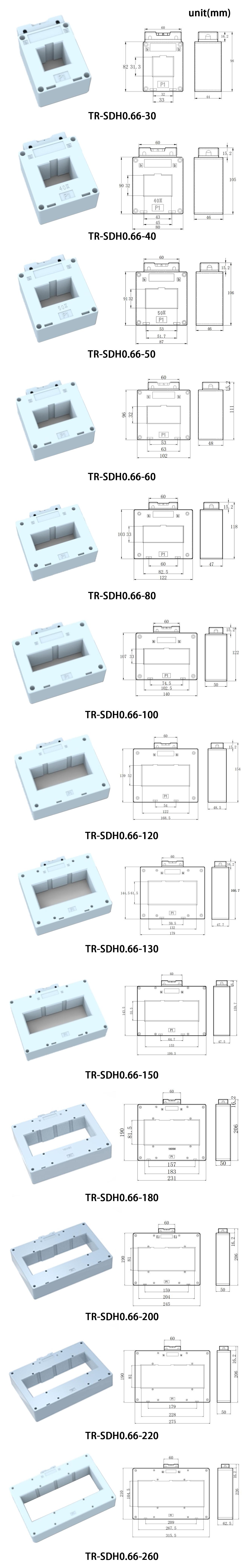

Dimensions(mm)

Low Voltage Current Transformer

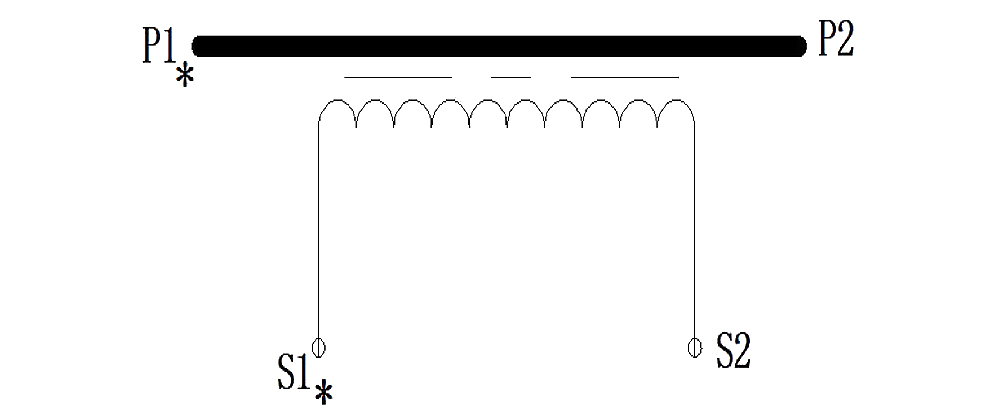

Electrical Schematic Diagram

Low Voltage Current Transformer

download TR-SDH0.66-120.pdf
