In the electrical industry, current transformer (CTs) are often regarded as silent guardians. Although sometimes overlooked, their role in ensuring safe and reliable operation of power systems is indispensable. Today, let’s explore this essential component and its principles, types, and applications.

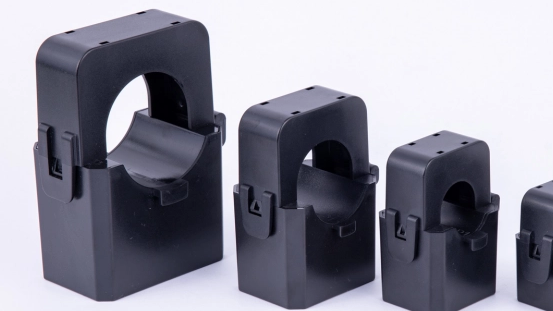

A Current Transformer(CT) is an electrical device that converts high primary currents into proportional low currents. Its main function is to provide small, measurable currents to meters, relays, and protection devices, enabling accurate monitoring, measurement, and protection of power systems.
For example, in a high-voltage system, primary currents may reach thousands of amperes. Direct measurement is impractical and dangerous. By using a CT, the large current can be transformed into a standard 5A or 1A secondary current, safe for measuring instruments and protection devices.
The principle is based on electromagnetic induction. When primary current flows through the CT’s primary winding, it generates an alternating magnetic flux in the core. This flux induces an electromotive force (EMF) in the secondary winding, producing a proportional secondary current.
If a CT has a ratio of 1000:5, a primary current of 1000A corresponds to a 5A secondary current, which can then be safely measured or monitored.
Measuring CTs – High accuracy, used for energy metering and measurement. Accuracy classes include 0.1, 0.2, 0.5, 1.0, etc.
Protection CTs – Designed to perform reliably during faults, providing signals to protective relays. They have strong saturation characteristics to handle high short-circuit currents.
Through-type CTs – Busbars or bushings pass through the CT core; simple structure, widely used in substations.
Post-type CTs – Installed on insulator posts, compact and lightweight; common in outdoor high-voltage equipment.
Bushing-type CTs – Built into transformer or circuit breaker bushings; excellent insulation and reliability.
Dry-type CTs – Epoxy resin or silicone insulation; fireproof, compact, and suitable for indoor use.
Oil-immersed CTs – Use insulating oil; excellent insulation and cooling, but require maintenance.
SF6 Gas-insulated CTs – Compact, lightweight, and reliable, but more expensive and complex to manufacture.
Transformation Ratio – Ratio of primary to secondary current (e.g., 1000:5).
Accuracy Class – Defines measurement precision (0.1, 0.2, 0.5, 1.0, etc.).
Rated Burden (VA) – Maximum allowable secondary load without performance loss.
Saturation Factor – Ability to withstand high fault currents without distortion.
Select installation points based on metering or protection needs.
Choose the correct connection method (single-phase, star, or delta).
Never leave the secondary side open while energized—this can create dangerous high voltages.
Avoid secondary overloading to prevent overheating or measurement errors.
Routine checks – Inspect casing, wiring, and insulation resistance.
Fault handling – Address secondary open circuits, insulation breakdown, or increased error immediately.
Preventive testing – Perform ratio tests, insulation checks, and saturation measurements regularly.
Energy Metering – CTs step down large currents for precise billing in substations.
Relay Protection – Provide input signals to relays during faults for quick tripping.
Industrial Automation – Used in motors, drives, and variable frequency control for overload and short-circuit protection.
Summary:
Current Transformers are indispensable for safe, accurate, and reliable operation of power systems. They enable precise measurement, effective relay protection, and system monitoring.
Future Trends:
Smart CTs – Real-time monitoring, diagnostics, and self-calibration.
Miniaturization – Compact designs for modern switchgear and equipment.
High Precision – Improved accuracy for energy billing and advanced control.
High Reliability – Longer lifespan and better performance under harsh conditions.
CTs will continue to evolve as intelligent, reliable, and efficient components in modern smart grids.
