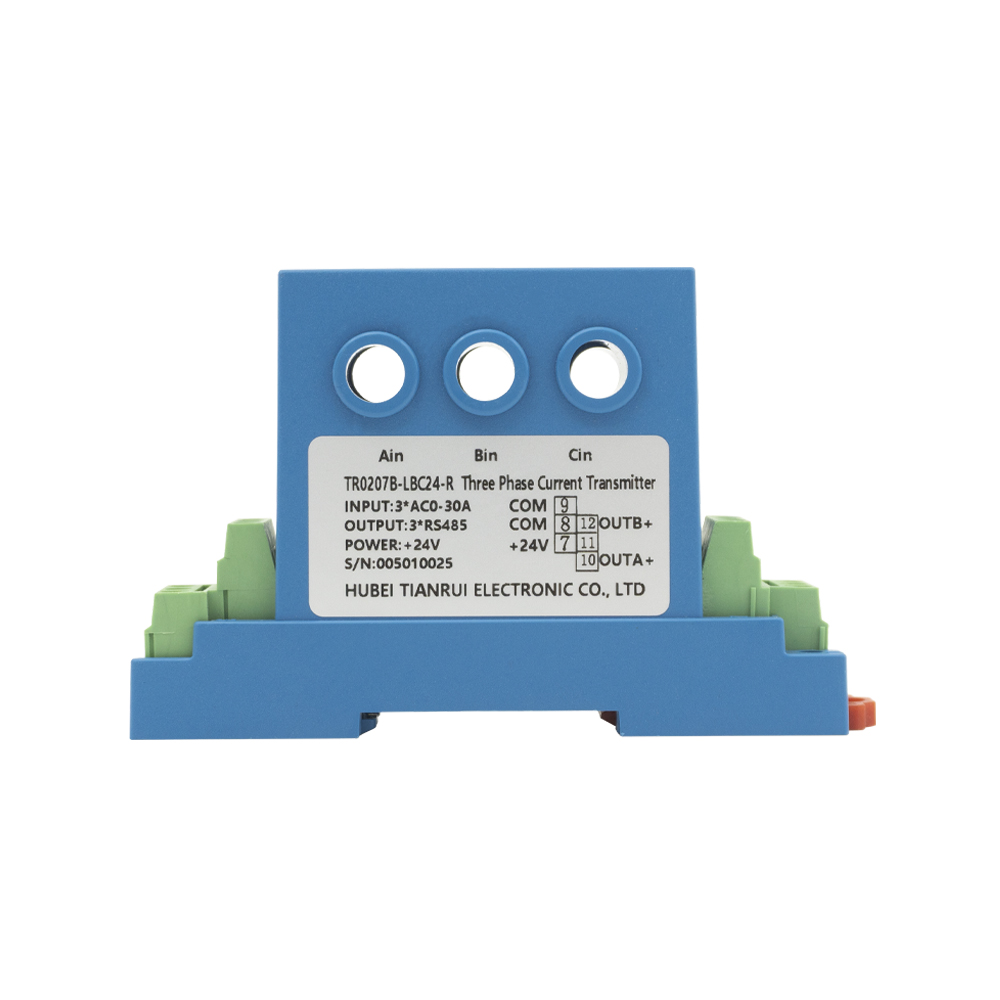

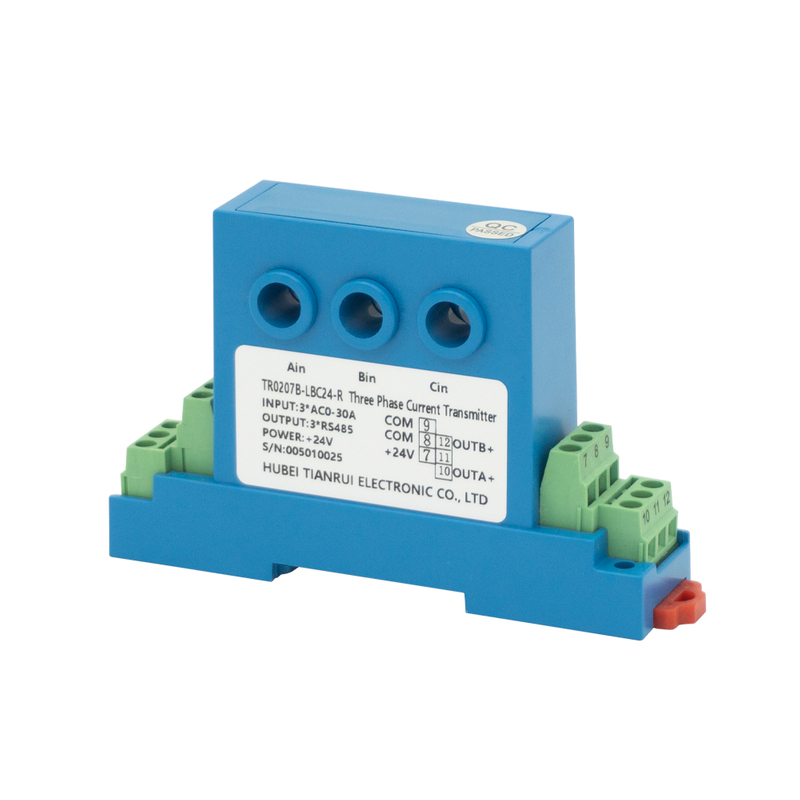

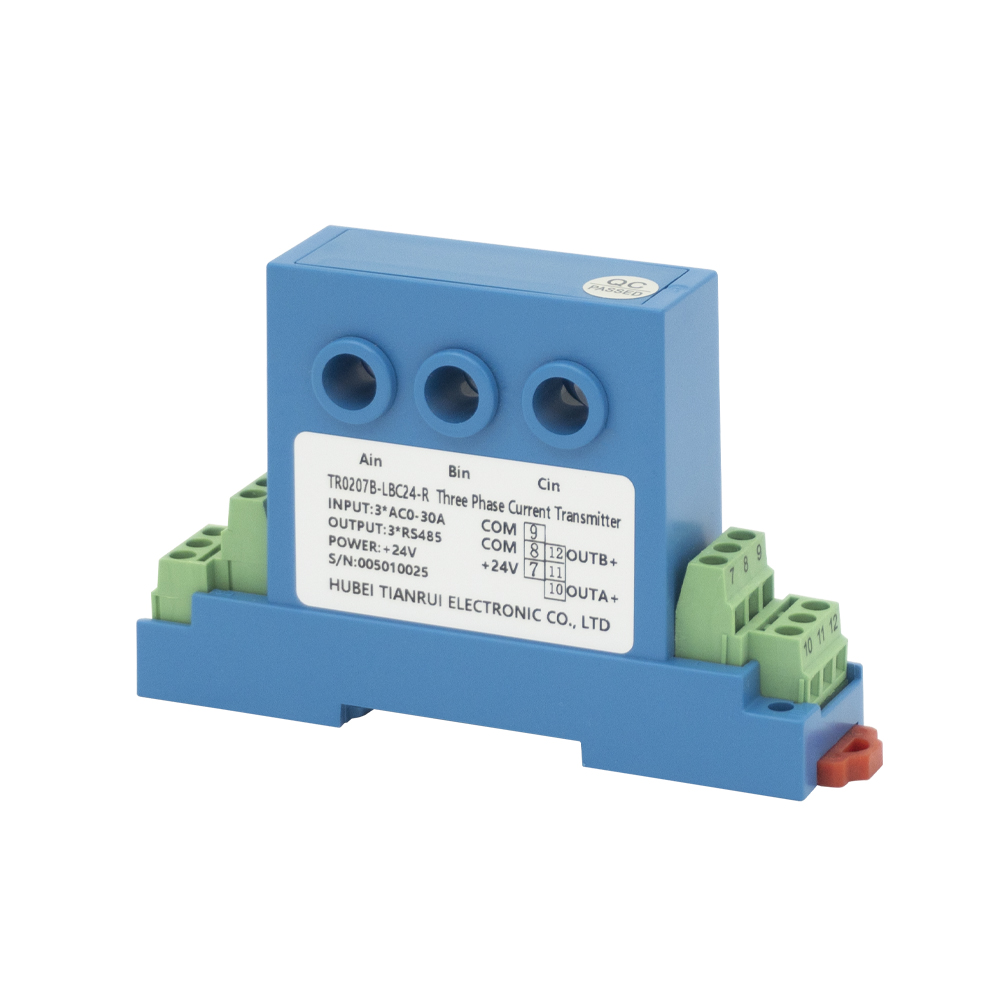

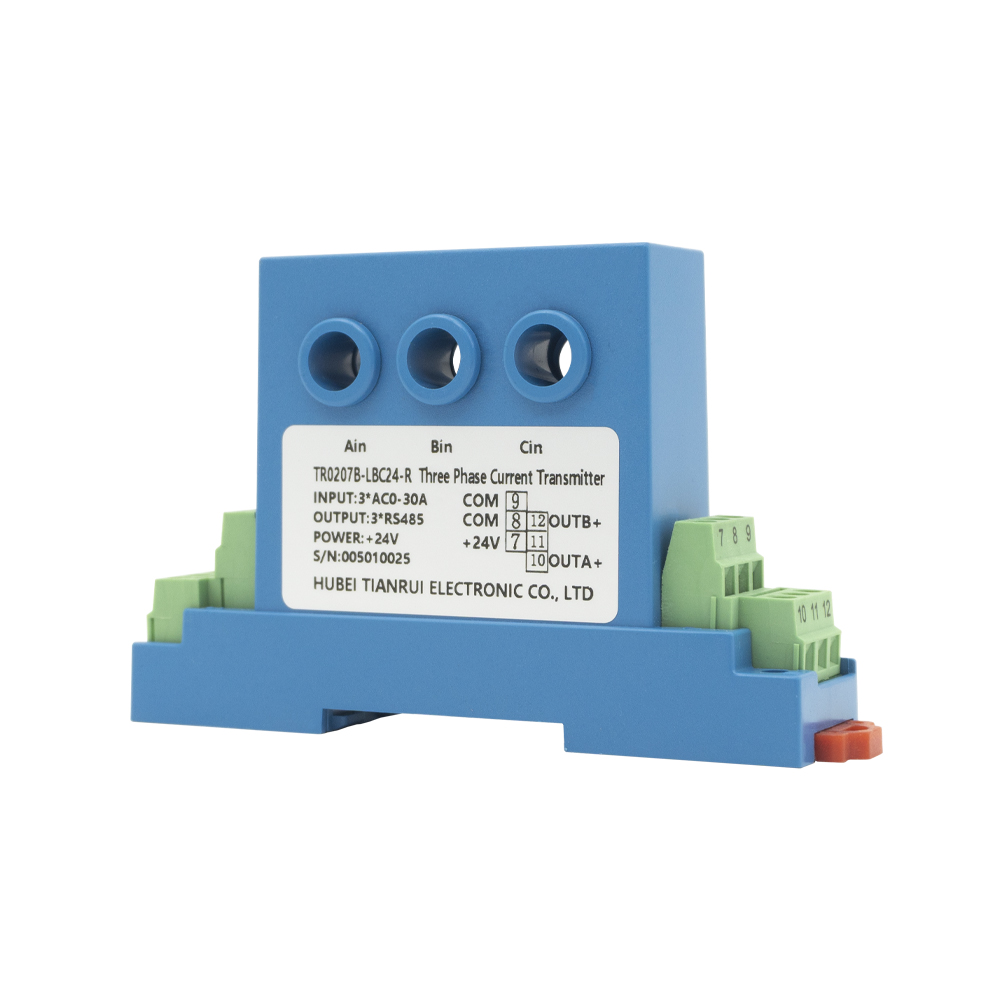

TR0207B-LBC24-R
TR
Product Overview
A current transducer is an essential device designed to measure electrical current and convert it into a precise, standardized output signal that can be easily read by monitoring and control systems. It ensures accurate, stable, and real-time current detection, helping improve system safety, efficiency, and performance. Featuring high accuracy, strong electrical isolation, and rapid response, current transducers are suitable for both AC and DC applications. They are widely used in industrial automation, power distribution units, renewable energy systems, motor monitoring, and energy management platforms. With reliable performance and easy integration into PLCs, meters, and data acquisition equipment, current transducers play a critical role in modern electrical measurement and control.
Product Features
High measurement accuracy and stable output
Strong electrical isolation for enhanced safety
Fast response for dynamic current changes
Wide compatibility with AC and DC systems
Applications
Industrial automation and control systems
Power distribution and electrical panels
Renewable energy monitoring, such as solar and wind
Motor protection, HVAC equipment, and energy management
Technical Data
| Electrical Parameters | Primary Rated Input | 5A 10A 20A 30A AC | Primary Measuring Range | 1.2x Linear Overload |
| Secondary Rated Output | 0-5V, 0-10V,4-20mA, 0-20mA | Power Supply Voltage | 24V DC | |
| Load Capacity | RL≤650Ω | Linearity | 0.10% | |
| Accuracy | 0.50% | Overload Capacity | 10× Rated Input | |
| Power Frequency Withstand Voltage | 2.5kV AC/1min | Offset Current | ≤ 80uA | |
| Temperature Drift | ≤500PPM/℃ | Frequency Bandwith | 40-1kHz | |
| Current Consumption | 15mA+IOUT | Response Time | <200ms | |
| Operating Environment | Ambient Operating Temperature | -10℃-+70℃ | Ambient Storage Temperature | -25℃-+85℃ |
Product Overview
A current transducer is an essential device designed to measure electrical current and convert it into a precise, standardized output signal that can be easily read by monitoring and control systems. It ensures accurate, stable, and real-time current detection, helping improve system safety, efficiency, and performance. Featuring high accuracy, strong electrical isolation, and rapid response, current transducers are suitable for both AC and DC applications. They are widely used in industrial automation, power distribution units, renewable energy systems, motor monitoring, and energy management platforms. With reliable performance and easy integration into PLCs, meters, and data acquisition equipment, current transducers play a critical role in modern electrical measurement and control.
Product Features
High measurement accuracy and stable output
Strong electrical isolation for enhanced safety
Fast response for dynamic current changes
Wide compatibility with AC and DC systems
Applications
Industrial automation and control systems
Power distribution and electrical panels
Renewable energy monitoring, such as solar and wind
Motor protection, HVAC equipment, and energy management
Technical Data
| Electrical Parameters | Primary Rated Input | 5A 10A 20A 30A AC | Primary Measuring Range | 1.2x Linear Overload |
| Secondary Rated Output | 0-5V, 0-10V,4-20mA, 0-20mA | Power Supply Voltage | 24V DC | |
| Load Capacity | RL≤650Ω | Linearity | 0.10% | |
| Accuracy | 0.50% | Overload Capacity | 10× Rated Input | |
| Power Frequency Withstand Voltage | 2.5kV AC/1min | Offset Current | ≤ 80uA | |
| Temperature Drift | ≤500PPM/℃ | Frequency Bandwith | 40-1kHz | |
| Current Consumption | 15mA+IOUT | Response Time | <200ms | |
| Operating Environment | Ambient Operating Temperature | -10℃-+70℃ | Ambient Storage Temperature | -25℃-+85℃ |
