High-Precision Current Transducer Solutions And Application Fields

A high-precision current transducer is an advanced device designed to accurately measure electrical current and convert it into a proportional signal suitable for monitoring, protection, or control purposes. Unlike conventional current transformers, these transducers combine precision sensing technologies with modern signal conditioning circuits to ensure excellent accuracy, stability, and reliability. They are essential components in applications where even small deviations in measurement can lead to significant performance, efficiency, or safety issues.

Core Principles and Features

High-precision current transducers typically use advanced sensing technologies such as Hall-effect sensors, fluxgate technology, Rogowski coils, or hybrid designs that combine magnetic and electronic methods. These solutions are optimized for:

1. Accuracy and Linearity – Measurement errors are minimized, ensuring precise monitoring across the entire dynamic range.

2. Wide Bandwidth – Capable of capturing both low-frequency and high-frequency current signals, suitable for AC, DC, or pulsed currents.

3. Isolation – Galvanic isolation between the primary circuit and the measurement output enhances safety and reduces interference.

4. Low Temperature Drift – Stable performance over a wide temperature range ensures consistent accuracy in harsh environments.

5. Compact and Modular Design – Modern current transducers are lightweight, easy to integrate, and adaptable to different system configurations.

Solution Approaches

The development of high-precision current transducer solutions often involves combining sensing methods with digital signal processing (DSP) and calibration techniques. Common approaches include:

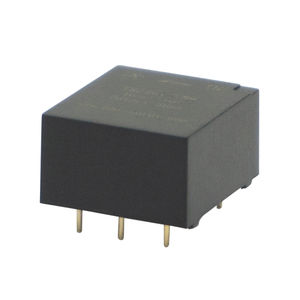

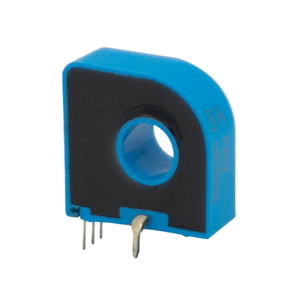

• Closed-Loop (Compensated) Systems: These utilize feedback coils to cancel the magnetic flux in the sensor core, achieving superior linearity and precision.

• Digital Output Solutions: Incorporating digital interfaces such as RS485, CAN, or Modbus allows for seamless integration with smart grids, automation systems, and industrial IoT platforms.

• Customizable Configurations: Solutions can be tailored to specific requirements, such as higher current ranges, specific voltage levels, or compact enclosures for space-constrained environments.

• EMC Shielding and Filtering: Advanced shielding reduces noise and ensures signal integrity in electrically noisy environments, such as railways or power substations.

These solution strategies enable industries to achieve accurate energy monitoring, optimize performance, and ensure compliance with international standards.

Application Fields

1. Smart Grids and Power Distribution
   High-precision current transducers are critical in the monitoring and control of modern power networks. They ensure accurate measurement of current flow in transmission lines, substations, and distribution systems. By providing precise data, they help balance loads, detect anomalies, and improve energy efficiency. They are also key for renewable energy integration, where real-time measurement supports grid stability.

2. Renewable Energy Systems
   In solar power plants and wind farms, current transducers monitor generation and feed-in to the grid. Their high accuracy ensures optimal inverter performance, maximizes efficiency, and supports fault detection. For example, in photovoltaic systems, accurate DC current measurement is vital for detecting string failures or shading effects.

3. Industrial Automation and Motor Control
   Factories rely on high-precision current measurement for motor drives, robotics, and process control. Transducers help detect overloads, prevent downtime, and optimize energy usage. In variable frequency drives (VFDs), they ensure smooth operation by continuously monitoring motor currents and providing feedback for closed-loop control systems.

4. Electric Vehicles (EVs) and Charging Infrastructure
   High-precision current transducers are fundamental in EV powertrains, battery management systems (BMS), and charging stations. They enable accurate current monitoring for charging cycles, battery protection, and regenerative braking systems. In fast-charging applications, their reliability ensures safe and efficient energy transfer.

5. Medical Equipment
   In medical imaging systems such as MRI or CT scanners, high-precision current transducers provide accurate monitoring of current supply, ensuring stable operation and patient safety. Precision is critical here, as even slight current fluctuations can affect image quality or machine performance.

6. Railway and Transportation Systems
   Current transducers support railway traction systems, power electronics, and on-board converters. Their ability to withstand harsh conditions while maintaining accuracy ensures reliable operation in locomotives and urban transit systems. Monitoring traction current also helps improve energy efficiency and system safety.

7. Test and Measurement Equipment
   High-end laboratories and research facilities require current transducers with exceptional accuracy for equipment calibration, performance verification, and fault diagnosis. They are widely used in power analyzers, oscilloscopes, and laboratory instruments where precision data acquisition is essential.




8.

Future Trends

The demand for high-precision current is expected to grow with the expansion of smart grids, electrification of transportation, and renewable energy systems. Key trends include:

• Integration with AI and IoT for predictive maintenance and real-time analytics.

• Miniaturization to support compact devices and portable solutions.

• Higher bandwidth and faster response times to meet the needs of modern high-frequency power electronics.

• Eco-friendly designs that reduce power consumption and support sustainable practices.

Conclusion

High-precision current transducers play a vital role in modern electrical and electronic systems. Their ability to provide reliable, accurate, and isolated current measurements makes them indispensable in critical fields ranging from smart grids to medical equipment. As industries continue to demand higher efficiency, safety, and intelligence, innovative solutions in current transducer technology will remain at the forefront of energy management and advanced engineering applications.
