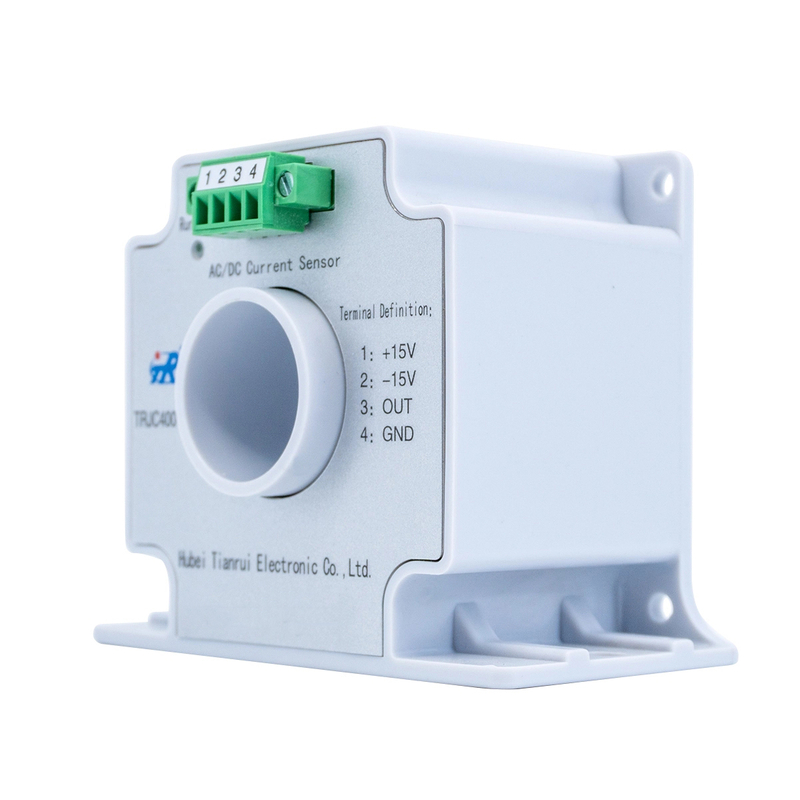

TRJC400-26A
TR
Product Overview
A High Accuracy Current Sensor is designed to precisely measure AC and DC current with minimal error and excellent stability. It converts the measured current into a proportional voltage or current signal for accurate monitoring and control. Using advanced technologies such as Hall effect or closed-loop zero-flux methods, it ensures high linearity, low temperature drift, and fast response. These sensors are widely used in power electronics, industrial automation, renewable energy systems, and electric vehicles. With high reliability, compact design, and strong anti-interference capability, high accuracy current sensors provide precise current measurement for efficient and safe system operation.
Product Features
* Multichannel magnetic compensation feedback.
* Tiny misaligned currents.
* Superior linearity.
* High isolation withstand.
* Small error between input & output.
* Wide Frequency bandwidth.
* Fast response speed.
* High-resolution.
* Low temperature drift.
Product Application
* New energy detection.
* Substitute hall products.
* Power electronic measurement.
* Industrial control and measurement.
* Medical facility.
* Standard for laboratory testing.
* Rail traffic.
* instruments and apparatus.
Product Parameters
Type | Symbol | Test condition | Min | Rated | Max | Unit |
Measuring Range | IPM | -- | -- | ±400 | ±480 | A DC |
Power Supply | Vc | Full range | ±14.5 | ±15 | ±15.5 | V DC |
Current Consumption | Ic | Within the IPM range | ±40 | ±240 | ±280 | mA |
Ratio | KN | Input：Output | 2000:1 | -- | ||
Rated Output Current | ISN | Primary rated current | -- | ±200 | -- | mA |
Measuring Resistance | RM | Refer to Pic.1 | -- | 5 | 12 | Ω |
Precision | Xe | 25±10℃ | -- | -- | 0.02 | % |
Linearity | εL | -- | -- | -- | 20 | ppm |
Temperature Drift Coefficient | TCIOUT | -- | -- | -- | 0.1 | ppm/K |
Zero Offset Current | Io | 25±10℃ | -- | -- | ±5 | uA |
Zero Offset Current | IoT | Full operating temperature range | -- | -- | ±10 | uA |
Ripple Current | In | DC-10Hz | -- | -- | 2 | uA |
Dynamic Response Time | tr | 5% up to 90%IPN | -- | -- | 1 | us |
di/dt Accurately Followed | di/dt | -- | 200 | -- | -- | A/us |
Frequency Bandwidth(- 3 dB) | F | -- | 0 | -- | 100 | kHz |
Note: The rated current is rms current when measuring AC
General Characteristic
Type | Symbol | Test condition | Min | Nominal | Max | Unit |
Operating Temperature Range | TA | -- | -40 | -- | +85 | ℃ |
Storage Temperature Range | TS | -- | -55 | -- | +100 | ℃ |
Output Status Indication Signal | -- | When the output status indicator light (green LED) is on, it means that the product works normally, and the input current of the busbar does not exceed its bearing capacity; When the output status indicator light is off, it indicates that the product is not working properly or the input current value of the busbar is beyond its capacity. | ||||
Security Feature
Type | Symbol | Test condition | Min | Nominal | Max | Unit | |
Isolated Voltage Withstand | Between the primary and secondary | Vd | 50Hz,1min | -- | 2.5 | -- | kV |
Transient Isolation Withstand Voltage | Between the primary and secondary | Vw | 50us | -- | 5 | -- | kV |
This product is molded part, PC material, tolerance of shape and dimensions in accordance with GB/T14486-2008 MT6;
Terminal output type, connected to 2EDGKM3.81-4P terminal.
