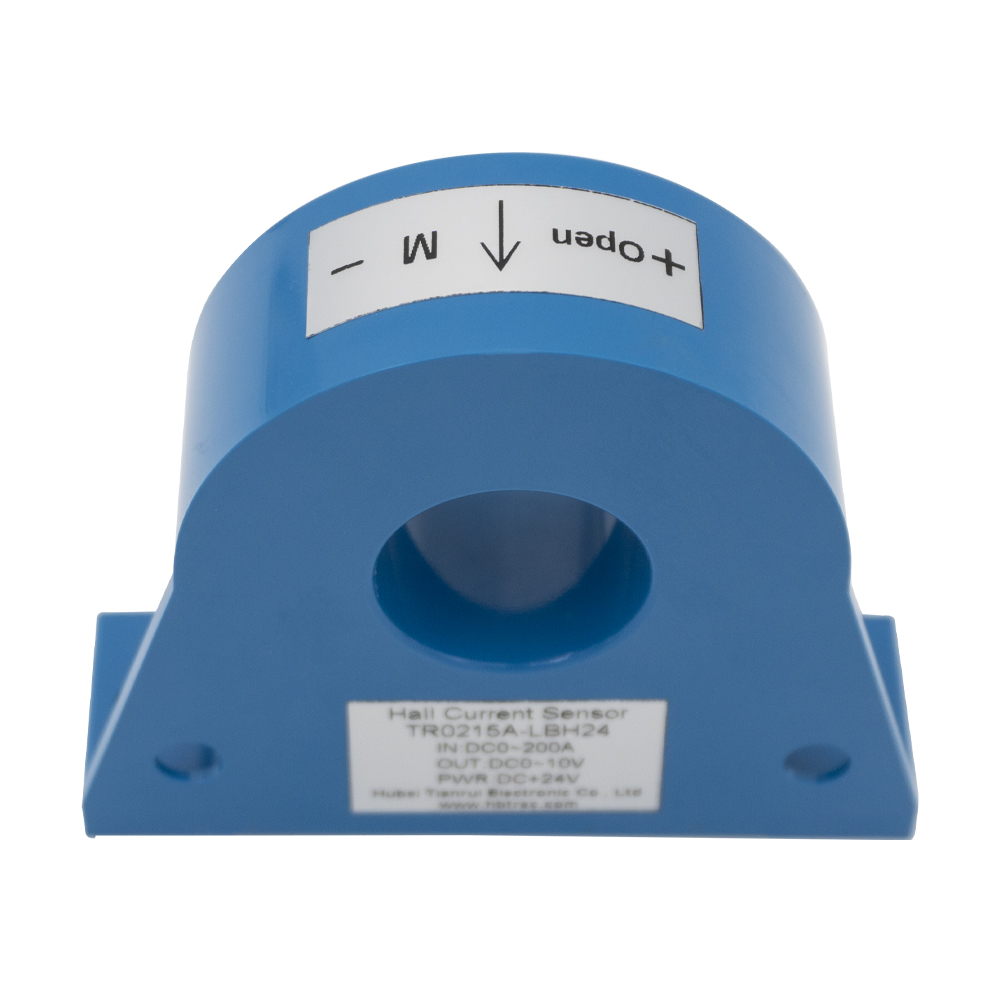

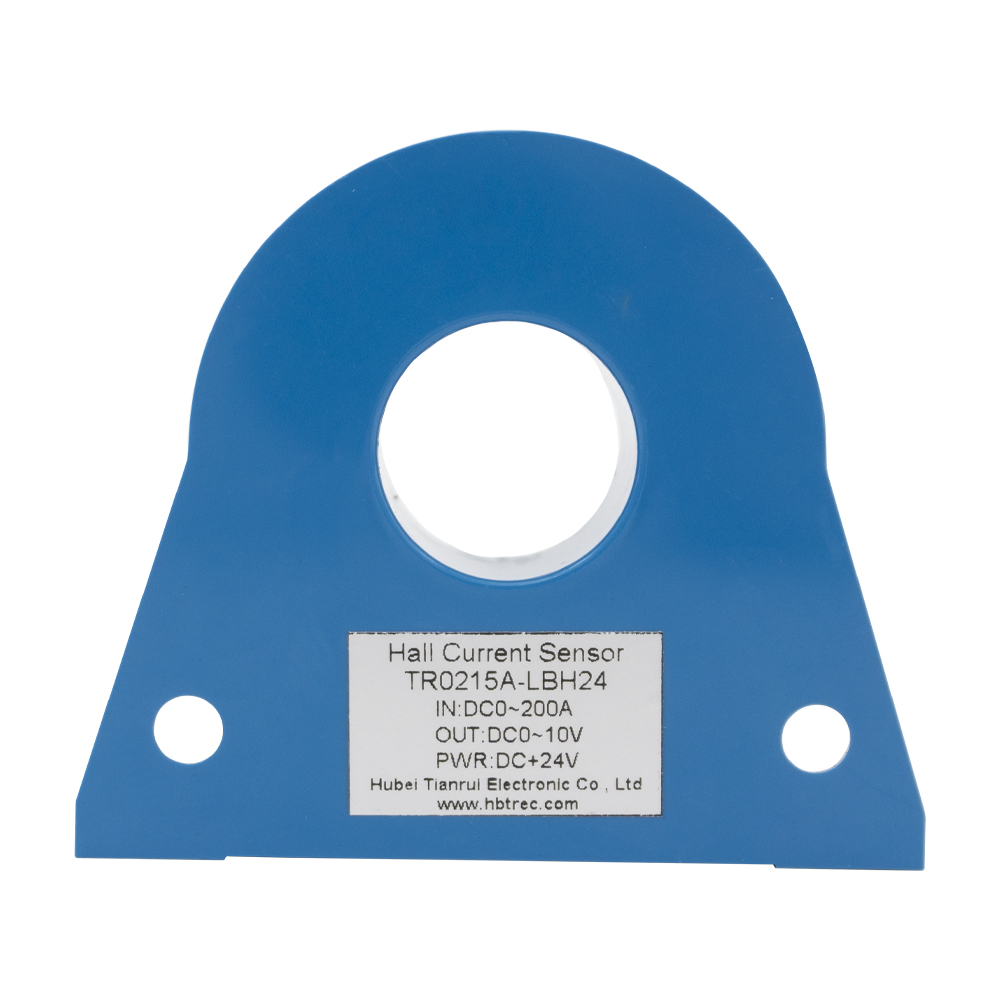

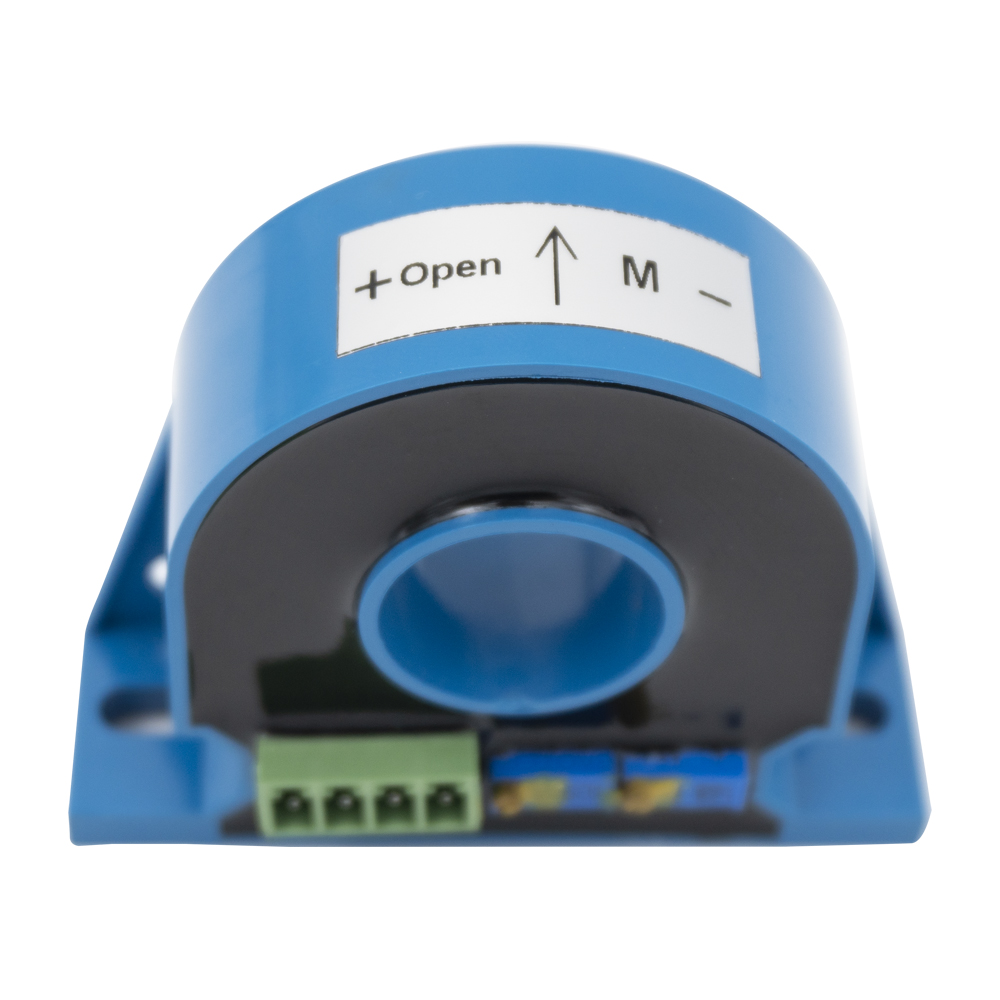

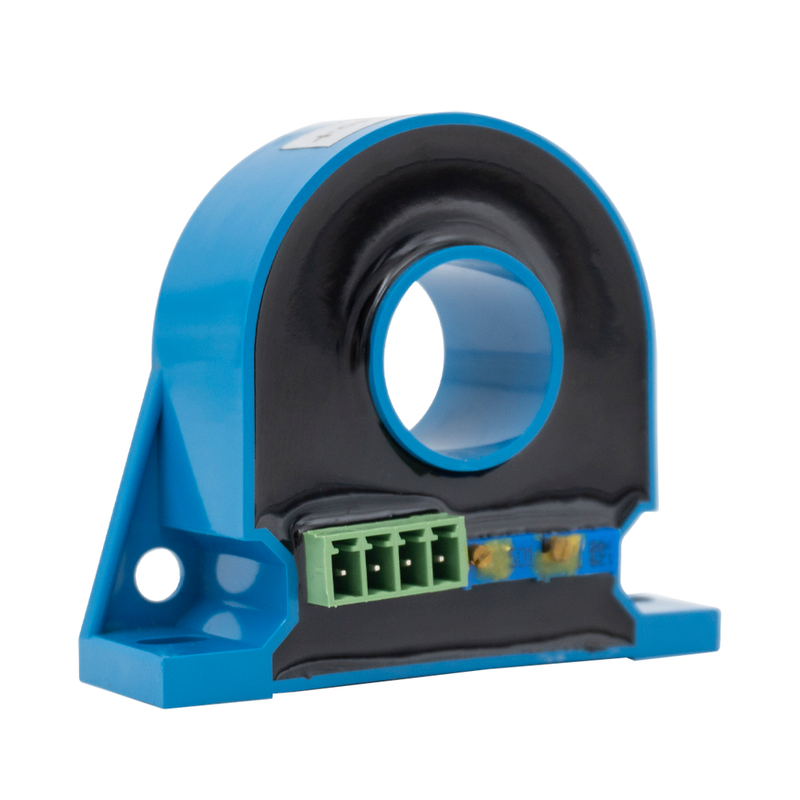

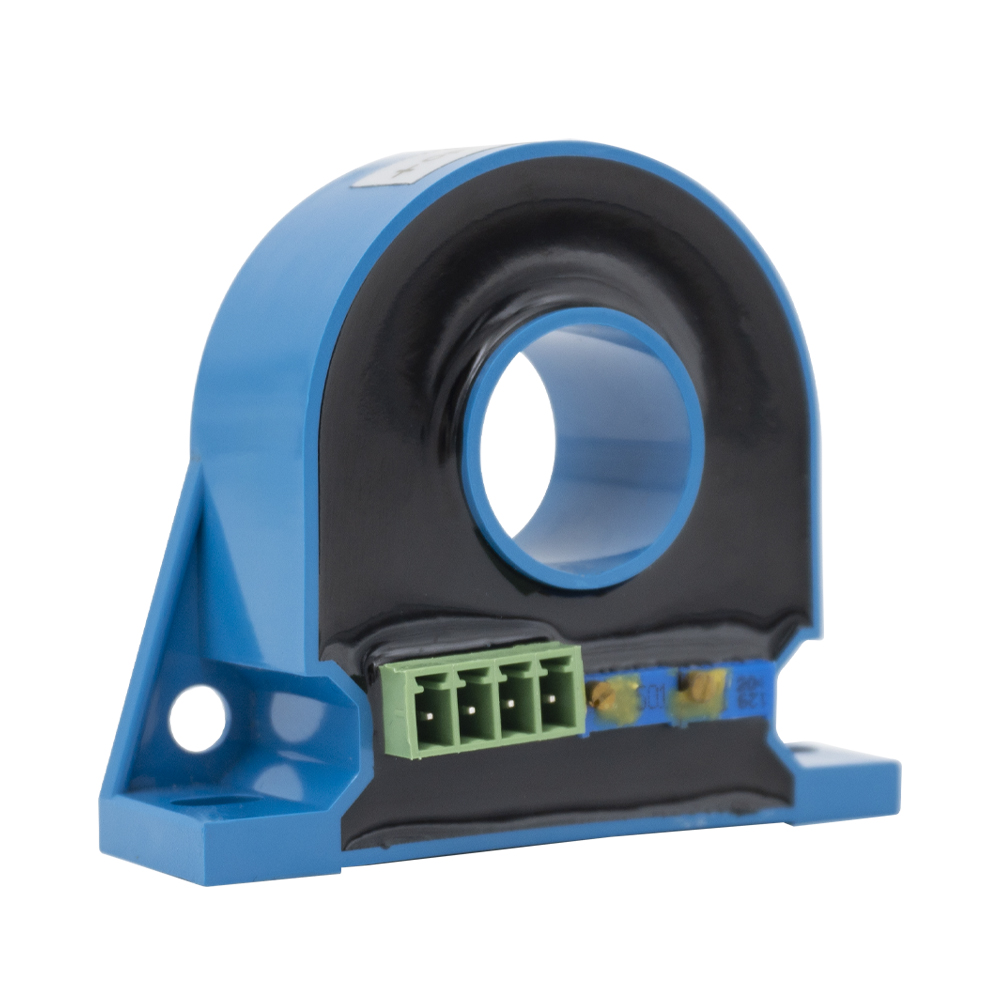

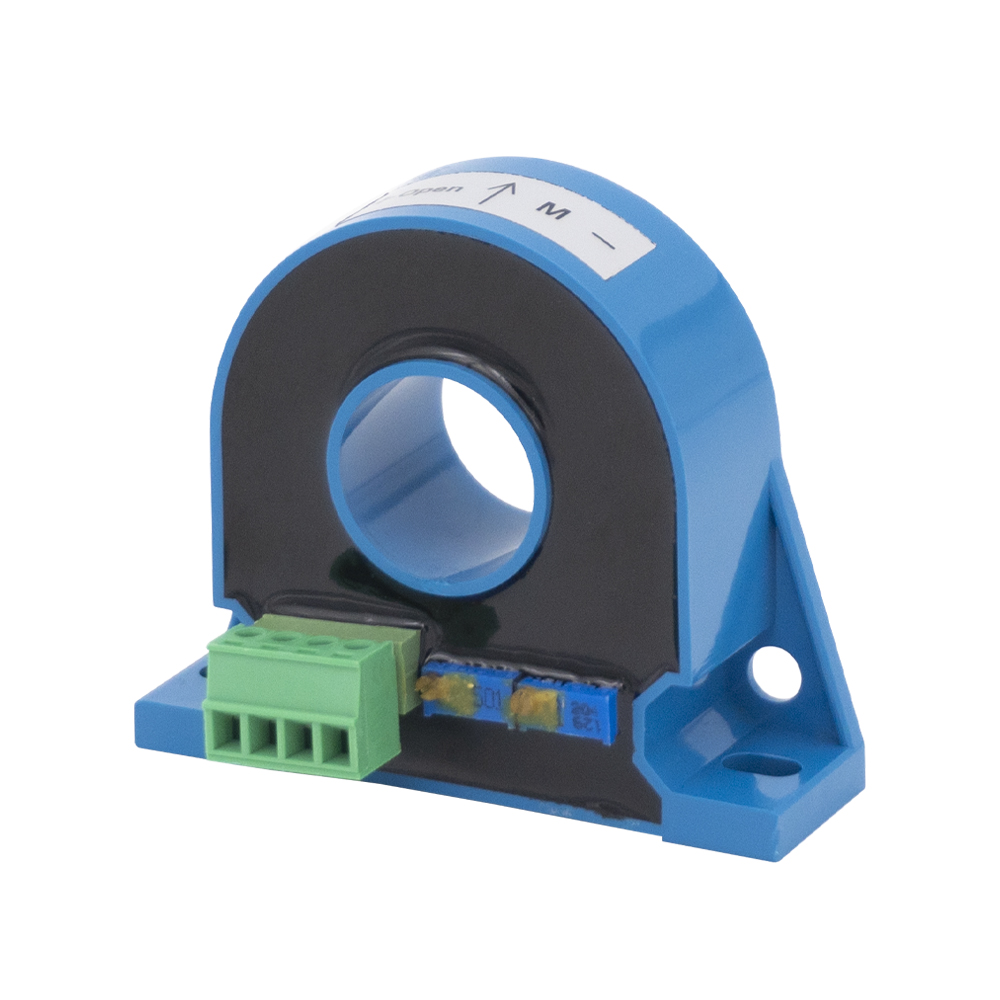

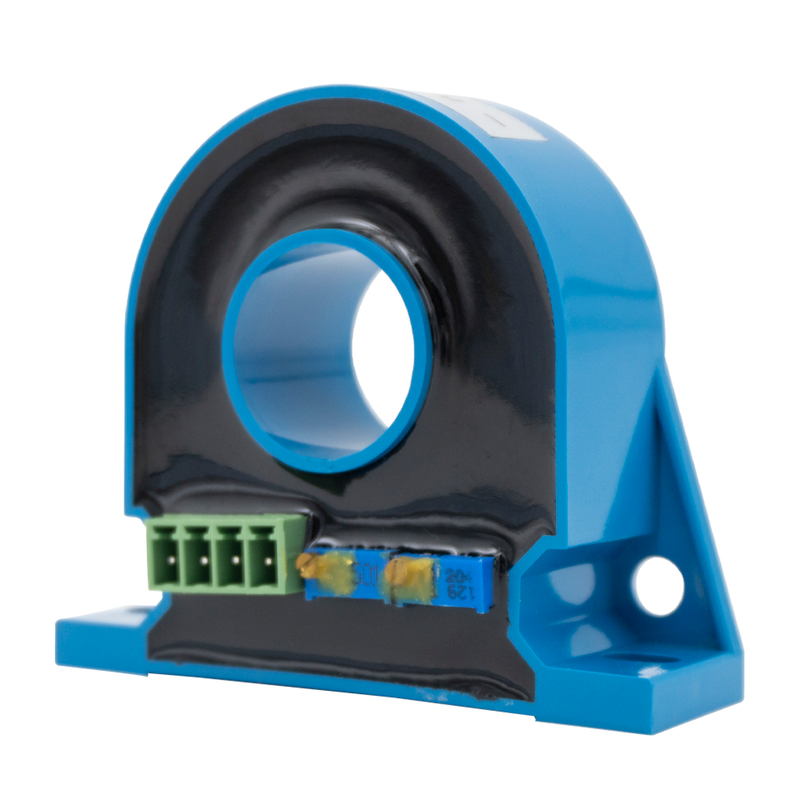

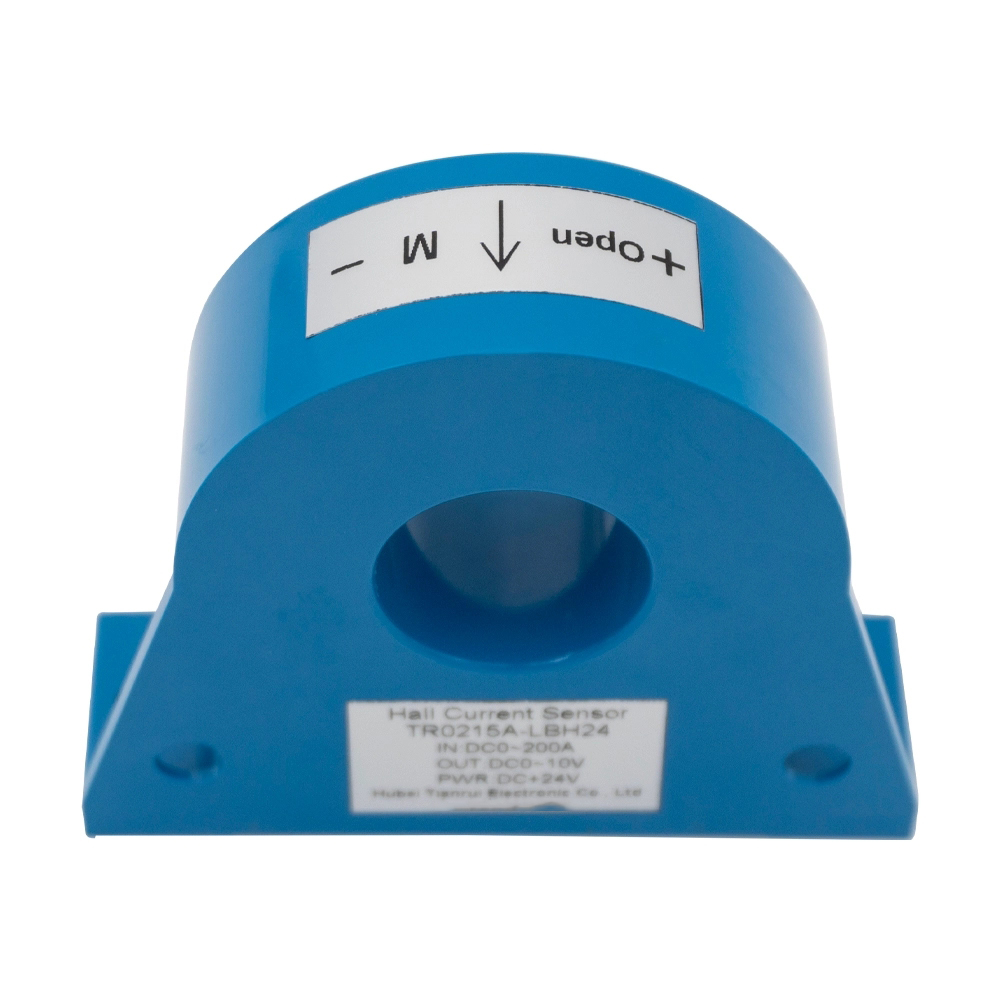

TR0215A-LBH24
TR
Products Features
* Capable of measuring AC, DC and pulse signals.
* Strong interference immunity with high CMRR.
* Low drift, fast response , wide bandwidth.
* Non-invasive through-hole design (zero insertion loss).
Product Application
* AC variable frequency drive systems.
* Servo motor traction control.
* Uninterruptible power supplies (UPS).
* Welding equipment & battery power systems.
Download Size Sheet

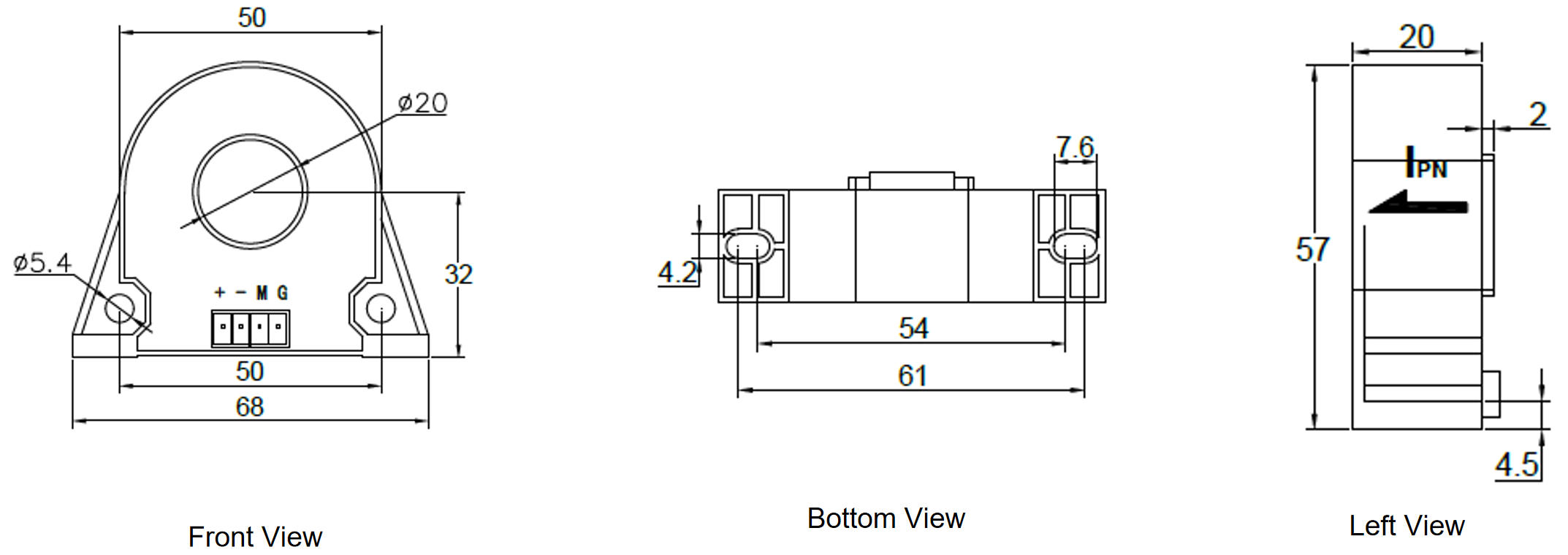

Mechanical Dimension(mm)

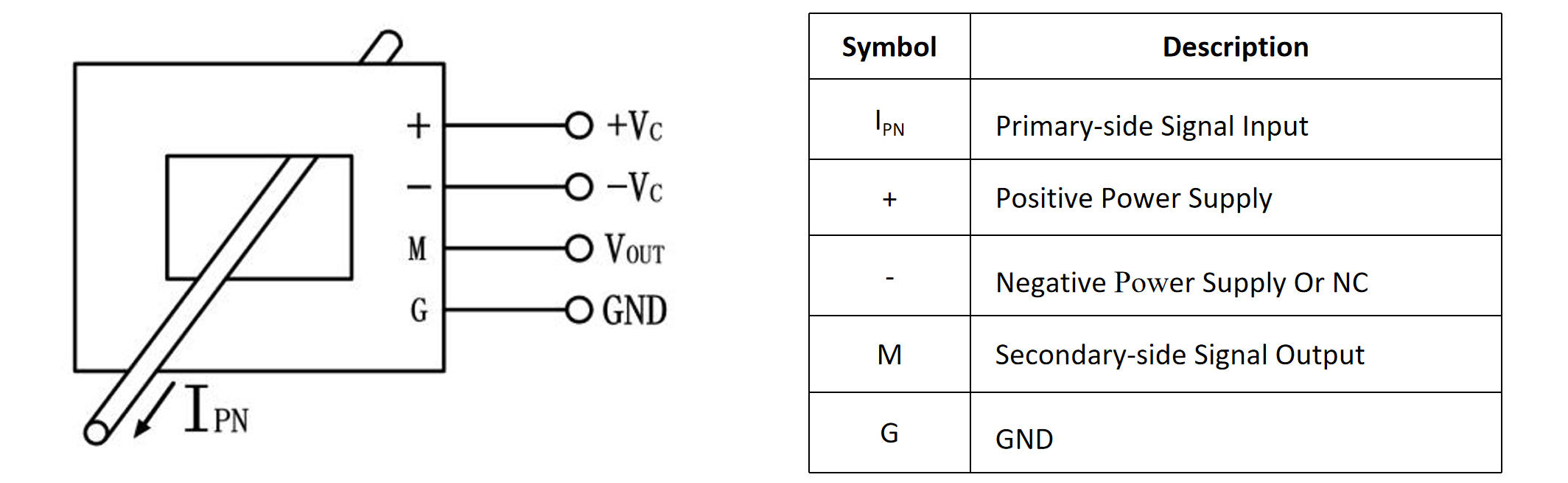

Circuit Connection Diagram
Product Parameters
@TA=25℃,unless otherwise stated
Type | TR0215A-LBH24 | |
IPN | Primary Rated Input Current | DC 200A |
IP | Primary Current Measure Range | DC 0~240A |
VSN | Secondary Rated Output Voltage | DC 10V |
UC | The Power Supply Voltage | DC +24V |
Power | 0.5W | |
X | Accuracy | ±1% |
BW | Frequency Bandwith | DC~20kHz |
Overload Capacity | 10 times | |
Ud | Power Frequency Withstand Voltage | 5kV AC/1min |
tr | Response Time | ≤10μs |
V0 | Offset Voltage | ≤30mV |
Temperature Drift | Maximum ≤±0.8%/°C | |
TA | Ambient Operating Temperature | -25℃~+70℃ |
TS | Ambient Storage Temperature | -40℃~+85℃ |
