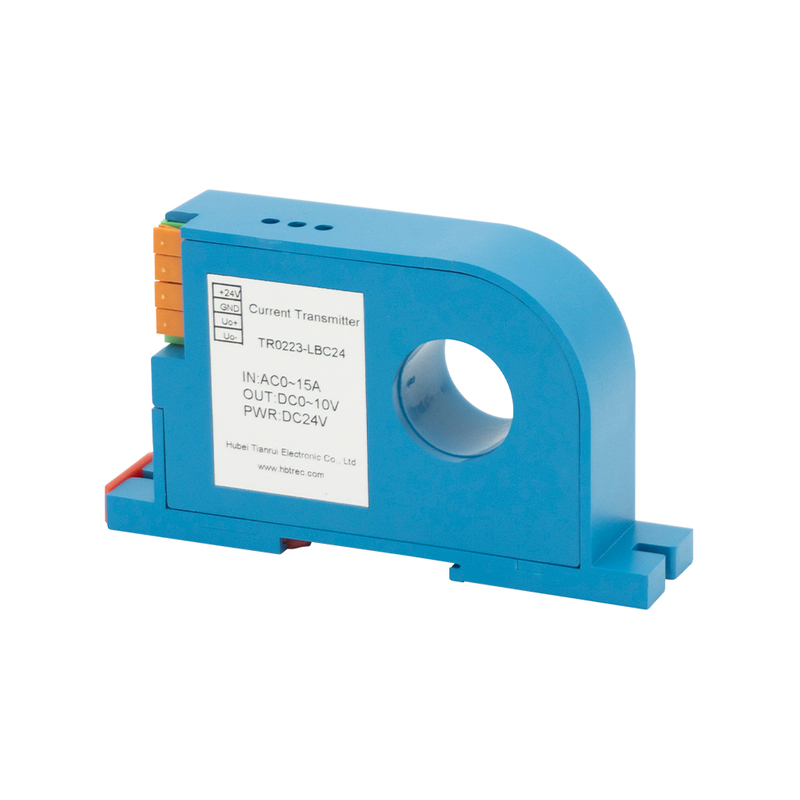

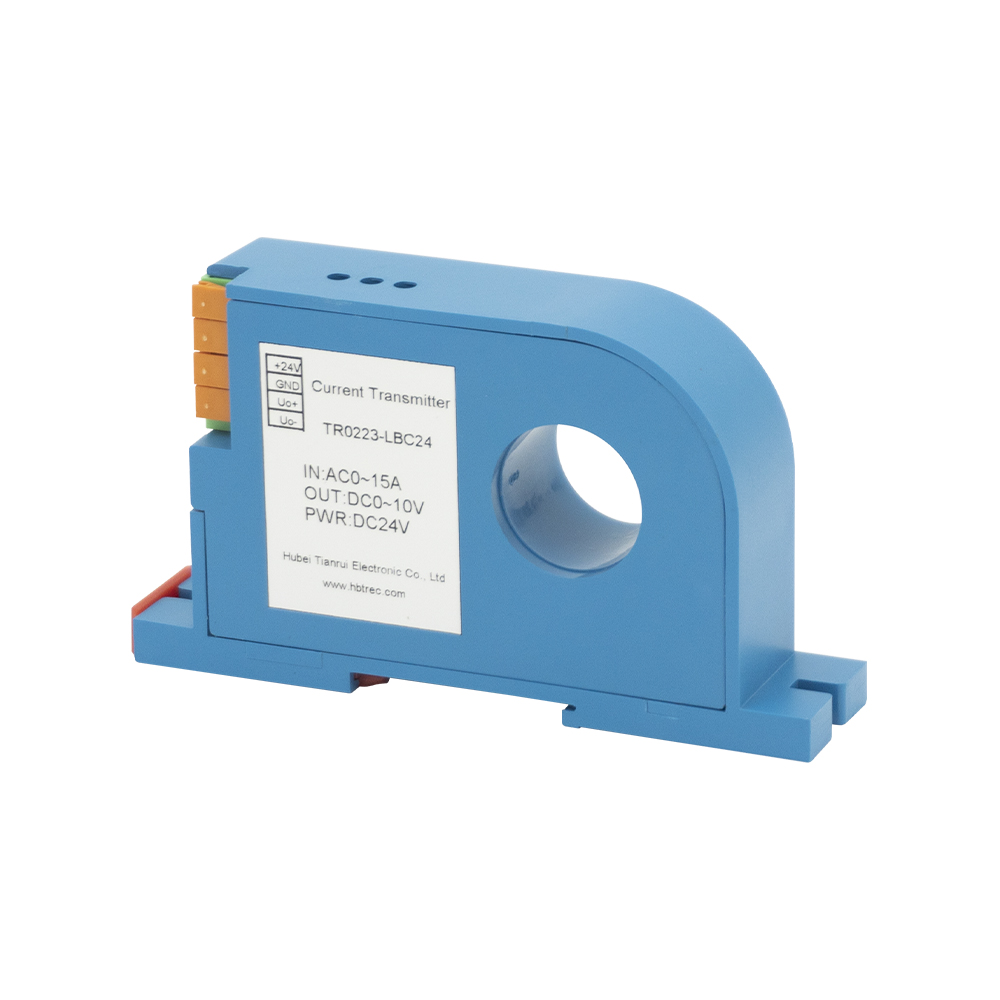

TR0223-LBC24
TR
Product Overview
A Current Transmitter (Current Transducer) is a device that converts an AC or DC current into a proportional standard signal such as 0–5V, 0–10V, or 4–20mA. It provides galvanic isolation between the primary power circuit and the control or monitoring system, ensuring measurement safety and accuracy. Using Hall Effect or Current Transformer technology, it features high precision, strong stability, and fast response. Current transmitters are widely used in power systems, industrial automation, motor drives, renewable energy, and energy monitoring applications. They play a key role in real-time current measurement, fault detection, and system performance optimization.
Products Features
* Excellent accuracy, good linearity.
* High immunity to interference, excellent CMRR.
* Low drift, low power, wide bandwidth.
* Perforated structure, no insertion loss.
Product Application
* Automatic Control.
* Measuring Meter.
* Railway Monitoring System.
* Station Control System.
Download Size Sheet
Mechanical Dimension(mm)
Circuit Connection Diagram
Technical Data
@TA=25℃,unless otherwise stated
Type | TR0223-LBC24 | |
IPN | Primary Rated Input Current | AC 15A |
IP | Primary Current Measure Range | AC 0~18A |
VSN | Secondary Rated Output Voltage | DC 10V |
UC | The Power Supply Voltage | DC 24V |
RL | Load Capacity | RL ≤ 500Ω |
εL | Linearity | 0.1% |
X | Accuracy | ±0.5% |
BW | Frequency Bandwith | 40 ~ 5kHz |
Overload Capacity | 10 times | |
IC | Current Consumption | <15mA+IS |
Ud | Power Frequency Withstand Voltage | 2.5kV AC/1min |
tr | Response Time | <200ms |
I0 | Offset Current | ≤80μA |
Temperature Drift | ≤500ppm/℃ | |
TA | Ambient Operating Temperature | -10℃~+70℃ |
TS | Ambient Storage Temperature | -25℃~+85℃ |
IS：Output current
