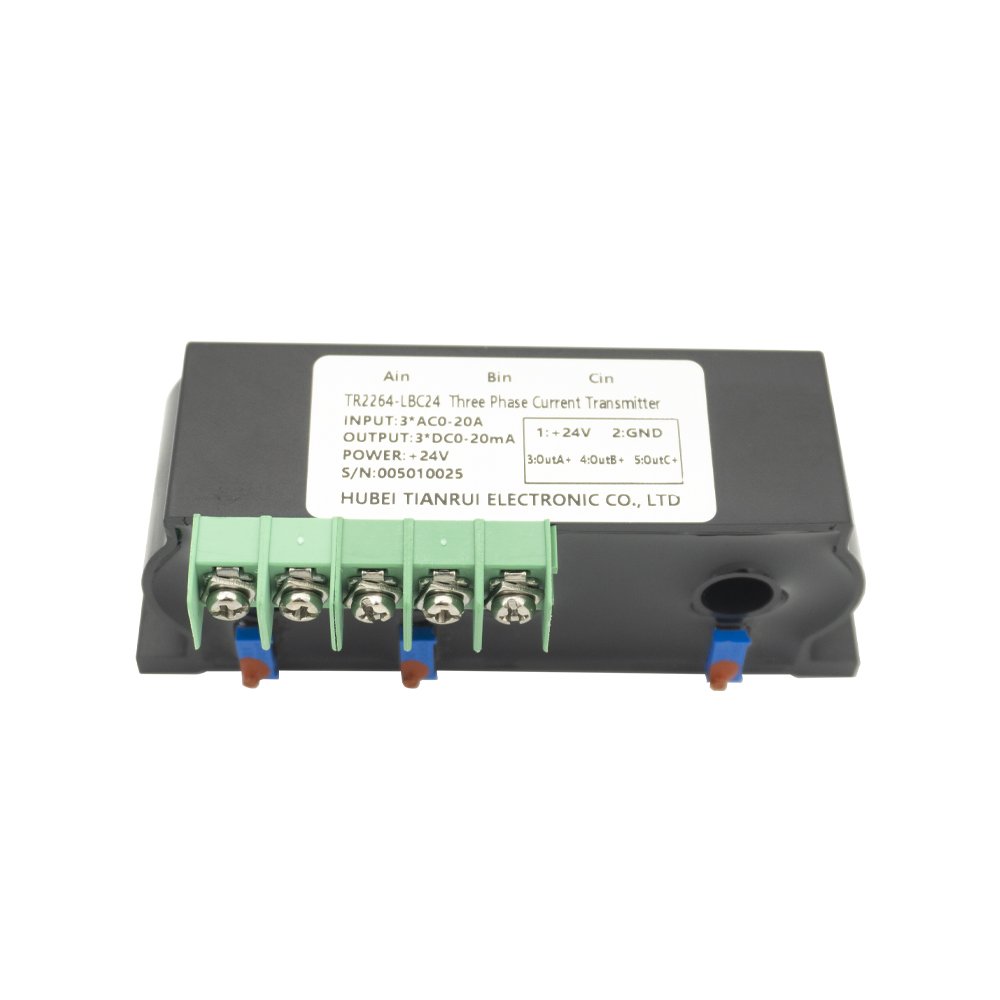

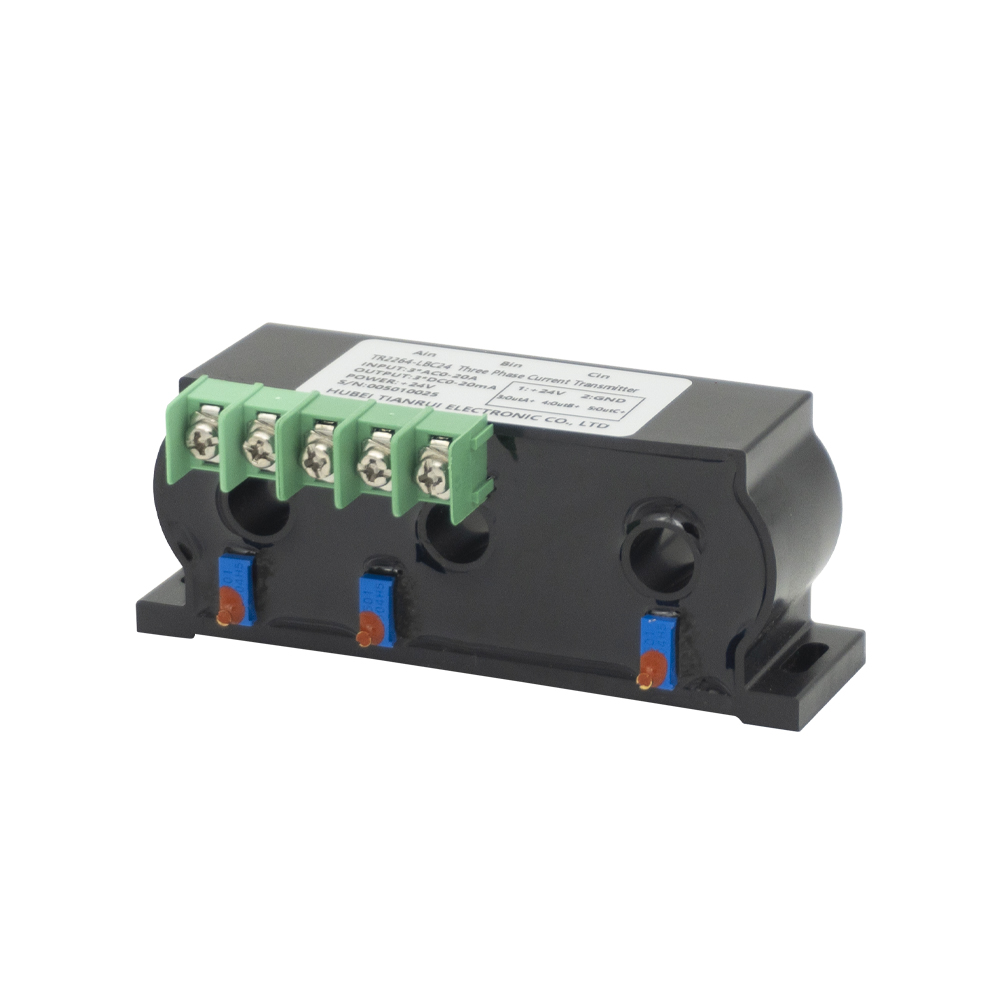

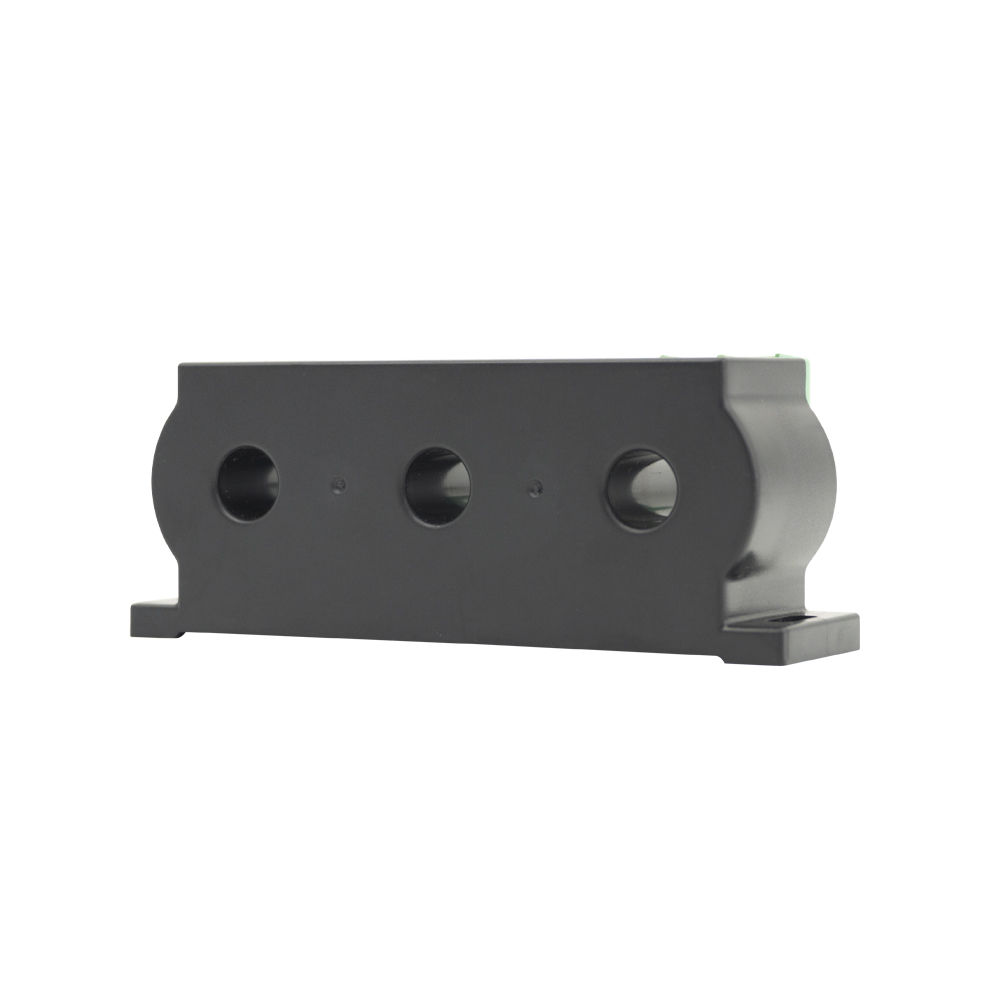

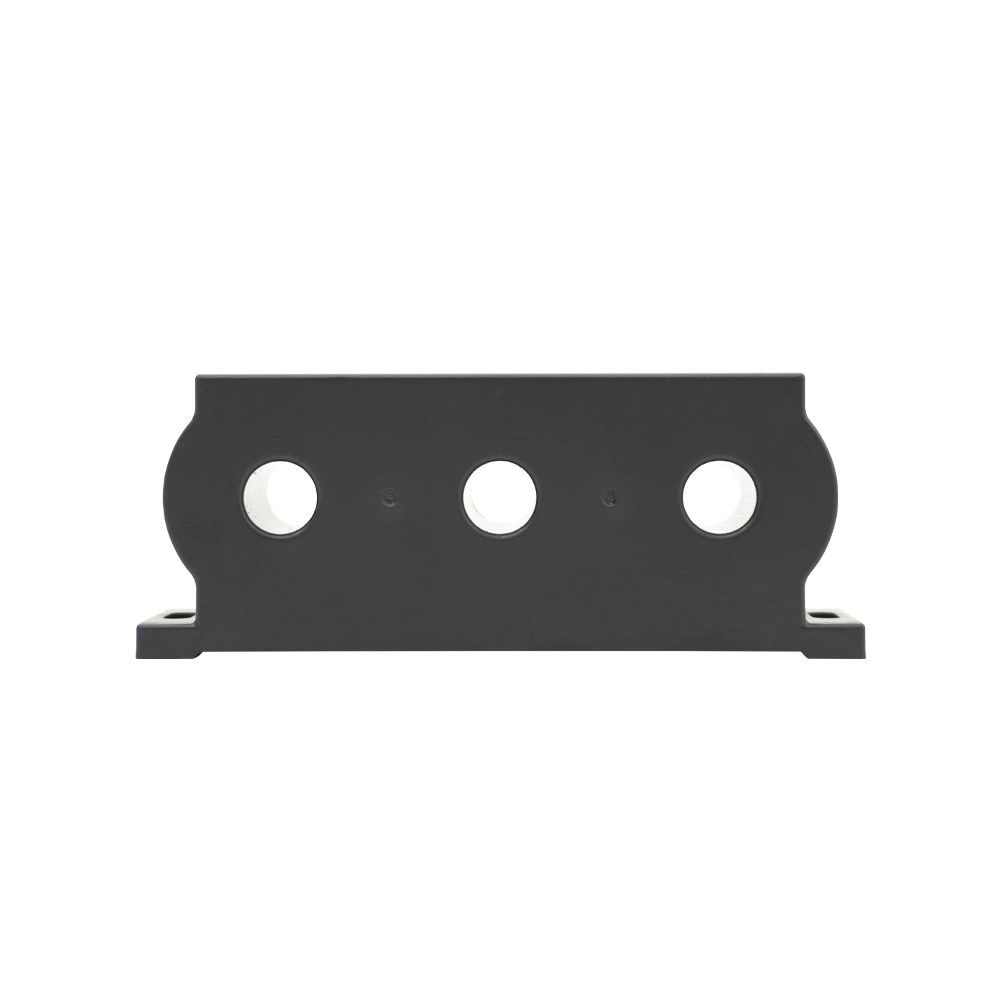

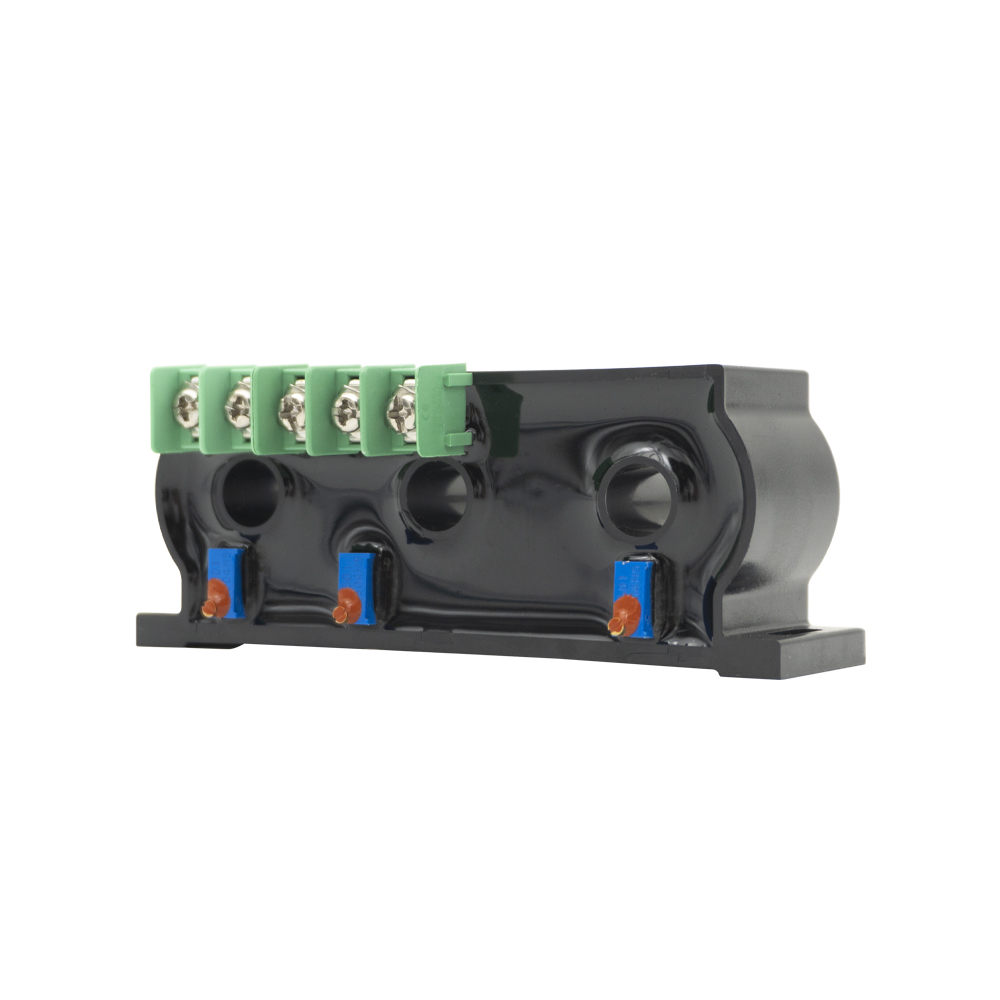

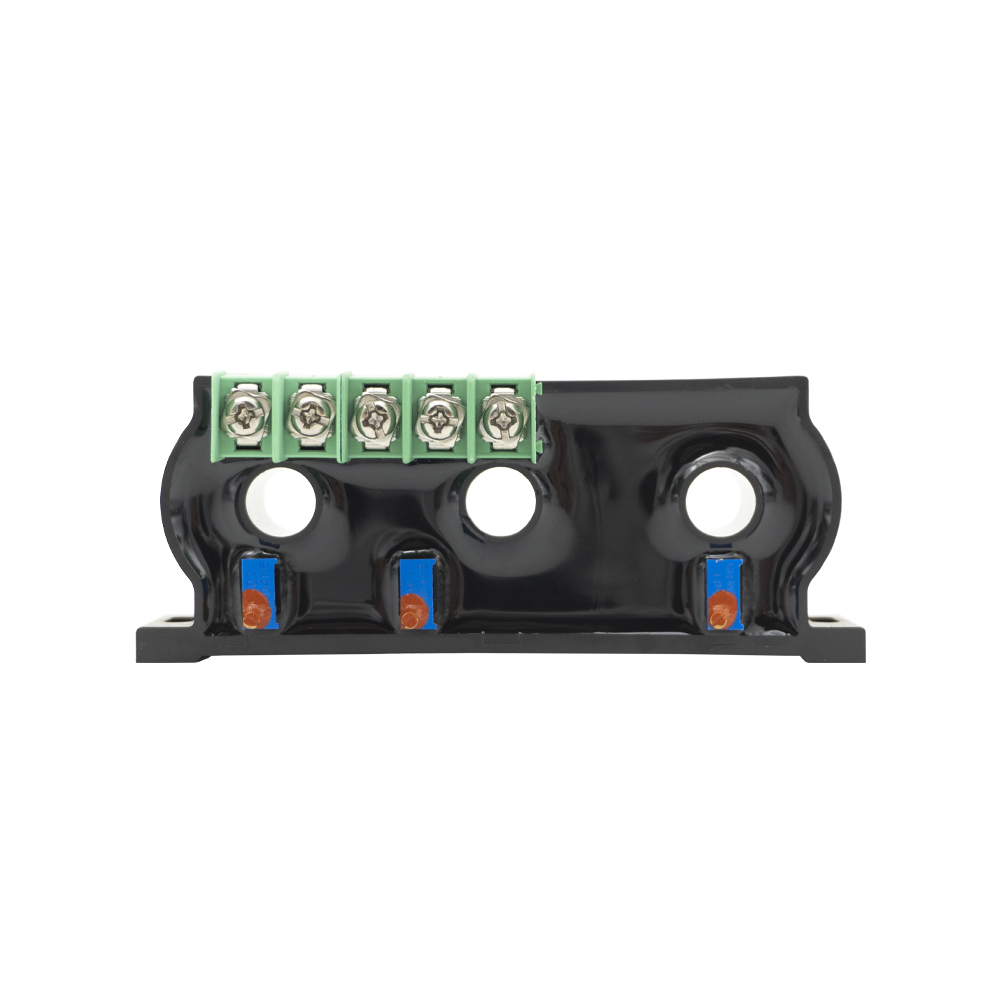

TR2264-LBC24
TR
Product Overview
An AC Current Transducer, also known as a current sensor, is a precision device designed to measure alternating current and convert it into a standardized output signal for monitoring, control, and protection. It provides accurate, stable, and real-time current measurements, ensuring safe and efficient operation of electrical systems. With high accuracy, fast response, and strong electrical isolation, AC current transducers are ideal for a wide range of applications. They are widely used in industrial automation, power distribution, energy management systems, motor monitoring, and HVAC equipment. These devices integrate seamlessly with PLCs, meters, and data acquisition systems for reliable current measurement and system control.
Products Features
Fast response to AC current fluctuations
Wide measurement range for versatile use
Compact and easy-to-install design
Compatible with PLCs, meters, and monitoring systems
Applications
Renewable energy systems, including solar and wind
Motor monitoring and protection
HVAC system current measurement
Energy management and smart metering systems
| Electrical Parameters | Primary Rated Input | 5A 10A 20A 50A 100A 200A 400A AC | Secondary Rated Output | 0-5V, 0-10V,4-20mA, 0-20mA, RS485 |
| Power Supply Voltage | 12V, 15V, 24V DC; 220V AC | Load Capacity | Voltage Output - 5mA Current Output - 6 V | |
| Accuracy | 0.2%, 0.5% | Linearity | 0.10% | |
| Frequency Bandwith | 20-5000Hz | Overload Capacity | 10× Rated Input | |
| Current Consumption | < 15mA+IOUT | Power Frequency Withstand Voltage | 3kV AC/1min | |
| Temperature Drift | ≤ 100PPM/℃ | Response Time | Tracking output < 1ms DC transmission output < 250ms | |
| Offset Voltage | ≤10mV | Response Time | < 200ms | |
| Operating Environment | Ambient Operating Temperature | -20℃-+80℃ | Ambient Storage Temperature | -25℃-+85℃ |
