Although current transducer and current transformer (CTs) are both used to measure electrical current, they are not the same. They serve related but distinct purposes and operate on different principles. Understanding their differences is essential when selecting the right device for power monitoring, energy management, or industrial control systems.
Definition and Basic Function

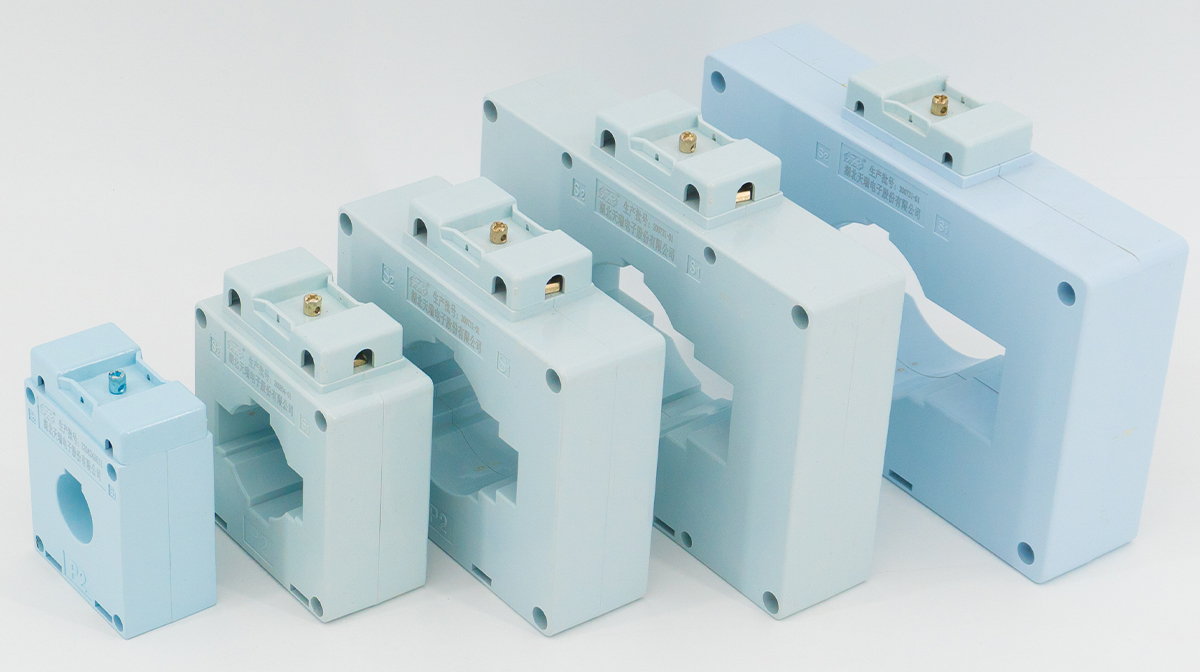

A Current Transformer (CT) is an instrument transformer designed to convert high primary currents into lower, proportional secondary currents, usually at a standardized output (for example, 5A or 1A). CTs provide electrical isolation and enable safe measurement and monitoring of large AC currents by measurement instruments such as meters, relays, and protection devices.

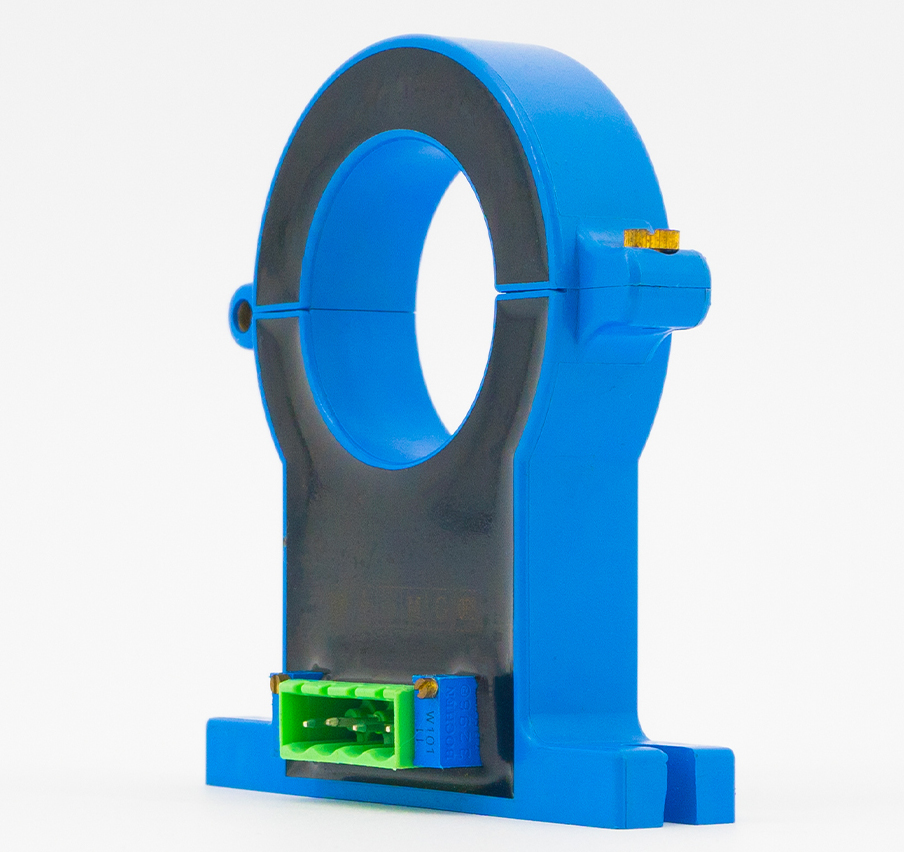

A current transducer, on the other hand, is a signal conversion device that transforms a current input, AC or DC, into a standardized electrical output signal (commonly 0–5V, 4–20mA, or digital output). It not only measures the magnitude of current but also provides a conditioned signal that can be easily processed by control systems, PLCs, or data acquisition modules.
In short:
CT = passive transformer used for AC current measurement
Transducer = active electronic device used for both AC and DC measurement and signal conversion
Working Principle
Current Transformer:
Operates on the electromagnetic induction principle. When AC flows through the primary winding, it induces a proportional current in the secondary winding. The ratio of primary to secondary current corresponds to the turns ratio. CTs only work with alternating current.
Current Transducer:

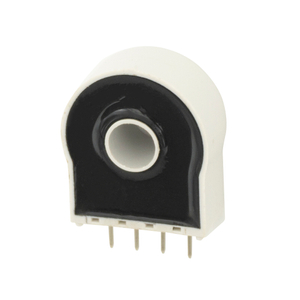

Can work on either AC or DC systems. It may use Hall Effect, shunt resistors, or zero-flux technology to sense current. The measured current is converted into a standard analog or digital signal for monitoring and control. Many transducers include built-in amplifiers, filters, and isolation circuits for accuracy and stability.
Application Fields
Current Transformers are mainly used in:
Power distribution and transmission systems
Energy metering and protection relays
Industrial motor monitoring
Substation automation
Current Transducers are widely used in:
Industrial automation and process control
Renewable energy systems such as solar and wind
Power electronics and DC systems
Battery management and electric vehicles
Smart energy monitoring and IoT devices
Key Differences Table
| Parameter | Current Transformer (CT) | Current Transducer |
|---|---|---|
| Operating Principle | Electromagnetic induction | Hall Effect, shunt, or fluxgate technology |
| Current Type | AC only | AC and DC |
| Output Signal | Secondary current (5A, 1A) | Voltage or current signal (0–5V, 4–20mA) |
| Power Requirement | Passive device, no external power | Active device, requires power supply |
| Accuracy | Moderate to high | High precision with signal conditioning |
| Isolation | Provided by transformer structure | Electrical isolation via sensor design |
| Response Time | Slow to moderate | Fast response, suitable for dynamic signals |
| Applications | Power measurement, protection relays | Automation, control, data acquisition |
| Output Interface | Analog current (requires external meter) | Analog or digital, direct PLC connection |
| Cost | Lower | Higher due to electronics and conditioning |
Advantages and Limitations
Current Transformer Advantages
Simple, robust, and cost-effective
Excellent for high-voltage AC measurement
Provides galvanic isolation
Limitations
AC only, cannot measure DC
Accuracy affected by burden and phase errors
No linear output for direct digital use
Current Transducer Advantages
Measures both AC and DC currents
Provides standard analog or digital output signals
High accuracy and fast response
Easy integration with control systems
Limitations
Requires external power
More expensive than CTs
Sensitive to environmental noise if not shielded
Conclusion
A Current Transformer is primarily a passive sensing element used to step down AC current safely for measurement and protection. In contrast, a Current Transducer is an active measurement device that not only detects current, AC or DC, but also converts it into a usable signal for monitoring, control, or data logging systems.
In essence, every current transducer may contain a current transformer or other sensing element inside it, but it adds signal conditioning and conversion functions, making it suitable for modern automation and digital energy systems.
Thus, while they share similar goals of accurate current measurement, their design, function, and applications are quite distinct.
