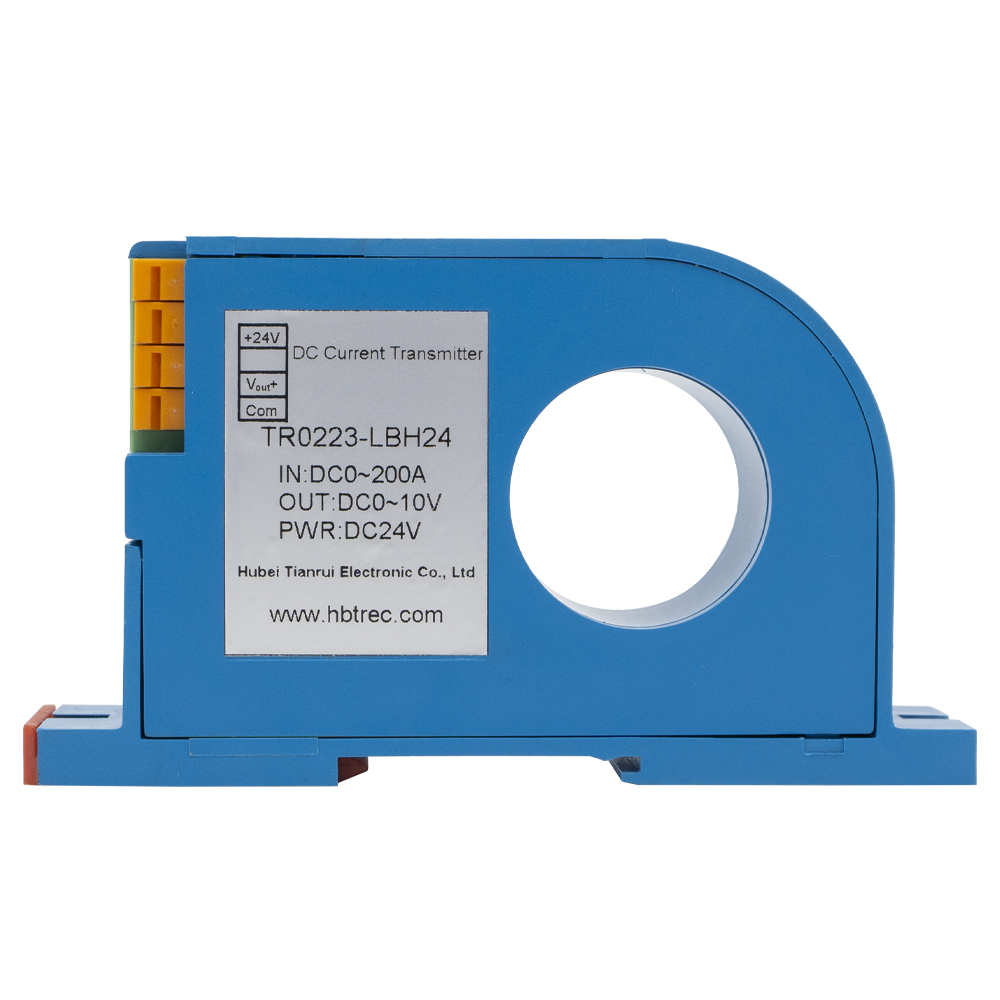

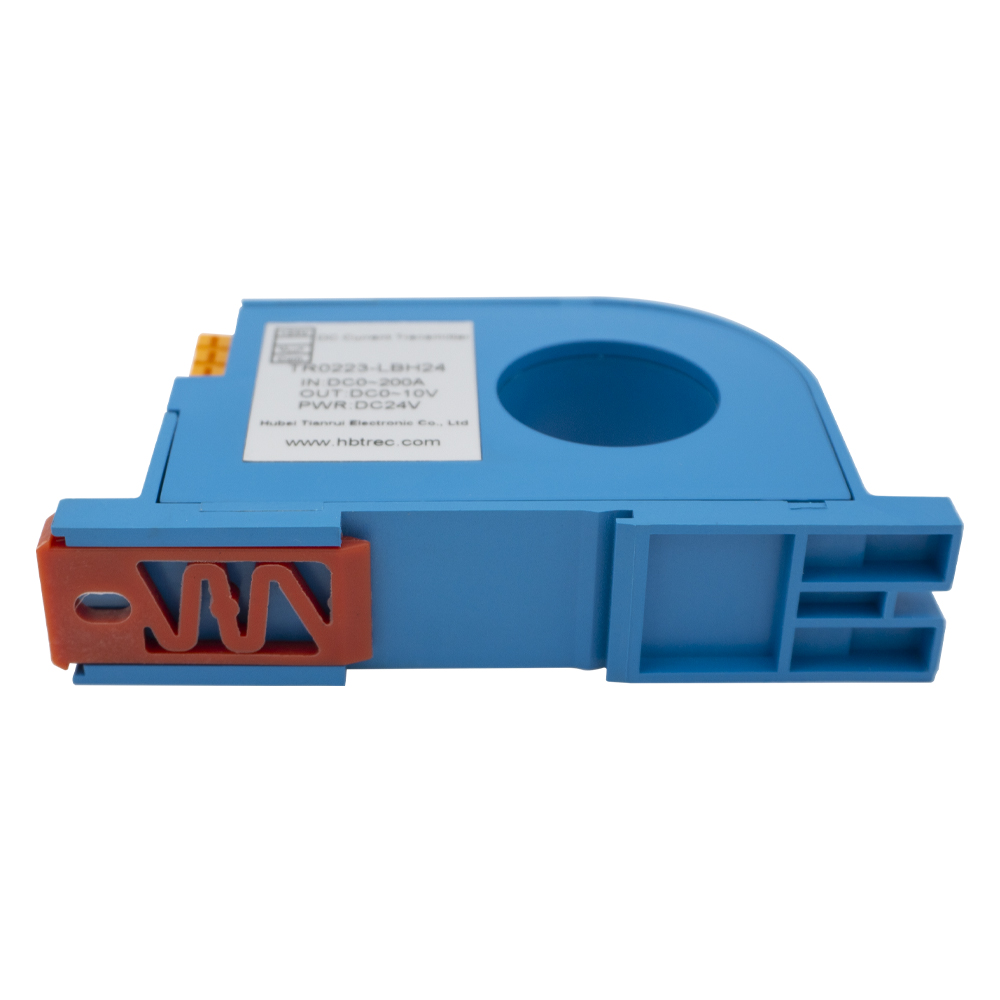

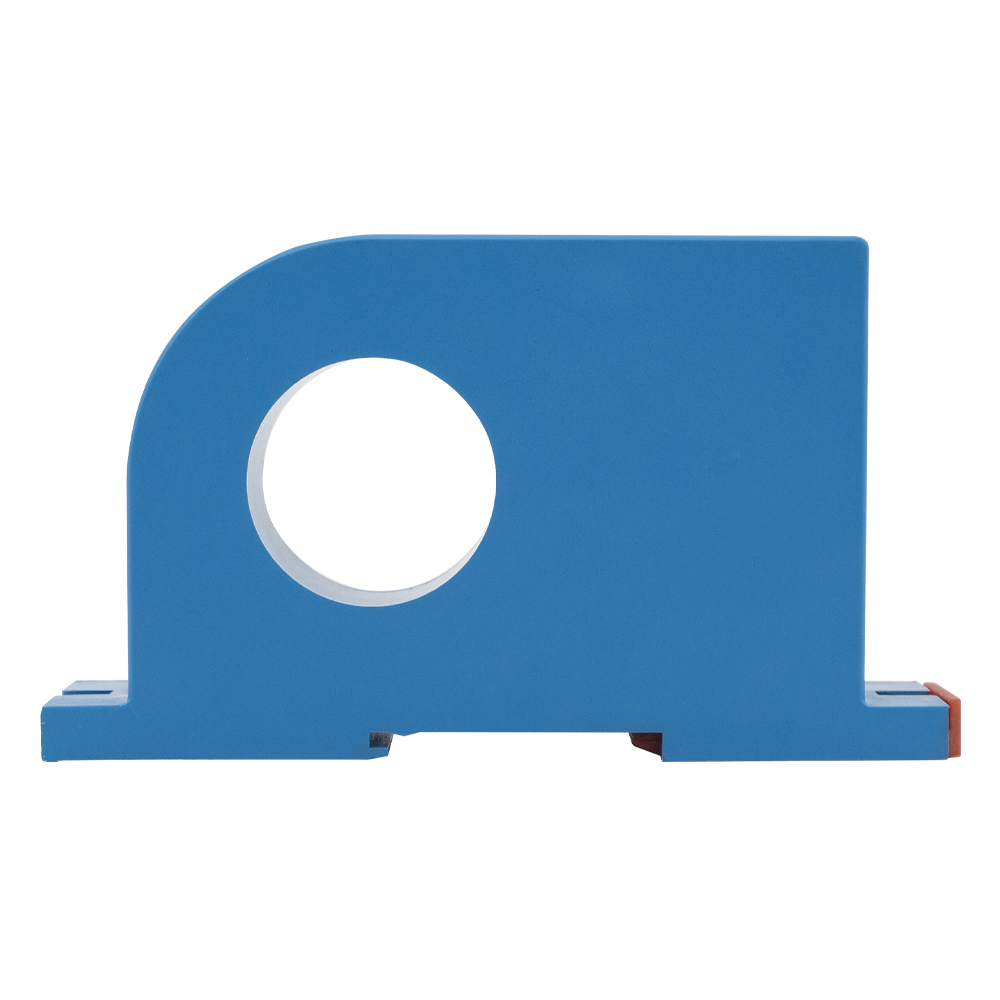

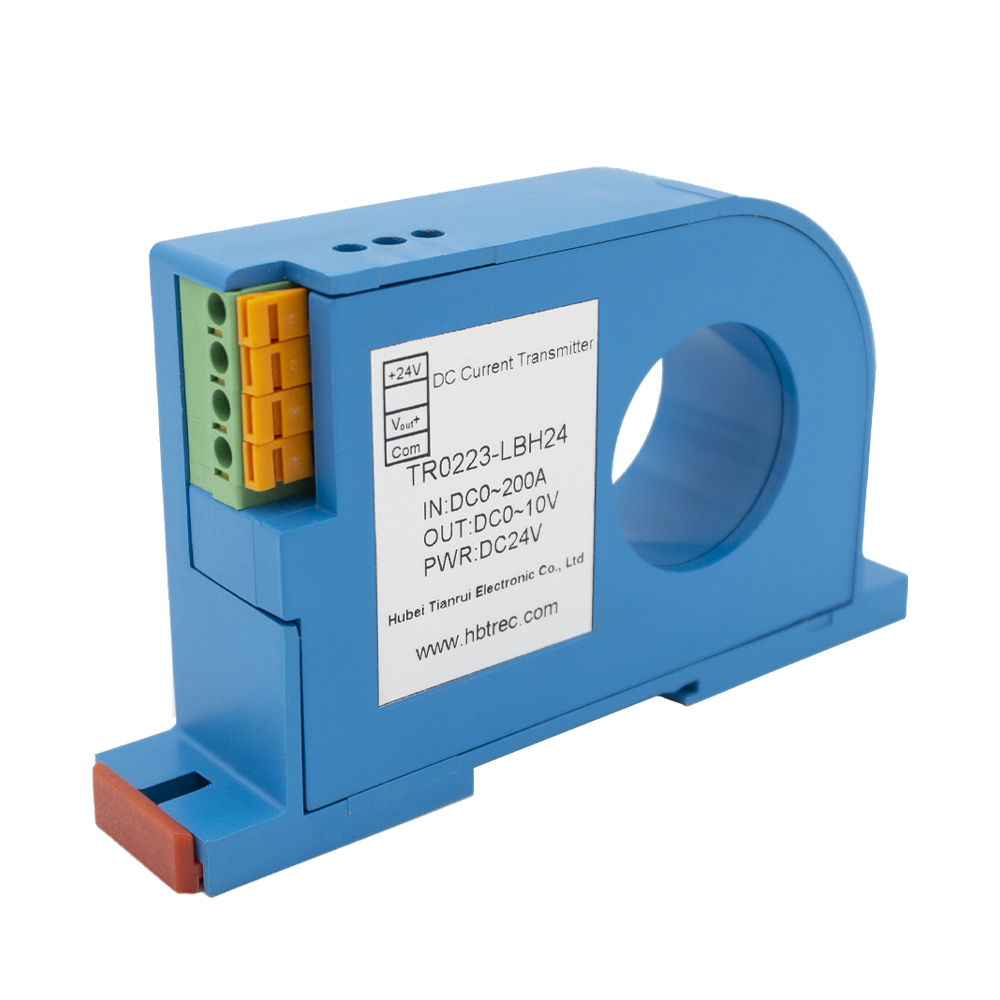

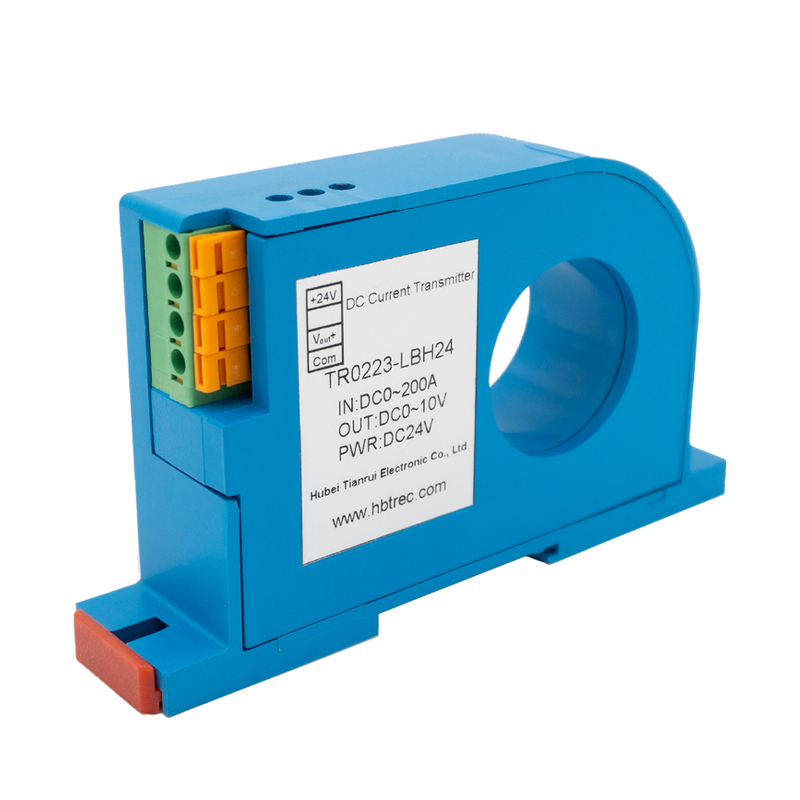

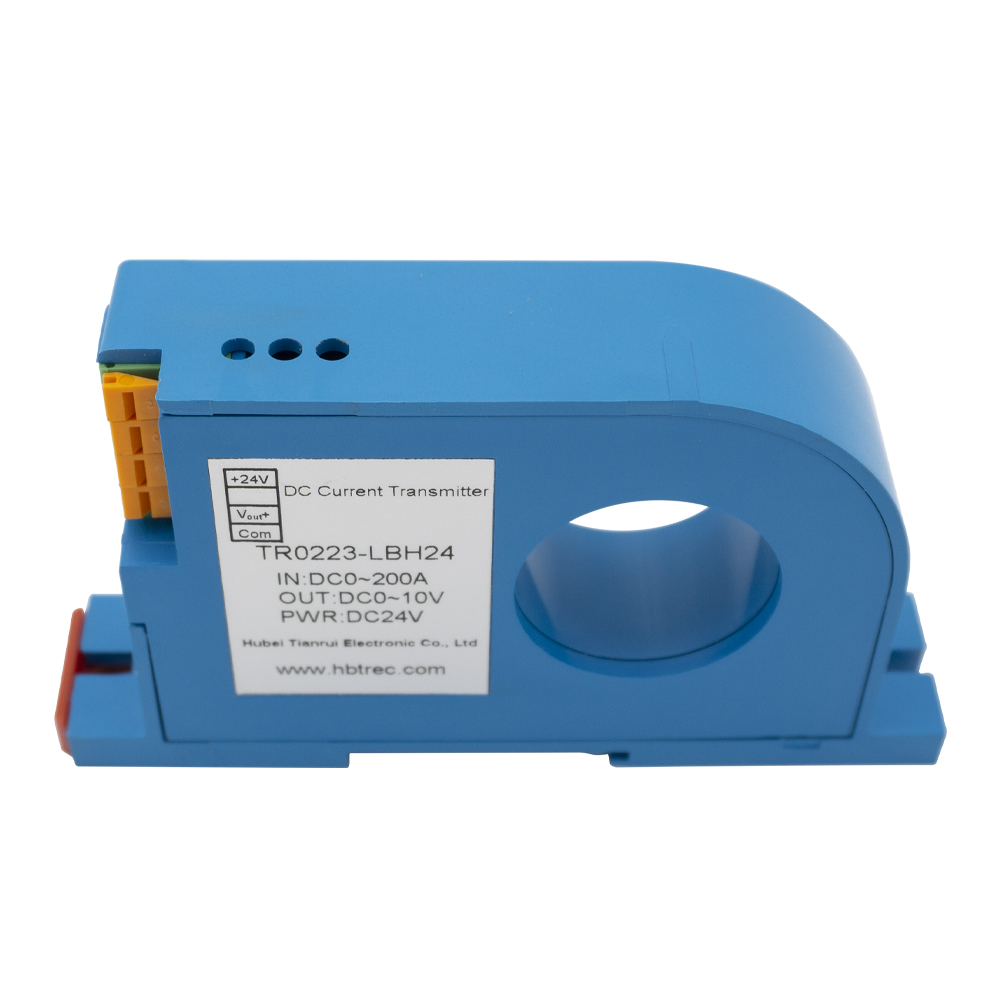

TR0223-LBH24 ‌DC Current Transducer DC 0~200A/DC 0~10V

This DC Current Transduce performs ‌isolated measurement and conversion‌ of field parameters such as ‌high-voltage/high-current, power, frequency, phase angle, and electroplating levels‌. Its output signals can ‌connect directly‌ to traditional ‌analog pointer instruments‌, as well as modern ‌digital automation instruments‌, various ‌A/D converters‌, and ‌computer systems‌. This enables the establishment of a ‌highly reliable industrial monitoring and control system‌.
Availability:
Inquire Add to Basket

  • TR0223-LBH24

  • TR

Products Features

High-performance DC current sensing

Cost-effective and energy-efficient design

Compact and easy-to-install solution

Reliable isolation and fast response

Applications

Power grid monitoring and maintenance

Petrochemical process control systems

Steel production line current detection

Industrial equipment energy efficiency analysis

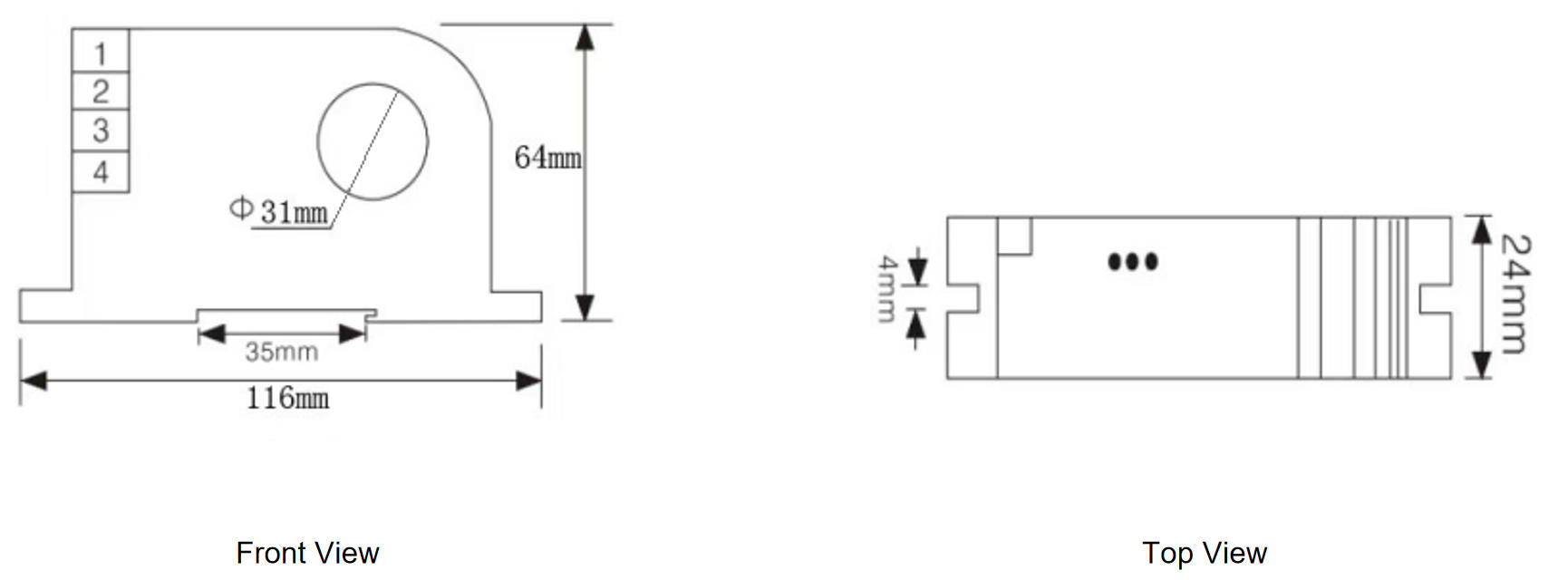

Mechanical Dimension(mm)

Circuit Connection Diagram

Technical Data

@TA=25℃,unless otherwise stated

Type

TR0223-LBH24

IPN

Primary Rated Input Current

DC 200A

IP

Primary Current Measure Range

DC 0~240A

VSN

Secondary Rated Output Voltage

DC 10V

UC

The Power Supply Voltage

DC 24V

RL

Load Capacity

RL≥ 10kΩ

εL

Linearity

0.1%

X

Accuracy

±0.5%

BW

Frequency Bandwith

DC~20kHz

di/dt Accurately Followed

>50A/μs

IC

Current Consumption

≤25mA

Ud

Power Frequency Withstand Voltage

2.5kV AC/1min

tr

Response Time

<200ms

V0

Offset Voltage

≤50mV

Temperature Drift

≤500ppm/℃

TA

Ambient Operating Temperature

-10℃~+70℃

TS

Ambient Storage Temperature

-25℃~+85℃
