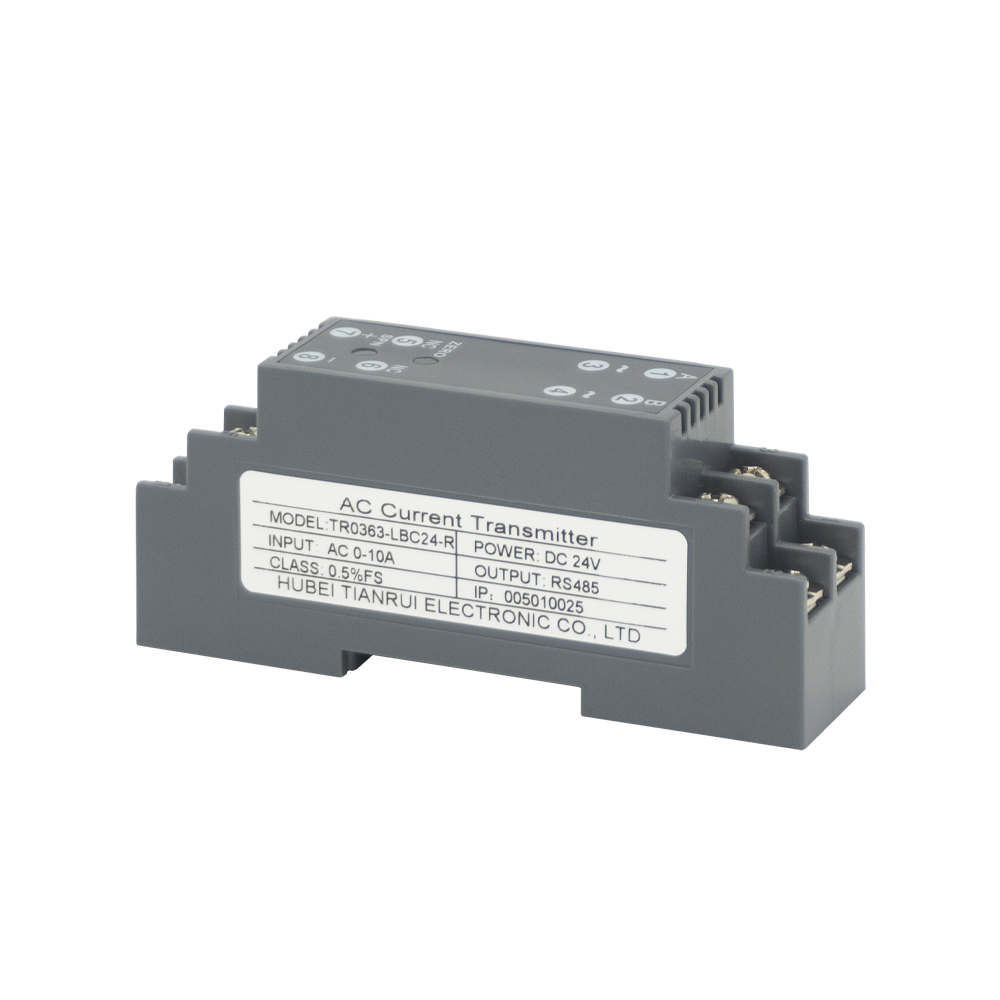

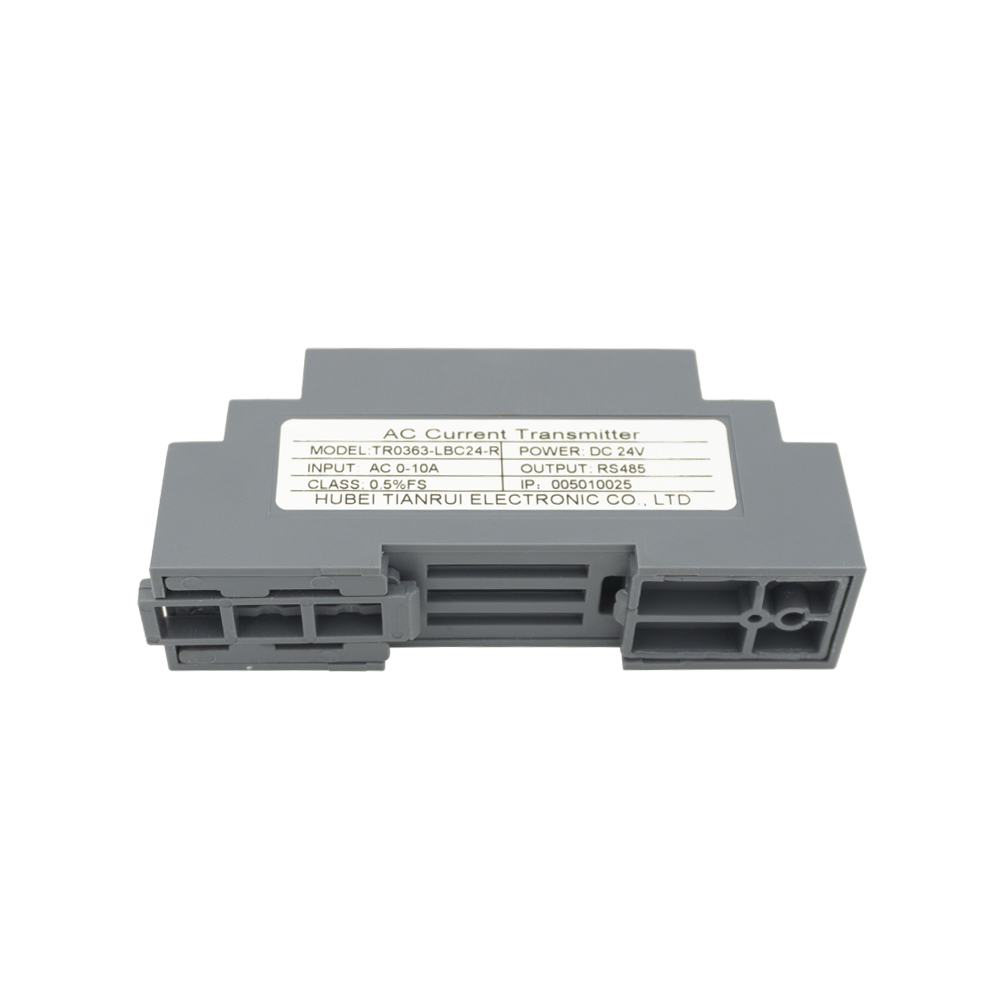

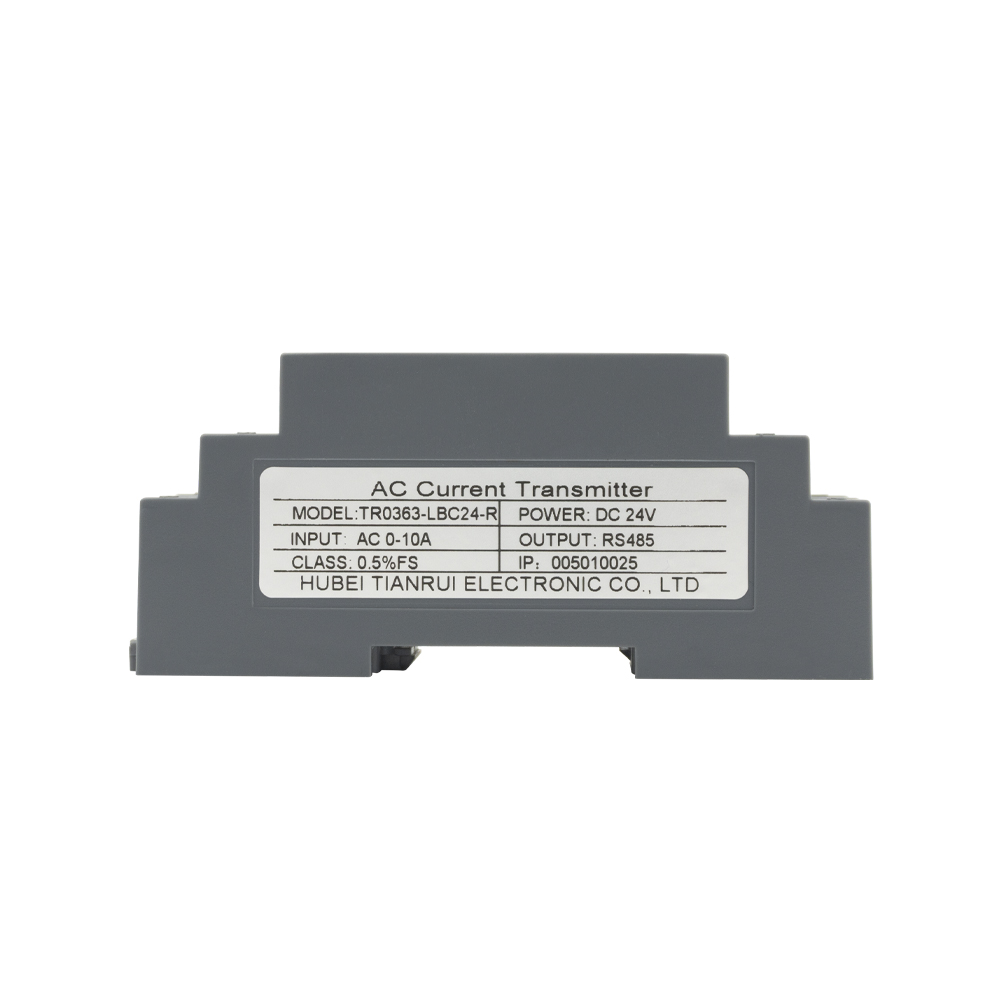

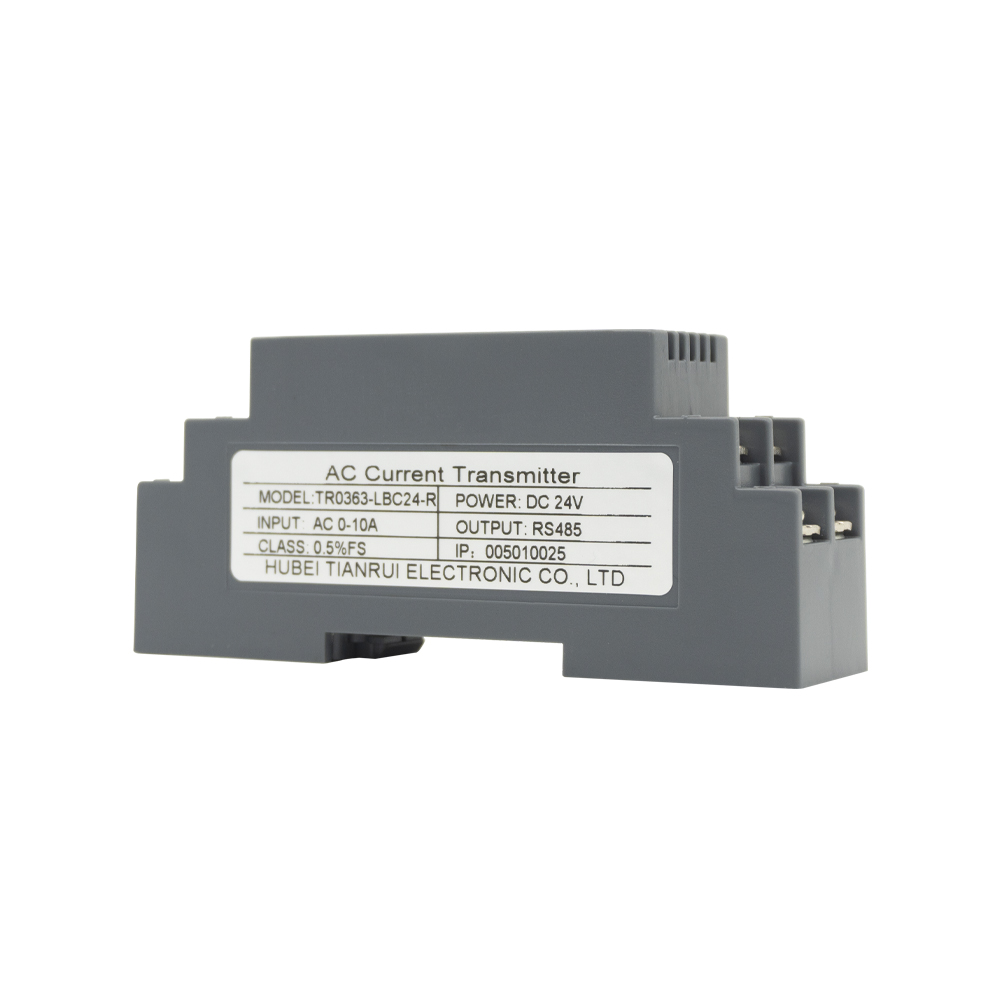

TR0363-LBC24-R
Product Overview
Current transmitters, also known as current sensors, are precision devices designed to measure electrical current and convert it into a standardized output signal for monitoring, control, and protection. They provide accurate, real-time, and stable current readings, ensuring safe and efficient operation of electrical systems. With high accuracy, fast response, and strong electrical isolation, current transmitters are suitable for both AC and DC applications. They are widely used in industrial automation, power distribution, renewable energy systems, motor monitoring, and energy management. These devices integrate easily with PLCs, meters, and data acquisition equipment, making them essential for reliable electrical measurement and system control.
Products Features
Strong electrical isolation for safe operation
Fast response to dynamic current changes
Compatible with both AC and DC systems
Easy integration with PLCs, meters, and monitoring equipment
Applications
Power distribution monitoring and electrical panels
Renewable energy systems, including solar and wind
Motor protection and HVAC system monitoring
Energy management and smart metering systems
| Electrical Parameters | Input Voltage Range | 0-1000V AC | Secondary Rated Output | 0-5V, 0-10V, 4-20mA, 0-20mA |
| Accuracy | 0.2%FS | Frequency Range | 50-400Hz | |
| Load Capacity | Voltage output: RL≤500Ω Current output: RL≥10kΩ | Power Frequency Withstand Voltage | 2kV AC/1min | |
| Rated Power Consumption | ≤1.5W | Temperature Drift | ≤ 0.02%FS/℃ | |
| Response Time | < 200ms | Power Supply Voltage | 12V-32V DC | |
| Operating Environment | Ambient Operating Temperature | -20℃-+55℃ | / | / |
Product Overview
Current transmitters, also known as current sensors, are precision devices designed to measure electrical current and convert it into a standardized output signal for monitoring, control, and protection. They provide accurate, real-time, and stable current readings, ensuring safe and efficient operation of electrical systems. With high accuracy, fast response, and strong electrical isolation, current transmitters are suitable for both AC and DC applications. They are widely used in industrial automation, power distribution, renewable energy systems, motor monitoring, and energy management. These devices integrate easily with PLCs, meters, and data acquisition equipment, making them essential for reliable electrical measurement and system control.
Products Features
Strong electrical isolation for safe operation
Fast response to dynamic current changes
Compatible with both AC and DC systems
Easy integration with PLCs, meters, and monitoring equipment
Applications
Power distribution monitoring and electrical panels
Renewable energy systems, including solar and wind
Motor protection and HVAC system monitoring
Energy management and smart metering systems
| Electrical Parameters | Input Voltage Range | 0-1000V AC | Secondary Rated Output | 0-5V, 0-10V, 4-20mA, 0-20mA |
| Accuracy | 0.2%FS | Frequency Range | 50-400Hz | |
| Load Capacity | Voltage output: RL≤500Ω Current output: RL≥10kΩ | Power Frequency Withstand Voltage | 2kV AC/1min | |
| Rated Power Consumption | ≤1.5W | Temperature Drift | ≤ 0.02%FS/℃ | |
| Response Time | < 200ms | Power Supply Voltage | 12V-32V DC | |
| Operating Environment | Ambient Operating Temperature | -20℃-+55℃ | / | / |
