Current transducer meaning

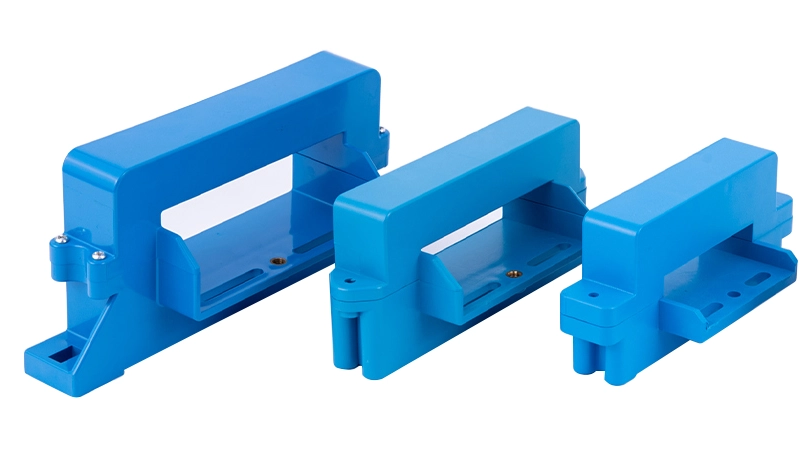

A current transducer (current sensor)is an electronic device that converts an electrical current into a proportional output signal, typically voltage or current, which can be easily measured, monitored, or transmitted to control systems. Unlike a simple current transformer, a transducer is designed to provide accurate, isolated, and conditioned signals suitable for digital systems, industrial monitoring, and energy management applications. With the rise of smart grids, renewable energy, and industrial automation, current transducers have become critical components in modern electrical infrastructure.
The basic principle of a current transducer involves detecting the primary current flowing through a conductor and converting it into a secondary, measurable signal. There are several methods used, depending on the type of transducer:
Electromagnetic Principle (Current Transformer-Based):
In AC systems, the transducer uses a magnetic core and winding, similar to a current transformer. The primary current generates a magnetic flux, which induces a proportional current in the secondary winding. This induced current is then converted to a usable voltage or signal output.
Hall Effect Principle:
For AC and DC measurements, many modern transducers use Hall effect sensors. When current flows through a conductor, it generates a magnetic field. A Hall sensor placed in the field produces a voltage proportional to the magnetic flux, which is processed and converted into an output signal.
Shunt Resistor Method:
A precision resistor (shunt) is placed in series with the circuit. The voltage drop across the resistor, proportional to the current, is measured and conditioned to provide a safe, isolated signal.
Fluxgate and Advanced Sensing:
In high-accuracy applications, fluxgate sensors are used. These rely on the nonlinear properties of magnetic materials to detect very small currents with high precision.
The transducer’s output is often in the form of standardized signals such as 0–5 V, 4–20 mA, or digital communication protocols like Modbus or CAN bus, making them compatible with PLCs, SCADA systems, and energy management platforms.
Accurate Measurement in Complex Systems
Traditional current transformers may be limited to AC applications. Current transducers provide accurate readings for both AC and DC, essential in renewable energy, electric vehicles, and DC microgrids.
Electrical Isolation and Safety
They provide galvanic isolation between high-voltage circuits and low-voltage monitoring equipment, protecting both operators and sensitive electronics.
Data Integration for Smart Systems
Raw current values are often difficult to use directly in digital systems. Current transducers condition and scale the signal, enabling seamless integration with monitoring and control platforms.
Energy Efficiency and Power Quality
By monitoring current with precision, utilities and industries can detect inefficiencies, harmonics, or overloading. This helps reduce energy waste and improves power quality.
Fault Detection and Equipment Protection
Current transducers are critical in detecting overcurrent, short circuits, or leakage currents, enabling protective relays and breakers to act quickly.
Enabling Renewable Energy and Storage Systems
Wind turbines, solar inverters, and battery storage rely on accurate current sensing to optimize power conversion and ensure safe operation.
Digital Integration and IoT Connectivity
Future transducers are increasingly digital, equipped with communication protocols such as Modbus, EtherCAT, or wireless interfaces. This allows real-time monitoring and integration into IoT-based platforms.
Higher Accuracy and Wide Bandwidth
With the growing use of power electronics, especially in inverters and converters, transducers must measure fast-changing currents with high accuracy. Advanced sensors such as fluxgate and Rogowski coil-based transducers are gaining traction.
Miniaturization and Compact Designs
As devices become smaller and more integrated, transducers are being designed in compact, PCB-mountable forms without compromising performance. This trend is vital for electric vehicles and portable energy systems.
Energy Efficiency and Low Power Consumption
Future designs focus on reducing the power consumed by the sensing circuitry, which is especially important in distributed sensing applications across large grids.
Self-Diagnostics and Smart Features
Intelligent transducers are being developed with self-checking functions, allowing them to detect calibration drift, sensor degradation, or communication faults. This predictive feature improves reliability.
Integration with Artificial Intelligence (AI)
With the combination of AI and machine learning, current data from transducers can be analyzed for predictive maintenance, load forecasting, and anomaly detection. AI-enabled current monitoring is likely to shape the next stage of smart grids.
Environmental and Sustainability Considerations
As industries aim for sustainability, future current transducers will focus on eco-friendly materials, reduced use of rare-earth components, and compliance with global standards such as RoHS and REACH.
In modern solar power plants, current transducers play a vital role in monitoring inverter outputs, battery charging currents, and grid integration. For example, Hall effect-based transducers are used to measure DC current in photovoltaic arrays, ensuring optimal maximum power point tracking (MPPT). Similarly, in wind turbines, they measure both AC and DC currents in converters and generators, providing critical feedback for efficiency and stability. Without accurate current transducers, the safe and efficient operation of renewable systems would be severely compromised.
Current transducers are far more than simple measurement devices. They serve as the bridge between high-power electrical systems and the low-voltage digital world, ensuring safe, accurate, and reliable current measurement. By addressing challenges such as measurement accuracy, safety, digital integration, and renewable energy adoption, they have become indispensable in power generation, industrial automation, electric vehicles, and grid modernization.
Looking ahead, the trend points toward smarter, more accurate, and digitally integrated current transducers, capable of supporting real-time analytics, predictive maintenance, and sustainable energy goals. As the world transitions to more electrified and digitalized systems, current transducers will remain at the core of monitoring and control technologies.
