A current sensor is an electronic device that detects and measures the flow of electric current in a conductor and converts it into a proportional output signal, usually in voltage or digital form. This measurement process, commonly known as current sensing, is fundamental in modern electrical and electronic systems. By enabling accurate monitoring and control of current, current sensors play a crucial role in power management, safety, efficiency, and automation.

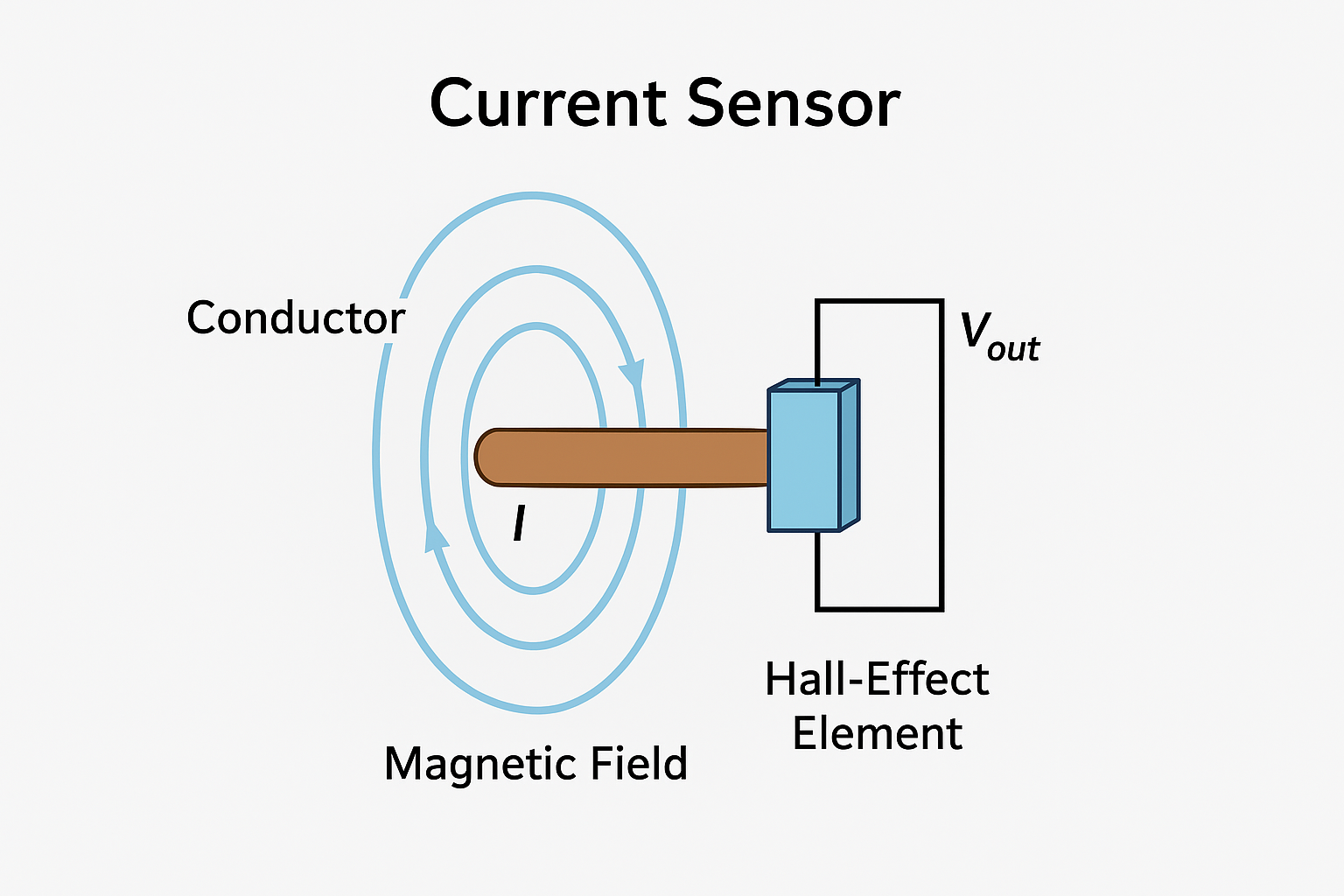

hall effect sensor

Functions of Current Sensors

The primary function of a current sensor is to measure current without disturbing the normal operation of the circuit. Its output can be processed by microcontrollers, meters, or monitoring systems to analyze performance, efficiency, and safety. Key functions include:

  1. Current Measurement – Provides precise readings of AC or DC currents in a circuit.

  2. System Protection – Prevents damage by detecting overload, short-circuits, or leakage currents.

  3. Energy Management – Supports optimization of energy usage by monitoring consumption patterns.

  4. Isolation and Safety – Many sensors, such as the current transducer, offer galvanic isolation between measurement and power circuits.

  5. Control Feedback – Supplies real-time data to motor drives, inverters, and controllers for efficient operation.



  6. current sensor working principle

Features of Current Sensors

Modern current sensors are designed with several advanced features, making them adaptable for diverse environments:

  • High Accuracy – Delivers precise measurements critical for sensitive applications like medical devices and renewable energy.

  • Wide Current Range – Capable of measuring from a few milliamps to thousands of amperes.

  • Compact and Lightweight – Miniaturized sensors suitable for integration into small devices.

  • Electrical Isolation – Many designs, especially current transducers, ensure safe separation between input and output.

  • Fast Response Time – Essential for dynamic loads, motor control, and fault detection.

  • Low Power Loss – Minimizes energy dissipation, particularly in shunt-based sensing.

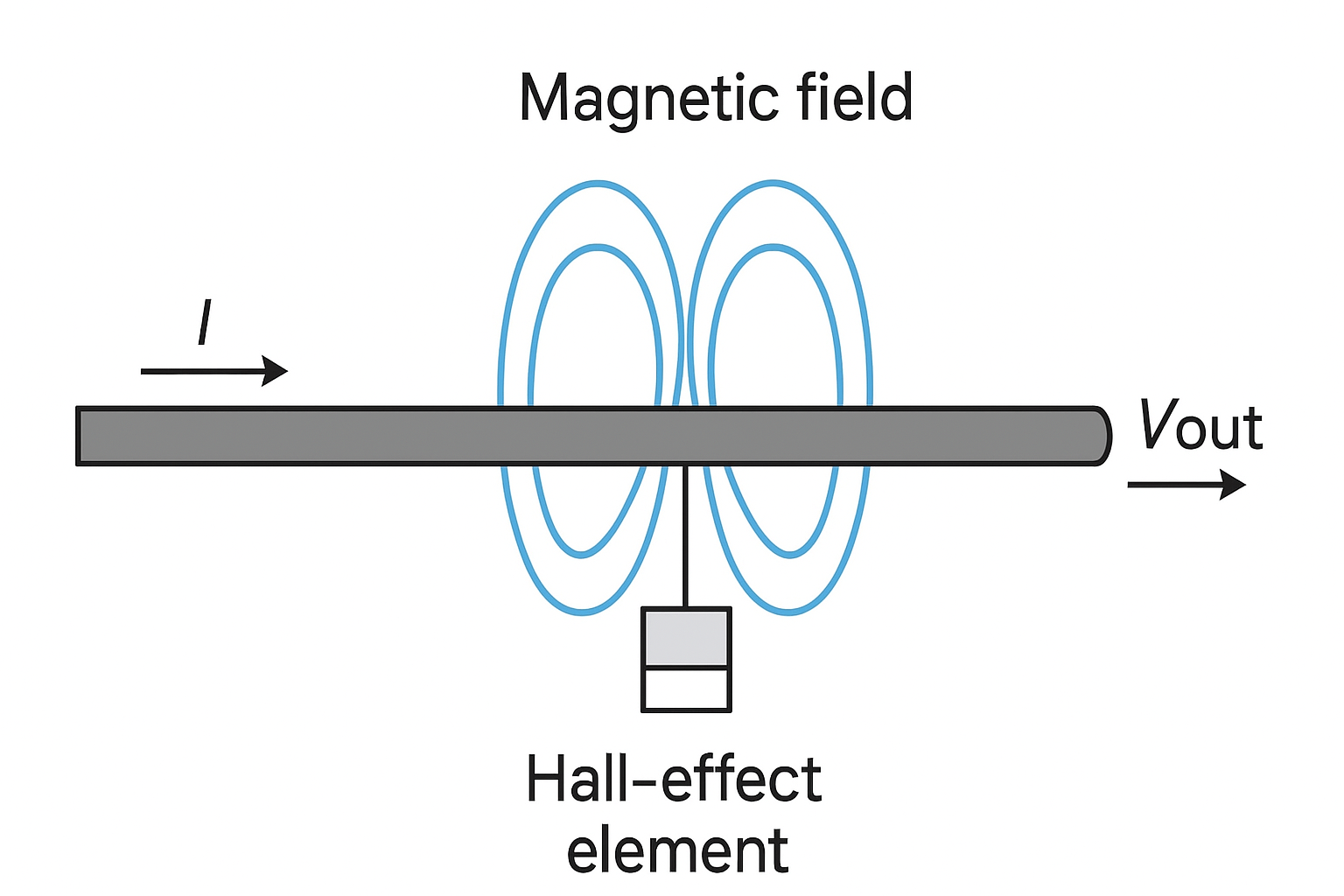

hall effect sensor

Types of Current Sensors

There are multiple types of current sensors, each designed to suit specific applications:

  1. Shunt Resistor Sensors

    • Operate by measuring the voltage drop across a small resistor placed in the current path.

    • Cost-effective and compact, but introduce slight power loss.

  2. Hall-Effect Current Sensors

    • Detect magnetic fields generated by the current in a conductor.

    • Can measure both AC and DC currents with galvanic isolation.

  3. Rogowski Coil Sensors

    • Flexible coil sensors used for AC measurements, especially high currents.

    • Non-intrusive and highly linear in wide ranges.

  4. Current Transducers

    • Transformer-based devices that measure alternating current using magnetic coupling.

    • Provide isolation, reliability, and are widely used in industrial systems.

  5. Integrated Digital Current Sensors

    • Combine sensing, amplification, and digital communication in a single package.

    • Suitable for IoT and smart applications requiring compact, intelligent monitoring.




      hall effect sensor

Applications of Current Sensors

Current sensors are used across multiple industries, ensuring efficiency, safety, and automation. Key application areas include:

  1. Smart Grids and Energy Monitoring

    • Power utilities use current transducers and sensors for real-time monitoring of energy distribution.

    • Improves load balancing, efficiency, and fault detection.

  2. Industrial Equipment and Motor Control

    • Protects motors, pumps, and drives from overcurrent conditions.

    • Ensures precise torque control and energy efficiency in automation systems.

  3. Electric Vehicles and Automotive

    • Essential for battery management, charging systems, and motor control.

    • Hall-effect current sensors provide isolation and support regenerative braking systems.

  4. Renewable Energy Systems

    • Solar inverters and wind turbines rely on current sensing to optimize performance.

    • Helps in maximum power point tracking (MPPT) and fault protection.

  5. Consumer Electronics

    • Mobile devices, laptops, and chargers integrate miniature current sensors for safe and efficient battery management.

  6. Medical Devices

    • Critical in equipment like imaging machines and patient monitoring systems where precise current sensing is required.

Future Trends in Current Sensing

The future of current sensors is shaped by the increasing demand for efficiency, smart systems, and renewable integration. Trends include:

  • Digital Transformation – Advanced current transducers with built-in digital communication for IoT integration.

  • Miniaturization – Compact sensors for portable electronics and EV applications.

  • High-Voltage Capability – Enhanced isolation for renewable energy and grid-scale systems.

  • AI-Enabled Monitoring – Predictive maintenance using current sensing data analytics.

As industries continue to electrify and digitize, current sensors will remain at the core of safe, efficient, and intelligent power systems.
