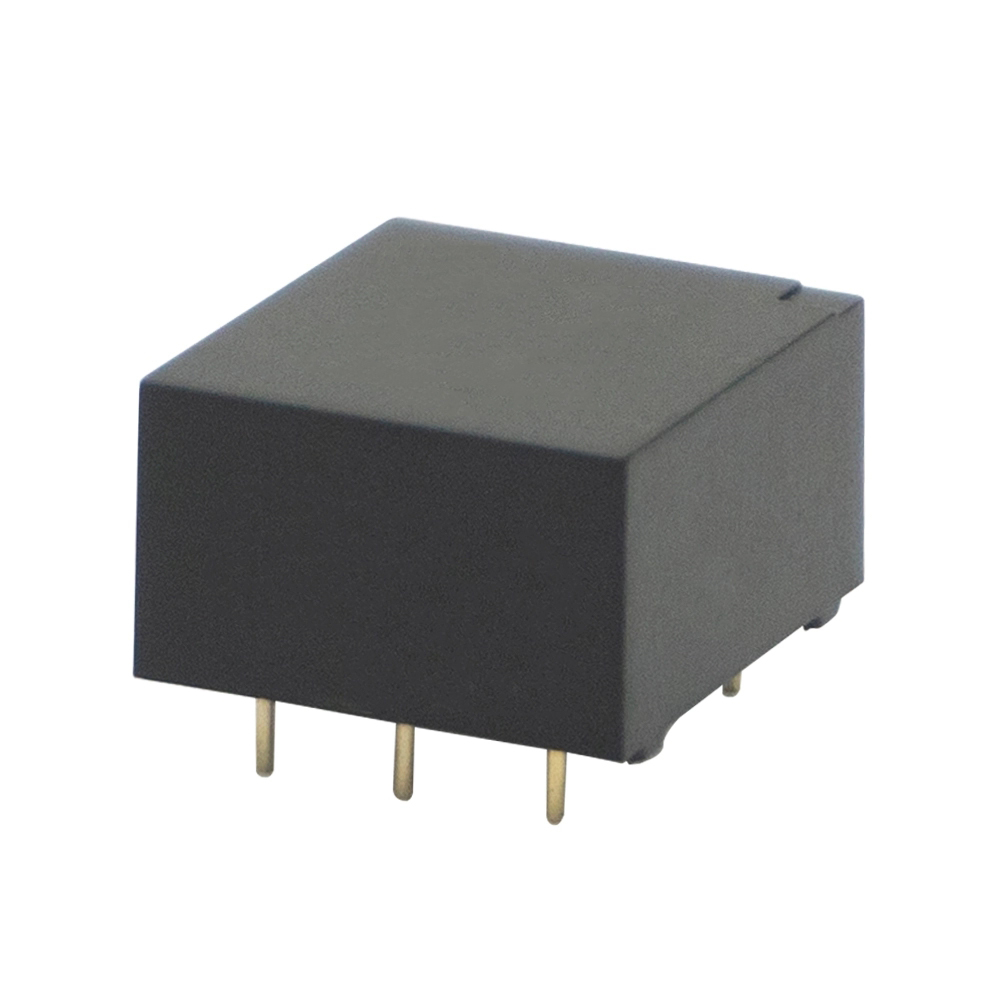

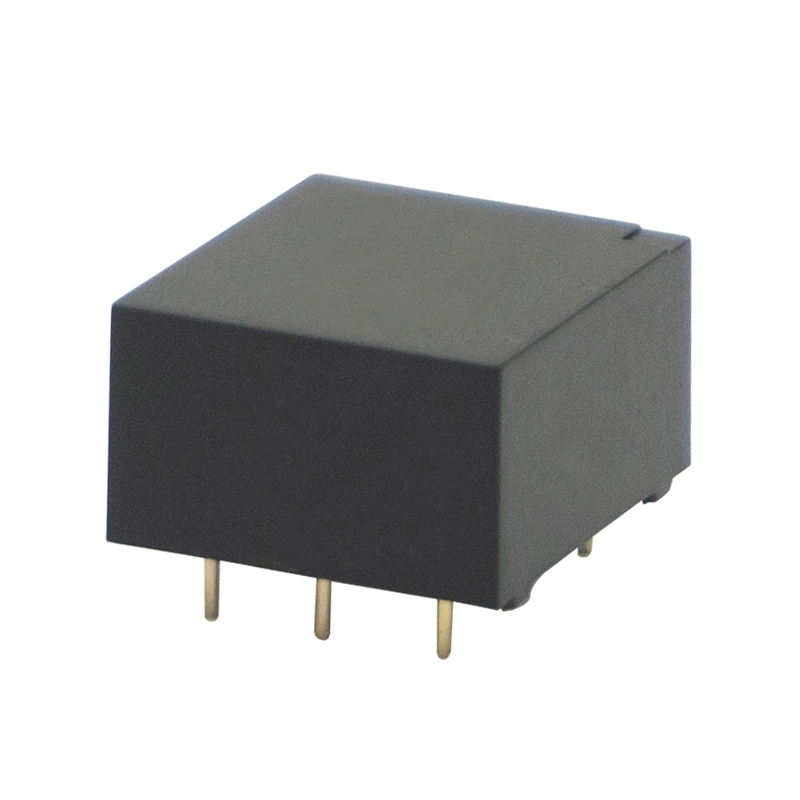

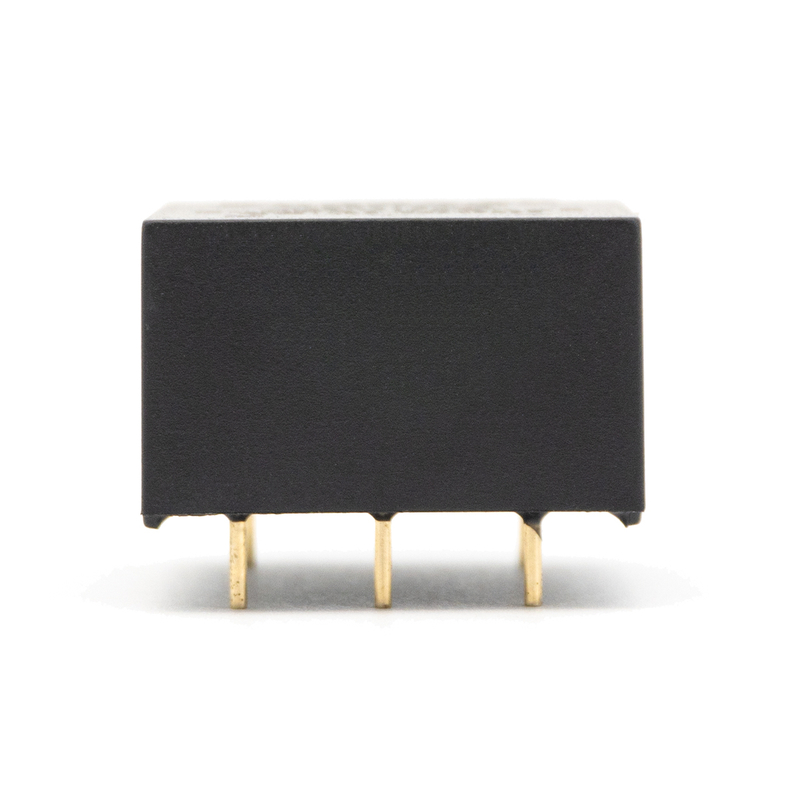

TR0201-LBH5
TR
50000
T/T, Western Union, Paypal
Shanghai, China
Product Features
* Measures AC, DC and pulsed signals.
* Excellent accuracy, good linearity.
* Strong resistance to external interference, high common mode rejection ratio.
* Low temperature drift, low power consumption, wide frequency band.
* Complete isolation between primary and secondary
* Wide measurement range, fast response speed, high precision, and good temperature stability.
Product Application
* AC frequency conversion speed regulation.
* Servo motor traction.
* Uninterruptible power supply(UPS).
* Welding machine, battery power supply.
* High-precision and high-frequency current measurement.
Product Parameters
| Specification | 0.5A/0.625V | 1A/0.625V | 6A/0.625V | Unit | |
|---|---|---|---|---|---|
| IPN | Primary Rated Input Current | 0.5 | 1 | 6 | A |
| IP | Primary Current Measurement Range | 0～1 | 0～2 | 0～12 | A |
| VSN | Secondary rated output voltage | 2.5±0.625 | V | ||
| VC | The Power Supply Voltage | +5(±5%) | V | ||
| IC | Current Consumption | ＜10+Is | mA | ||
| Vd | Insulation Voltage | Between primary and secondary circuits:2.5kV/50Hz/1min | |||
| εL | Linearity | ＜0.1 | %FS | ||
| X | Precision | TA=25℃:≤±0.5 | % | ||
| V0 | Offset Voltage | TA=25℃:≤±10 | mV | ||
| VOM | Magnetic Offset Voltage | IP=0 after 3*IPN:≤±5 | mV | ||
| VOT | Offset voltage temperature drift | IP=0, TA=-40～+80℃:≤±0.1 | mV/℃ | ||
| Tr | Response time | ≤40 | μS | ||
| f | Bandwidth(-3dB) | DC～100 | kHz | ||
| TA | Working Temperature | -40～+80 | ℃ | ||
| TS | Storage Temperature | -45～+85 | ℃ | ||
Shape and Installation Dimensions
Note:
Installation Precautions
The sensor should be wired correctly, otherwise it may damage the internal components of the sensor.
When the sensor is soldered to the circuit board, it needs to be soldered with a low-temperature soldering iron, and the time should not be too long, and secondly, the pins should not be squeezed by a large amount, otherwise the internal connection may be opened.
Product Features
* Measures AC, DC and pulsed signals.
* Excellent accuracy, good linearity.
* Strong resistance to external interference, high common mode rejection ratio.
* Low temperature drift, low power consumption, wide frequency band.
* Complete isolation between primary and secondary
* Wide measurement range, fast response speed, high precision, and good temperature stability.
Product Application
* AC frequency conversion speed regulation.
* Servo motor traction.
* Uninterruptible power supply(UPS).
* Welding machine, battery power supply.
* High-precision and high-frequency current measurement.
Product Parameters
| Specification | 0.5A/0.625V | 1A/0.625V | 6A/0.625V | Unit | |
|---|---|---|---|---|---|
| IPN | Primary Rated Input Current | 0.5 | 1 | 6 | A |
| IP | Primary Current Measurement Range | 0～1 | 0～2 | 0～12 | A |
| VSN | Secondary rated output voltage | 2.5±0.625 | V | ||
| VC | The Power Supply Voltage | +5(±5%) | V | ||
| IC | Current Consumption | ＜10+Is | mA | ||
| Vd | Insulation Voltage | Between primary and secondary circuits:2.5kV/50Hz/1min | |||
| εL | Linearity | ＜0.1 | %FS | ||
| X | Precision | TA=25℃:≤±0.5 | % | ||
| V0 | Offset Voltage | TA=25℃:≤±10 | mV | ||
| VOM | Magnetic Offset Voltage | IP=0 after 3*IPN:≤±5 | mV | ||
| VOT | Offset voltage temperature drift | IP=0, TA=-40～+80℃:≤±0.1 | mV/℃ | ||
| Tr | Response time | ≤40 | μS | ||
| f | Bandwidth(-3dB) | DC～100 | kHz | ||
| TA | Working Temperature | -40～+80 | ℃ | ||
| TS | Storage Temperature | -45～+85 | ℃ | ||
Shape and Installation Dimensions
Note:
Installation Precautions
The sensor should be wired correctly, otherwise it may damage the internal components of the sensor.
When the sensor is soldered to the circuit board, it needs to be soldered with a low-temperature soldering iron, and the time should not be too long, and secondly, the pins should not be squeezed by a large amount, otherwise the internal connection may be opened.
