Can An AC/DC Current Sensor Improve VFD Speed Control And Automated Systems?

Views: 0     Author: Site Editor     Publish Time: 2025-09-18      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

In modern motion control and industrial automation, the ability to precisely monitor and regulate current flow is critical. A current sensor provides the real-time feedback that variable frequency drives (VFDs) and automation controllers depend on to optimize speed, torque, and protection. When applied to both alternating and direct current circuits, an AC/DC current sensor offers even broader flexibility, ensuring accuracy across diverse loads and system architectures. For machine builders and control engineers, companies like Hubei Tianrui Electronics Co., Ltd. deliver reliable solutions that enhance VFD-driven equipment performance and long-term efficiency.



AC vs DC vs AC/DC current sensors: which fits your control loop?

When you need AC-only vs DC-only vs AC/DC sensing

Not all applications require the same type of sensing. An AC-only current sensor is typically used in grid-connected systems, HVAC motors, or household appliances where only alternating current exists. A DC-only device is preferred in battery-powered systems, renewable energy converters, or electric vehicle electronics. However, in industrial environments where drives, converters, and hybrid systems are common, the versatility of an AC/DC current sensor stands out. It eliminates the need to install two separate devices, simplifying wiring and reducing cost while ensuring consistent feedback across all operating modes.

Pros & cons of common technologies for VFDs

Several sensing technologies are used in VFD control loops:

Hall effect sensors: Provide bidirectional AC/DC measurement with isolation, affordable and compact, but sometimes limited in bandwidth.

Rogowski coils: Suited for AC measurement with wide bandwidth, but cannot sense DC current.

DC-CT and zero-flux sensors: Offer highly accurate, low-drift performance ideal for precision drives, though at higher cost and size.

Shunt resistors: Deliver simple, low-cost sensing but lack isolation and can introduce power loss.

The choice depends on the drive’s performance requirement. For high-accuracy torque control in demanding industries, a zero-flux AC/DC current sensor ensures low offset and excellent linearity.



How current sensor feedback improves VFD speed and torque control

Closed-loop control basics: current → torque → speed

In VFD-driven motors, current is directly proportional to torque. By continuously measuring current, the drive’s controller can adjust output voltage and frequency to maintain stable torque and regulate speed. Without accurate feedback, the system risks overshooting, instability, or sluggish response. An AC/DC current sensor ensures that the closed-loop control system reacts precisely to dynamic load changes, keeping performance consistent.

Fast sampling, bandwidth and latency requirements

High-performance drives require sensors that not only measure accurately but also do so quickly. A narrow-bandwidth sensor can miss transient surges, while high latency can delay corrective actions. For vector control or torque-oriented VFD algorithms, fast sampling ensures tight synchronization between current measurement and motor response. A well-designed AC/DC current sensor, such as those produced by Tianrui Electronics, delivers both speed and accuracy, making it suitable for modern digital controllers.

Example wiring & signal types

Integration options vary depending on the sensor design:

Analog outputs (0–5V, 4–20mA): Easy to connect to most drives and PLCs, suitable for proportional feedback.

Digital outputs (RS485, Modbus): Allow longer-distance communication and built-in diagnostics.

Pulse outputs: Common in metering applications, translating measured current into frequency signals.

The choice depends on the automation system architecture, but flexibility in signal types simplifies deployment.

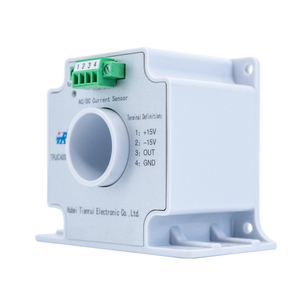

 current sensor

Practical integration: connecting AC/DC current sensors to PLCs and drives

Grounding & isolation practices

Electrical noise is a frequent problem in industrial systems. Poor grounding or insufficient isolation can introduce measurement errors or cause false trips. High-quality AC/DC current sensors feature galvanic isolation to separate the high-power motor circuit from the low-voltage controller. Following proper wiring practices—short connections, shielded cables, and star-point grounding—helps ensure stable readings.

Scaling, filtering and alarm thresholds

Once installed, sensors must be scaled to match the PLC or drive’s input range. Filters may be applied to smooth noise without sacrificing response time. Many automation engineers configure alarm thresholds directly into the logic: for example, triggering a warning when current exceeds 110% of nominal load or when imbalance occurs between phases. The ability of a current sensor to support programmable thresholds enhances automation safety and reliability.

Typical control algorithm uses

Within modern VFDs, current feedback is central to advanced algorithms such as:

Vector control: Using current measurement to decouple torque and flux components.

Torque control: Directly regulating torque output based on instantaneous current.

Overload protection: Detecting and reacting to sudden surges before damage occurs.

By feeding accurate AC/DC sensor data into these algorithms, drive systems achieve smoother operation and improved motor lifespan.



Selection checklist & performance specs for VFD applications

Bandwidth, linearity, saturation immunity, temperature stability

Key specifications influence how well a sensor performs:

Bandwidth: Determines how quickly current changes can be tracked.

Linearity: Ensures that measured values remain proportional across the full range.

Saturation immunity: Prevents distortion during high-current events.

Temperature stability: Essential for factories or outdoor installations exposed to varying climates.

For critical automation, neglecting these factors can result in drift, instability, or costly downtime.

Mechanical form factor

Form factor also matters:

Clamp-on sensors: Allow retrofitting without disconnecting cables.

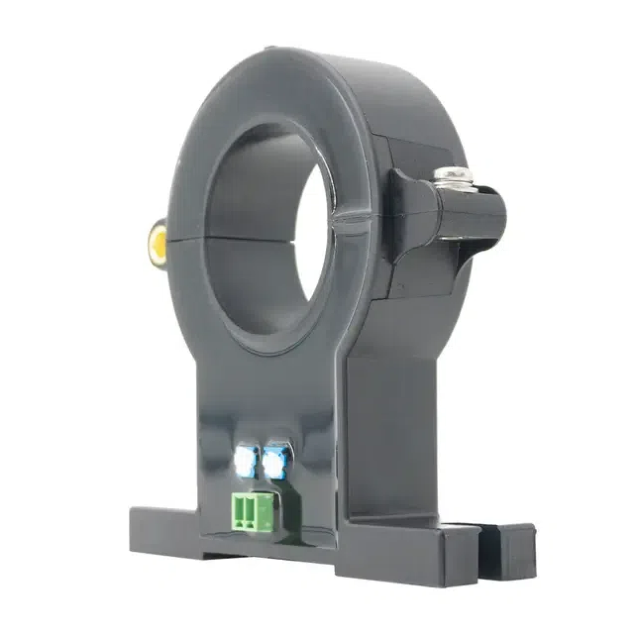

Split-core sensors: Convenient for upgrades on existing systems.

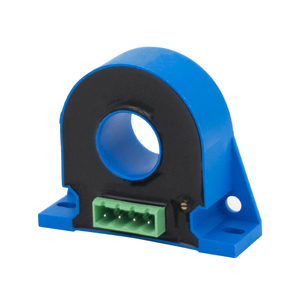

Solid-core sensors: Provide best performance for new installations, though requiring cable threading.

Selection depends on whether the project is a new build or retrofit.

Safety and certifications

Safety is another priority. Reliable sensors carry isolation voltage ratings, transient immunity, and international certifications such as CE or UL. This ensures not only compliance but also peace of mind when integrating into critical infrastructure.



Real-world benefits and ROI examples

Energy savings through optimized speed control

With accurate current feedback, VFDs can fine-tune motor operation to match load demand. This avoids unnecessary over-speeding or over-torqueing, leading to lower power consumption and reduced utility costs. For plants operating multiple motors, the cumulative savings are significant.

Reduced downtime via early fault detection

Overcurrent, phase imbalance, or insulation failure often show early signs in current patterns. An AC/DC current sensor enables predictive maintenance by detecting anomalies before equipment damage occurs. Downtime is minimized, and production continuity is protected.

How to pilot a sensor upgrade on an existing VFD line

For organizations considering upgrades, the process can start small. A pilot installation of AC/DC current sensors on one production line allows engineers to validate performance, test integration with existing PLC logic, and quantify energy savings. Once proven, the rollout can be expanded plant-wide with confidence.



Conclusion

For today’s automation and motor control systems, the value of accurate current measurement cannot be overstated. A current sensor—especially an AC/DC current sensor—provides the foundation for precise VFD speed control, reliable torque regulation, and automated fault protection. Companies like Hubei Tianrui Electronics Co., Ltd., with decades of expertise in power electronics, offer sensor solutions that meet the needs of control engineers and OEMs worldwide. To maximize efficiency, reliability, and system safety, selecting the right sensor is a practical step forward. Contact us today to discuss technical specifications or to explore a pilot installation that will help optimize your VFD applications.
