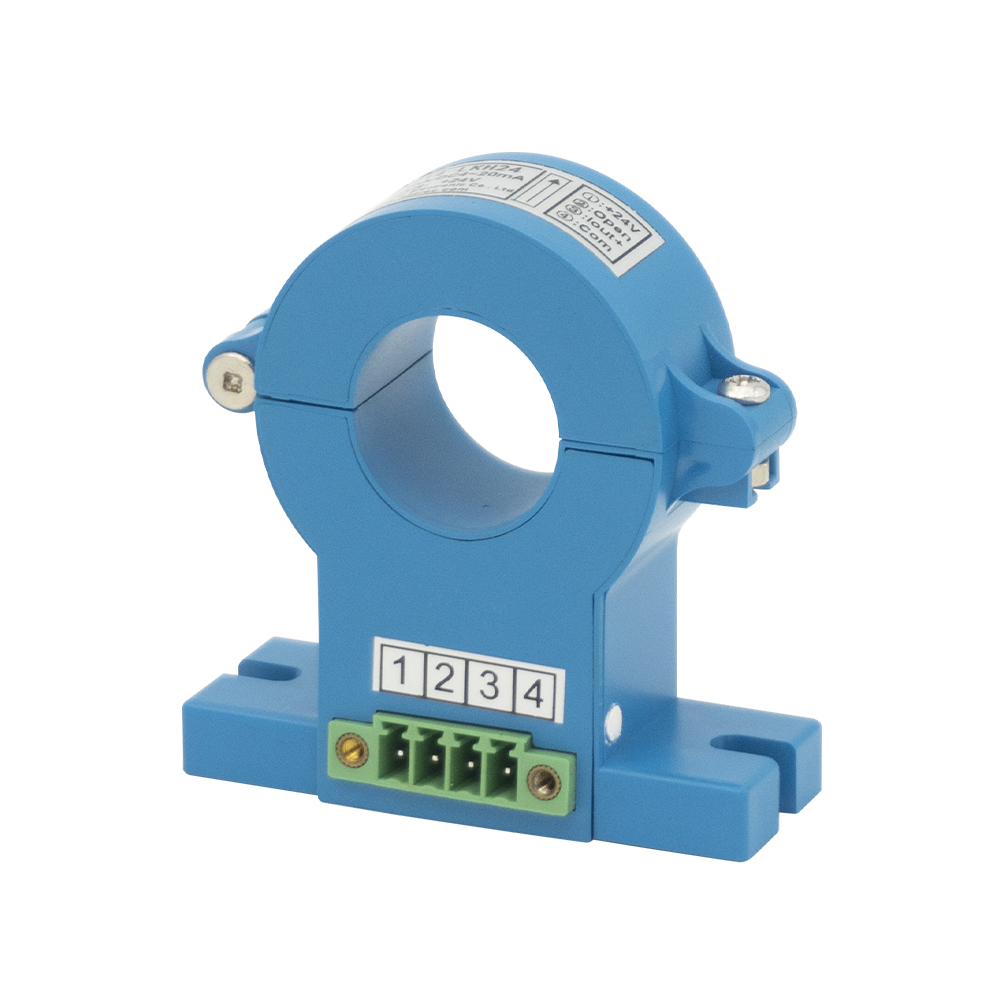

TR2214-LKH24
TR
Product Overview
The current transducer is a magnetic sensing device that detects the presence, strength, and polarity of a magnetic field. It operates based on the Hall effect principle, where a voltage is generated across a semiconductor material when current flows through it in the presence of a magnetic field. This sensor provides accurate, contactless detection and can measure magnetic field strength or convert magnetic changes into electrical signals. Hall Effect Sensors are widely used for position, speed, and proximity sensing in automotive systems, industrial automation, consumer electronics, and motor control applications, offering high reliability and long operational life.
Products Features
* AC/DC/pulse current measurement.
* Excellent EMI immunity & high CMRR.
* Low drift, fast response , wide bandwidth.
* Non-invasive through-hole design.
* Split-core structure for easy installation.
Product Application
* AC variable frequency drive systems.
* Servo motor traction control.
* Uninterruptible power supplies (UPS).
* Welding equipment & battery power systems.
Download Size Sheet
Mechanical Dimension(mm)
Circuit Connection Diagram
Product Parameters
@TA=25℃,unless otherwise stated
Type | TR2214-LKH24 | |
IPN | Primary Rated Input Current | AC 30A |
IP | Primary Current Measure Range | AC 0~36A |
ISN | Secondary Rated Output Current | DC 4~20mA |
UC | The Power Supply Voltage | DC +24V |
RL | Load Capacity | RL ≤ 300Ω |
εL | Linearity | 2% |
X | Accuracy | ±1% |
Overload Capacity | 2 times | |
IC | Current Consumption | ≤25mA+IS |
Ud | Power Frequency Withstand Voltage | 3kV AC/1min |
tr | Response Time | <250ms |
V0 | Offset Voltage | ≤ 20mV |
Temperature Drift | ≤200ppm/℃ | |
TA | Ambient Operating Temperature | -20℃~+80℃ |
TS | Ambient Storage Temperature | -25℃~+85℃ |
IS：Output current
