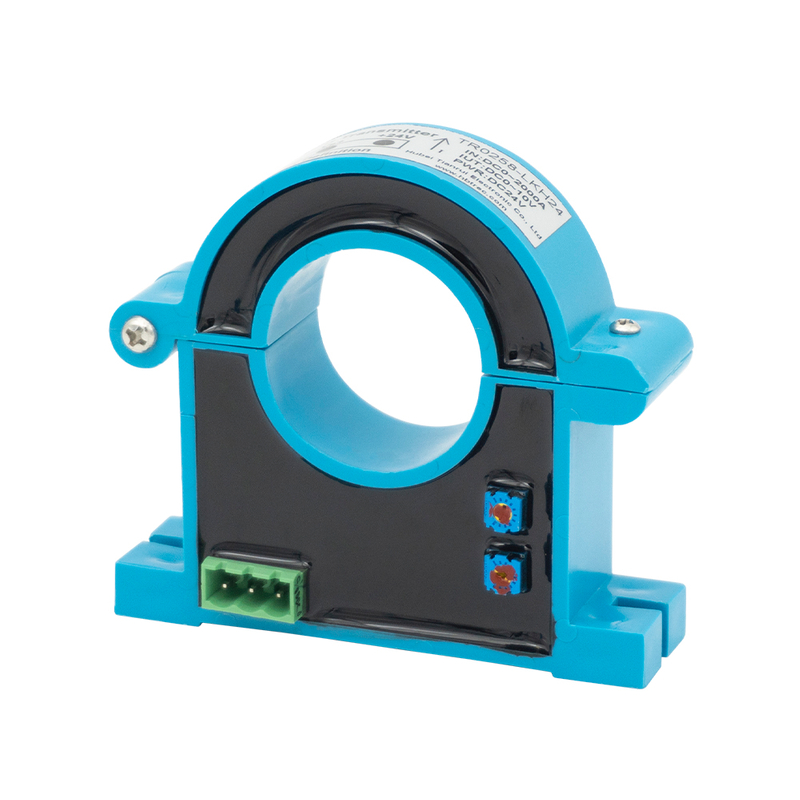

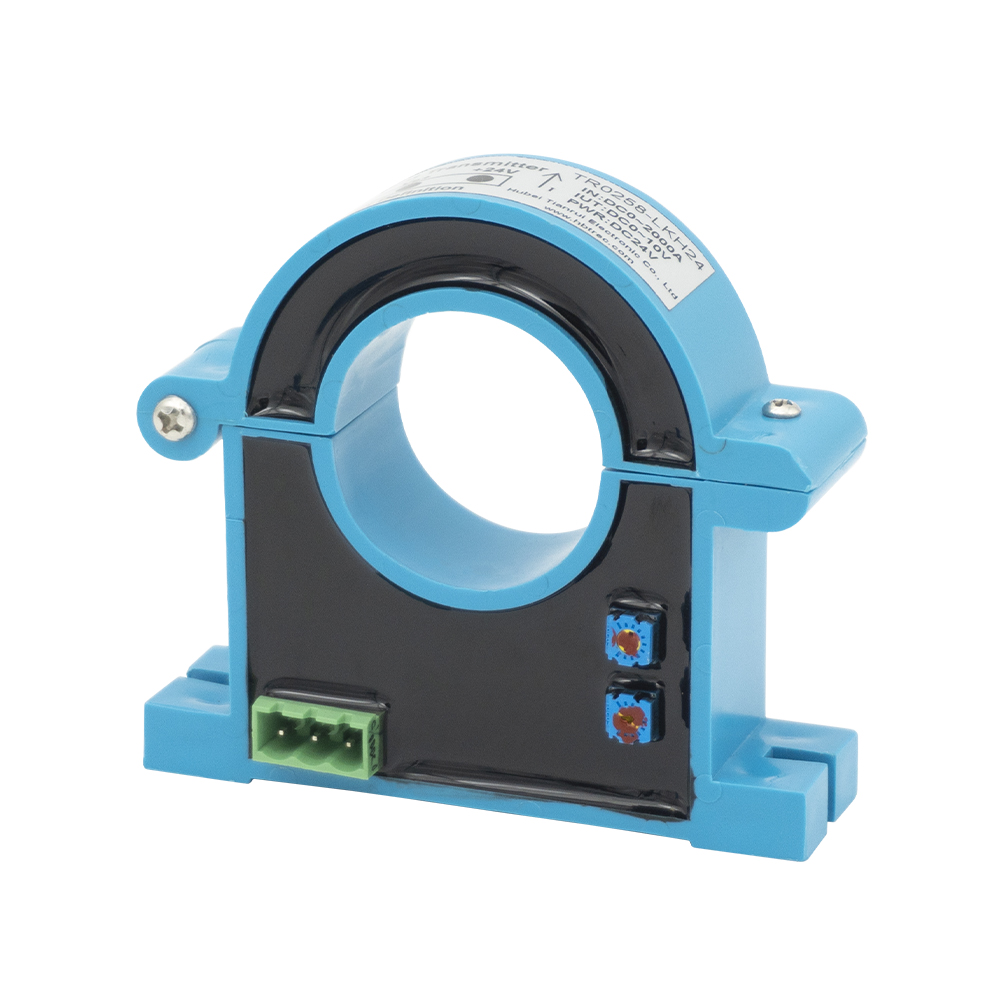

Product Overview
A Current Transducer is an electronic device that converts alternating or direct current into a proportional electrical signal such as 0–5V, 0–10V, or 4–20mA. It provides electrical isolation between the primary circuit and the measurement system, ensuring safety and accurate monitoring. Based on technologies like the Hall Effect or Current Transformer principle, it offers high accuracy, fast response, and excellent stability. Current transducers are widely used in power systems, industrial automation, motor drives, renewable energy systems, and energy management applications. They are essential for real-time current measurement, overload protection, and performance optimization in modern electrical and control systems.
Products Features
* Best cost-performance ratio.
* Low power consumption.
* Compact and lightweight design.
* Easy installation, no insertion loss.
Product Application
* Variable frequency drive systems.
* Welding machine control.
* Electrochemical applications.
* Power supply monitoring.
Download Size Sheet
Mechanical Dimension(mm)
Circuit Connection Diagram
Product Parameters
@TA=25℃,unless otherwise stated
| Type | TR0258-LKH24 | |
IPN | Primary Rated Input Current | DC 2000A |
IP | Primary Current Measure Range | DC 0~2400A |
VSN | Secondary Rated Output Voltage | DC 10V |
UC | The Power Supply Voltage | DC 24V |
RL | Load Capacity | RL≤650Ω |
εL | Linearity | 0.5% |
X | Accuracy | ±0.5% |
BW | Frequency Bandwith | DC~20kHz |
di/dt Accurately Followed | >50A/μs | |
IC | Current Consumption | ≤25mA |
Ud | Power Frequency Withstand Voltage | 2.5kV AC/1min |
tr | Response Time | <200ms |
I0 | Offset Current | ≤80μA |
Temperature Drift | ≤500ppm/℃ | |
TA | Ambient Operating Temperature | -10℃~+70℃ |
TS | Ambient Storage Temperature | -25℃~+85℃ |
