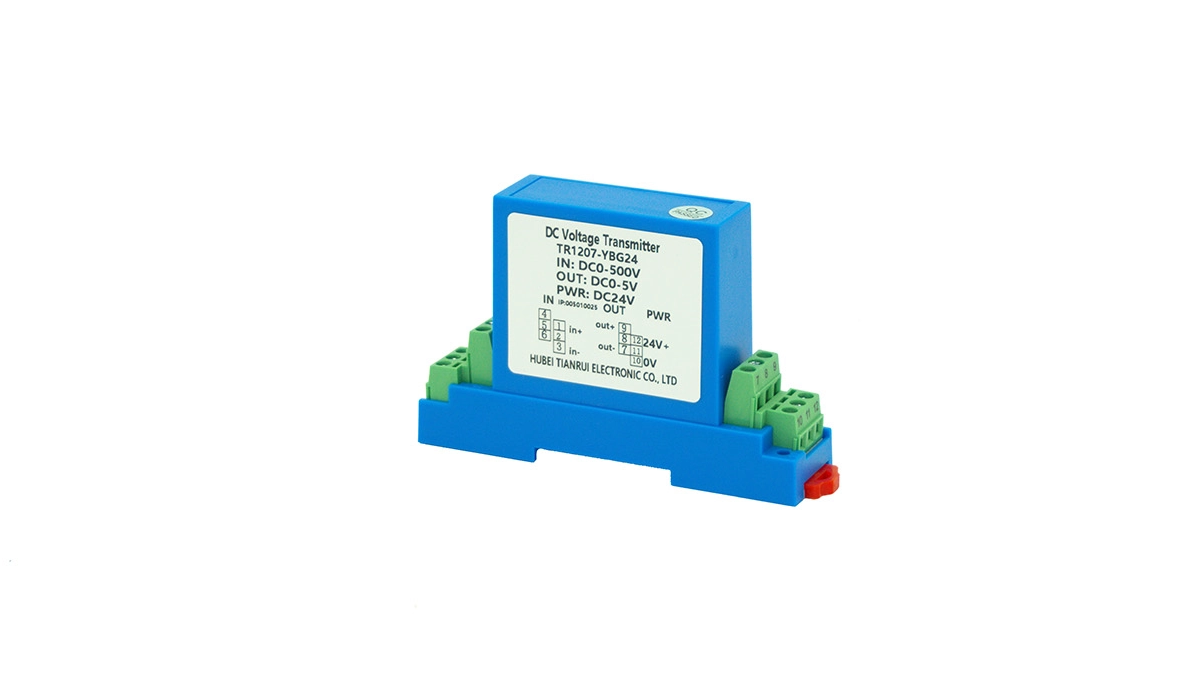

What Is a Voltage Transducer?

A voltage transducer is an electronic device designed to accurately convert an electrical voltage signal from an input circuit into a proportional output signal, typically in the form of a standard current (such as 4–20 mA) or voltage (such as 0–10 V). This output can then be used for monitoring, control, protection, and data acquisition in various electrical systems. Voltage transducers play a key role in ensuring precise voltage measurement, system safety, and efficient energy management in modern power and automation applications.

The working principle of a voltage transducer is based on converting an input voltage into a proportional electrical signal while maintaining complete electrical isolation between the input and output circuits. Depending on the design and technology, there are two main types of voltage transducers: direct type and isolated type.

In the direct type, the input voltage is scaled down using precision resistive dividers and then processed through signal conditioning circuits. The conditioned signal is converted into a standard output signal. This type is suitable for low-voltage measurements.

In the isolated type, galvanic isolation is achieved using optical, magnetic, or transformer coupling techniques. In such transducers, the input voltage is first converted into a corresponding current or magnetic signal, transmitted across an isolation barrier, and then reconverted into an output signal linearly proportional to the input. Many modern voltage transducers use Hall effect or isolation amplifier technology to ensure high accuracy, fast response, and excellent long-term stability. The use of isolation protects both measuring instruments and operators from high-voltage hazards while minimizing signal distortion and noise interference.

Voltage transducers have several important features and advantages. They offer high accuracy and stability, maintaining precise performance over a wide input range even under fluctuating temperature and humidity conditions. Electrical isolation between input, output, and power supply circuits enhances safety and reduces interference. They provide a wide measurement range, capable of handling both AC and DC voltages from a few volts to several kilovolts. With fast response time and strong anti-interference capability, they perform reliably in real-time monitoring and control systems. In addition, their compact and modular design allows easy installation, and they can provide either analog or digital outputs compatible with PLCs, data loggers, and industrial control systems.

Voltage transducers are widely used in many fields that require accurate voltage measurement and monitoring. In power systems and substations, they monitor voltage levels, detect abnormalities, and provide feedback for stable grid operation. In industrial automation, they are integrated into PLCs and SCADA systems to control and monitor voltage in motors, drives, and production equipment. In renewable energy systems such as solar and wind power, voltage transducers measure DC bus voltage, inverter output voltage, and grid connection voltage to ensure stable and efficient operation.

They are also essential in electric vehicles and charging stations for monitoring battery voltage, inverter control, and charging protection. In energy management systems, voltage transducers help analyze power quality and optimize energy use in smart grids and buildings. They are further used in power converters and inverters for real-time voltage feedback, and in laboratory or production testing equipment for precision voltage sensing and calibration.

In summary, a voltage transducer is an essential component for accurate and safe voltage measurement in modern electrical and automation systems. By converting voltage signals into standardized outputs with high accuracy and electrical isolation, it enables efficient system control, monitoring, and protection. With reliability, compact structure, and wide applicability, voltage transducers contribute significantly to improving energy efficiency, operational safety, and intelligent power management across various industries.
