How Does A Current Sensor Work?

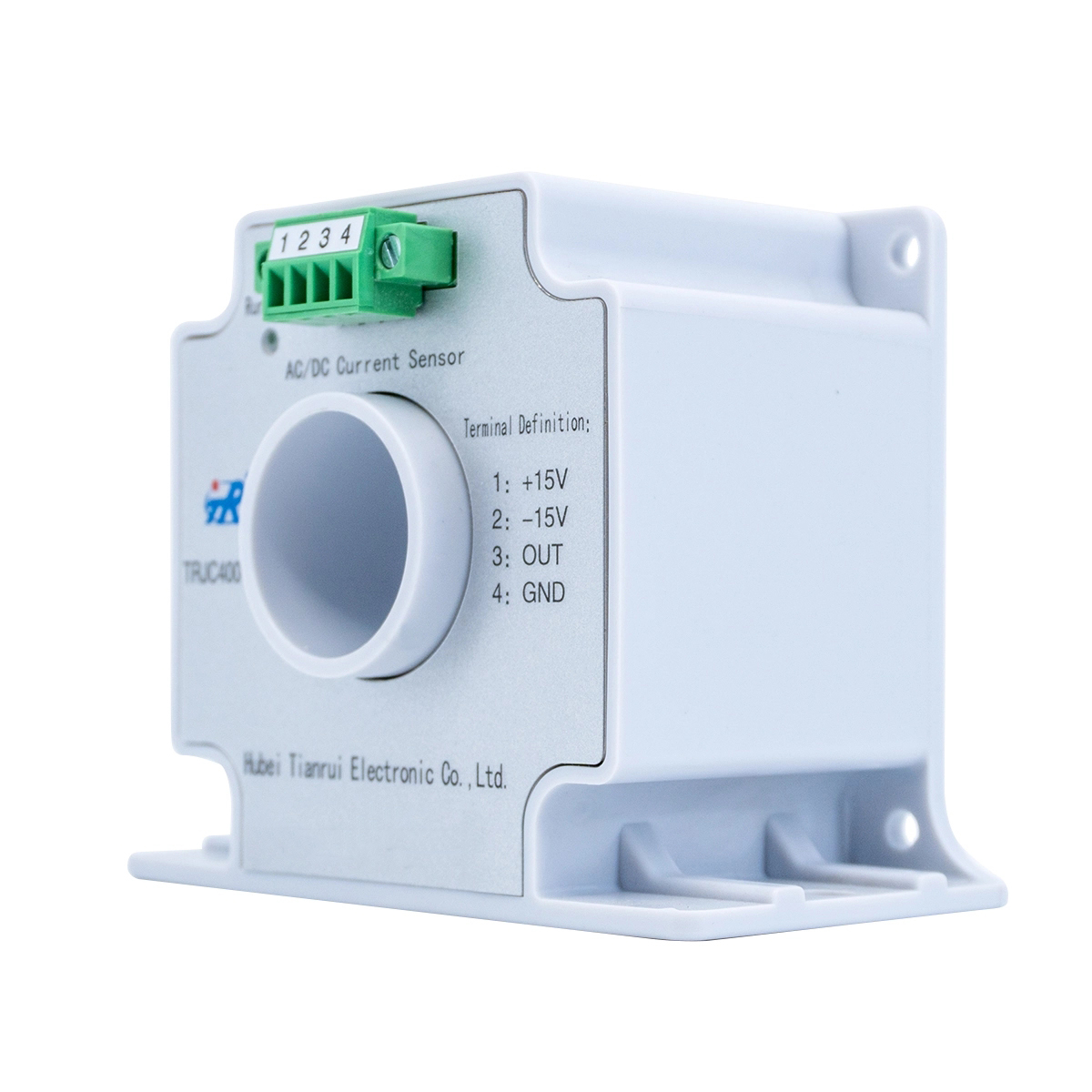

A current sensor is a device used to measure the amount of electric current flowing through a conductor and convert that information into a readable electrical signal. It plays a critical role in monitoring, controlling, and protecting electrical and electronic systems. The basic working principle of a current sensor depends on detecting the magnetic field, voltage drop, or electromagnetic effect generated by the flowing current, and then translating this physical phenomenon into a proportional output signal such as voltage, current, or digital data.

One common working method is based on electromagnetic induction. When alternating current flows through a conductor, it generates a changing magnetic field around it. A current transformer or inductive sensor detects this magnetic field and induces a secondary current that is proportional to the primary current. This approach is widely used in AC current measurement and provides electrical isolation between the measured circuit and the monitoring system, improving safety and noise immunity. Another popular method is the Hall effect principle, which is suitable for both AC and DC current measurement. When current flows through a conductor, it creates a magnetic field. A Hall element placed in this field produces a small voltage proportional to the magnetic field strength, which is then amplified and processed to represent the current value accurately.

Resistive current sensing is another working approach. In this method, current flows through a precision shunt resistor, creating a small voltage drop that follows Ohm law. By measuring this voltage, the current can be calculated. This technique is simple and cost effective, but it lacks electrical isolation and may introduce power loss and heat generation. Advanced current sensors may also use fluxgate or Rogowski coil technology to achieve high accuracy, wide measurement range, and excellent linearity, especially in industrial and power quality applications.

Current sensors offer several key features that make them essential in modern systems. They provide accurate and real time current measurement, which helps improve system efficiency and reliability. Many current sensors support electrical isolation, protecting sensitive electronics and operators from high voltage hazards. They are available in compact designs, allowing easy integration into control panels, power modules, and embedded systems. In addition, current sensors can be designed to operate over wide temperature ranges and harsh environments, ensuring stable performance in industrial and outdoor applications.

The application scenarios of current sensors are broad and continuously expanding. In industrial automation, they are used to monitor motor load, detect overload conditions, and optimize energy consumption. In power systems, current sensors support energy metering, protection relays, and fault detection. In renewable energy applications such as solar inverters and wind power systems, current sensors help regulate power conversion and ensure grid compliance. They are also widely used in electric vehicles, battery management systems, and charging stations to monitor current flow and improve safety. In consumer electronics and medical equipment, current sensors enable precise power management and reliable operation.

Overall, current sensors are fundamental components that enable accurate current measurement, system protection, and intelligent control across a wide range of electrical and electronic applications.
