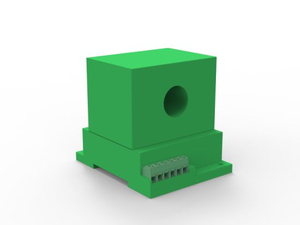

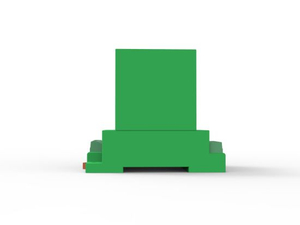

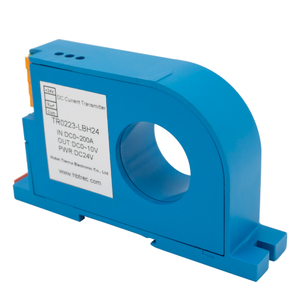

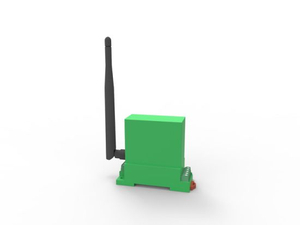

Current Transformer (CTs) and Current Transducer play a crucial role in modern rail transportation systems, ensuring safety, reliability, and efficient power management. In electric locomotives, traction substations, and signaling networks, they provide precise current measurement, isolation, and conversion for control and protection equipment. By monitoring traction power, regenerative braking energy, and auxiliary circuits, these devices help maintain system stability and energy efficiency.
Current Transformers are mainly used to step down high current levels for metering and protection, offering high accuracy, strong insulation, and excellent overload capability. Current Transducers, on the other hand, convert AC or DC current into standard analog or digital signals, allowing real-time monitoring and intelligent control through onboard or remote systems.
In railway applications, these devices operate reliably in harsh environments with vibration, temperature fluctuations, and electromagnetic interference. Their compact design, high precision, and long-term stability make them ideal for integration into modern electric train systems, metro lines, and high-speed rail infrastructure. Overall, Current Transformers and Current Transducers contribute to improved energy efficiency, fault diagnosis, and automation in rail transportation, supporting sustainable and safe railway operations.
Application Scenario | Current Transformers (CTs) | Advanced Current Sensors | Core Value |
Traction Power Monitoring | Overhead catenary current metering (Class 0.2S, ±0.2%) | Fiber optic sensors with EMI immunity (Lightning Class C) | 25kV power network stability |
Train Drive Systems | Traction inverter overload protection (response ≤20ms) | Rogowski coils for IGBT switching current (BW>1MHz) | Prevent IGBT module breakdown |
Track Circuit Monitoring | Rail return current imbalance detection (1mA res.) | High-precision zero-flux sensors (±0.1mA DC offset) | Fault location (±100m accuracy) |
Regenerative Braking Control | Braking energy feedback metering (EN 50463) | Closed-loop Hall sensors (±1% FS tracking) | 15-25% energy recovery efficiency |
1. Safety Interlock Systems
● Contactor Status Verification: Zero-flux CTs validate main breaker operation (<0.5ms timing error)
● ATP System Power Assurance: Class 0.5 CTs for safety circuits (SIL4 certified)
2. Predictive Maintenance
● Pantograph Arcing Detection: HF magnetic sensors (100kHz sampling) capture off-wire arcs
● Bearing Current Warning: Wideband CTs (10Hz-10MHz) diagnose traction motor insulation degradation
3. Energy Management
Technology | Implementation | Efficiency Gain |
Regenerative Braking Optimization | Real-time phase tracking (±0.5° accuracy) | 18-30% energy reduction |
Harmonic Mitigation | Active filter current feedback (up to 50th order) | THDi<3% |
Challenge | Solution | Certification Standard |
Vibration (5g@200Hz) | Potting-encapsulated CTs (epoxy resin) | IEC 61373 Cat.1 |
Wide Temperature (-40℃~+85℃) | Low-drift magnetoresistive sensors (±5ppm/℃) | EN 50155 Class TX |
Severe EMI | Triple-shielded Rogowski coils (100dB@10MHz) | EN 50121-3-2 |
System | Configuration | Verified Performance |
Metro Traction Substation | 2500A Class 0.2S CT + IEC 61850-9-2LE protocol | 99.999% power reliability |
HST Drive Unit | 1500A Rogowski coil + CANopen interface | 60% IGBT failure reduction |
Wayside Monitoring | Distributed Optical Current Sensing (DCFS) | Short-circuit loc. error <±10cm |
