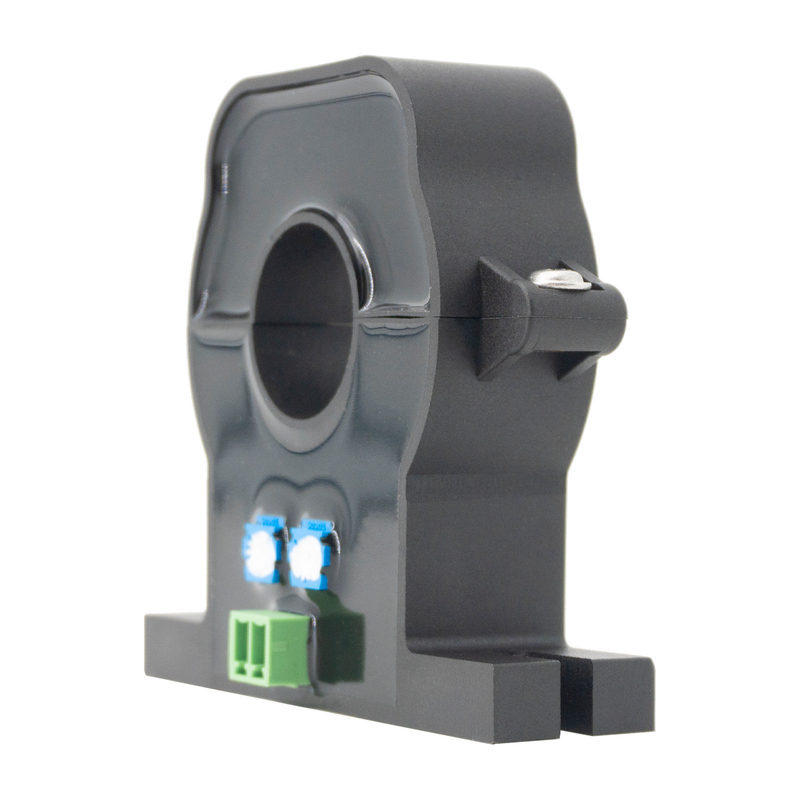

split core Hall Current Sensor for Power management AC 50A DC 4~20mA

This product utilizes direct measurement Hall detection technology. When the primary current flows through the sensor, the corresponding magnetic flux is generated in the optimized designed magnetic circuit. The Hall element accurately senses the magnetic field and outputs a proportional raw Hall voltage. This signal is amplified and processed by a precision amplifier (including the necessary temperature compensation, etc.), and the final output voltage signal is stable, reliable and highly linear, reflecting real-time changes in the primary current.

Availability:



Inquire Add to Basket 天猫购买

Model:
TR2239B-LKH24 AC 50A DC 4~20mA
Brand:
TR

Product Overview

Hall current sensors play a crucial role in power management by precisely measuring and monitoring current flow. They ensure stable power output, optimize energy efficiency, and prevent overloading. In battery management, they safeguard against overcharge and over-discharge. In motor control, they facilitate precise current regulation, enhancing motor performance and reliability.

Product Features

* Measures AC, DC and pulsed signals

* Excellent accuracy, good linearity

* Strong resistance to external interference, high common mode rejection ratio

* Low temperature drift, low power consumption, wide frequency band

* Split structure, easy to install

Application

* AC frequency conversion speed regulation

* Servo motor traction

* Uninterruptible power supply(UPS)

* Welding machine, battery power supply

厂区图

证书1

3 phase current sensor split core current sensorsr dc split core current transducer sensor close loop current sensor current hall sensor open loop current sensor 50a 3phase hall current sensor current sensor 500 a current sensor 4-20ma current sensors

Electrical data TR2239B-LKH24
@TA=25℃,unless otherwise stated
Type		TR2239B-LKH24
I _PN	Rated input	50A AC	100A AC	300A AC
I _PM	Measure range	55A AC	110A AC	330A AC
V _OUT	Rated output current	4~20mA
V _C	Power supply	+24V DC（± 5%）
I _o	Offset current	≤4±0.1mA
εL	Linearity	≤1%FS
X	Overall accuracy	±1%FS
BW	Frequency Bandwidth-3db	20Hz-6KHz
di/dt accurately followed		>1A/ms
V _O	Zero offset current	≤4±0.1mA
T _R	Response time	＜200Ω
R _M	Load resistance	≤250Ω
V _D	Isolation voltage	50Hz，1min，3KV
I _OT	Offset current drift	≤0.005mA/℃
I _OUT	Amplitude current temperature drift	≤0.01mA/℃
T _A	Ambient operating temperature	-40～+85℃
I _c	Current consumption	≤30mA+Is
T _S	Ambient storage temperature	-40～+95℃
W	Mass	≈80g

Electrical data TR2239B-LKH24
@TA=25℃,unless otherwise stated
Type		TR2239B-LKH24
I _PN	Rated input	50A AC	100A AC	300A AC
I _PM	Measure range	55A AC	110A AC	330A AC
V _OUT	Rated output current	4~20mA
V _C	Power supply	+24V DC（± 5%）
I _o	Offset current	≤4±0.1mA
εL	Linearity	≤1%FS
X	Overall accuracy	±1%FS
BW	Frequency Bandwidth-3db	20Hz-6KHz
di/dt accurately followed		>1A/ms
V _O	Zero offset current	≤4±0.1mA
T _R	Response time	＜200Ω
R _M	Load resistance	≤250Ω
V _D	Isolation voltage	50Hz，1min，3KV
I _OT	Offset current drift	≤0.005mA/℃
I _OUT	Amplitude current temperature drift	≤0.01mA/℃
T _A	Ambient operating temperature	-40～+85℃
I _c	Current consumption	≤30mA+Is
T _S	Ambient storage temperature	-40～+95℃
W	Mass	≈80g
