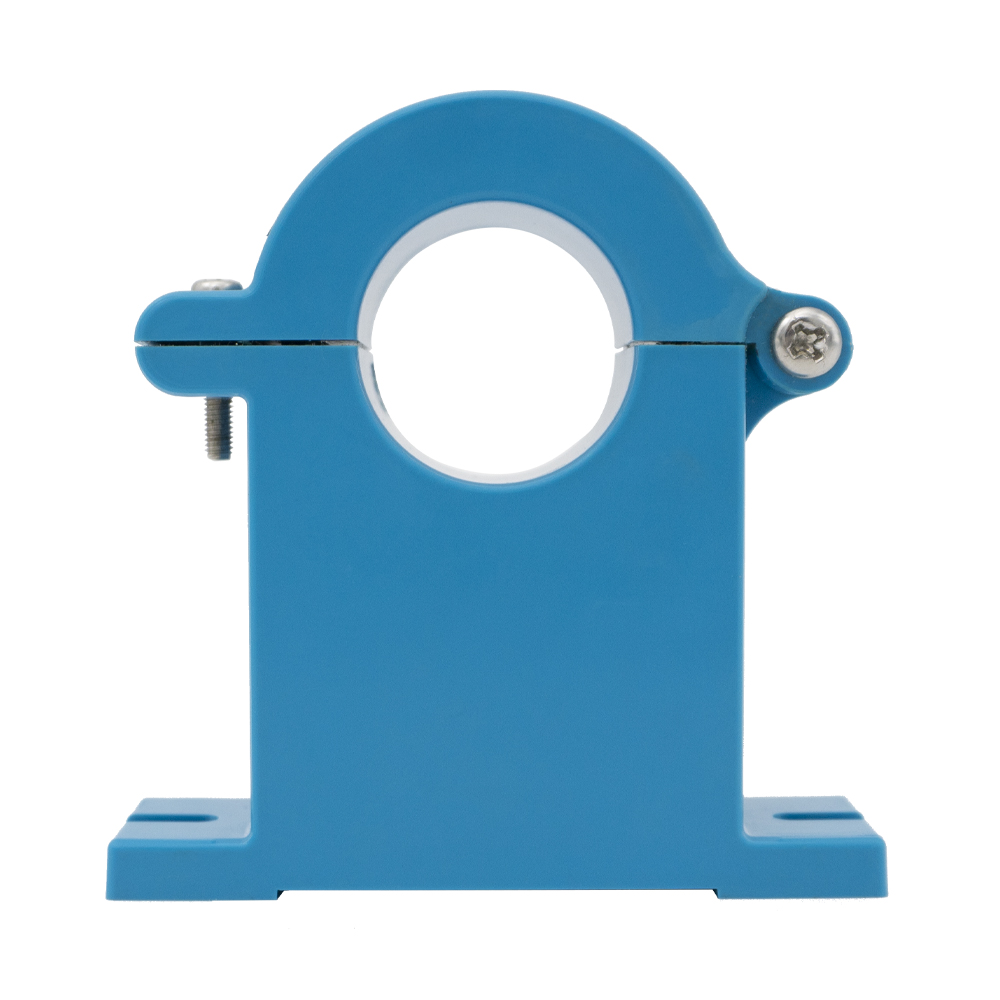

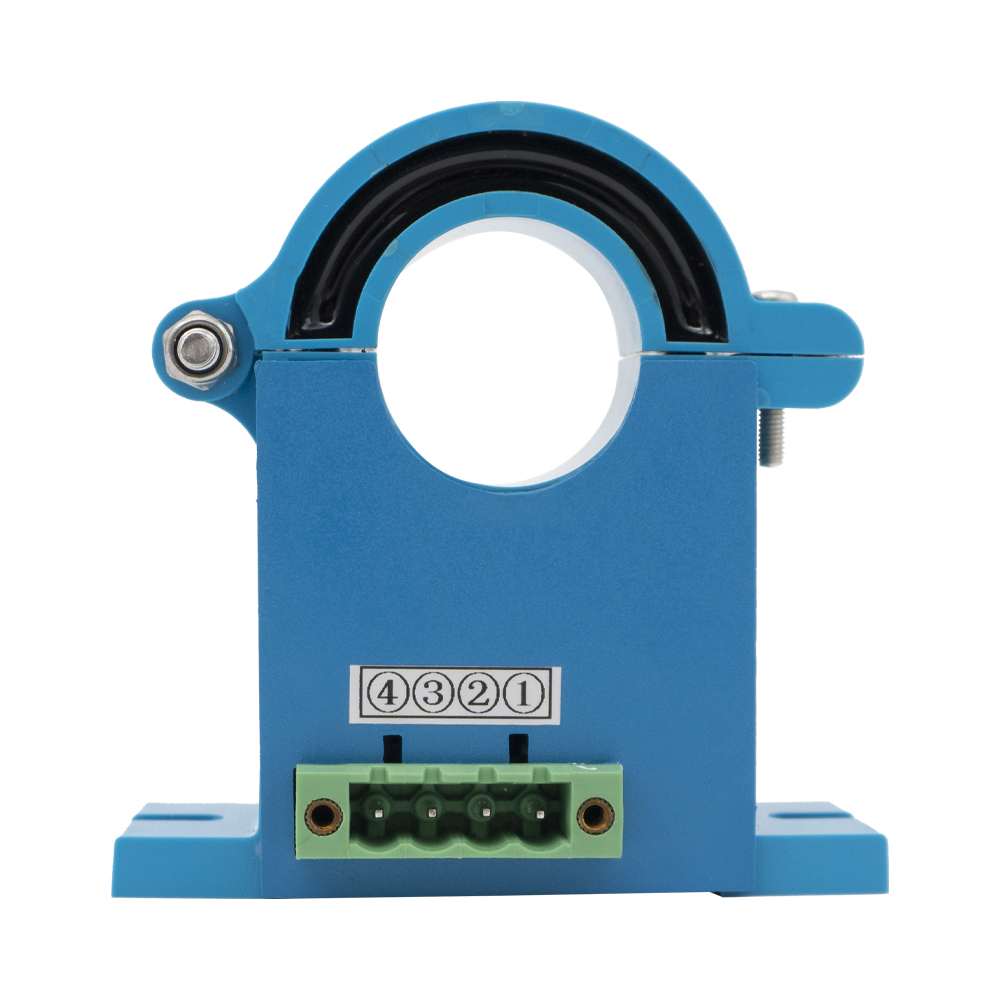

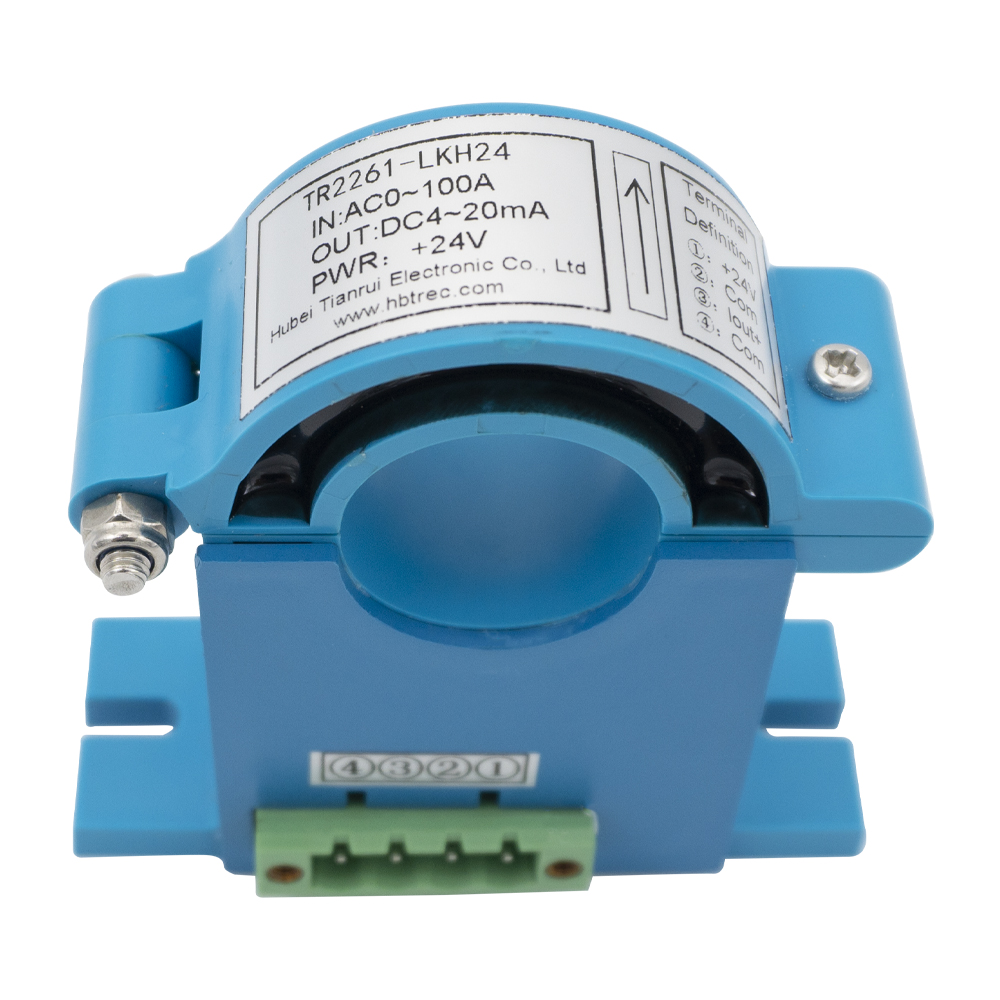

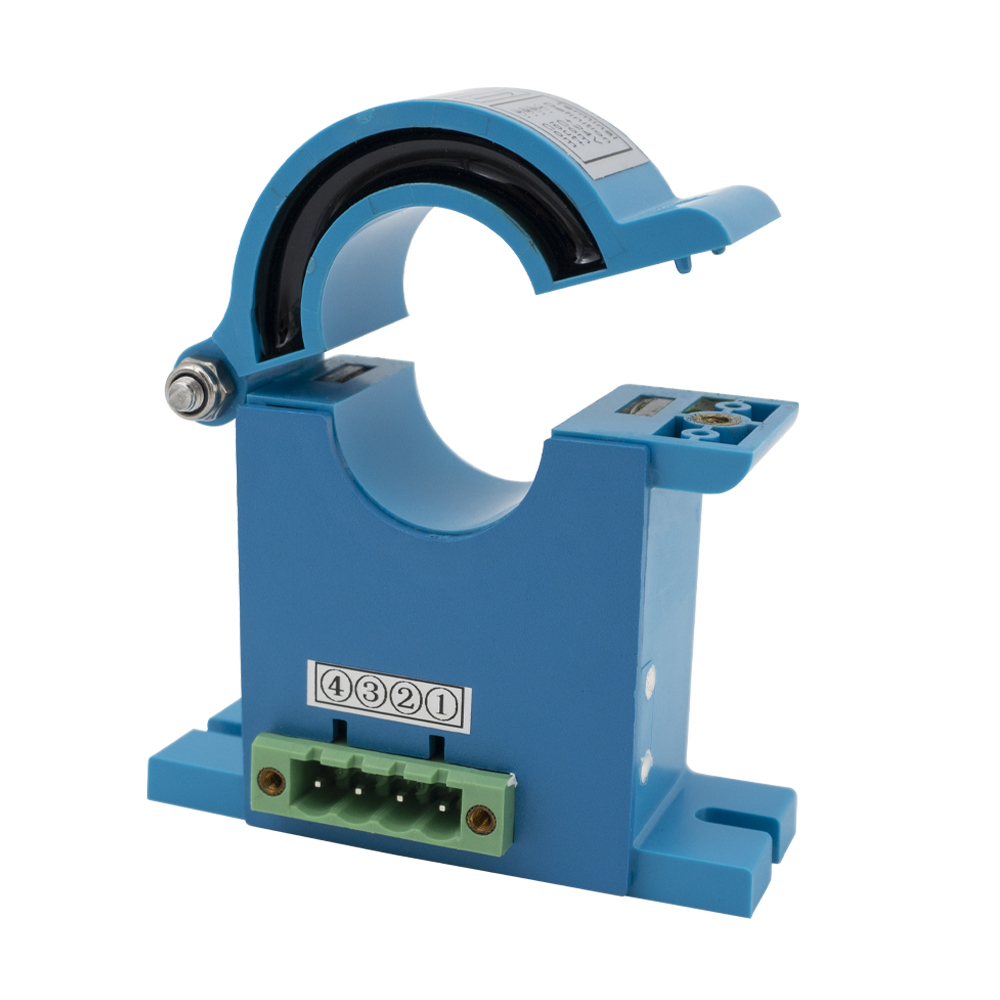

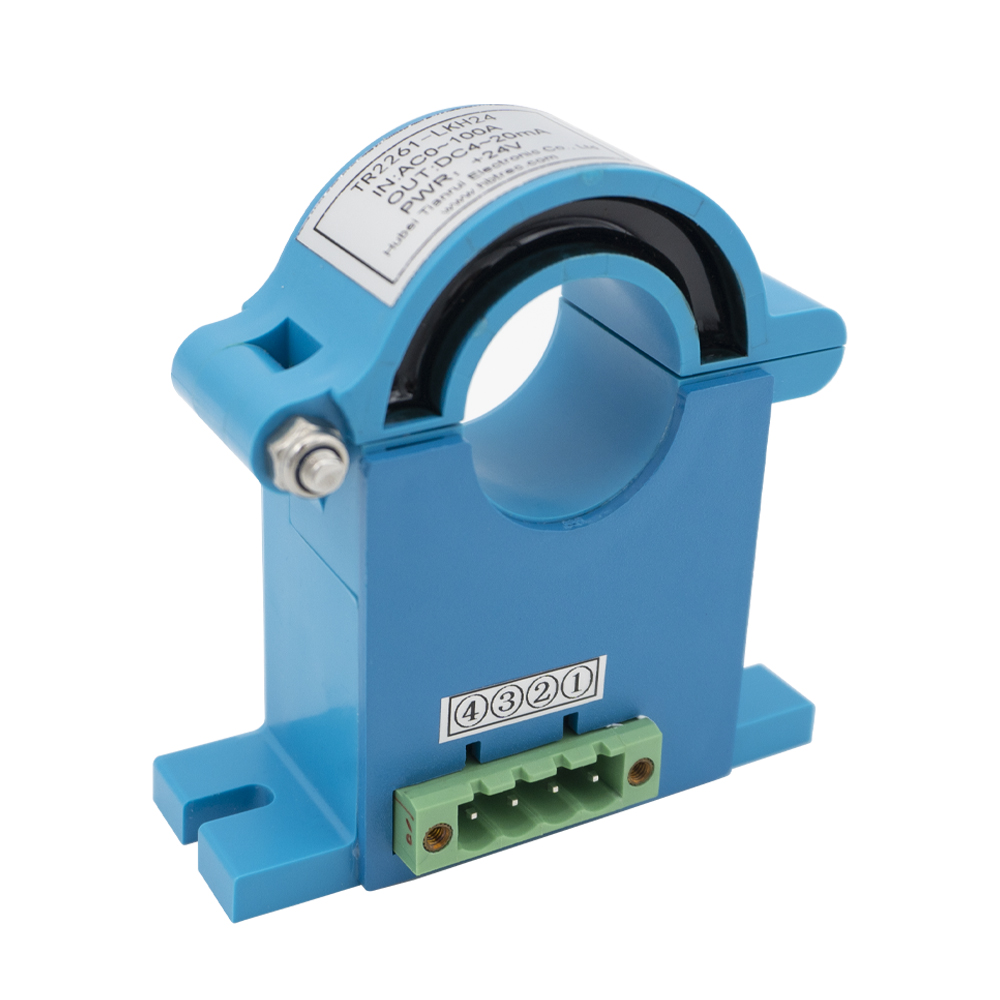

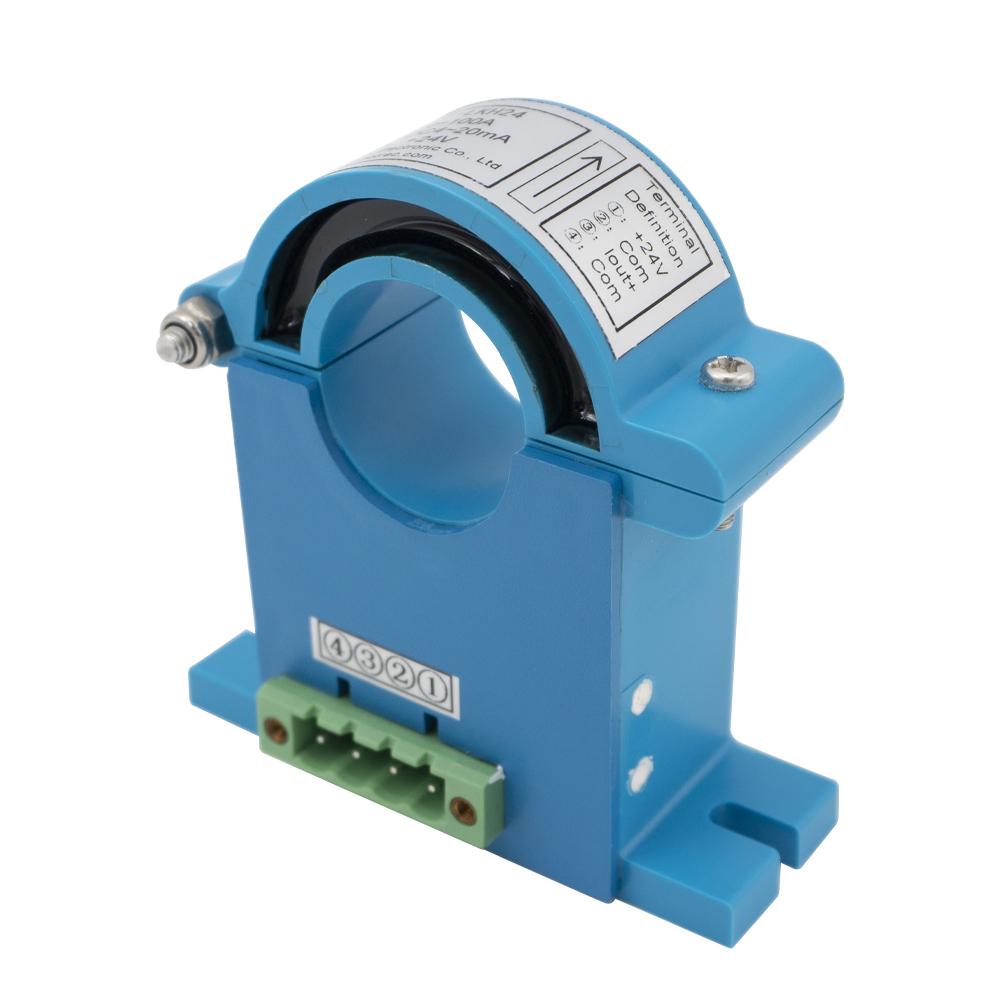

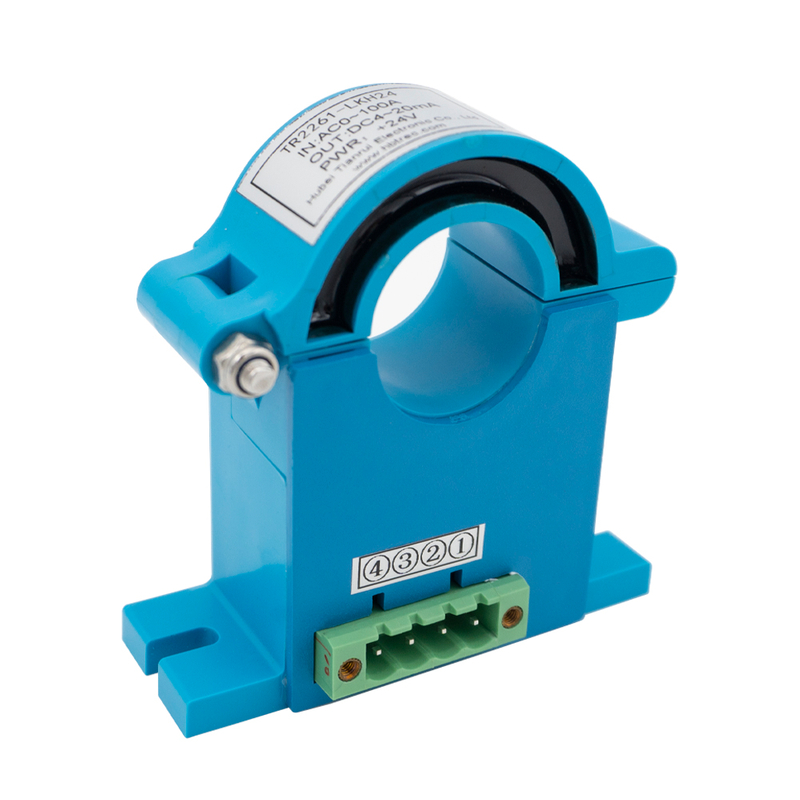

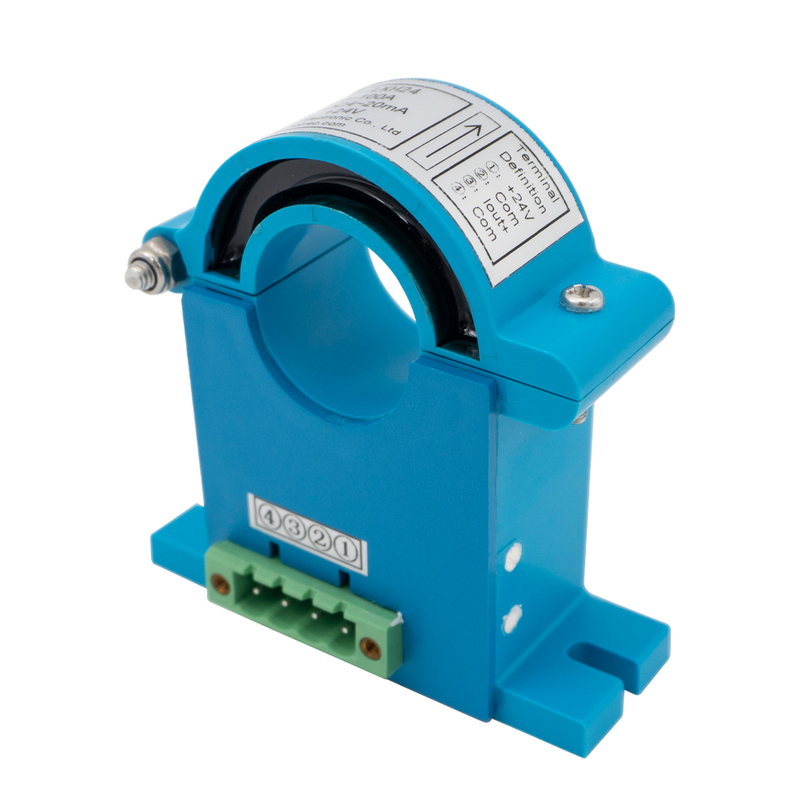

TR2261-LKH24 ‌Open-Loop Hall Effect Current Sensor AC 0~100A/DC 4~20mA

The Open-Loop Hall Effect Current Sensor operates on the ‌direct-measurement Hall-effect detection principle‌. The magnetic flux generated by the primary current is concentrated through the magnetic circuit and converted into a Hall voltage signal by the Hall device. After amplification by an amplifier, this voltage signal ‌accurately reflects the magnitude of the primary current‌.
Availability:
Inquire Add to Basket

  • TR2261-LKH24

  • TR

Products Features

Wide-range current measurement

Isolated voltage/current output

Industrial temperature endurance

Compact screw-mount design

Applications

Generator and motor monitoring systems

Smart low-voltage distribution cabinets

HVAC and lighting load management

Industrial power monitoring solutions

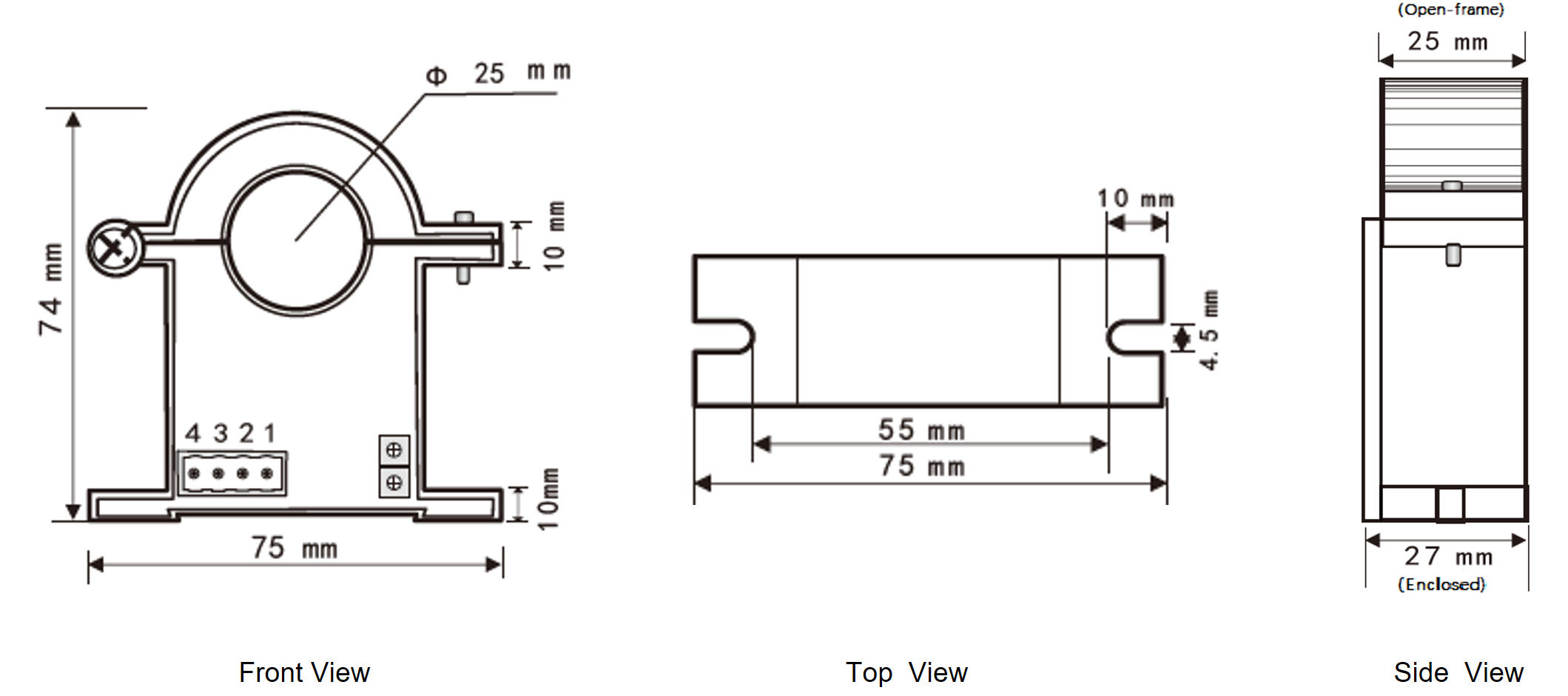

Mechanical Dimension(mm)

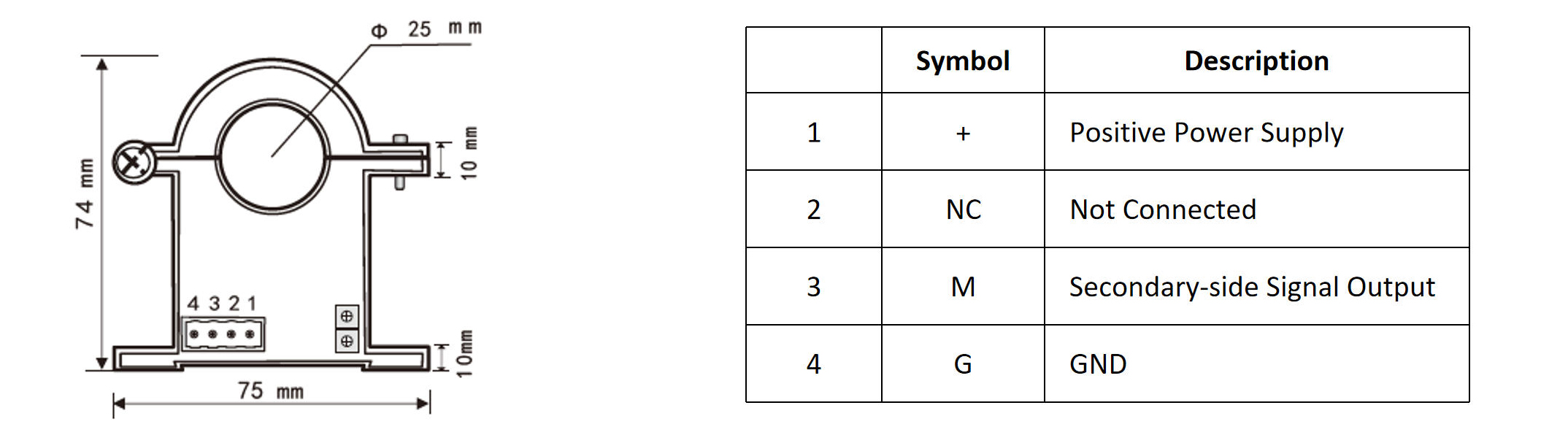

Circuit Connection Diagram

Technical Data

@TA=25℃,unless otherwise stated

Type

TR2261-LKH24

IPN

Primary Rated Input Current

AC 100A

IP

Primary Current Measure Range

AC 0~200A

ISN

Secondary Rated Output Current

DC 4~20mA

UC

The Power Supply Voltage

DC +24V

RL

Load Capacity

RL ≤ 300Ω

X

Accuracy

±1%

Zero Output Accuracy

±0.5%

Overload Capacity

2 times

Ud

Power Frequency Withstand Voltage

3kV AC/1min

tr

Response Time

<250ms

I0

Offset Current

  ≤0.5%IS

Temperature Drift

≤200ppm/℃

TA

Ambient Operating Temperature

-20℃~+80℃

TS

Ambient Storage Temperature

-25℃~+85℃

IS：output current
