What is a DC Current Sensor

A DC current sensor is an electronic device designed to measure the magnitude of direct current (DC) flowing through a conductor and convert it into a proportional electrical signal—such as voltage or current—that can be easily read, processed, or displayed by monitoring systems, controllers, or data acquisition equipment. Unlike alternating current (AC), which naturally oscillates and can be measured using inductive principles, DC has a constant direction and magnitude, requiring specialized sensing technologies to detect it accurately without interfering with the original circuit.

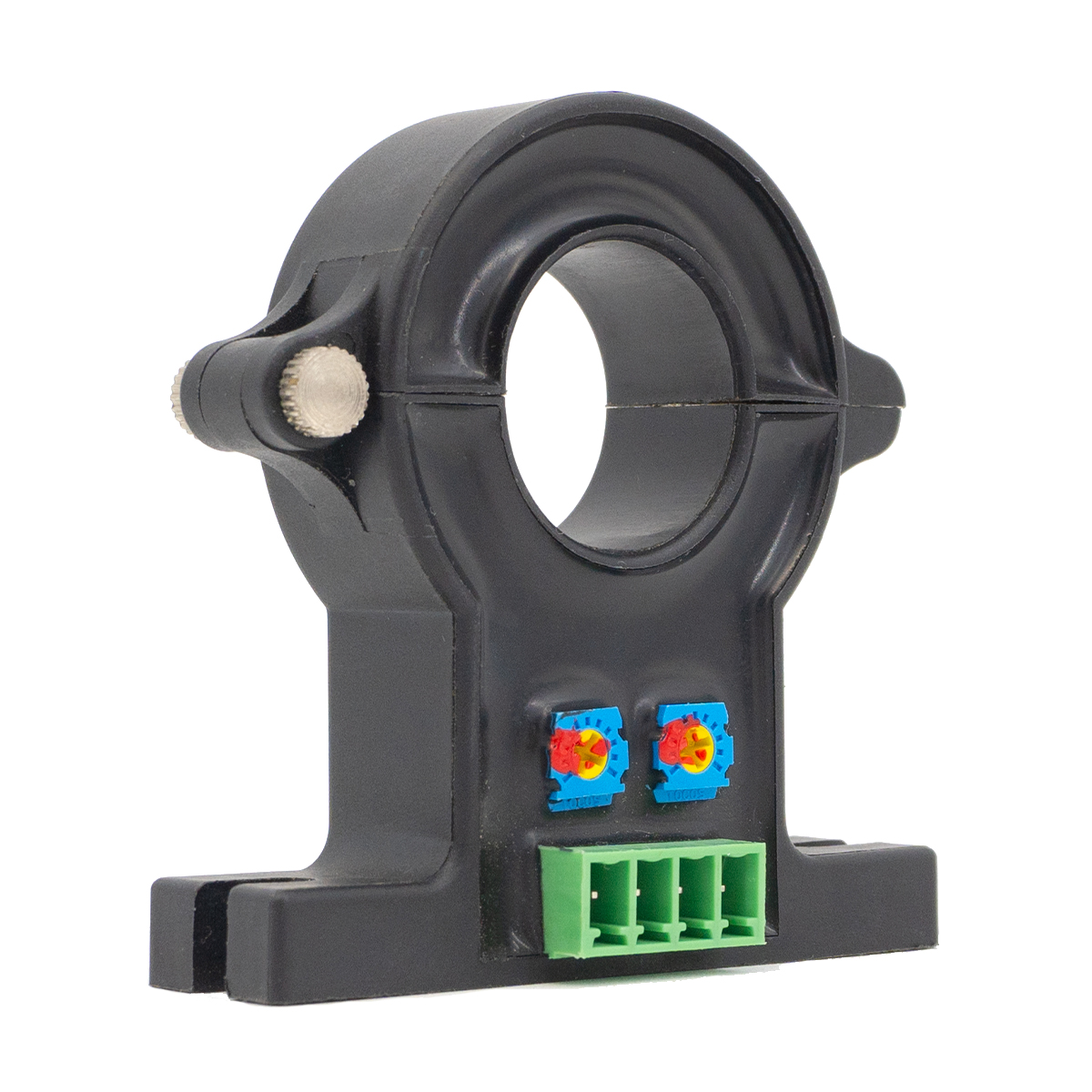

The core function of a DC current sensor is to provide non-intrusive or intrusive measurement of DC current while ensuring minimal impact on the circuit's performance. Non-intrusive sensors, such as hall effect current sensor, do not require physical contact with the conductor, making them ideal for high-voltage or high-current applications where safety and circuit integrity are critical. Intrusive sensors, like shunt resistors, are connected directly in series with the conductor, offering high accuracy but requiring careful integration to avoid voltage drops or power loss.

The most common working principle for DC current sensing is the Hall effect, which relies on the magnetic field generated by a current-carrying conductor. When a conductor carrying DC is placed in a magnetic field, charged particles within the conductor are deflected, creating a voltage difference (Hall voltage) that is proportional to the current. Hall-effect DC current sensors can be either open-loop or closed-loop: open-loop sensors are simple and cost-effective, while closed-loop sensors use feedback mechanisms to enhance accuracy and linearity, making them suitable for precision applications.

Another key type of DC current sensor is the shunt resistor sensor. A shunt resistor is a low-resistance component connected in series with the load; as DC flows through it, a small voltage drop is generated across the resistor, which is measured using a differential amplifier. This voltage drop is directly proportional to the current (per Ohm’s Law), allowing for accurate measurement of low to medium DC currents. Shunt sensors are widely used in automotive, industrial, and consumer electronics due to their low cost and high reliability.

DC current sensors play a vital role in numerous industries and applications. In automotive systems, they monitor battery current, motor current, and charging systems to ensure optimal performance and safety. In renewable energy systems, such as solar panels and wind turbines, they measure the DC current generated by the energy source and fed into inverters. In industrial automation, they monitor current in motors, power supplies, and control circuits to prevent overloads and equipment failure. They are also essential in medical devices, power management systems, and IoT devices, where precise current monitoring is critical for efficiency and safety.
