A transformer and a current transformer (CT) are both electrical devices that work based on the principle of electromagnetic induction. They transfer electrical energy or electrical signals from one circuit to another through a magnetic field. Although they have a similar construction, their purposes, designs, and applications are different.
A transformer is a general electrical device used to change the voltage level of alternating current (AC) power. It can increase voltage (step-up transformer) or decrease voltage (step-down transformer) while keeping the frequency unchanged. Transformers are widely used in power generation, transmission, distribution, and industrial electrical systems. Their main purpose is to transfer electrical power efficiently between circuits and provide suitable voltage levels for different applications.
A typical transformer consists of a primary winding, a secondary winding, and a magnetic core. When AC voltage is applied to the primary winding, it creates a changing magnetic field in the core. This magnetic field induces a voltage in the secondary winding. The voltage ratio between the primary and secondary sides depends on the number of turns in each winding. Transformers are designed to handle high power levels and are usually connected directly into power circuits.

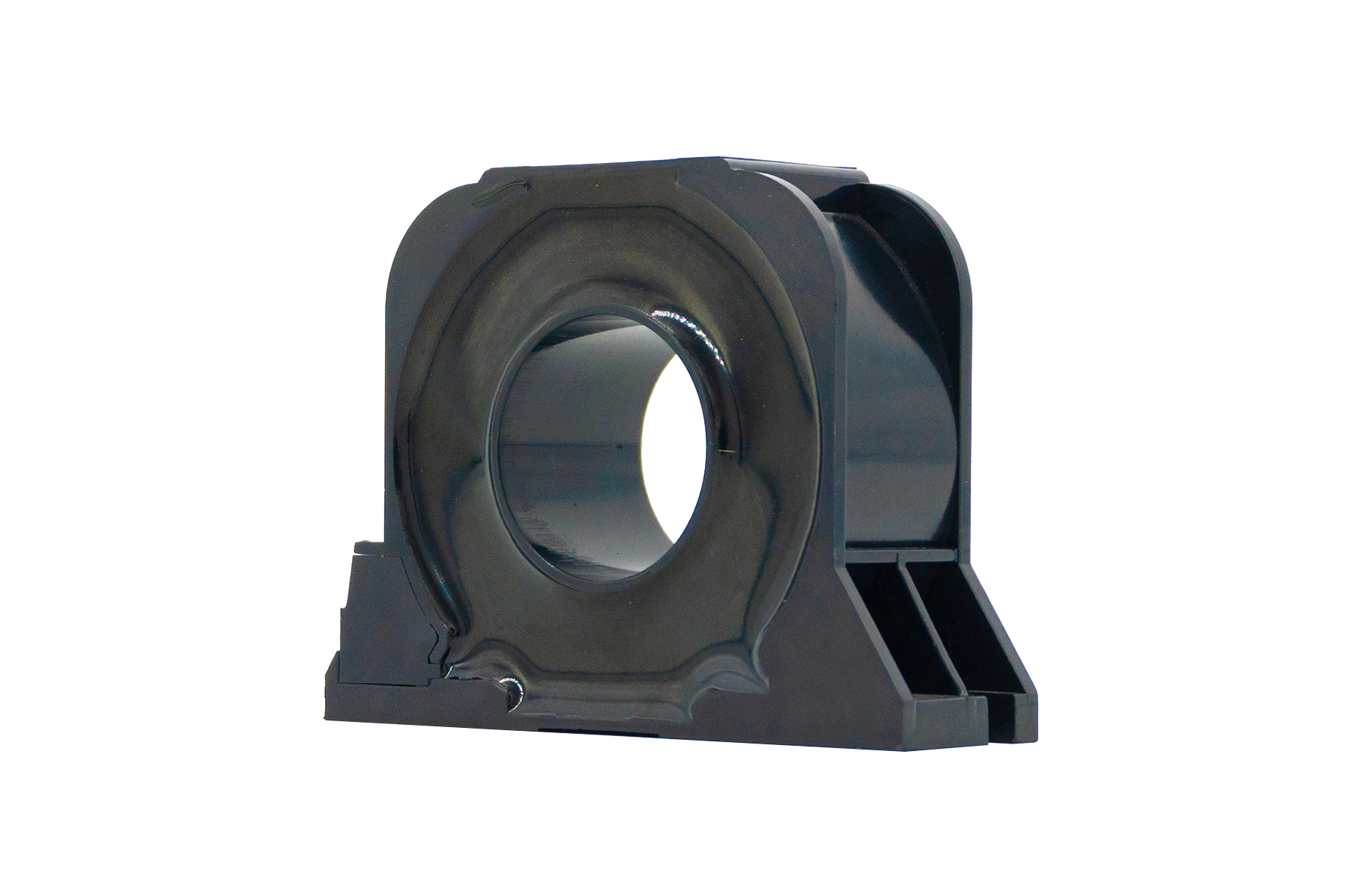

A current transformer (CT) is a special type of transformer designed specifically for measuring electrical current. Instead of mainly changing voltage levels, a CT reduces a high current in a power system into a smaller, standardized current output that can be safely measured by instruments such as ammeters, energy meters, protection relays, and monitoring systems.
The main difference between a transformer and a current transformer is their purpose. A transformer transfers electrical power and changes voltage levels, while a current transformer converts large currents into measurable values for monitoring and protection. For example, a power transformer may convert 110 kV transmission voltage to 10 kV distribution voltage, whereas a current transformer may convert a 1000 A line current into a 5 A or 1 A output signal for a measuring device.
Another important difference is the connection method. A normal transformer has primary and secondary windings connected to electrical circuits to transfer energy. A current transformer usually has its primary winding connected in series with the power line, allowing the load current to pass through it. The secondary side is connected to measuring or protection equipment. Because the CT secondary produces current, it should never be left open while the primary side is energized, as dangerous high voltage may be generated.
The design of the windings is also different. Power transformers usually have many turns on both primary and secondary windings to achieve the required voltage transformation. In contrast, a current transformer often has only one or a few turns on the primary side, while the secondary side has many turns. This design allows the CT to reduce large currents to a lower level while maintaining accurate measurement.
Accuracy is another key difference. Power transformers focus mainly on efficiency and power transfer capability, while current transformers require high measurement accuracy. CTs are classified according to accuracy classes, such as Class 0.5, Class 0.2, or protection classes like 5P and 10P, depending on their application requirements.
In practical applications, transformers are used in power supplies, substations, industrial equipment, and electrical grids. Current transformers are widely used in electrical measurement, smart grids, renewable energy systems, industrial automation, and protection systems. They allow engineers to monitor electrical current without directly connecting sensitive equipment to high-current circuits.
In summary, both transformers and current transformers use electromagnetic induction, but they serve different roles. A transformer is mainly used for voltage conversion and power transmission, while a current transformer is used for current measurement and electrical protection. Transformers handle energy transfer, whereas current transformers provide safe and accurate current information for monitoring and control systems.
