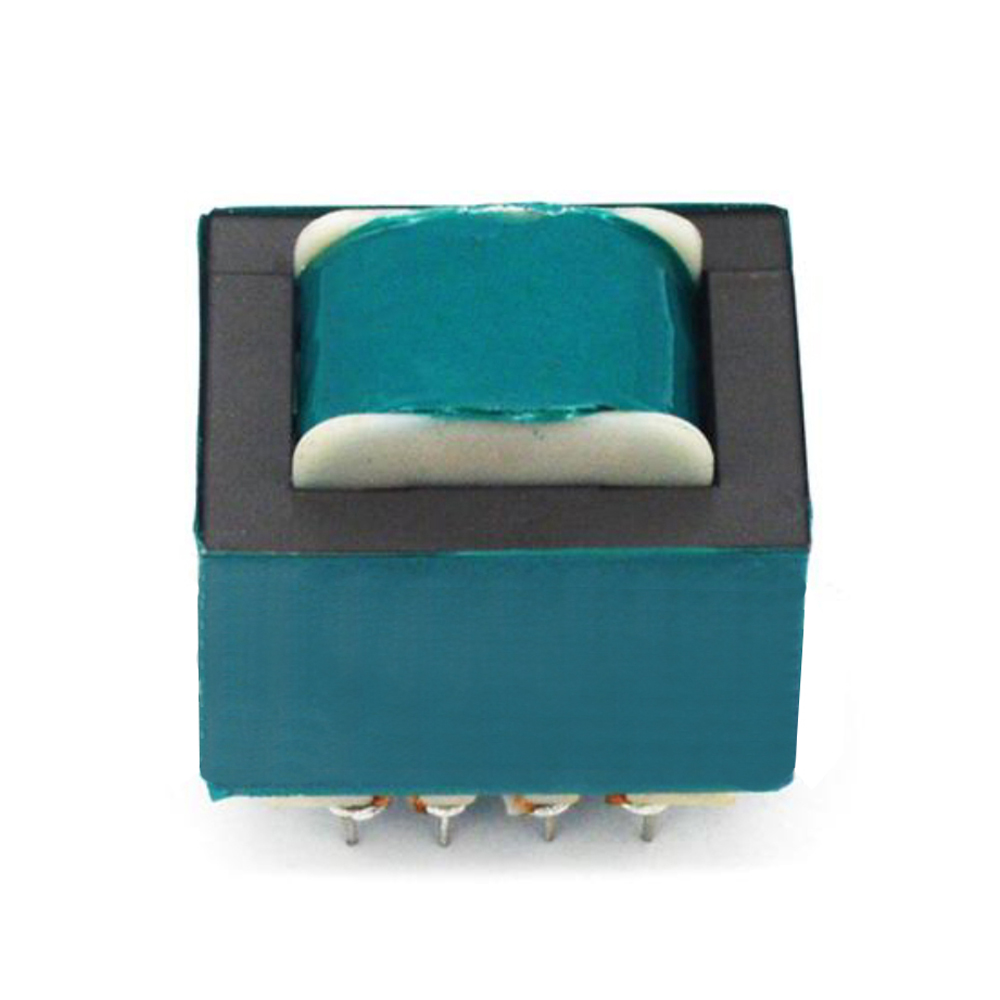

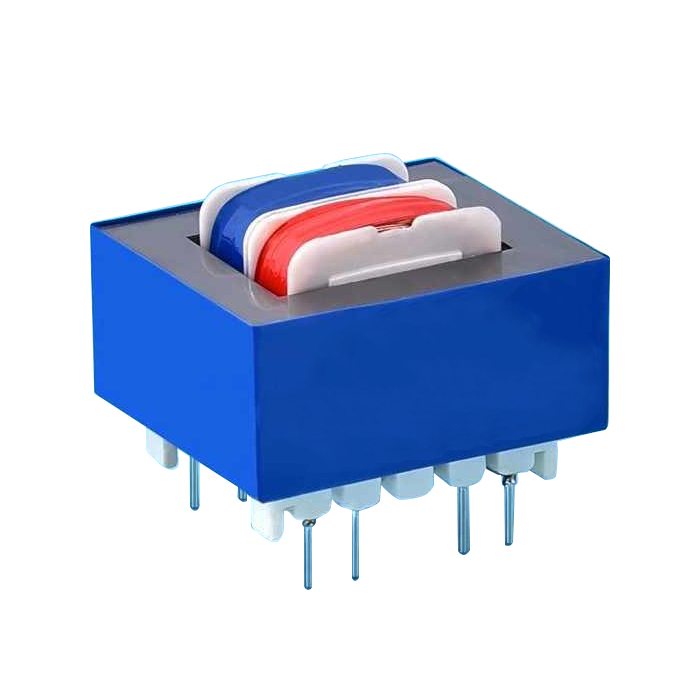

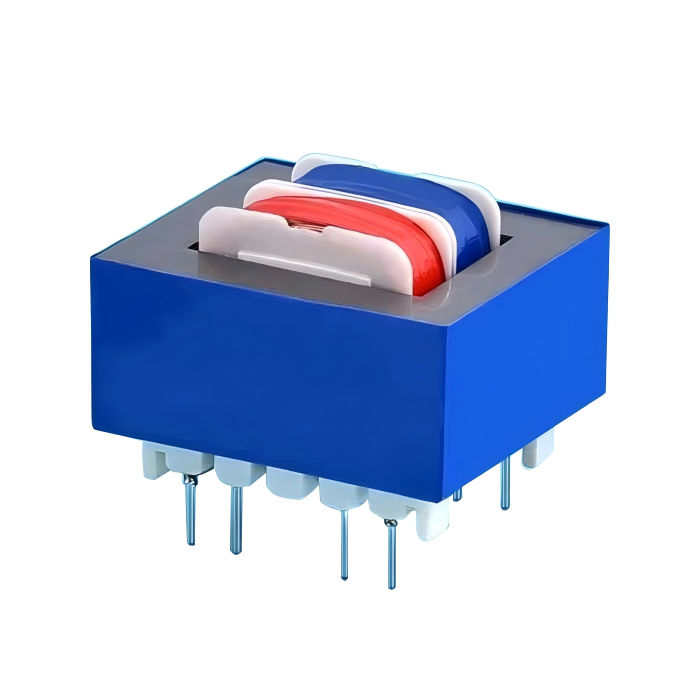

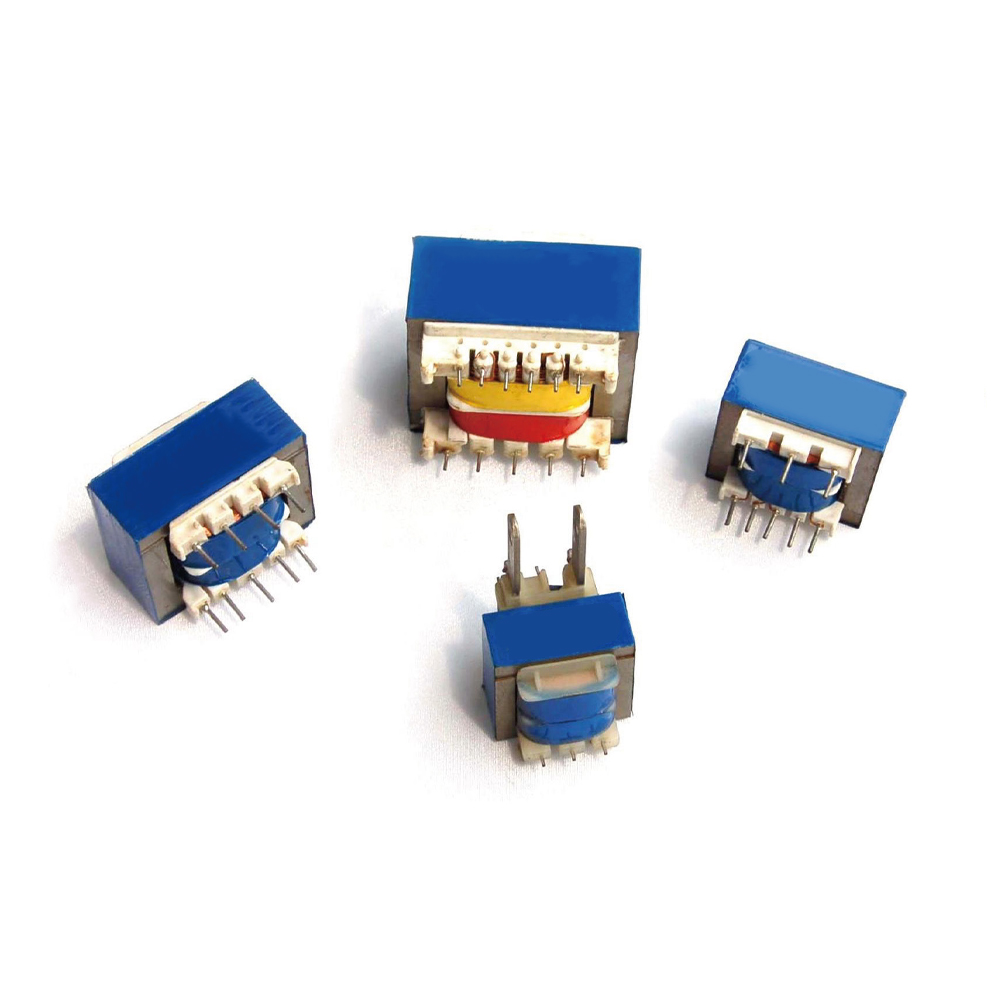

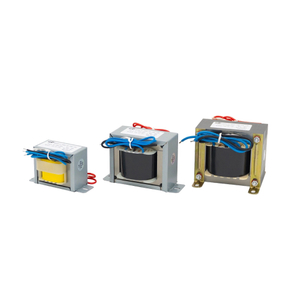

TRTDY-E
TR
Product Features
* low loss at no load.
* hig power output.
* high efficience.
* low temperature rise.
Product Application
Widely used in air-conditioner,acoustics,microwave,oven,amplifier,SPC exchange,UPS power supply,and the power supply meter, equipmentof all kinds machine electronics, medical treatment, chemical industry,post and telecommunications, spinning, popular science.
Download Size Sheet
EI Type Pin Type Transformer.pdf
Technical Specifications（mm）
Product Parameters
| Type | Specifications | Power (W) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) |
| 8×12 | 5+5 Horizontal pin | 0.5 | 28 | 27 | 23.4 | 12 | 20 | 19.6 | 4.9 | 19.6 | 4.9 |
| 8×14 | 4+5 Horizontal pin | 1 | 28 | 27 | 26.9 | 14 | 22 | 22.2 | 7.4 | 20 | 5 |
| 8×15 | 2+3 Vertical pin | 1 | 28 | 24 | 27 | 15 | 23 | 15 | 15 | 15 | 7.5 |
| 8×15 | 2+4 Vertical pin | 1 | 28 | 24 | 27 | 15 | 23 | 15 | 15 | 15 | 5 |
| 10×15 | 3+3 Vertical pin | 2 | 35 | 30 | 28.2 | 15 | 22 | 15 | 7.5 | 15 | 7.5 |
| 10×15 | 3+4 Horizontal pin | 2 | 35 | 30 | 30 | 15 | 22 | 15 | 7.5 | 18 | 6 |
| 13×17 | 5+5 Horizontal pin | 3 | 41 | 35 | 30 | 17 | 22.5 | 20 | 5 | 20 | 5 |
| 13×20 | 2+2 Vertical pin | 5 | 41 | 35 | 35.7 | 20 | 28 | 18 | 18 | 18 | 18 |
| 13×20 | 3+3 Vertical pin | 5 | 41 | 35 | 35.7 | 20 | 28 | 18 | 9 | 18 | 9 |
| 13×20 | 4+4 Vertical pin | 5 | 41 | 35 | 37.8 | 20 | 29 | 18 | 6 | 18 | 6 |
| 13×20 | 5+5 Horizontal pin | 5 | 41 | 35 | 34.5 | 20 | 27 | 20 | 5 | 20 | 5 |
| 16×20 | 3+3 Vertical pin | 8 | 48 | 40 | 40 | 20 | 30 | 24 | 12 | 24 | 12 |
| 16×20 | 5+5 Horizontal pin | 8 | 48 | 40 | 35.5 | 20 | 26.3 | 25.2 | 6.3 | 25.2 | 6.3 |
This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.
