TRTDY-E EI Type Clip-mounted Transformer Electrical Transformer 1.5VA-300VA

Share to:

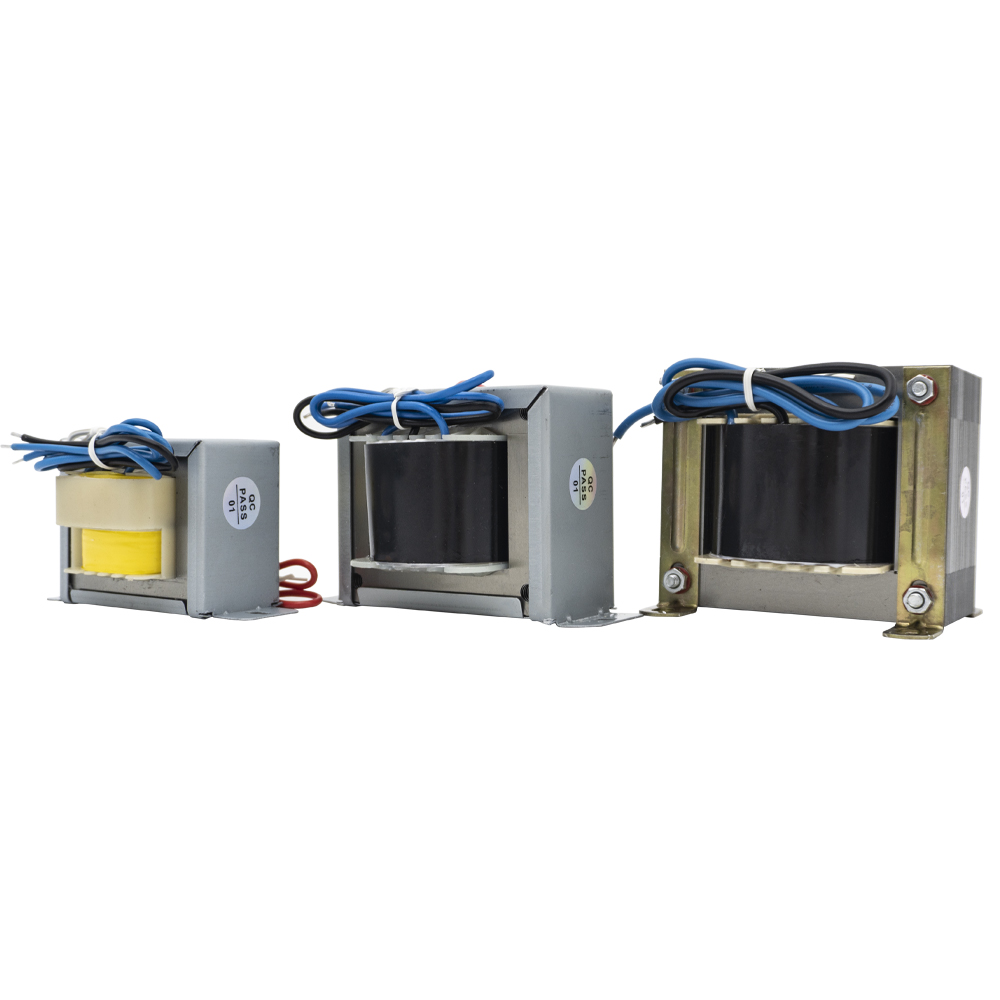

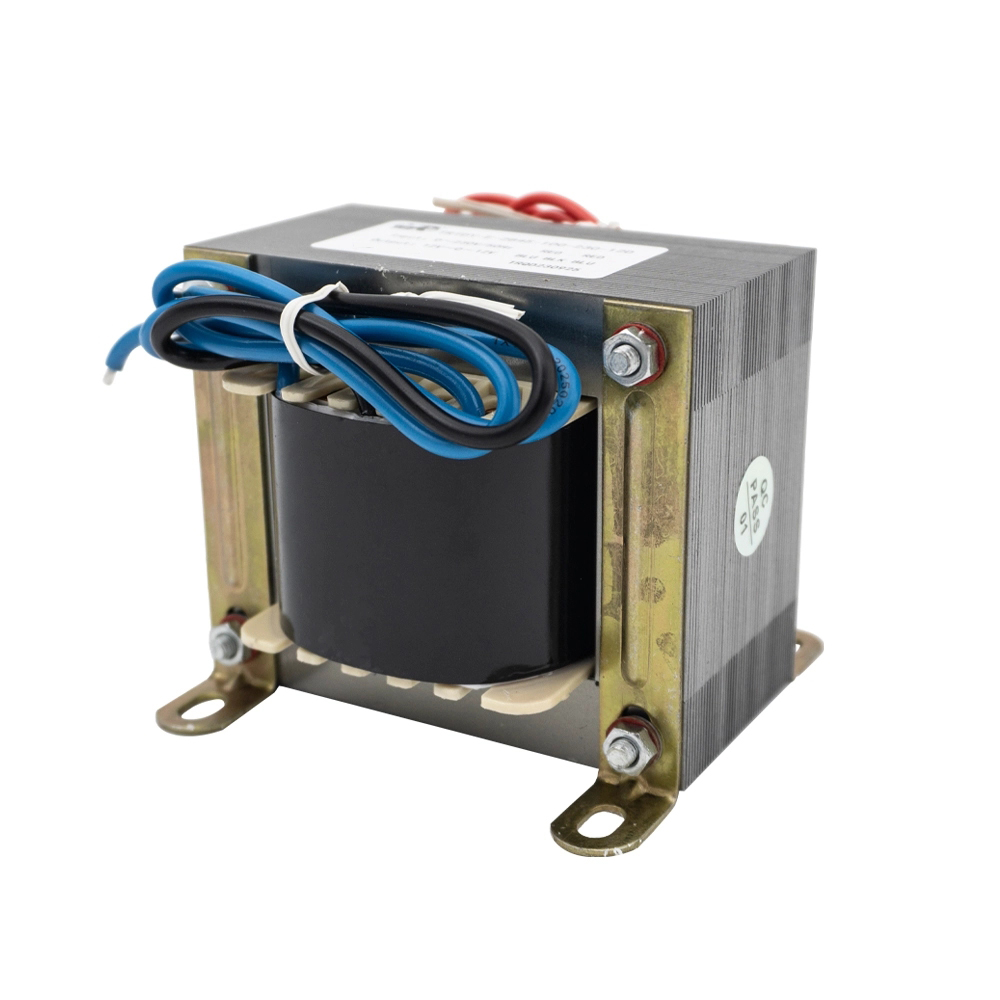

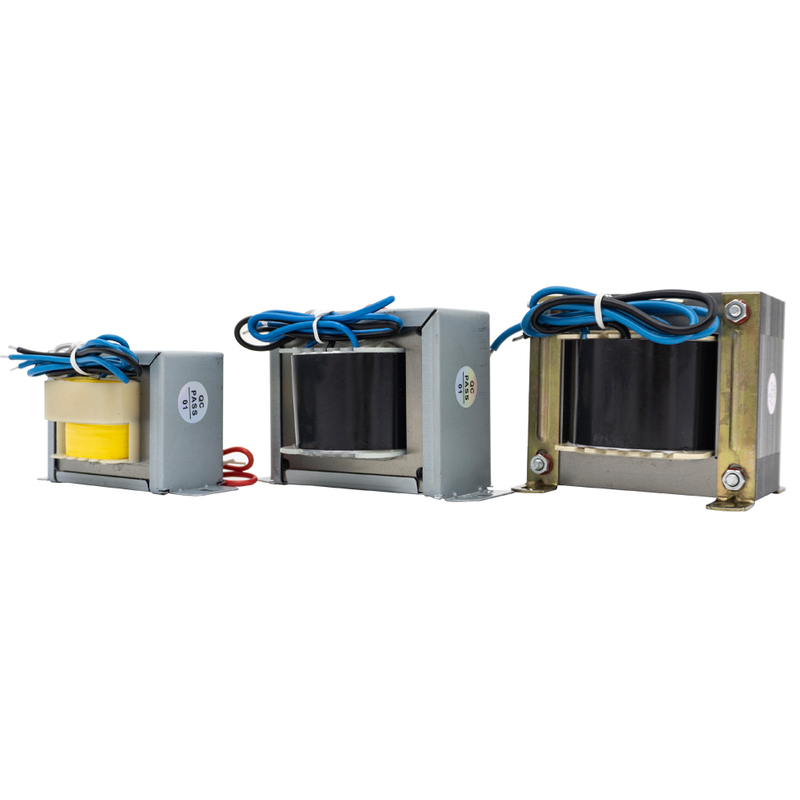

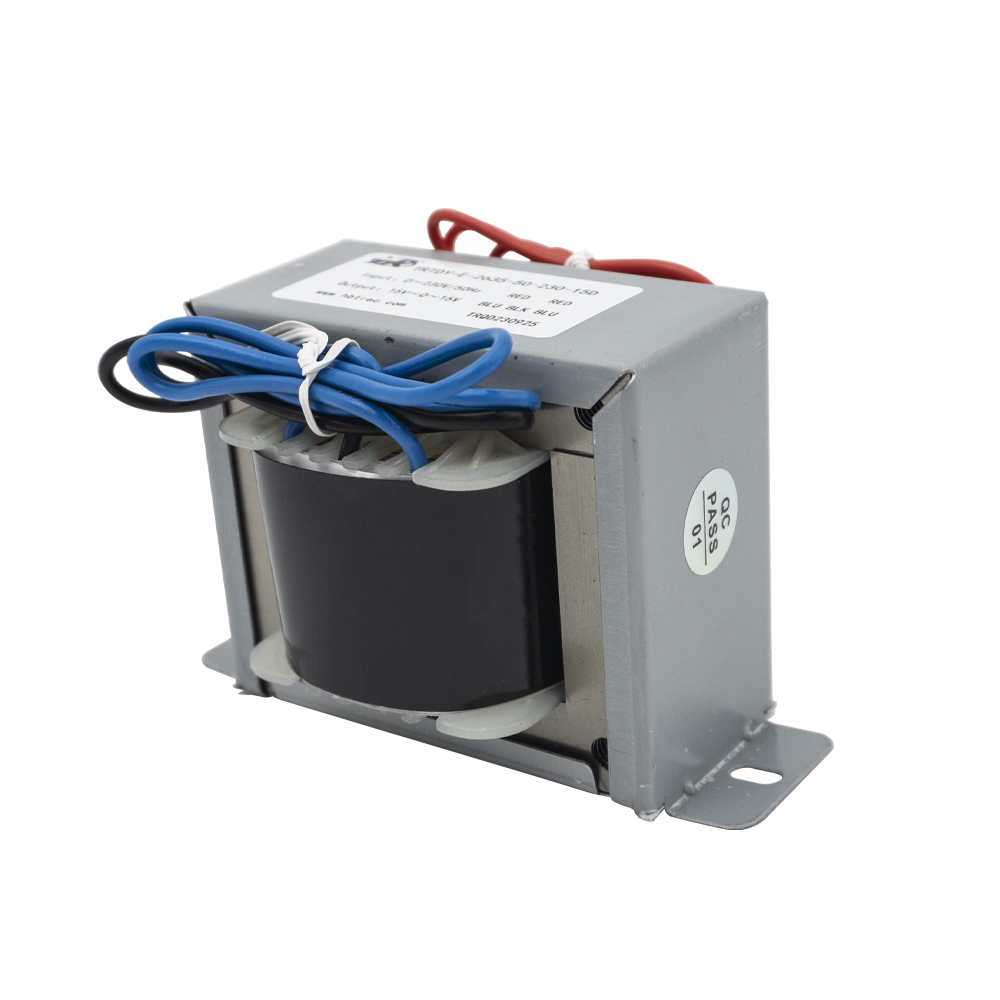

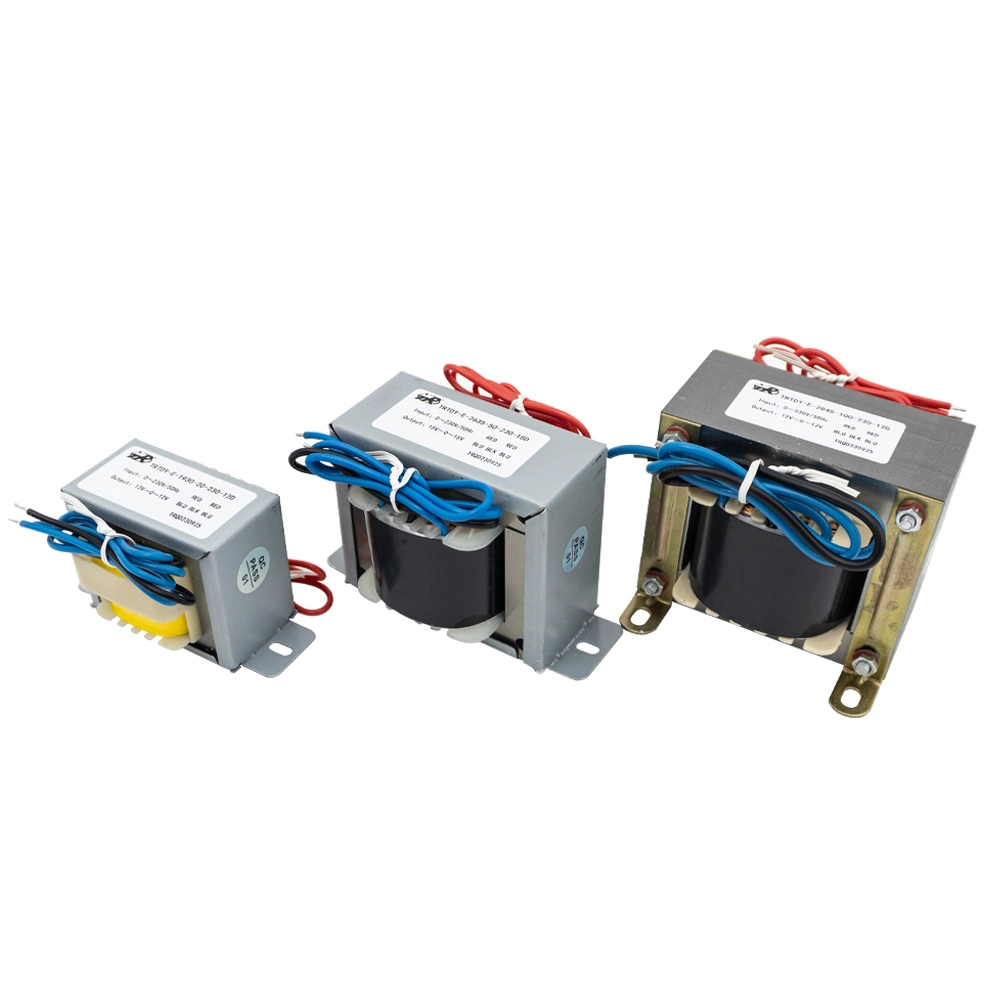

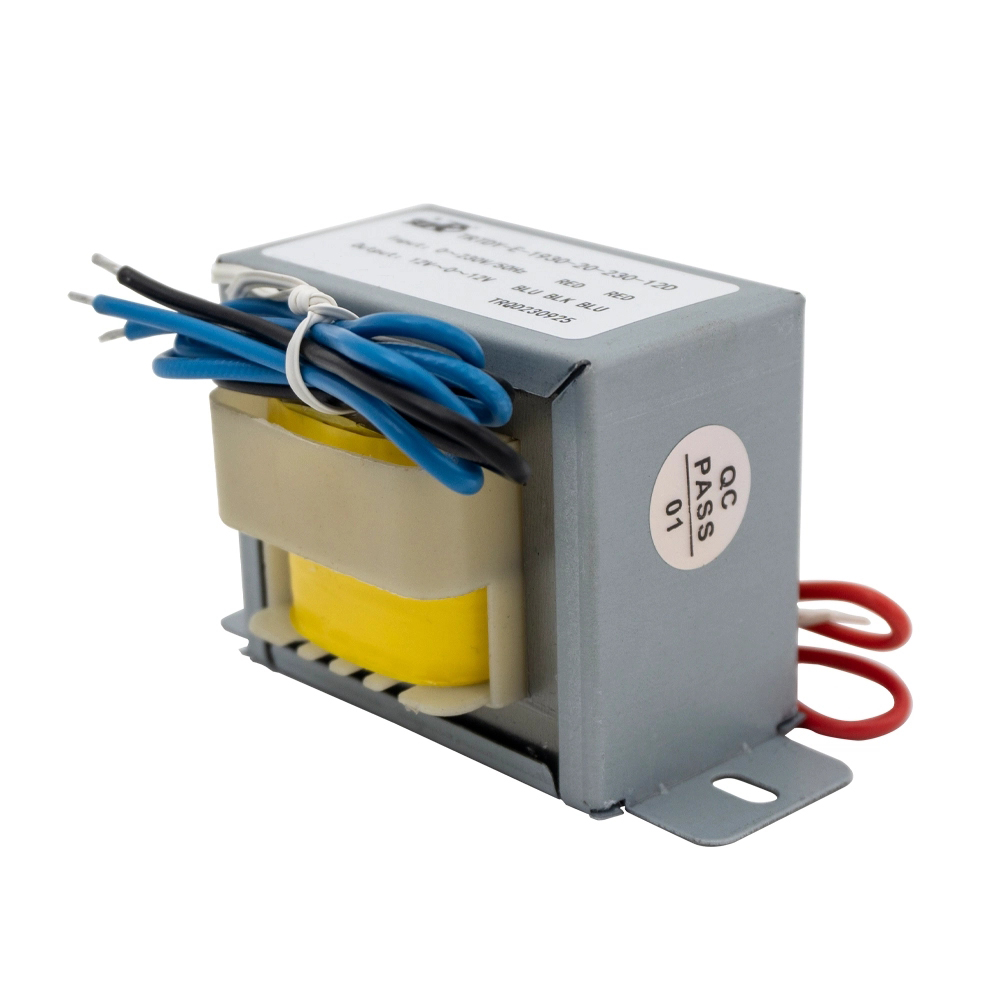

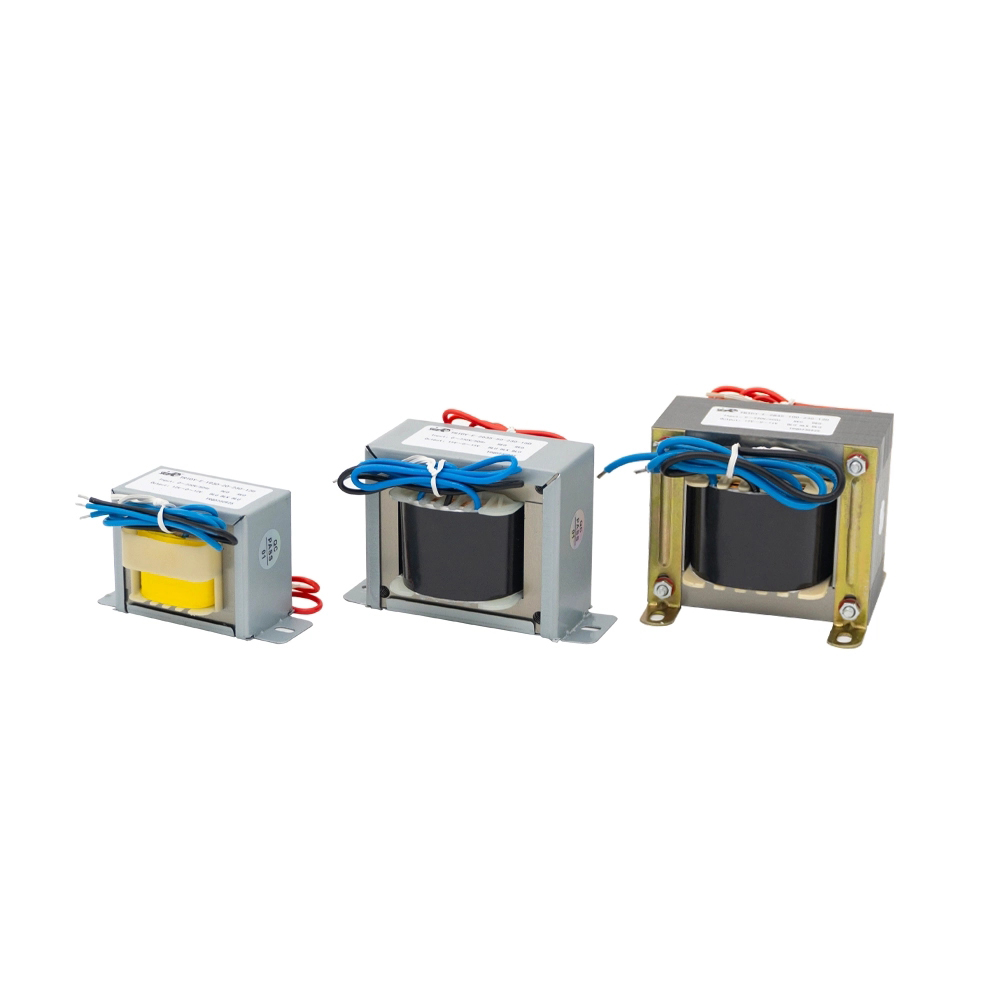

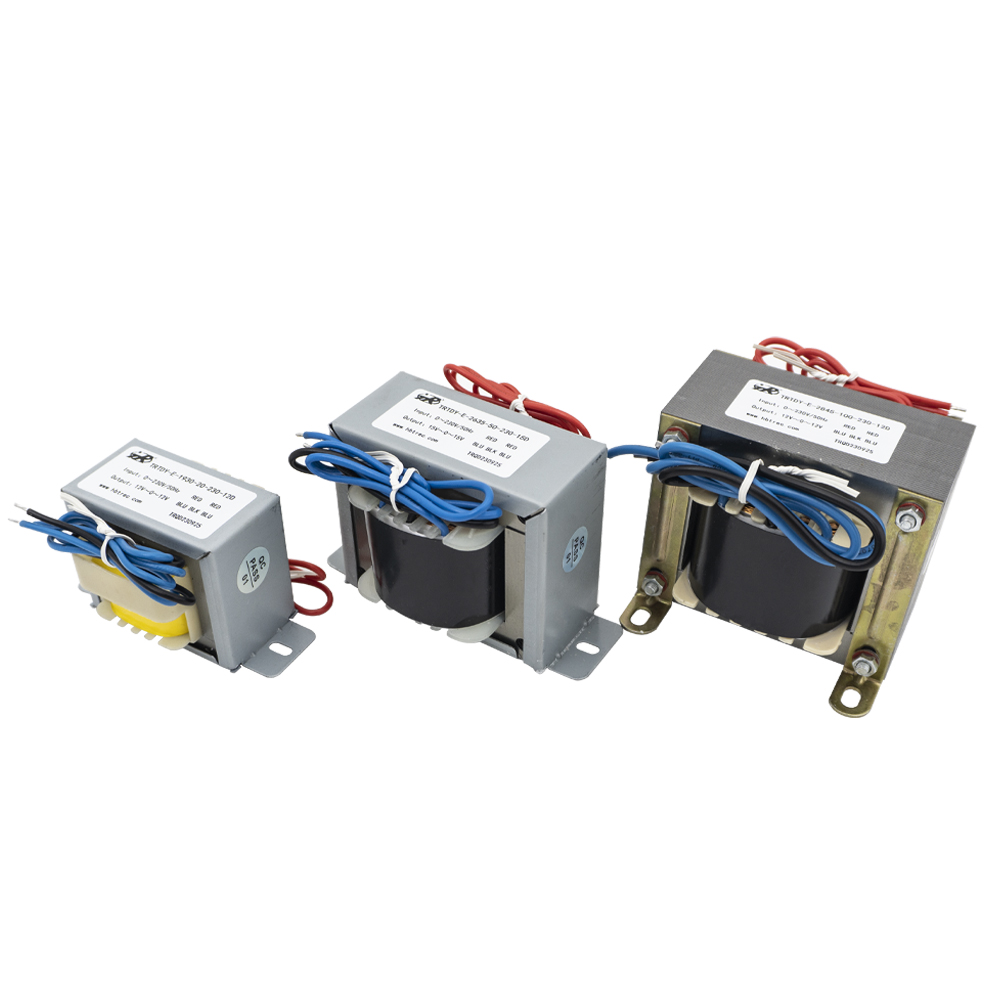

TRTDY-E EI Type Clip-mounted Transformer Electrical Transformer 1.5VA-300VA

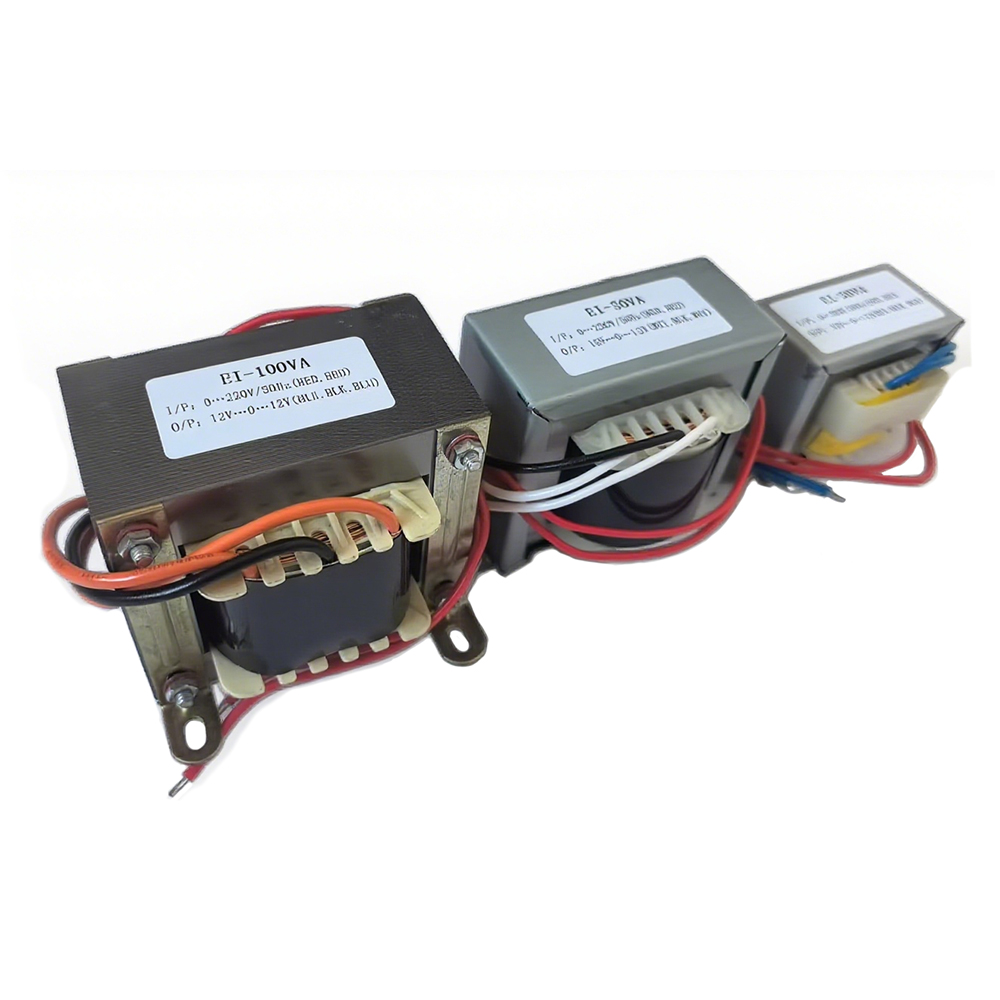

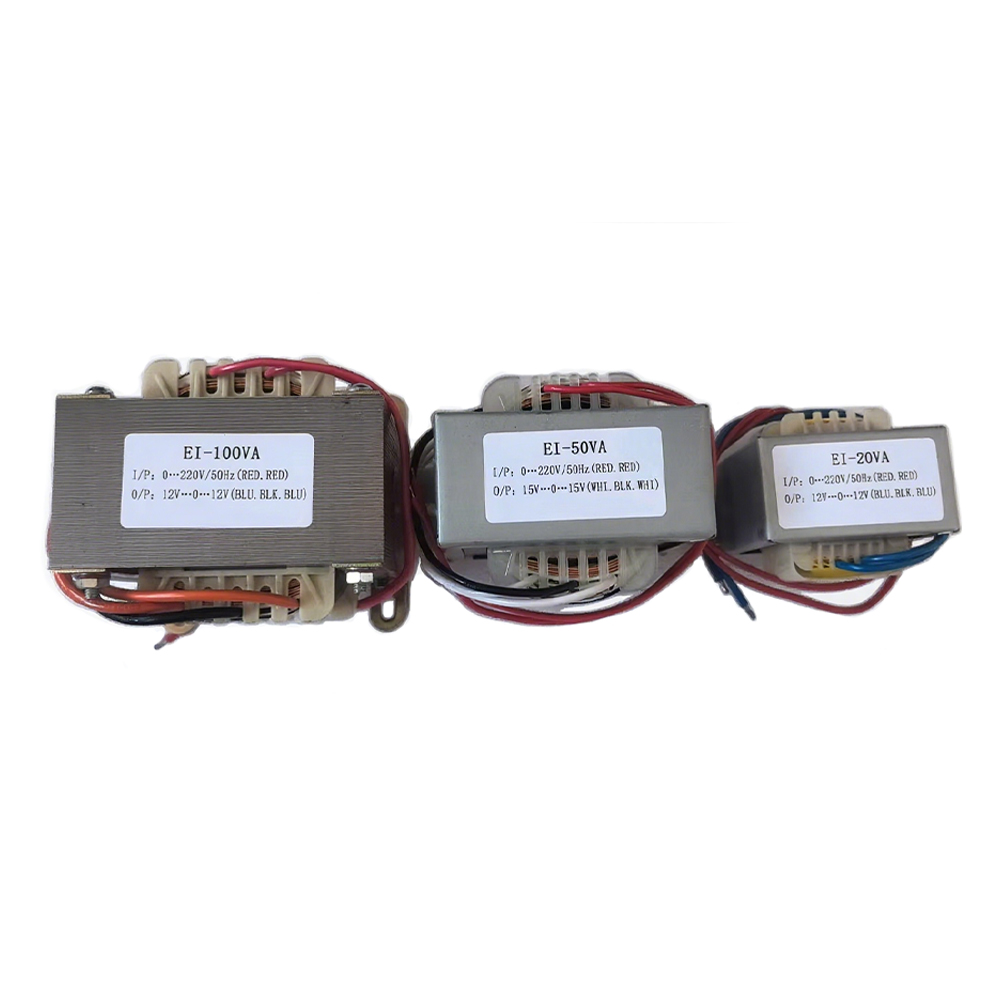

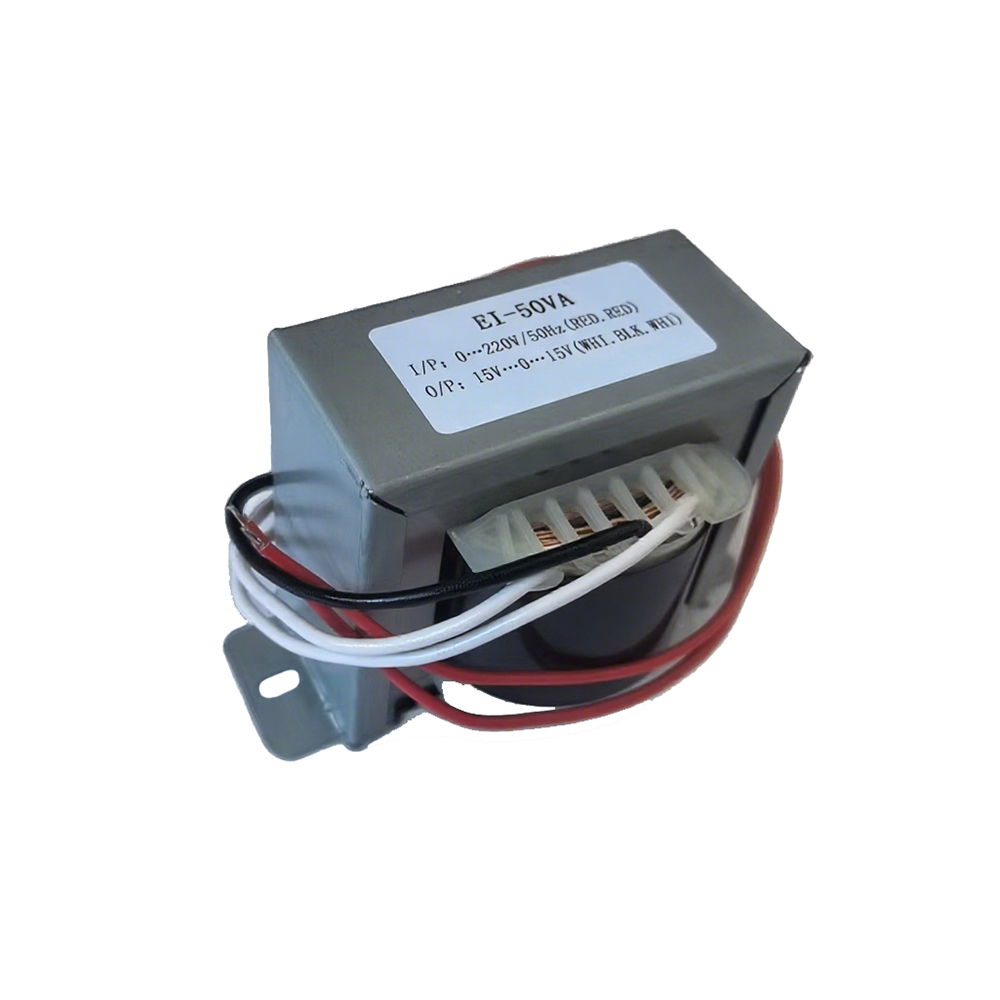

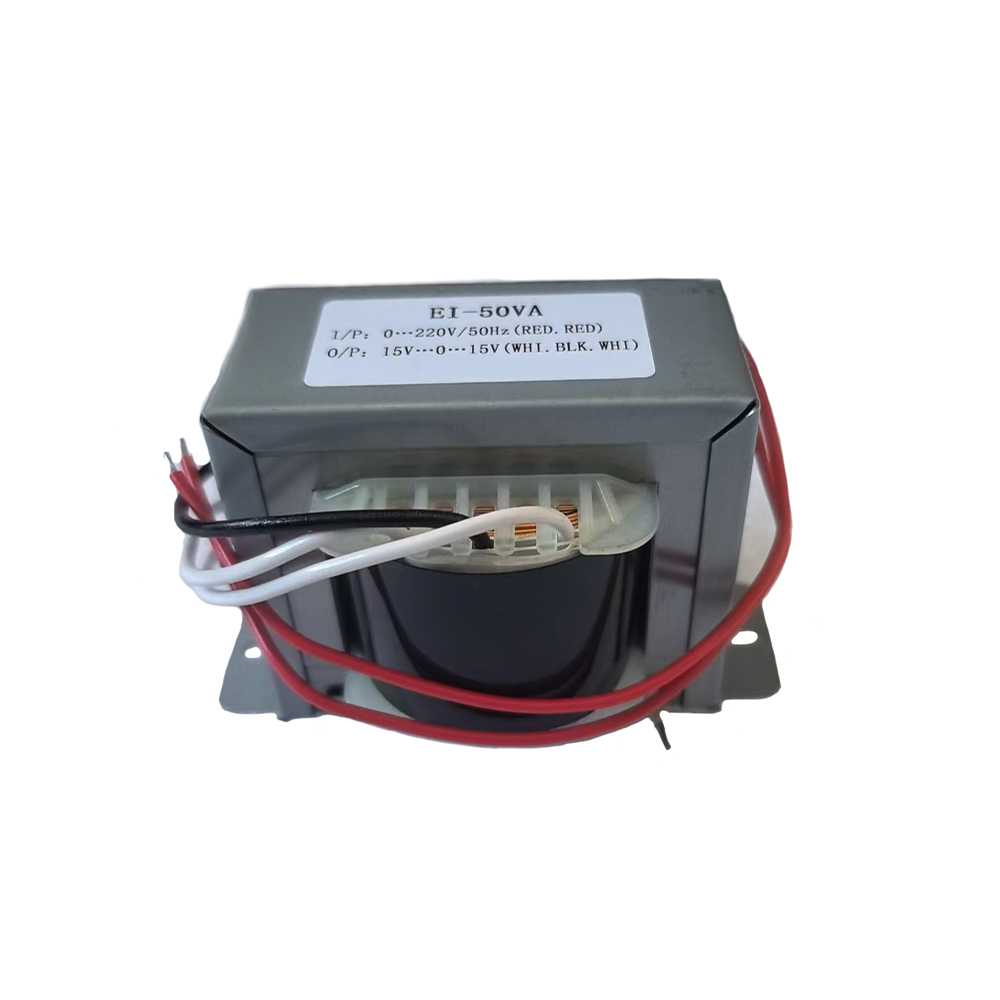

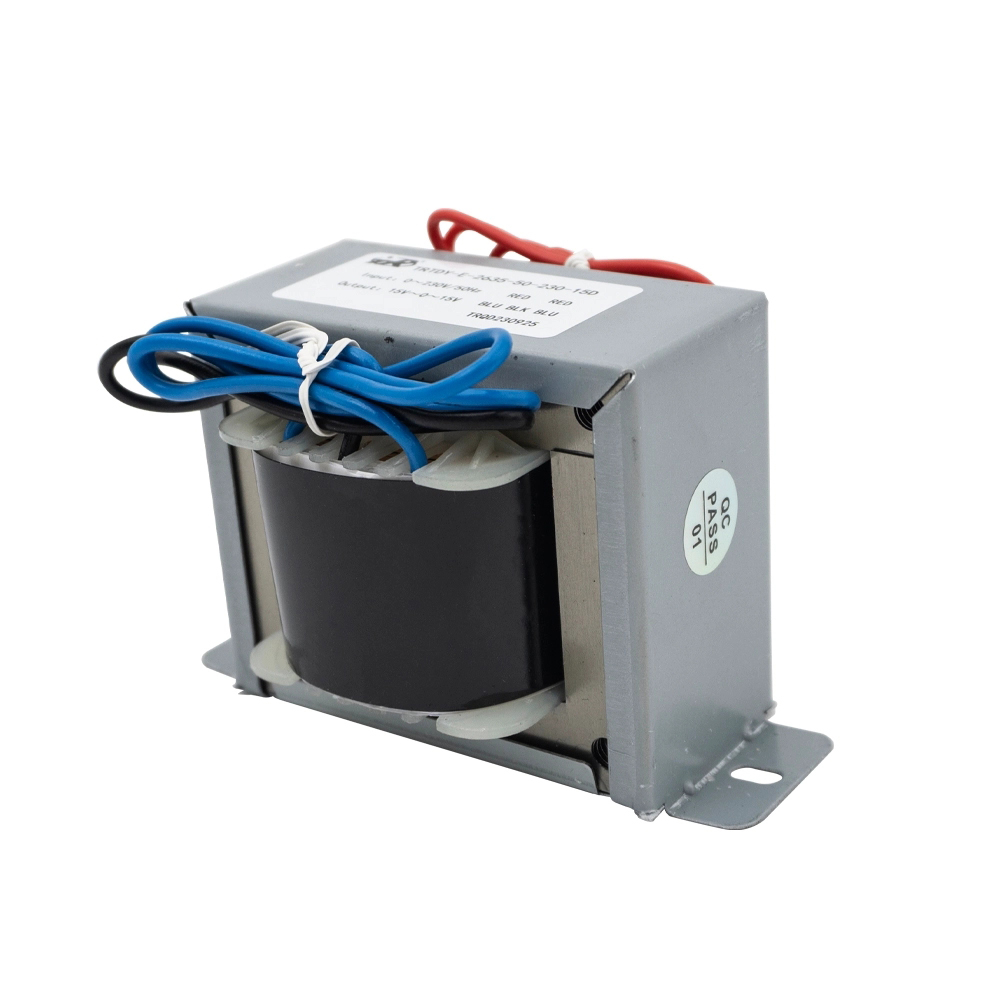

The EI type clip-mounted transformer is a type of mains frequency transformer. Its core is formed by interleaving "E" and "I" shaped silicon steel laminations, secured by an external metal clamp (horse clamp). This structure provides excellent mechanical strength, low vibration, and low noise characteristics, along with efficient heat dissipation and effective suppression of magnetic field leakage. It is widely used in applications demanding high stability and reliability, such as high-quality audio equipment, precision instruments, and industrial control systems, for voltage conversion and electrical isolation.

Availability:



Inquire

Model:
TRTDY-E
Brand:
TR

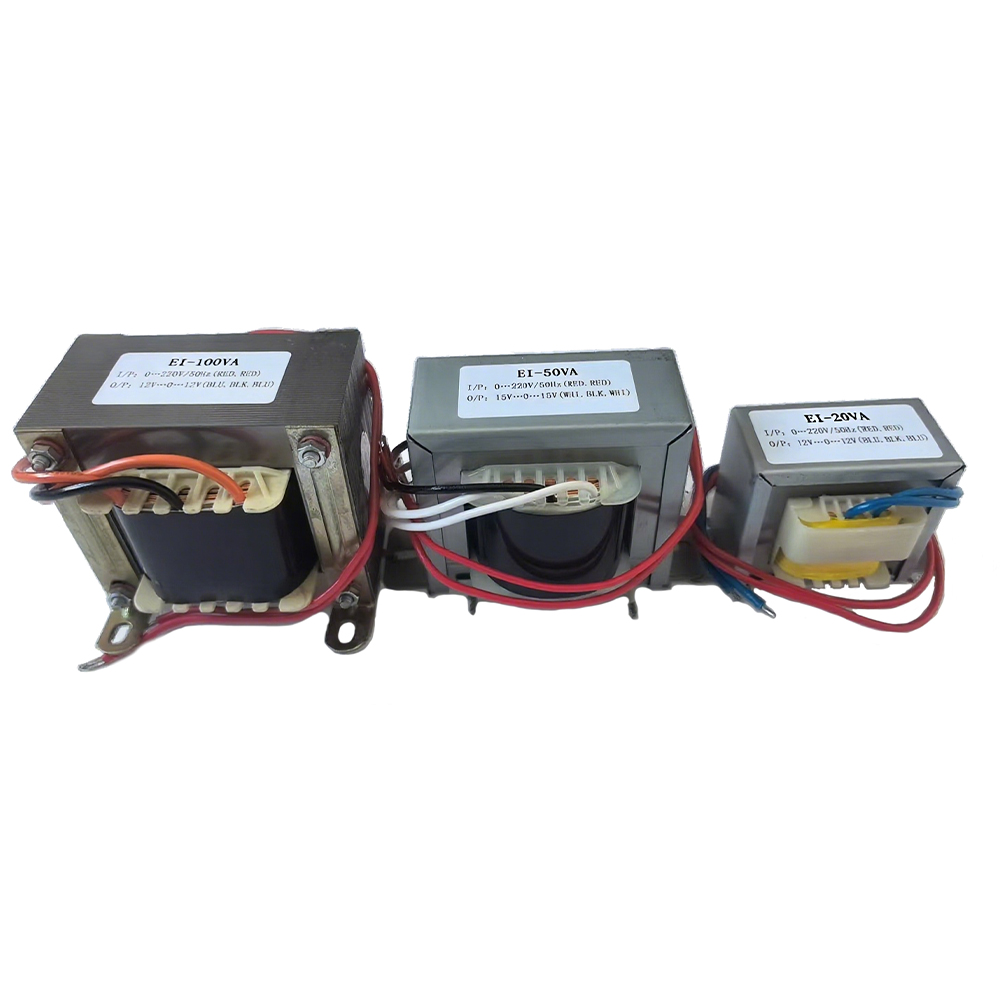

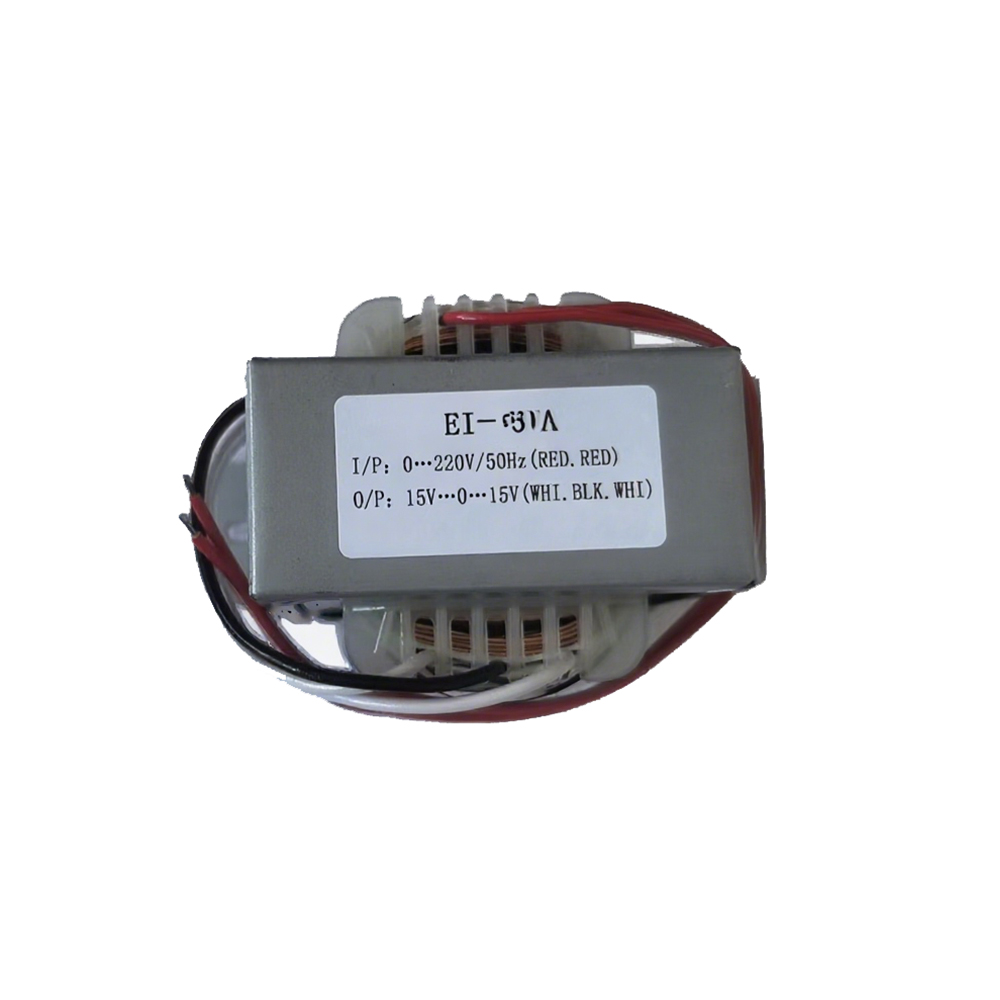

Product Features

* low loss at no load.

* hig power output.

* high efficience.

* low temperature rise.

Product Application

Widely used in air-conditioner,acoustics,microwave,oven,amplifier,SPC exchange,UPS power supply,and the power supply meter, equipmentof all kinds machine electronics, medical treatment, chemical industry,post and telecommunications, spinning, popular science.

Download Size Sheet

EI Type Clip-mounted Transformer.pdf

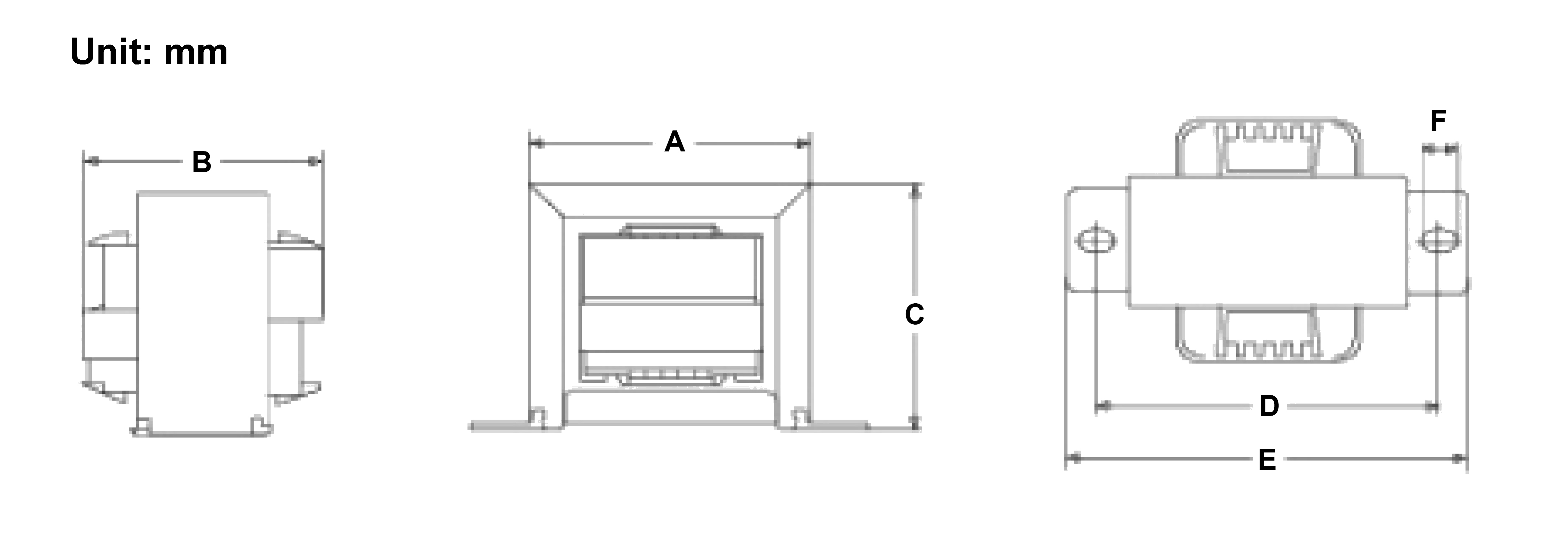

Technical Specifications（mm）

Product Parameters

Type	Specifications	Power (VA)	A （mm）	B （mm）	C （mm）	D （mm）	E （mm）	F （mm）	Weight （kg）
EI 35	10×15	1.5VA	37	35	32	43~47	57	4	0.12
EI 35	10×18	2VA	37	38	32	43~47	55	4	0.14
EI 35	10×20	2.5VA	37	39	33	43~47	55	4	0.16
EI 41	13×15	2.5VA	43	34	35	53~56	67	4	0.16
EI 41	13×17	Conventional 3VA	43	37	35	52~54	65	4	0.18
EI 41	13×20	Conventional 5VA	43	40	35	53~55	65	4	0.22
EI 41	13×20 Vertical	5VA	35	40	44	44~48	55	4	0.22
EI 41	13×25	6VA	43	45	35	52~54	63	4	0.27
EI 48	16×20	8VA	50	41	43	60~64	73	4	0.32
EI 48	16×24	Conventional 10VA	50	46	43	60~64	76	4	0.38
EI 48	16x24 Vertical	10VA	43	45	51	52~56	67	4	0.38
EI 48	16x28	13VA	50	49	43	58~62	71	4	0.43
EI 48	16x28 Vertical	13VA	43	49	51	52~56	65	4	0.43
EI 48	16x30	15VA	50	51	43	60~64	76	4	0.47
EI 48	16x30 Vertical	15VA	43	51	51	54~58	68	4	0.47
EI 57	19x20	10VA	60	45	50	68~72	83	4	0.44
EI 57	19x25	Conventional 15VA	60	50	50	69~73	84	4	0.55
EI 57	19x25 Vertical	15VA	50	50	61	67~71	81	4	0.55
EI 57	19x30	Conventional 20VA	60	55	50	70~74	85	4	0.65
EI 57	19x30 Vertical	20VA	50	54	61	66~70	81	4	0.65
EI 57	19x35	25VA	60	60	50	69~73	85	4	0.75
EI 66	22x28	Conventional 25VA	69	56	59	78~82	94	4	0.81
EI 66	22x28 Vertical	25VA	59	56	70	69~73	83	4	0.81
EI 66	22x33	Conventional 30VA	69	63	59	80~84	95	4	0.93
EI 66	22x35	35VA	69	65	59	78~82	94	4	0.99
EI 66	22x38	Conventional 40VA	69	68	59	79~83	94	4	1.1
EI 66	22x38 Vertical	40VA	59	68	70	67~71	83	4	1.1
EI 76	26x35	Conventional 50VA	78	63	68	90~94	104	4	1.3
EI 76	26x40	70VA	78	68	68	88~92 Three Holes	104	4	1.5
EI 76	26x45	Conventional 80VA	78	75	69	88~92 Three Holes	103	4	1.7
EI 86	28x40	80VA	88	78	77	Bracket 70x62	/	4	1.8
EI 86	28x45	Conventional 100VA	87	83	77	Bracket 70x67	/	4	2.0
EI 86	28x50	120VA	87	88	77	Bracket 70x72	/	4	2.2
EI 96	32x40	100VA	97	82	88	Bracket 80x65	/	5	2.3
EI 96	32x45	130VA	97	87	88	Bracket 80x70	/	5	2.6
EI 96	32x50	150VA	97	92	88	Bracket 80x75	/	5	2.9
EI 96	32x55	200VA	97	97	88	Bracket 80x80	/	5	3.1
EI 96	32x60	250VA	97	102	88	Bracket 80x85	/	5	3.4
EI 96	32x65	300VA	97	107	88	Bracket 80x90	/	5	3.7

This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.
