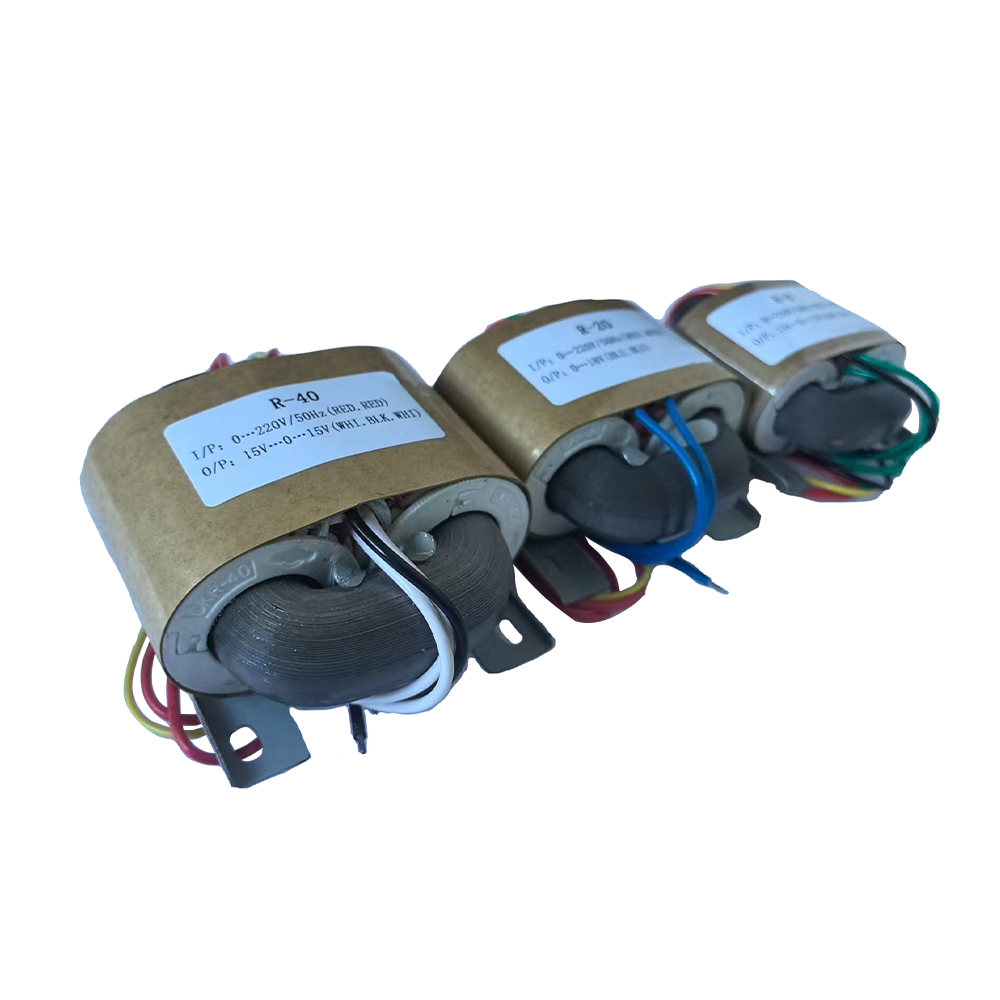

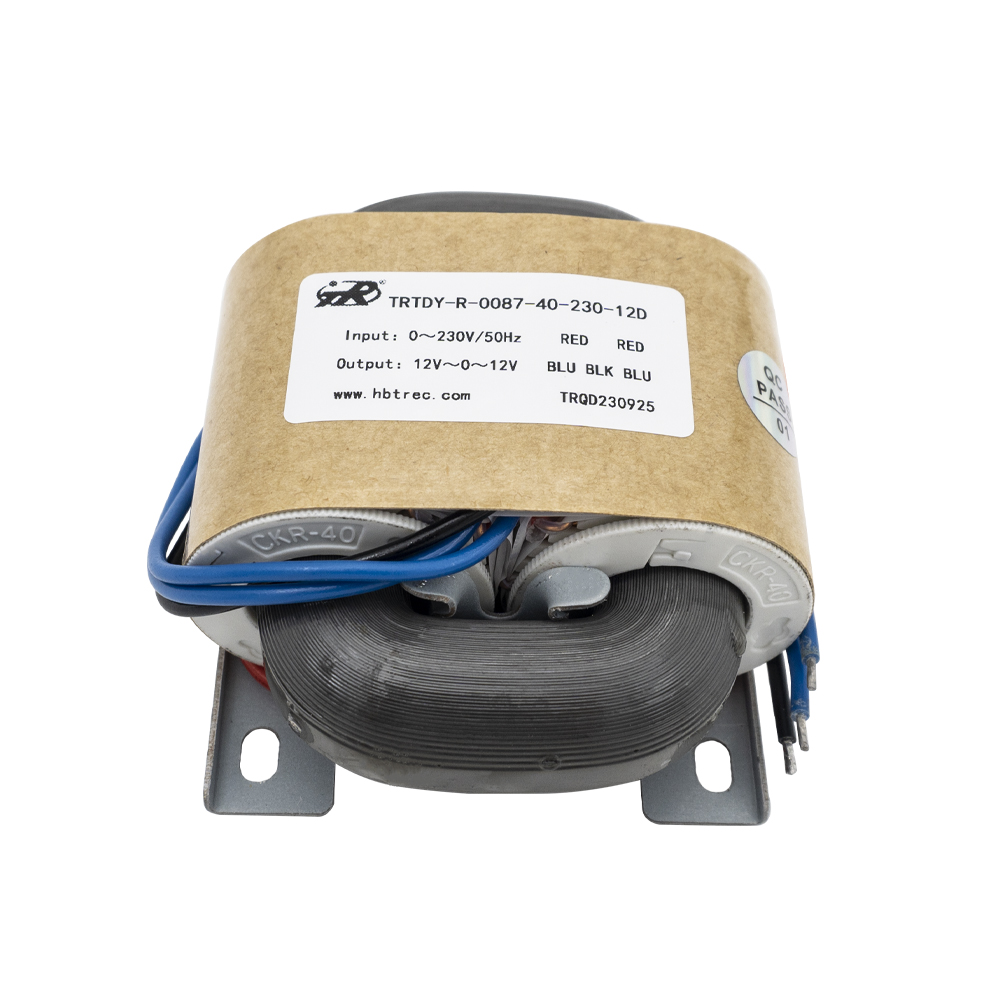

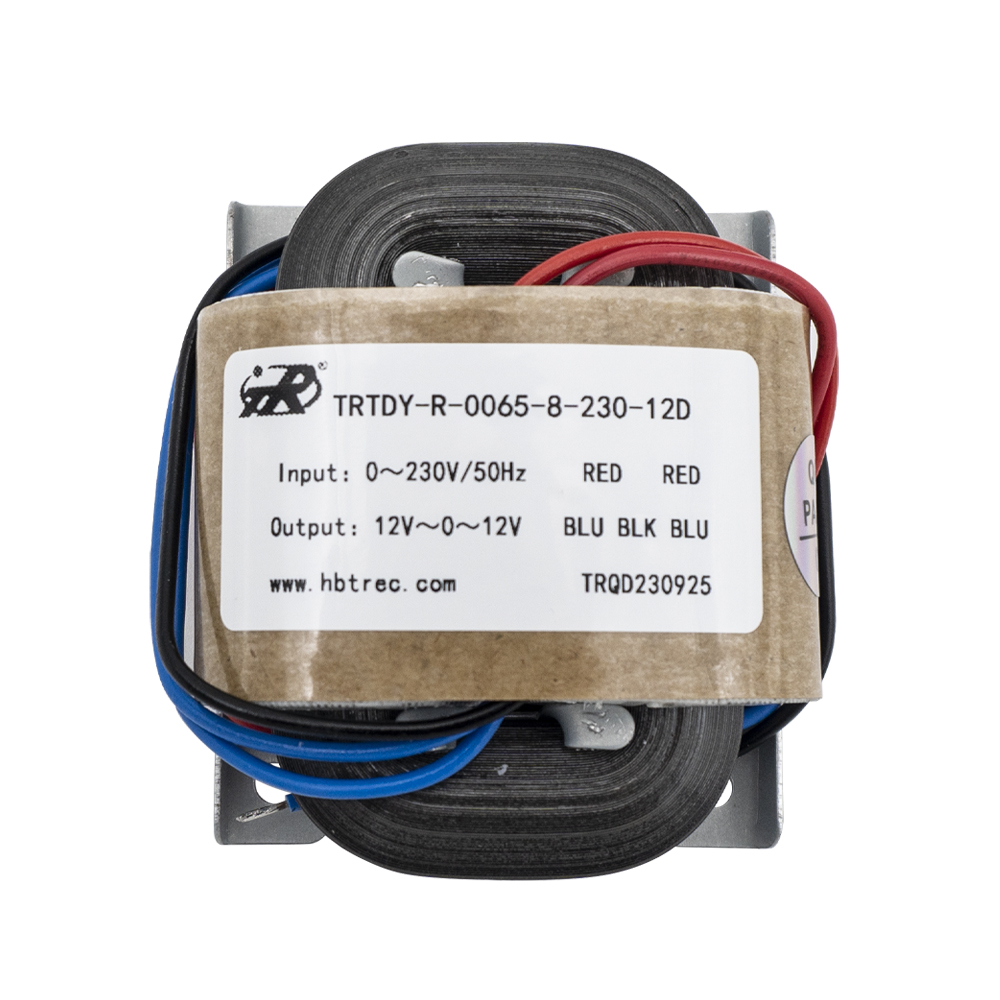

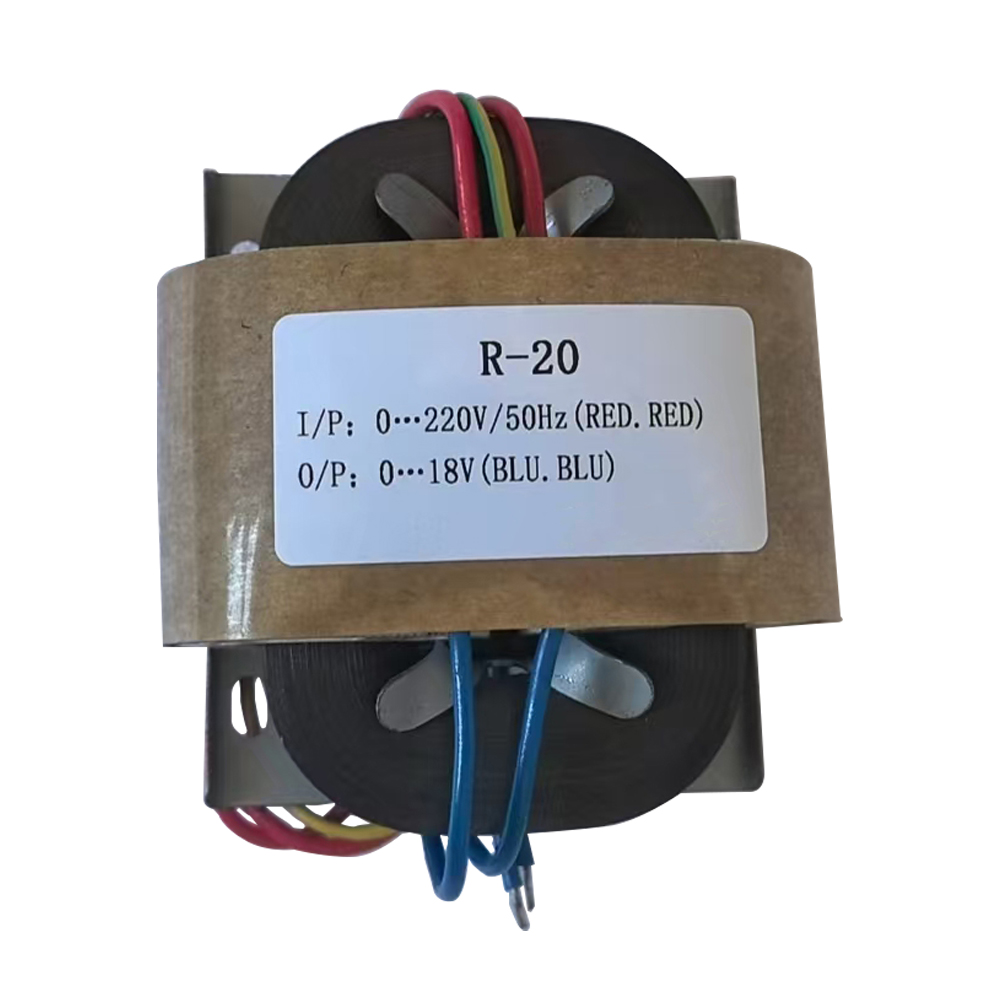

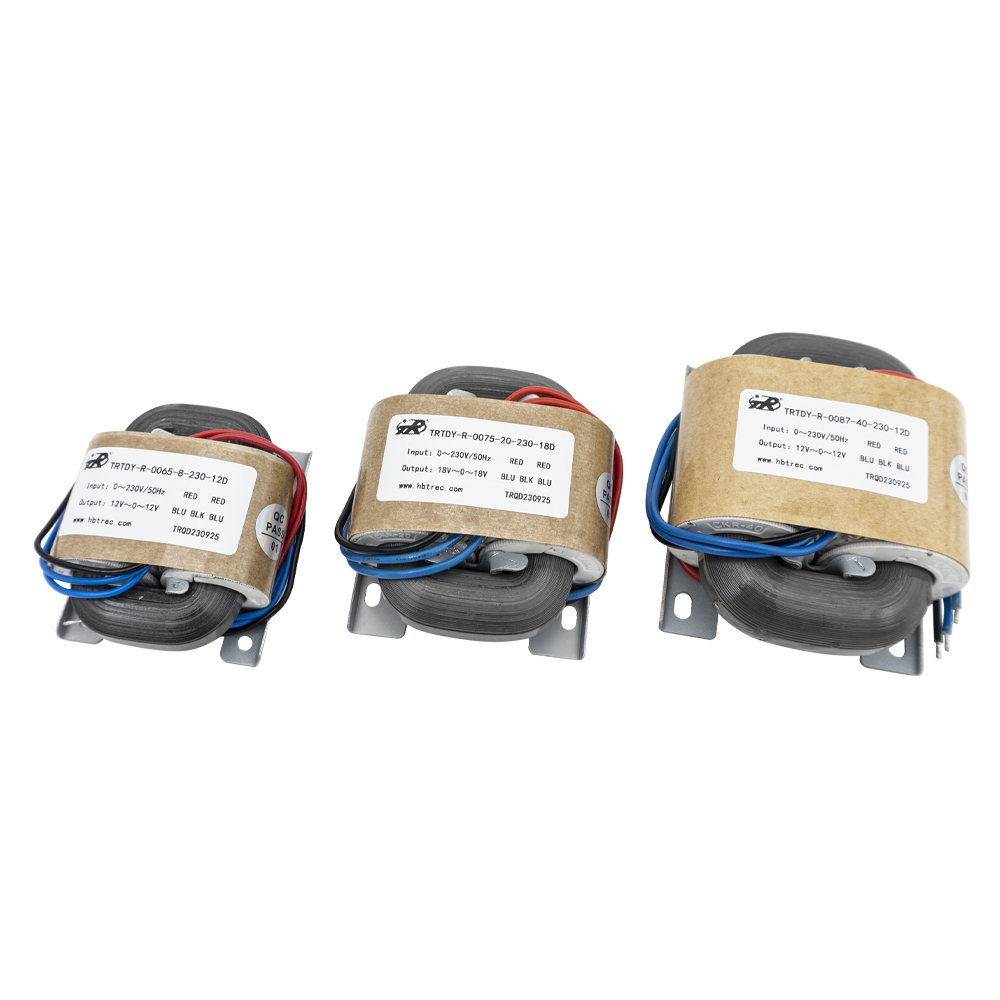

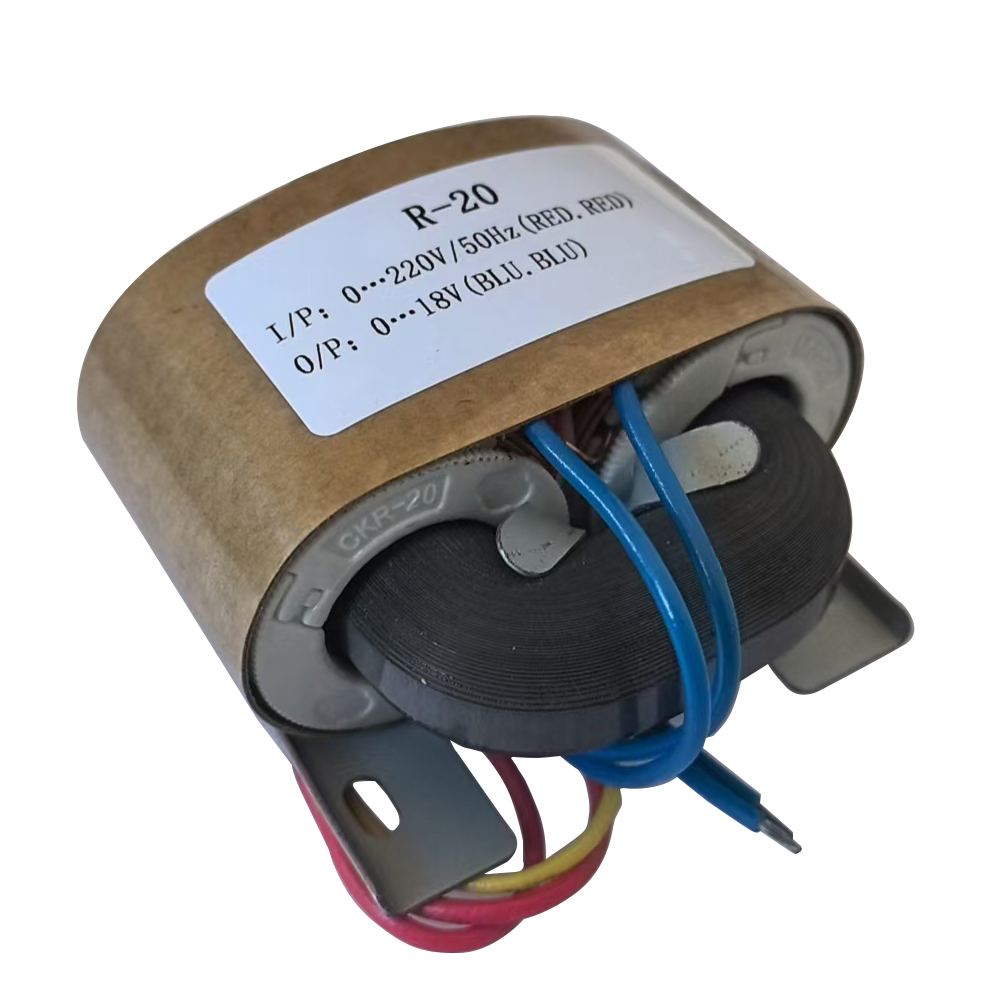

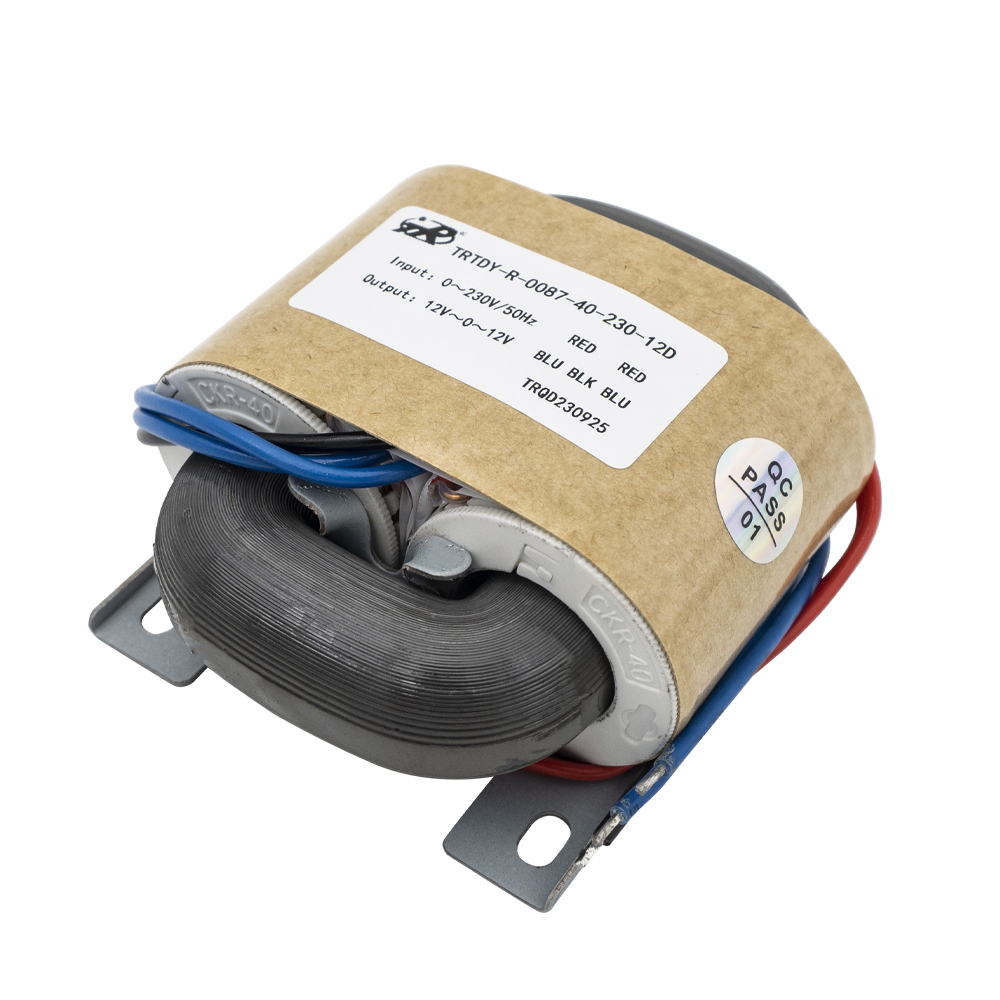

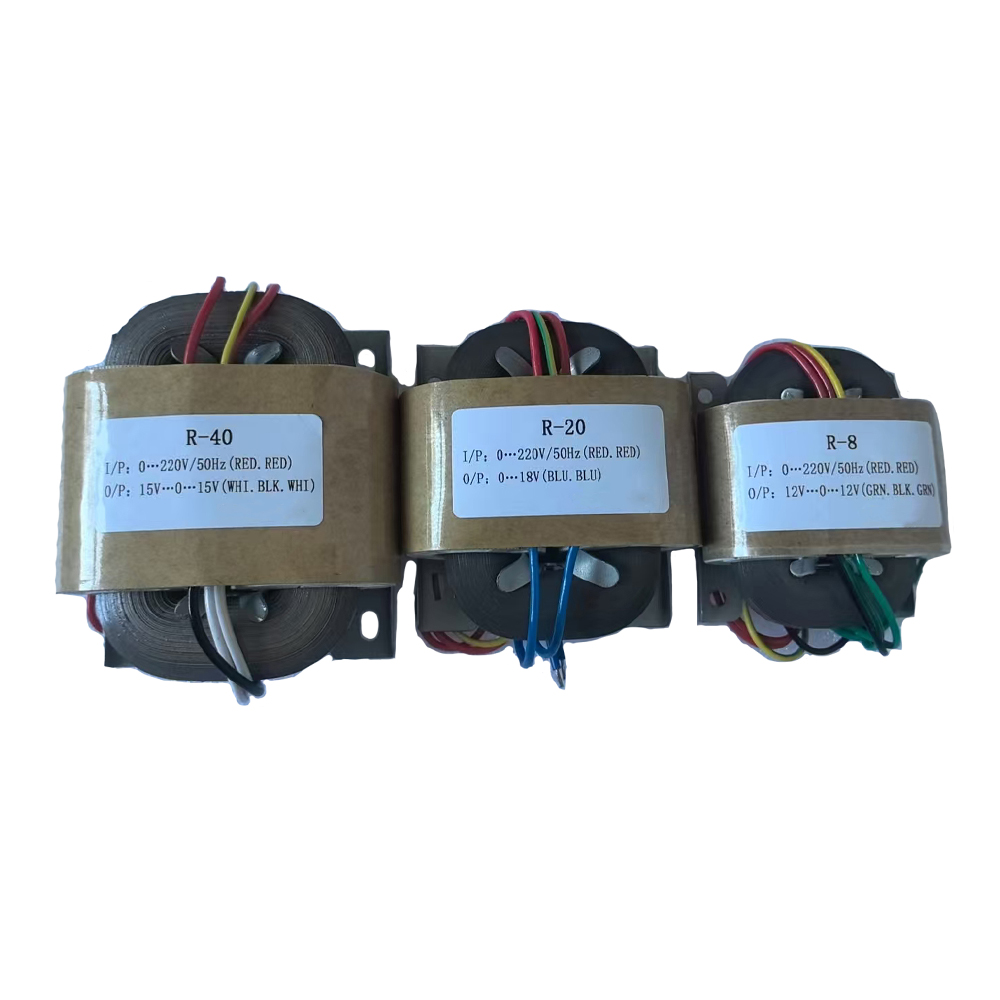

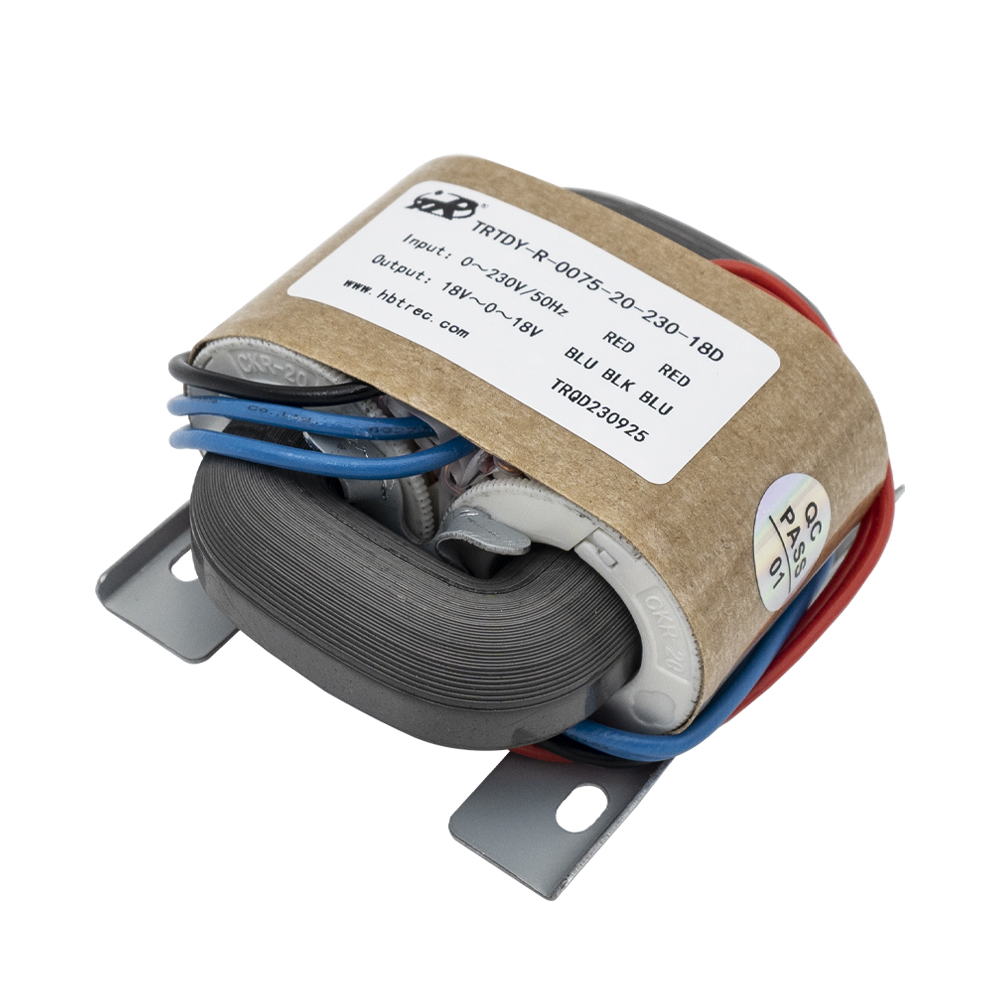

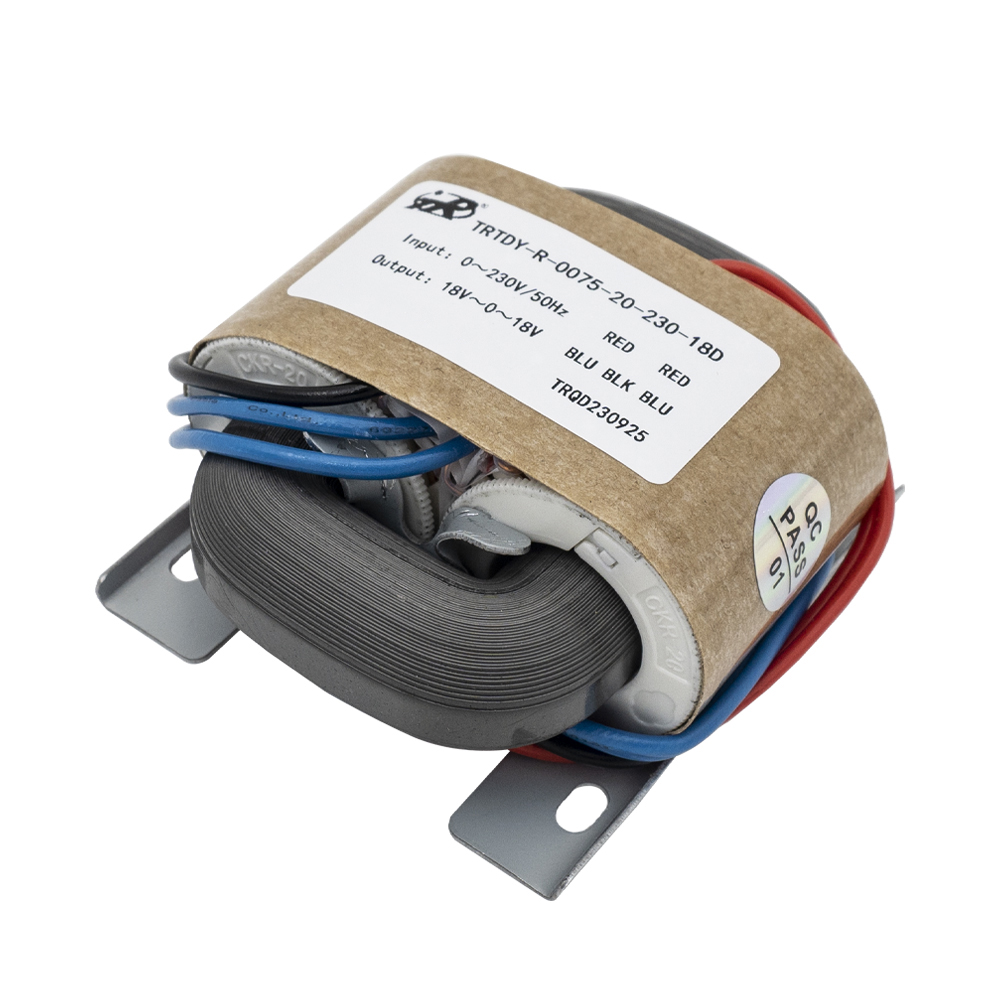

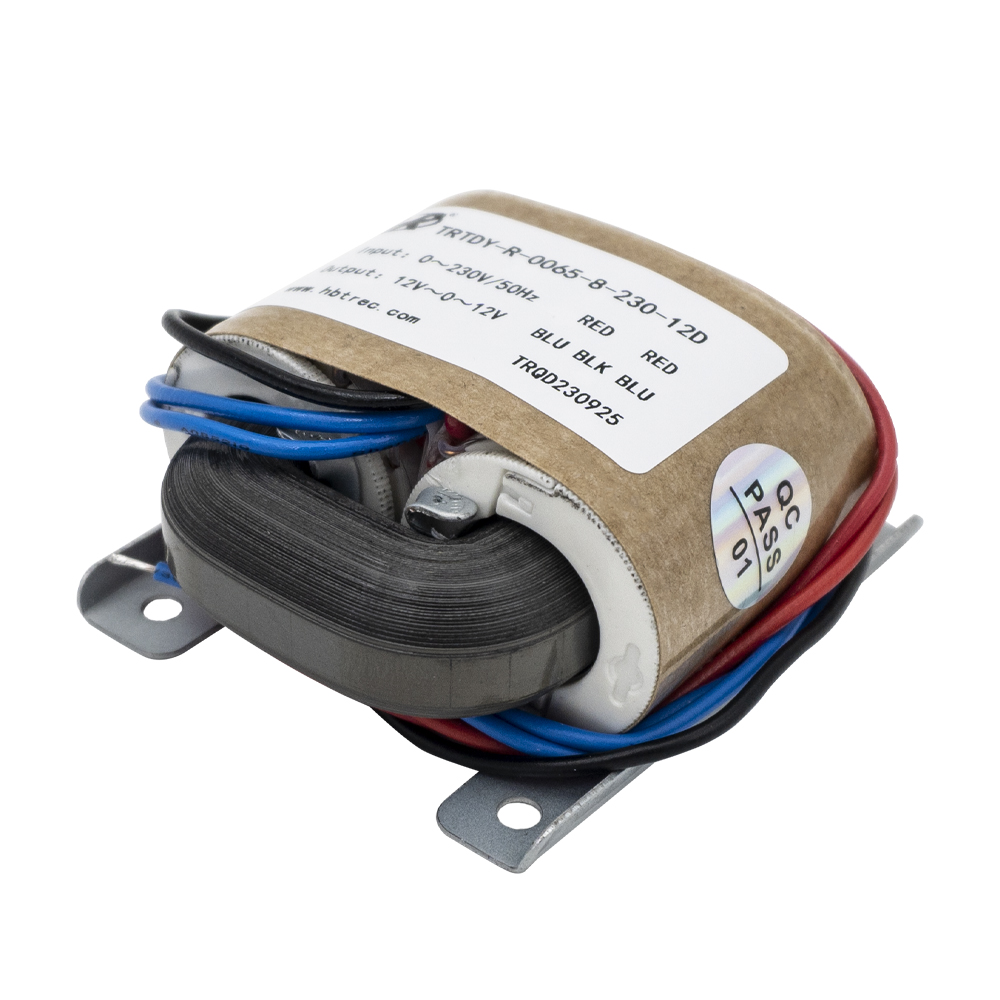

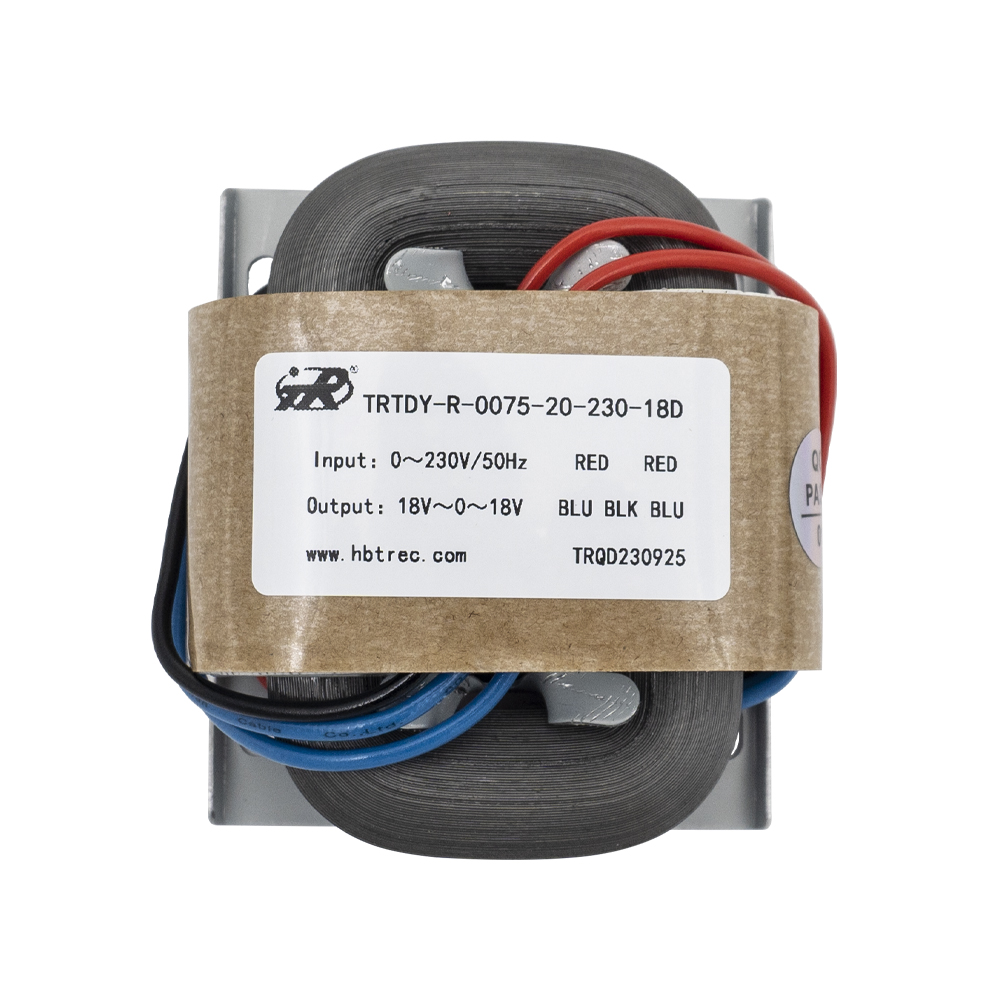

TRTDY-R
TR
Product Features
* Symmetrical magnetic circuits.
* Low loss, strong anti-interference ability and stable voltage.
* Compact in structure and suitable for multiple scenarios.
Product Application
They are widely used in audio equipment, precision instruments, medical devices and household electronic devices, and are a top choice for scenarios requiring high power supply quality.
Download Size Sheet

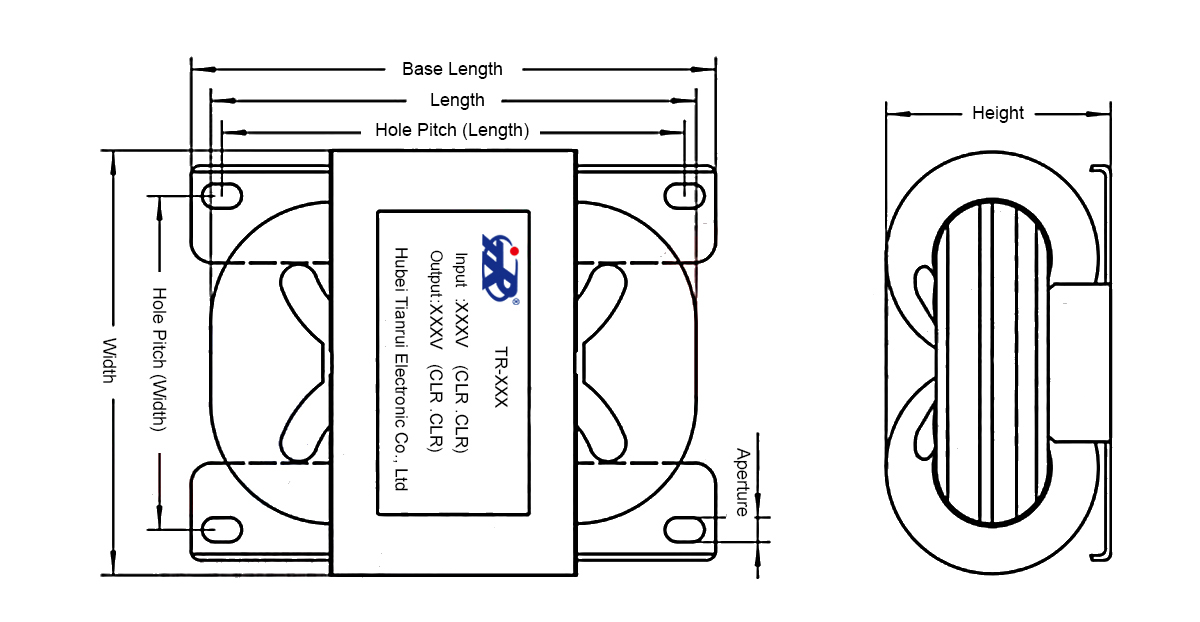

Technical Specifications（mm）
Product Parameters
Specification | Power (W) | Base Length (mm) | Length (mm) | Width (mm) | Height (mm) | Hole Pitch (Length) (mm) | Hole Pitch (Width (mm)) | Aperture (mm) | Weight (kg) |
| R-5 | 2-6W | 57 | 61 | 49 | 26 | 45 | 30 | 4 | 0.2 |
| R-8 | 7~10W | 65 | 70 | 60 | 33 | 53 | 44 | 4 | 0.3 |
| R-10 | 11~15W | 79 | 75 | 61 | 37 | 66~70 | 48 | 4 | 0.4 |
| R-20 | 20~24W | 75 | 81 | 70 | 39 | 49~56 | 55 | 4 | 0.5 |
| R-25 | 25~30W | 80 | 83 | 72 | 40 | 62~70 | 55 | 4 | 0.6 |
| R-30 | 31~40W | 87 | 93 | 76 | 42 | 67~73 | 60 | 5 | 0.7 |
| R-40 | 41~50W | 87 | 94 | 80 | 44 | 67~73 | 60 | 5 | 0.8 |
| R-50 | 51~60W | 92 | 98 | 86 | 47 | 72~78 | 65 | 5 | 1.0 |
| R-65 | 61~75W | 92 | 105 | 88 | 49 | 72~78 | 65 | 5 | 1.2 |
| R-80 | 76~90W | 110 | 123 | 90 | 49 | 85~95 | 70 | 5 | 1.4 |
| R-100 | 91~130W | 118 | 123 | 102 | 55 | 100 | 77~83 | 5 | 1.8 |
| R-160 | 131~180W | 120 | 136 | 115 | 60 | 95~105 | 85 | 5 | 2.1 |
| R-260 | 181~280W | 145 | 153 | 120 | 65 | 120~130 | 95 | 5 | 3.1 |
| R-320 | 281~350W | 152 | 160 | 128 | 70 | 130~140 | 95 | 6 | 3.8 |
| R-600 | 360~640W | 167 | 175 | 145 | 80 | 145 | 115 | 6 | 6.5 |
| R-800 | 650~850W | 167 | 192 | 165 | 90 | 145 | 115 | 6 | 8.4 |
| R-1000 | 860~1200W | 200 | 212 | 175 | 95 | 175~185 | 140 | 6 | 10 |
| R-1500 | 1300~1700W | 210 | 240 | 190 | 100 | 170~180 | 145 | 8 | 14 |
| R-2000 | 1800~2300W | 220 | 255 | 200 | 110 | 180~190 | 160 | 8 | 16 |
| R-3000 | 2500~3300W | 227 | 275 | 230 | 125 | 195~205 | 180 | 8 | 23 |

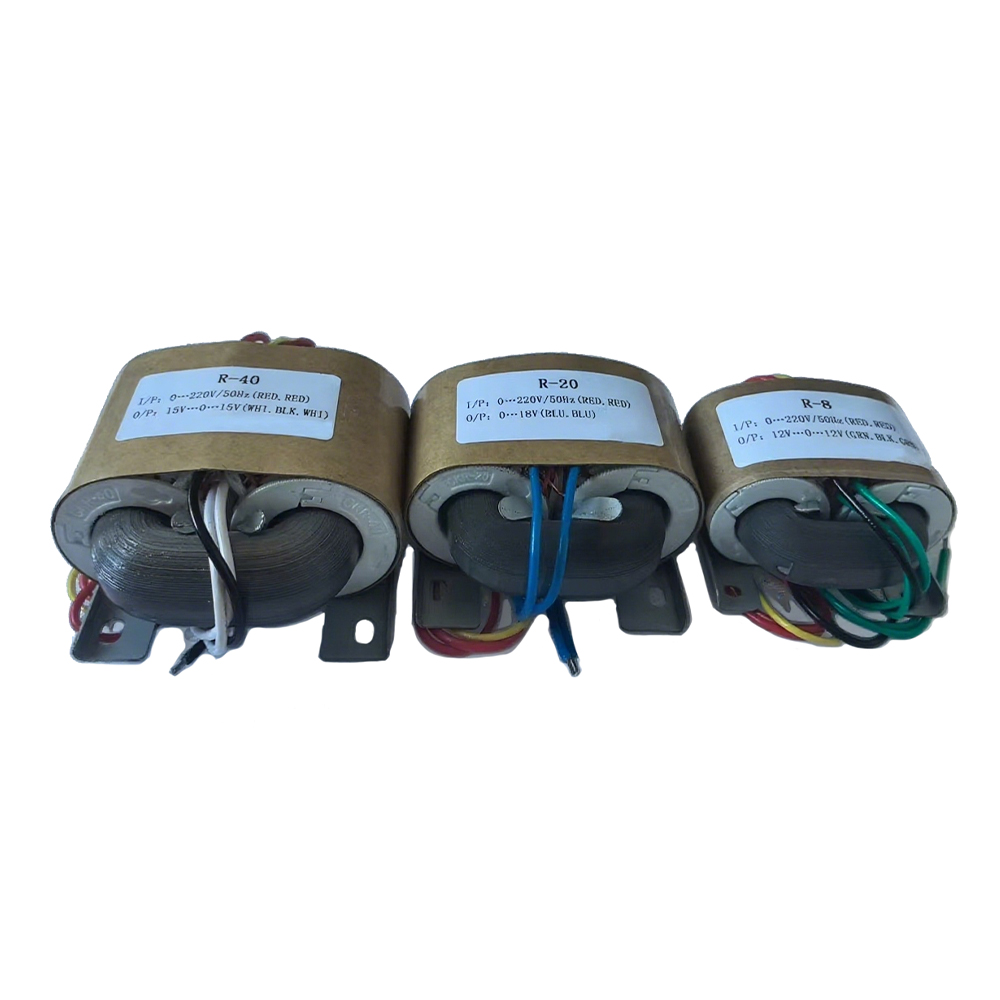

This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.

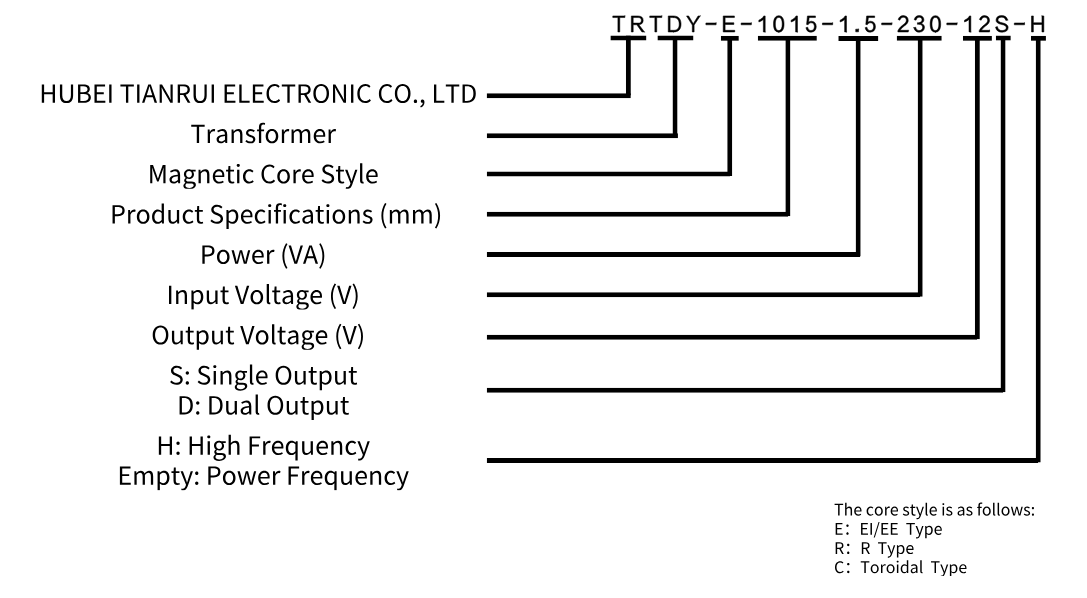

Product Model Naming Rules
Product Features
* Symmetrical magnetic circuits.
* Low loss, strong anti-interference ability and stable voltage.
* Compact in structure and suitable for multiple scenarios.
Product Application
They are widely used in audio equipment, precision instruments, medical devices and household electronic devices, and are a top choice for scenarios requiring high power supply quality.
Download Size Sheet
Technical Specifications（mm）
Product Parameters
Specification | Power (W) | Base Length (mm) | Length (mm) | Width (mm) | Height (mm) | Hole Pitch (Length) (mm) | Hole Pitch (Width (mm)) | Aperture (mm) | Weight (kg) |
| R-5 | 2-6W | 57 | 61 | 49 | 26 | 45 | 30 | 4 | 0.2 |
| R-8 | 7~10W | 65 | 70 | 60 | 33 | 53 | 44 | 4 | 0.3 |
| R-10 | 11~15W | 79 | 75 | 61 | 37 | 66~70 | 48 | 4 | 0.4 |
| R-20 | 20~24W | 75 | 81 | 70 | 39 | 49~56 | 55 | 4 | 0.5 |
| R-25 | 25~30W | 80 | 83 | 72 | 40 | 62~70 | 55 | 4 | 0.6 |
| R-30 | 31~40W | 87 | 93 | 76 | 42 | 67~73 | 60 | 5 | 0.7 |
| R-40 | 41~50W | 87 | 94 | 80 | 44 | 67~73 | 60 | 5 | 0.8 |
| R-50 | 51~60W | 92 | 98 | 86 | 47 | 72~78 | 65 | 5 | 1.0 |
| R-65 | 61~75W | 92 | 105 | 88 | 49 | 72~78 | 65 | 5 | 1.2 |
| R-80 | 76~90W | 110 | 123 | 90 | 49 | 85~95 | 70 | 5 | 1.4 |
| R-100 | 91~130W | 118 | 123 | 102 | 55 | 100 | 77~83 | 5 | 1.8 |
| R-160 | 131~180W | 120 | 136 | 115 | 60 | 95~105 | 85 | 5 | 2.1 |
| R-260 | 181~280W | 145 | 153 | 120 | 65 | 120~130 | 95 | 5 | 3.1 |
| R-320 | 281~350W | 152 | 160 | 128 | 70 | 130~140 | 95 | 6 | 3.8 |
| R-600 | 360~640W | 167 | 175 | 145 | 80 | 145 | 115 | 6 | 6.5 |
| R-800 | 650~850W | 167 | 192 | 165 | 90 | 145 | 115 | 6 | 8.4 |
| R-1000 | 860~1200W | 200 | 212 | 175 | 95 | 175~185 | 140 | 6 | 10 |
| R-1500 | 1300~1700W | 210 | 240 | 190 | 100 | 170~180 | 145 | 8 | 14 |
| R-2000 | 1800~2300W | 220 | 255 | 200 | 110 | 180~190 | 160 | 8 | 16 |
| R-3000 | 2500~3300W | 227 | 275 | 230 | 125 | 195~205 | 180 | 8 | 23 |
This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.
Product Model Naming Rules
