Current transformers (CT) and voltage transformers (VT, also known as potential transformers PT) are two core instrument transformers widely deployed within power‑grid systems. Both serve to step down high‑level electrical signals to safe, measurable values for meters, protection relays and monitoring devices, yet they differ fundamentally in working principles, connection modes, application purposes and handling requirements.

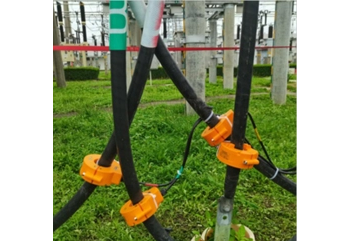

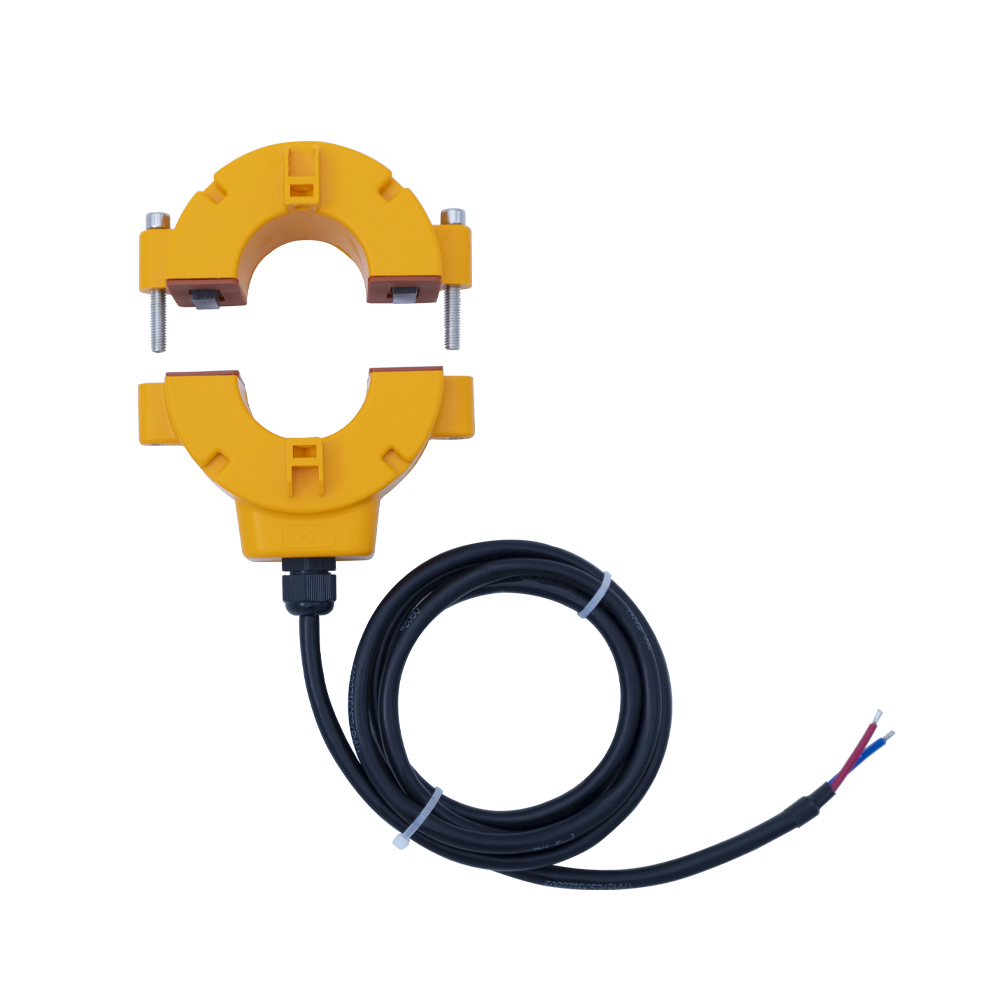

A current transformer samples circuit current. It is connected in series with the main power conductor. The primary winding consists of very few turns, often just one single pass‑through bar or cable. Large primary current induces proportional low‑magnitude secondary current, commonly 5 A or 1 A for standard industrial outputs. CTs aim to reduce heavy load‑side current so that measuring instruments can work without direct exposure to high‑current circuits. Split‑core CT variants enable installation without power shutdown, ideal for outdoor power‑system retrofitting. One critical safety rule for CT operation is that its secondary circuit must never be opened while energized. An open secondary generates dangerously high induced voltage, risking equipment burnout and personal injury.
In contrast, a voltage transformer handles circuit voltage and is wired in parallel across power‑line phases. Its primary side contains numerous windings matched against system high voltage, stepping high‑voltage signals down to standardized secondary outputs such as 100 V. VTs supply accurate voltage references for voltmeters, power‑factor meters and over‑voltage protection units. Unlike CTs, the secondary winding of a voltage transformer should never experience short‑circuit conditions. Short‑circuit faults create massive overcurrent inside windings, which quickly destroys the transformer unit.
Their real‑world deployment scenarios also show clear distinctions. Current transformers focus on current measurement, energy metering and over‑current fault protection. They are frequently mounted on busbars, cable feeders and distribution cabinets. Voltage transformers deliver phase‑to‑phase or phase‑to‑ground voltage data and support insulation monitoring. They are mostly installed inside switchgears and high‑voltage substations.
Although both instrument transformers isolate low‑voltage control equipment from dangerous high‑voltage networks, users cannot swap CT and VT for one another. Mismatched installation leads to measurement deviation, protection malfunction and severe safety hazards. Understanding their respective features remains essential for power‑system renovation, field commissioning and daily maintenance work.
