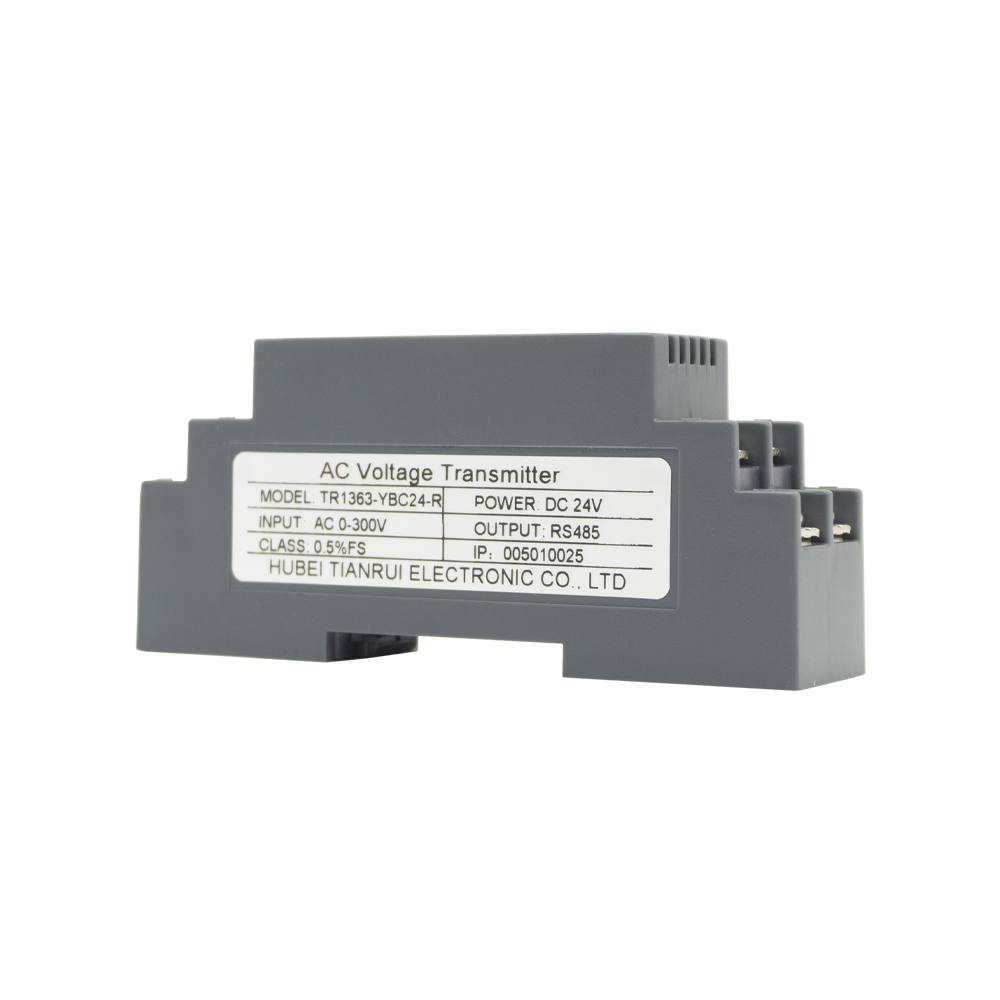

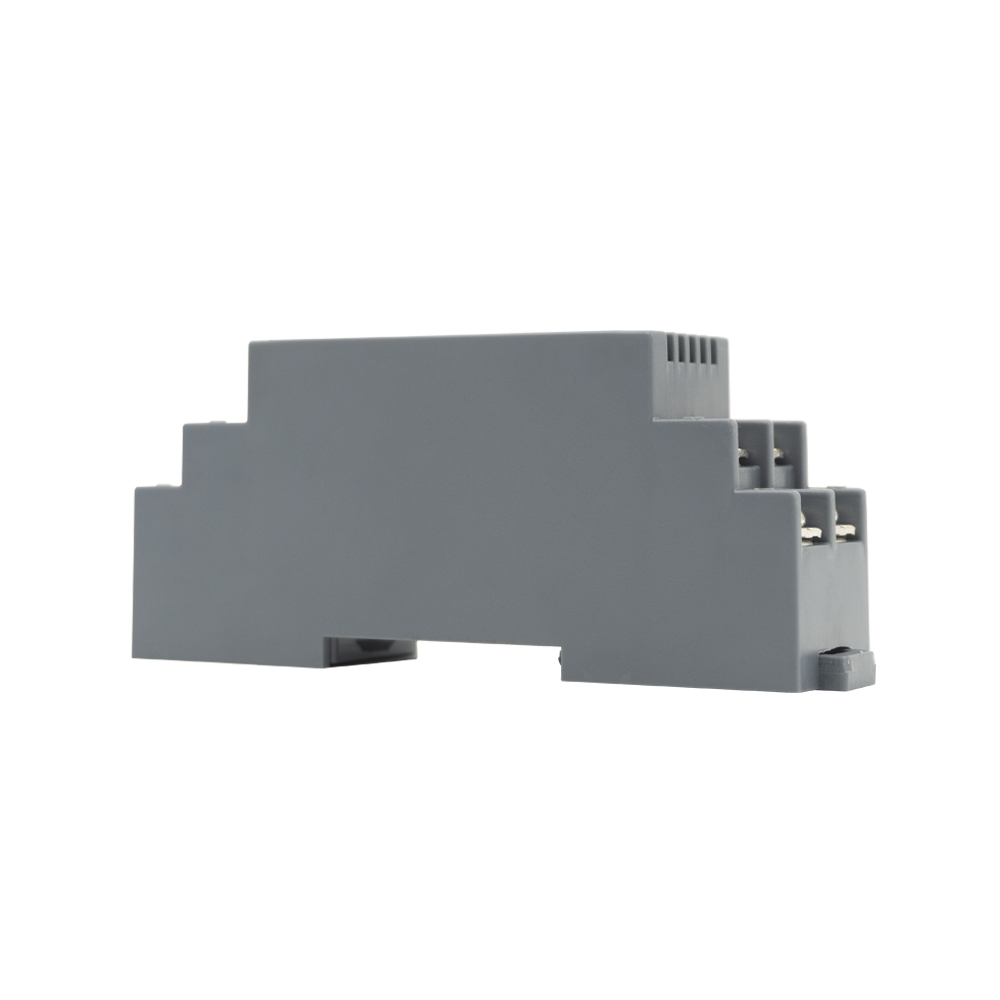

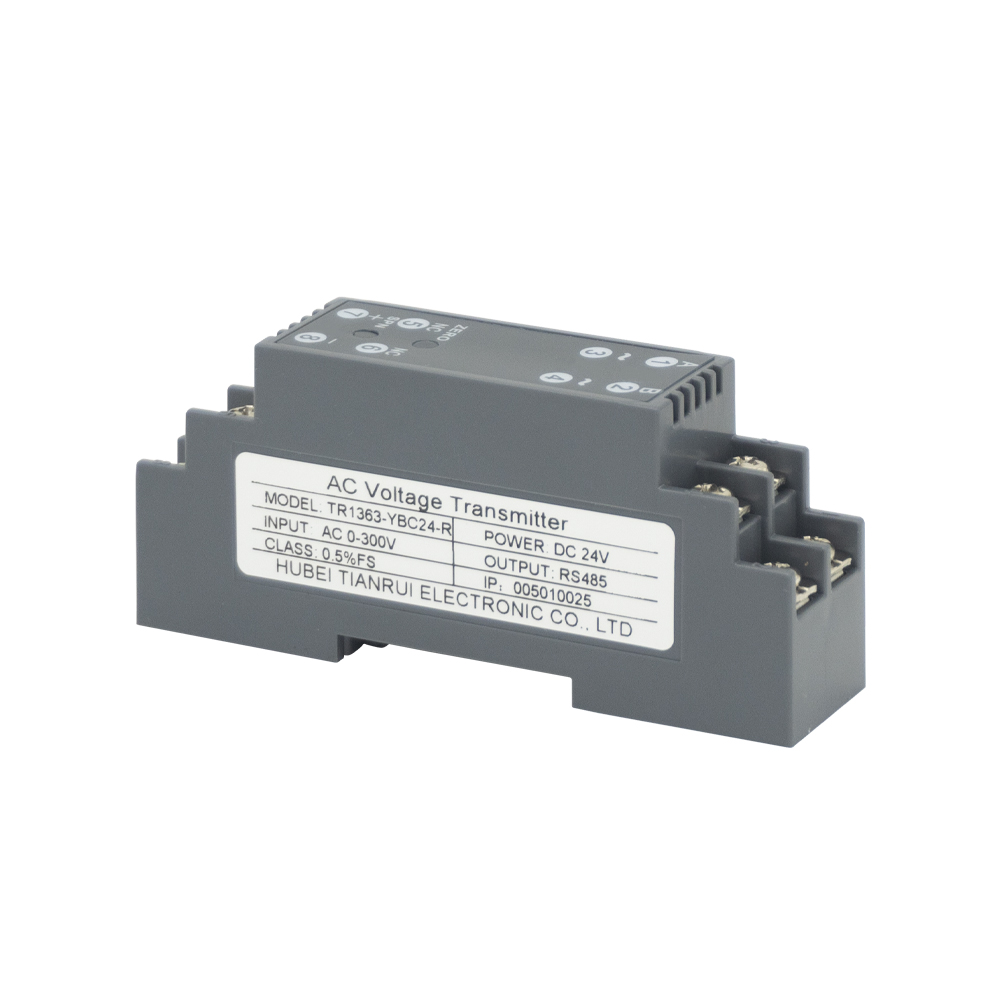

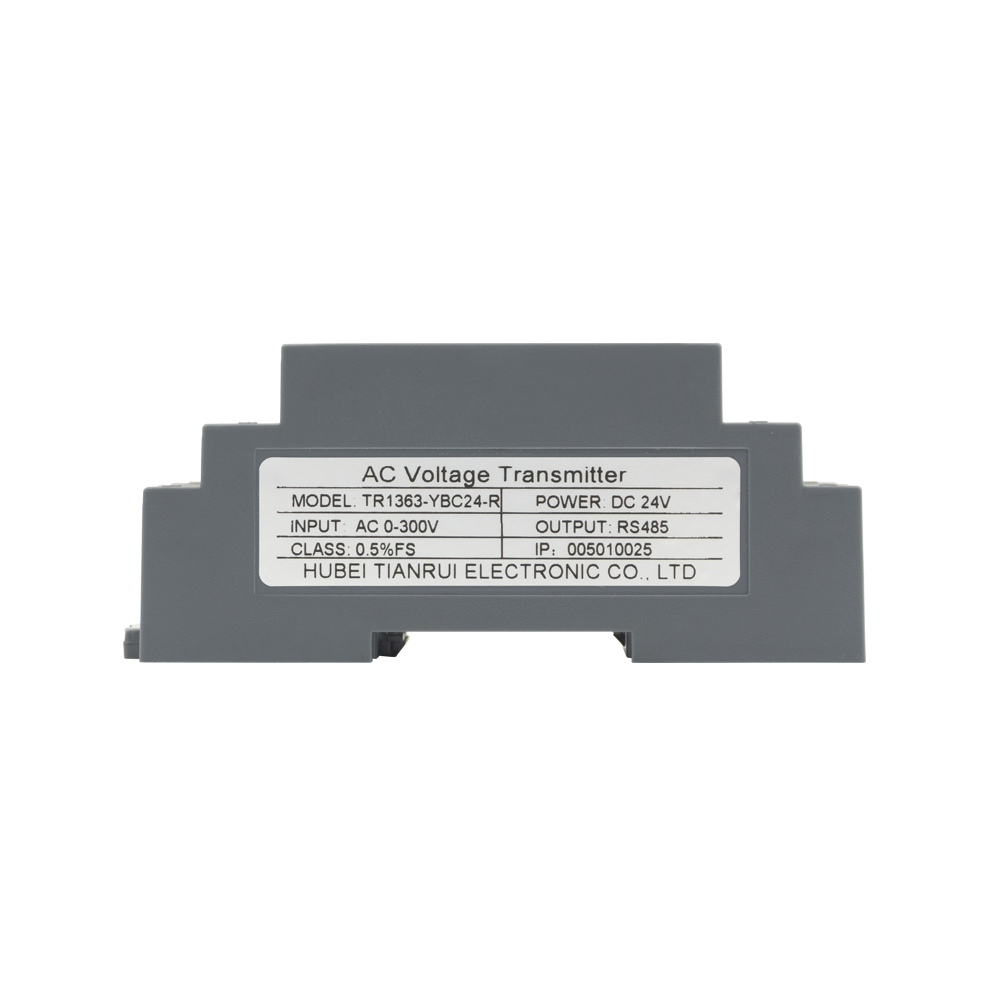

TR1363-YBC24-R
TR
An AC Voltage Transducer is a precision device used to measure alternating voltage and convert it into a standardized output signal, such as 0–10V or 4–20mA, for monitoring and control systems. It provides accurate electrical isolation between the high-voltage input and the low-voltage output, ensuring safe operation of connected equipment. AC voltage transducers are designed for high accuracy, fast response, and stable long-term performance. They are widely used in power distribution systems, industrial automation, energy management, and electrical testing applications. By enabling real-time voltage measurement, AC voltage transducers help improve system reliability, efficiency, and protection against abnormal operating conditions.
Power Distribution Systems: Monitoring busbar and line voltages in switchgear and substations.
Industrial Automation: Providing voltage feedback for PLCs and motor drives in manufacturing processes.
Renewable Energy: Monitoring AC grid voltage and inverter output in solar/wind power systems.
Building Management: Measuring supply voltage for HVAC and lighting control systems.
Technical Data
| Electrical Parameters | Input Voltage Range | 0-1000V AC | Secondary Rated Output | 0-5V, 0-10V, 4-20mA, 0-20mA |
| Accuracy | 0.2%FS | Frequency Range | 50-400Hz | |
| Load Capacity | Voltage output: RL≤ 500Ω Current output: RL≥ 10kΩ | Power Frequency Withstand Voltage | 2kV AC/1min | |
| Rated Power Consumption | ≤ 1.5W | Temperature Drift | ≤ 0.02%FS/℃ | |
| Response Time | < 200ms | Power Supply Voltage | 12V-32V DC | |
| Operating Environment | Ambient Operating Temperature | -20℃-+55℃ | / | / |
