A voltage transducer is an electrical sensing device designed to measure AC or DC voltage and convert it into a standardized, proportional output signal such as 0–5V, 0–10V, or 4–20mA. By isolating the measurement circuit from the high-voltage source, a voltage transducer allows safe, accurate, and real-time voltage monitoring in industrial systems, power equipment, and automation control networks. It plays a key role in energy management, system diagnostics, and power quality analysis, where stable voltage data is essential for maintaining operational reliability.
A voltage transducer typically consists of an input voltage conditioning stage, an isolation module, and an output signal conversion section. The device scales down high voltages using resistive dividers or electromagnetic principles, then processes the signal through isolation and conditioning circuits. This ensures that the measuring system is fully protected from dangerous voltage spikes or transient disturbances. Modern voltage transducers also incorporate advanced filtering, linearity compensation, and temperature correction, enabling them to maintain consistent accuracy over a wide dynamic range.
One of the key features of a voltage transducer is galvanic isolation, which separates the primary voltage from the low-voltage output interface. This isolation prevents ground loops, protects sensitive electronic devices, and enhances overall safety. Another notable feature is high measurement accuracy, allowing precise monitoring of even small voltage fluctuations. Many models also support wide input ranges, low power consumption, fast response time, and strong electromagnetic interference resistance, making them suitable for demanding environments and complex control systems.
In terms of functionality, a voltage transducer converts high or unstable voltage signals into stable, standardized output formats compatible with data loggers, PLCs, industrial controllers, and smart grid devices. This enables system engineers to integrate voltage information into broader monitoring platforms for real-time decision making. The ability to provide continuous, maintenance-free voltage measurement also reduces manual inspection workload and enhances automation efficiency. Some advanced transducers further support bidirectional voltage monitoring, enabling them to detect both polarity and voltage direction in renewable energy or battery-based systems.
Voltage transducers are widely used across multiple industries. In power systems, they monitor distribution networks, transformers, switchgear, and energy meters to ensure stable system operation. In renewable energy, voltage transducers are essential for solar inverters, wind turbines, and battery storage systems, where precise DC or AC voltage feedback is needed for efficient energy conversion. Industrial automation also relies on voltage transducers to supervise machinery status, motor drives, UPS systems, and industrial power supplies. In transportation, charging stations and electric vehicles use voltage transducers to maintain safe charging levels and protect onboard electronics. Building energy management and HVAC systems often incorporate voltage transducers into intelligent monitoring platforms to optimize energy consumption and detect faults early.

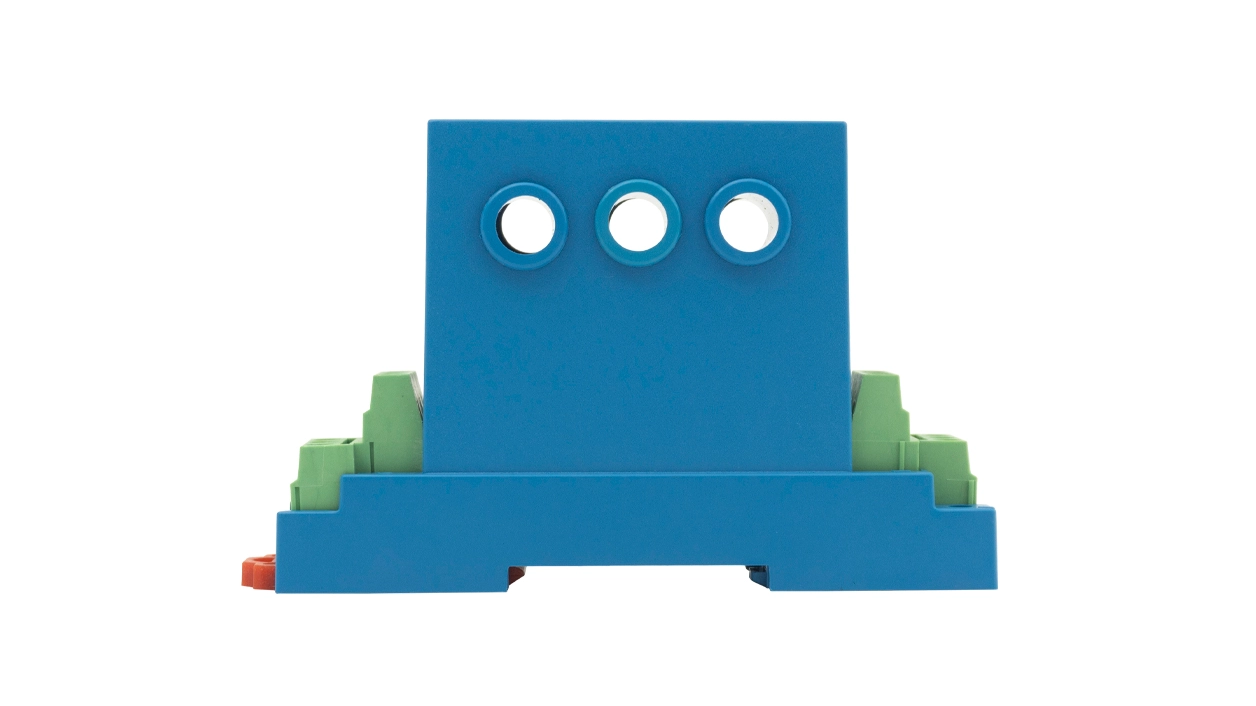

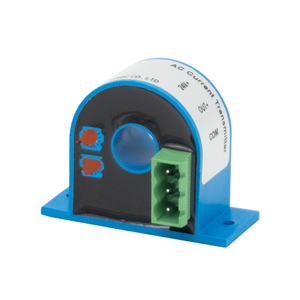

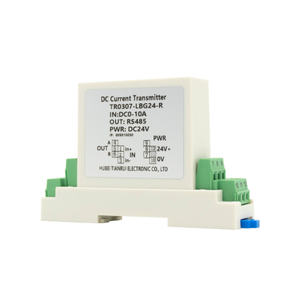

While voltage transducers measure electrical potential, current transducer measure the flow of electric current (AC, DC, or both). Current transducers often use Hall-effect sensors, current transformers, or shunt resistors, whereas voltage transducers primarily rely on voltage dividers or isolation circuits. Voltage transducers are generally used for monitoring system voltage stability, power supply conditions, and grid performance. Current transducers, on the other hand, are more commonly used for load monitoring, overcurrent protection, motor diagnostics, and energy consumption analysis. Both devices play essential roles in electrical measurement, and they are often used together in power monitoring systems to provide comprehensive insight into electrical behavior.
