What Is A Donut Current Transformer?

A donut current transformer, also widely known as a toroidal current transformer (CT), is a specialized device engineered for precise alternating current (AC) measurement and circuit protection in electrical systems. Distinguished by its solid, ring-shaped core structure, the donut CT features no discrete primary winding. Instead, the conductor carrying the measured current passes directly through its central aperture, functioning as a single-turn primary. This unique design integrates the primary conductor into the device's core, eliminating the need for additional winding connections and streamlining installation in both new constructions and industrial setups.

The secondary winding of a donut CT is uniformly wound around the continuous toroidal core, which is typically constructed from high-permeability magnetic materials such as silicon steel or amorphous alloy. This configuration minimizes magnetic flux leakage, as the closed core forms a continuous, unbroken magnetic path. By design, the CT steps down high primary currents—often ranging from tens to thousands of amperes—to standardized low currents, typically 5A or 1A, which are compatible with utility meters, protective relays, and industrial control systems. The closed-core structure ensures exceptional accuracy, often meeting Class 0.5 or higher precision standards, along with low core loss and long-term operational stability, making it the preferred choice for applications where reliability and measurement fidelity are critical.

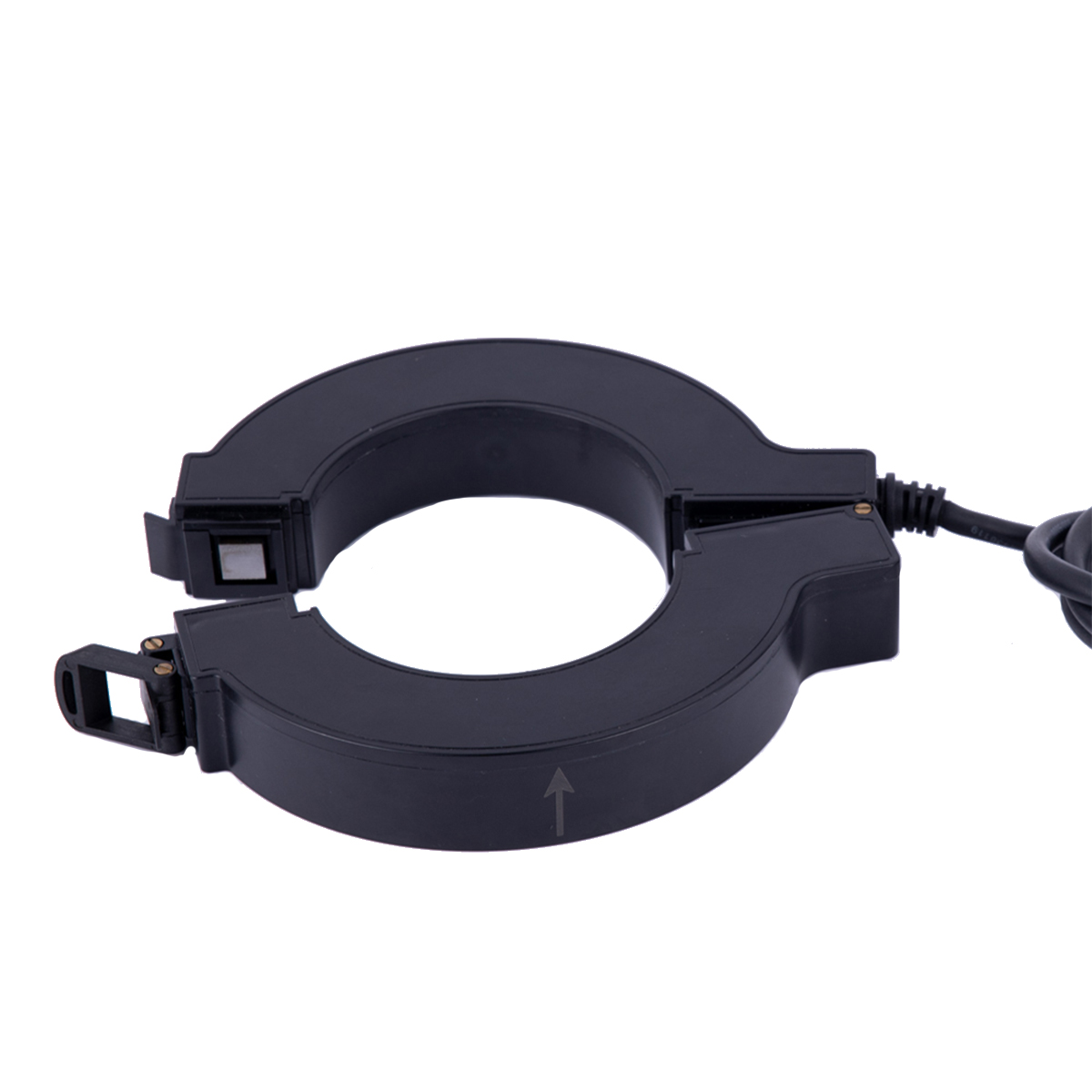

The core distinctions between donut (solid-core) and split-core current transformers lie primarily in their structural design, installation requirements, and performance characteristics. A donut CT features a one-piece, seamless core that requires the measured conductor to be threaded through its center during installation. This process necessitates a temporary power disruption, as the conductor must be disconnected to allow passage. In contrast, a split-core CT, often referred to as a clamp-on CT, incorporates a hinged, openable core (commonly C-shaped or U-shaped) that enables installation around live, energized conductors without power interruption. This non-invasive installation makes split-core CTs ideal for retrofits, field maintenance, and temporary monitoring tasks.
