TRTDY-C
TR
This series of products offers a variety of parameter specifications tailored to customer requirements, so as to meet different application and installation needs.

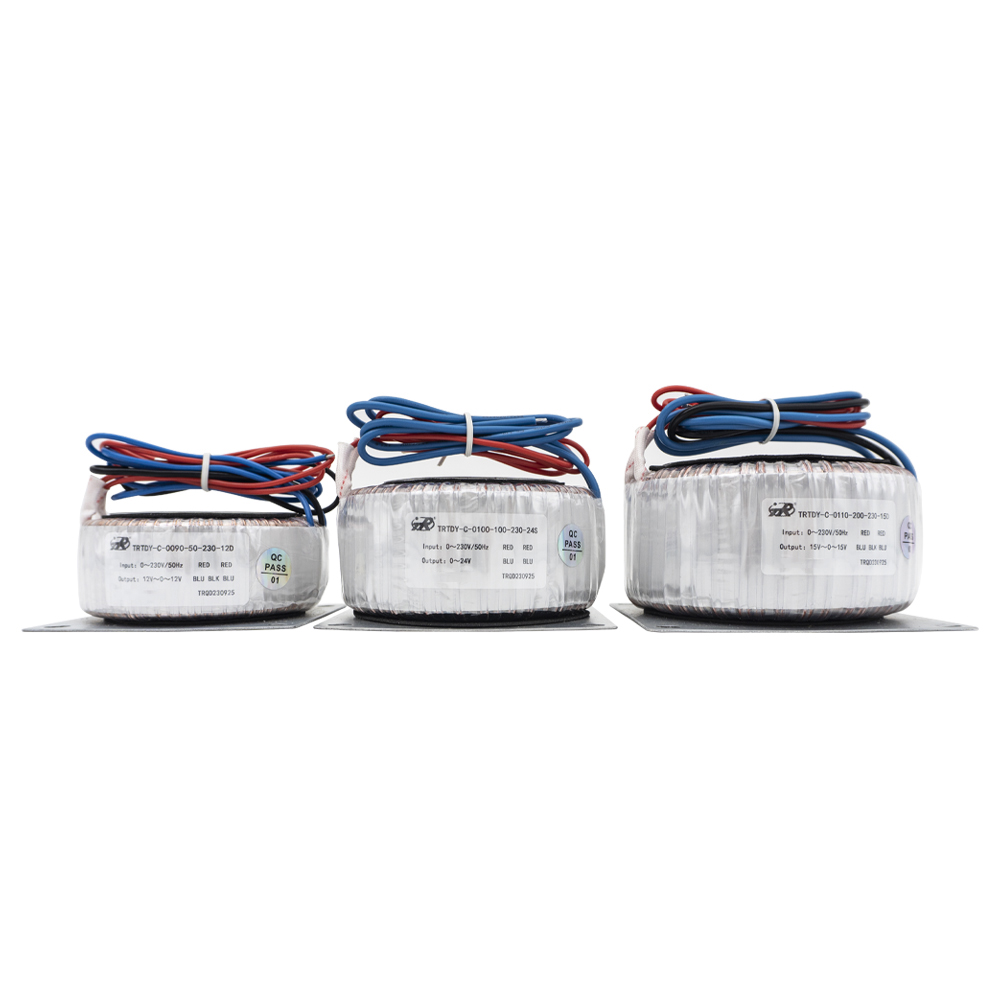

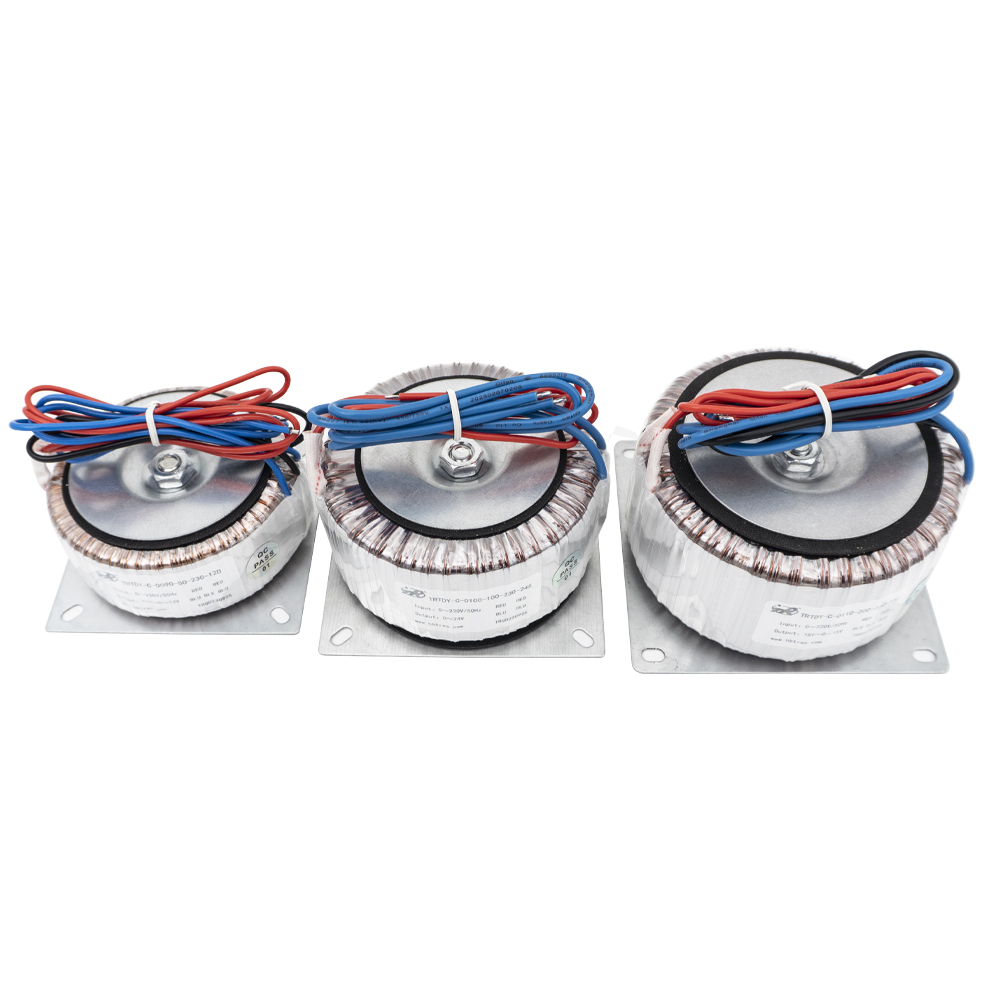

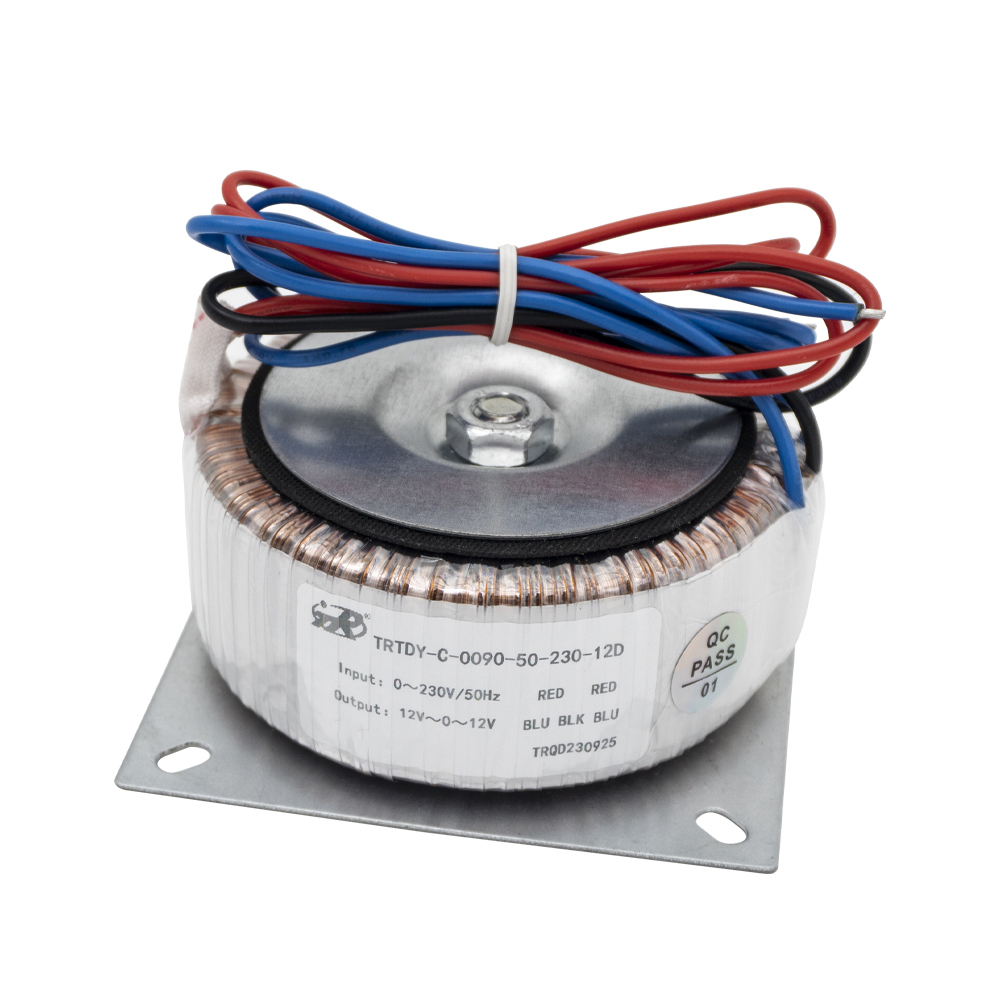

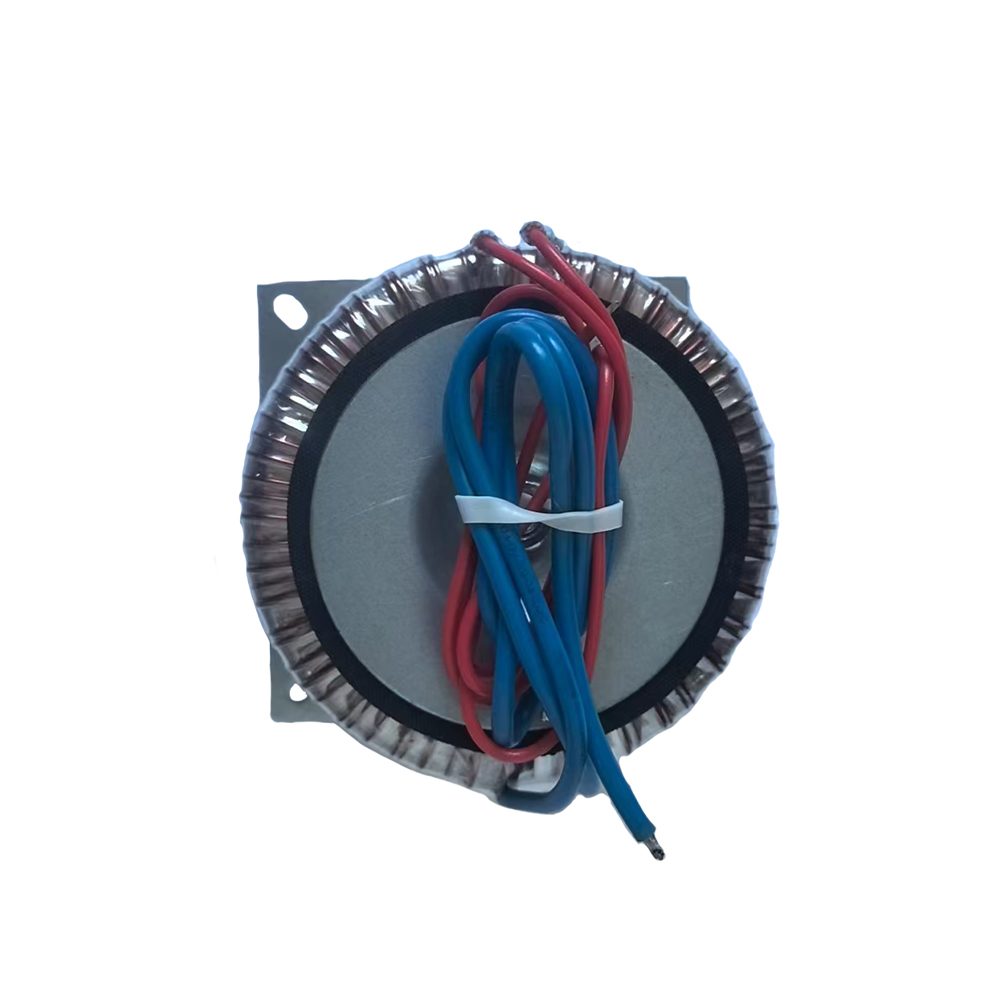

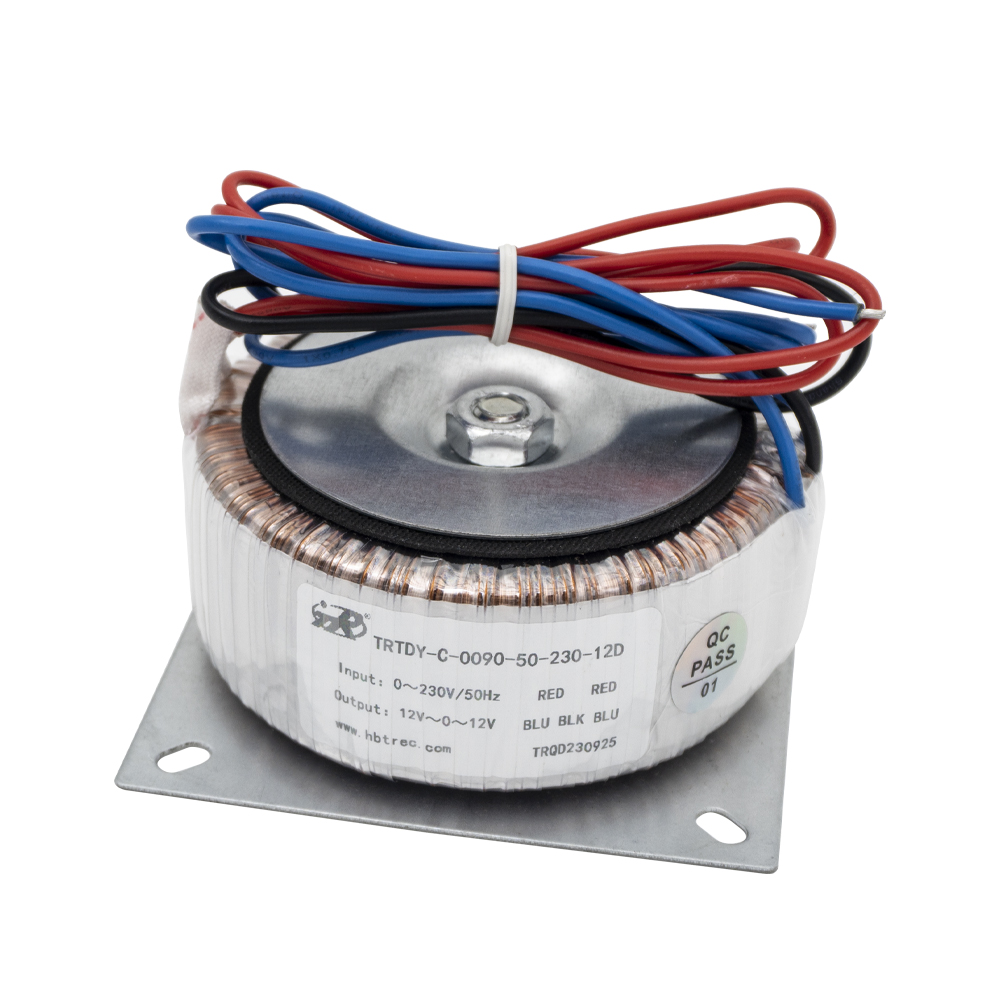

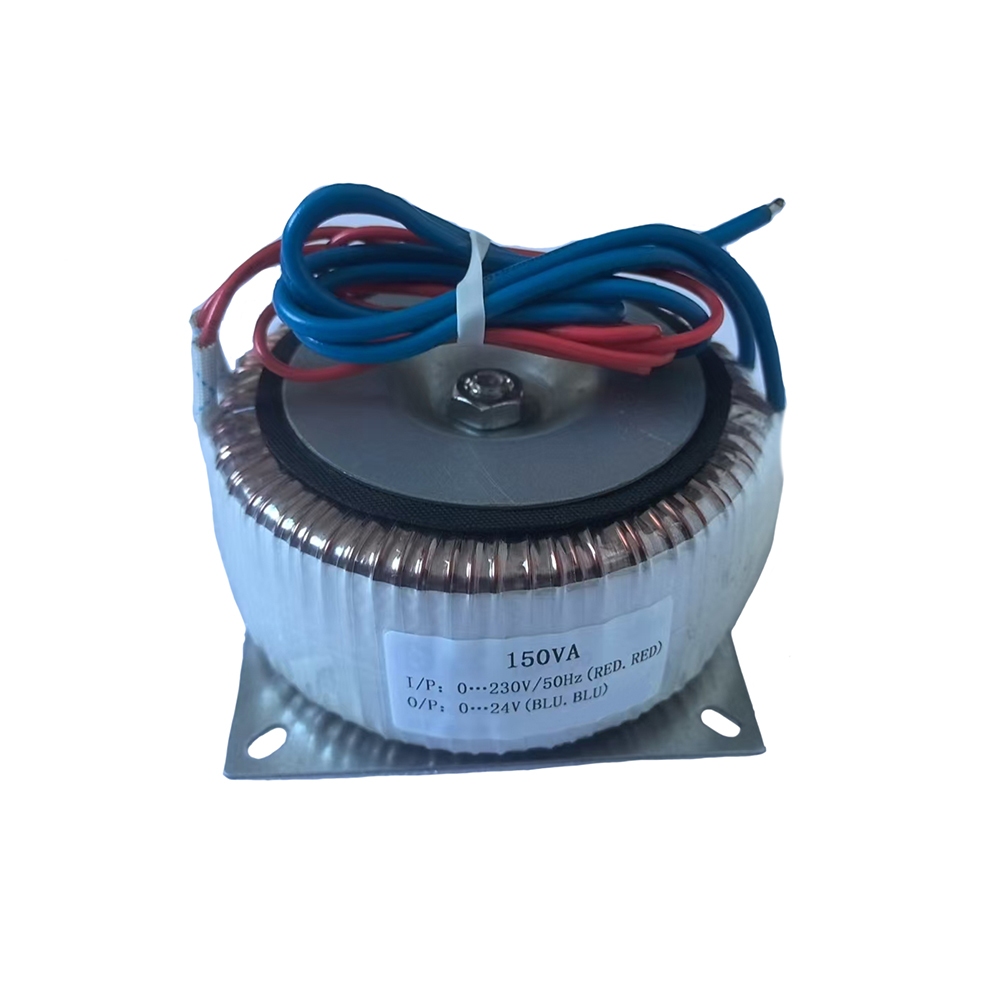

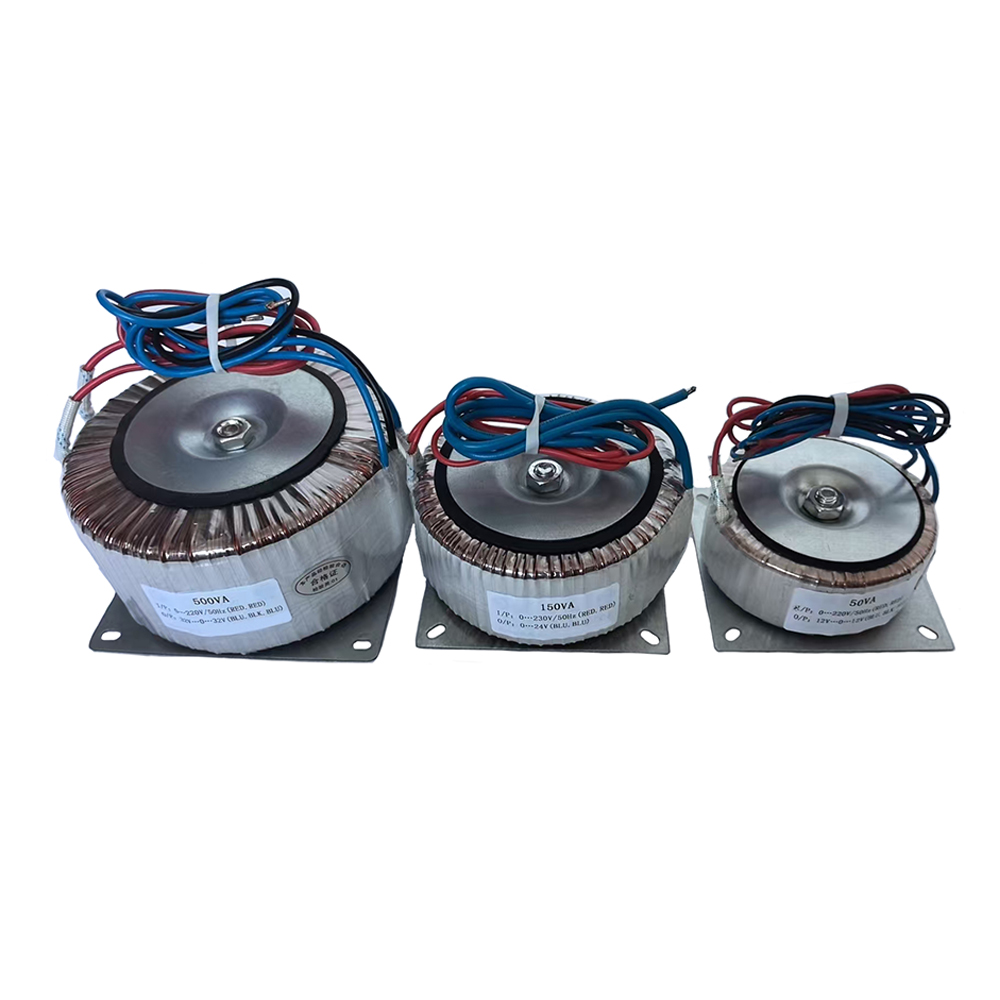

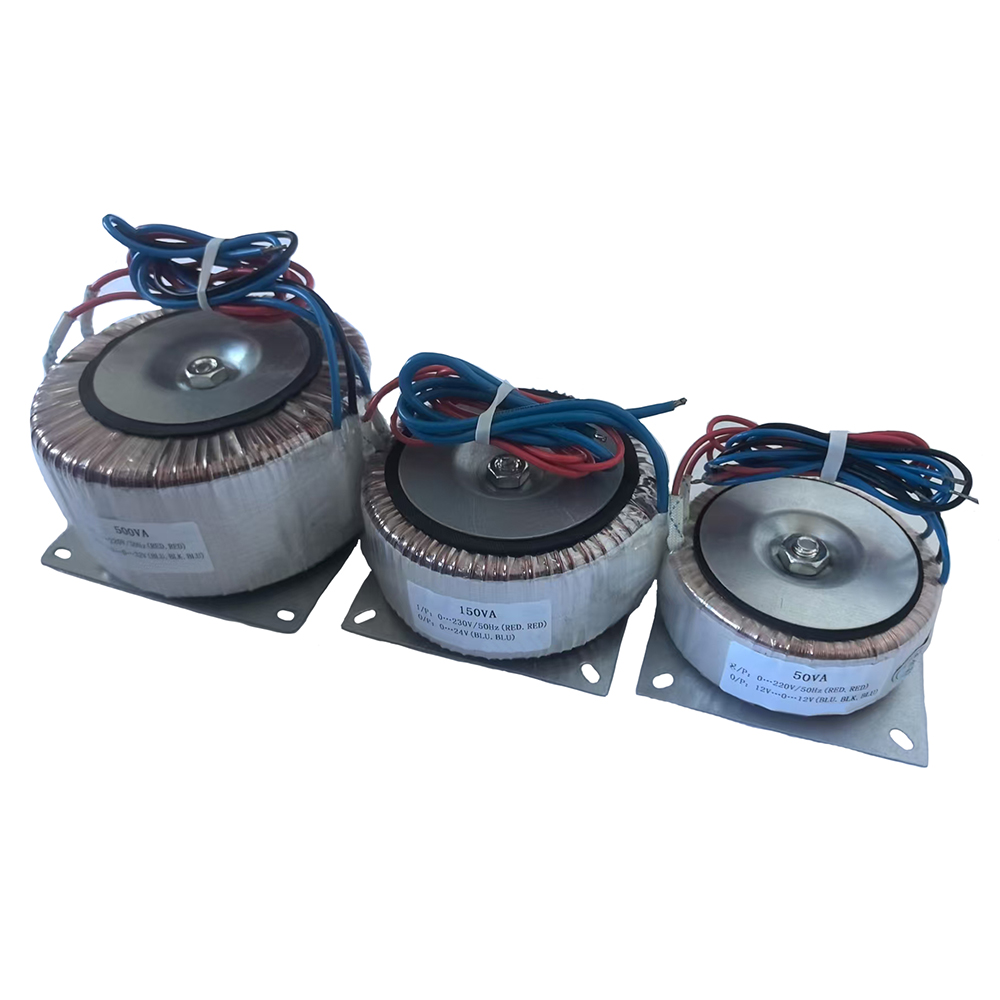

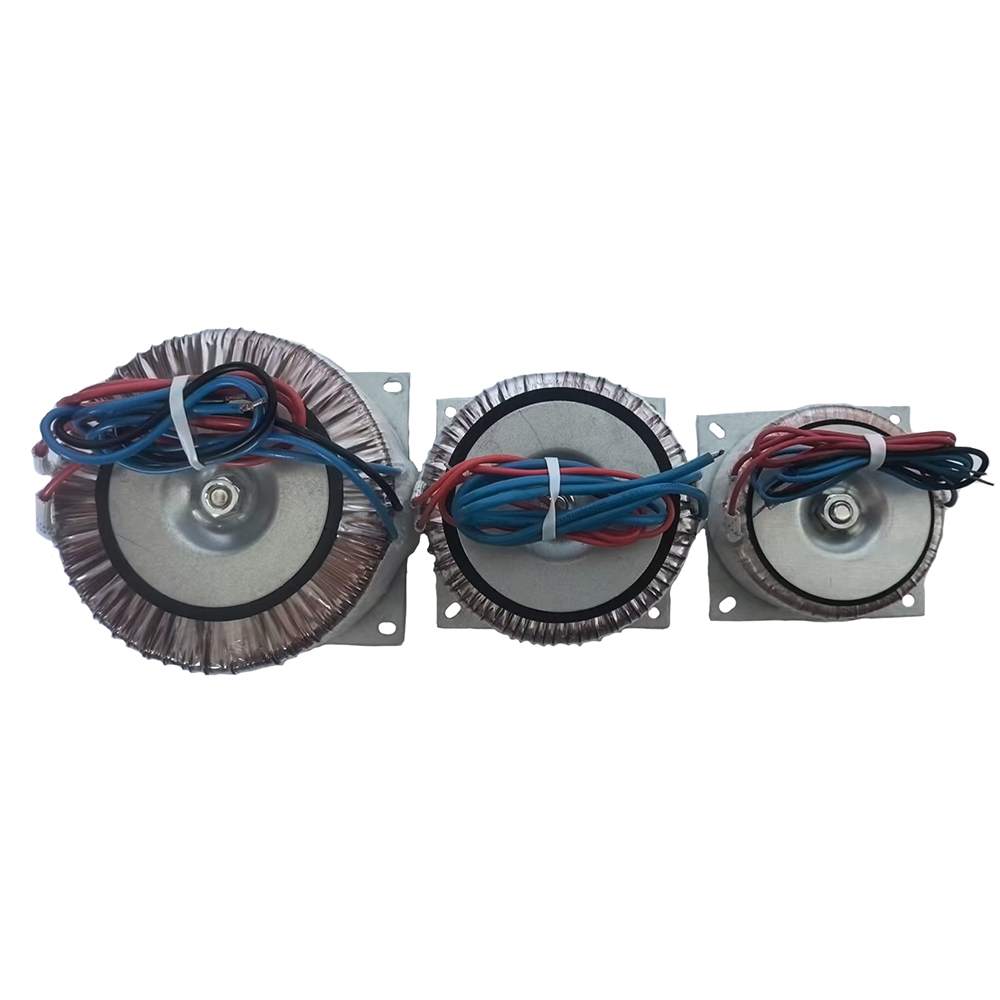

Toroidal transformers, with a toroidal iron core as the core component, feature small size, high efficiency, low magnetic leakage, and low noise, enabling stable AC voltage conversion. They are widely used in audio equipment, precision instruments, medical devices, communication power supplies, industrial control devices, and other fields, suitable for scenarios requiring stable power supply and low interference, and are a preferred transformer type in the medium and low power range.

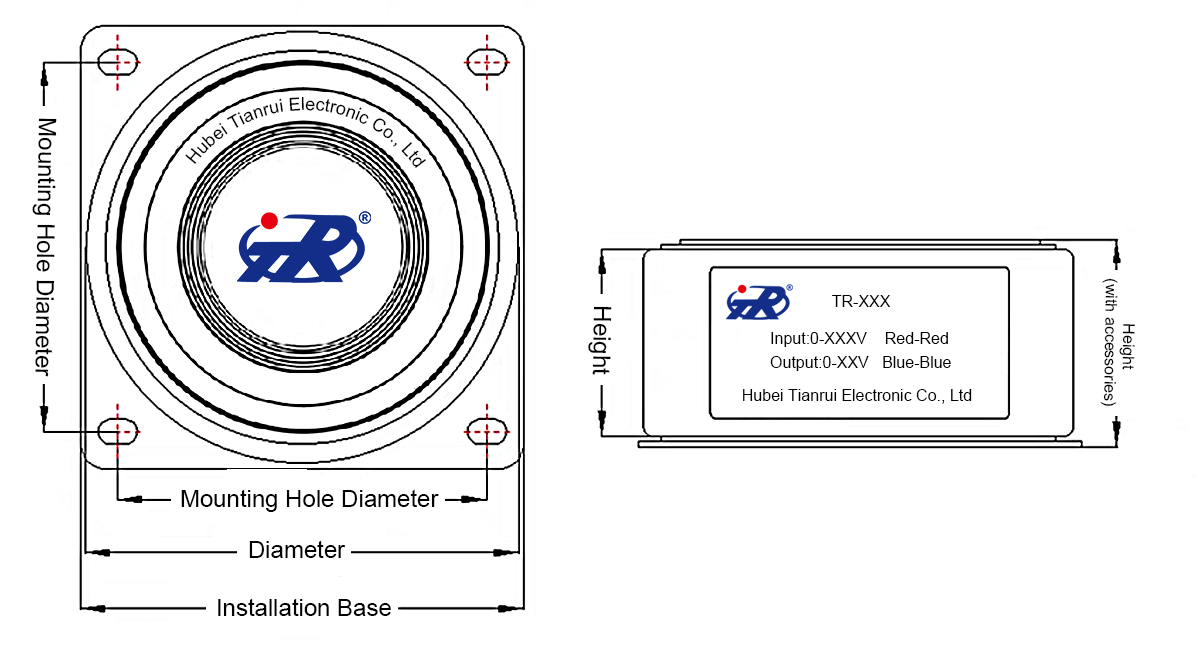

Power （W） | Diameter （mm） | Height （mm） | Height (with accessories) （mm） | Installation Base （mm） | Mounting Hole Diameter （mm） | Weight (kg) |
| 30W | 80mm | 40mm | 45mm | 80*80 | 70*70 | 0.7kg |
| 50W | 90mm | 40mm | 45mm | 90*90 | 75*75 | 1.0kg |
| 80W | 90mm | 45mm | 50mm | 90*90 | 75*75 | 1.2kg |
| 100W | 100mm | 50mm | 55mm | 100*100 | 85*85 | 1.7kg |
| 150W | 110mm | 50mm | 55mm | 100*100 | 85*85 | 2.1kg |
| 200W | 110mm | 55mm | 60mm | 110*110 | 93*93 | 2.4kg |
| 250W | 115mm | 60mm | 65mm | 110*110 | 93*93 | 2.9kg |
| 300W | 120mm | 60mm | 65mm | 120*120 | 105*105 | 3.4kg |
| 400W | 135mm | 65mm | 70mm | 120*120 | 105*105 | 4.1kg |
| 500W | 140mm | 70mm | 75mm | 120*120 | 105*105 | 4.8kg |
| 600W | 150mm | 70mm | 75mm | 120*120 | 105*105 | 5.3kg |
| 700W | 150mm | 75mm | 80mm | 120*120 | 105*105 | 6.0kg |
| 800W | 160mm | 80mm | 90mm | 150*150 | 135*135 | 6.7kg |
| 1000W | 165mm | 85mm | 90mm | 150*150 | 135*135 | 7.6kg |
| 1500W | 180mm | 90mm | 95mm | 150*150 | 135*135 | 9.8kg |
| 2000W | 195mm | 95mm | 100mm | 160*160 | 145*145 | 12.5kg |
| 3000W | 210mm | 115mm | 120mm | 160*160 | 145*145 | 16.0kg |
