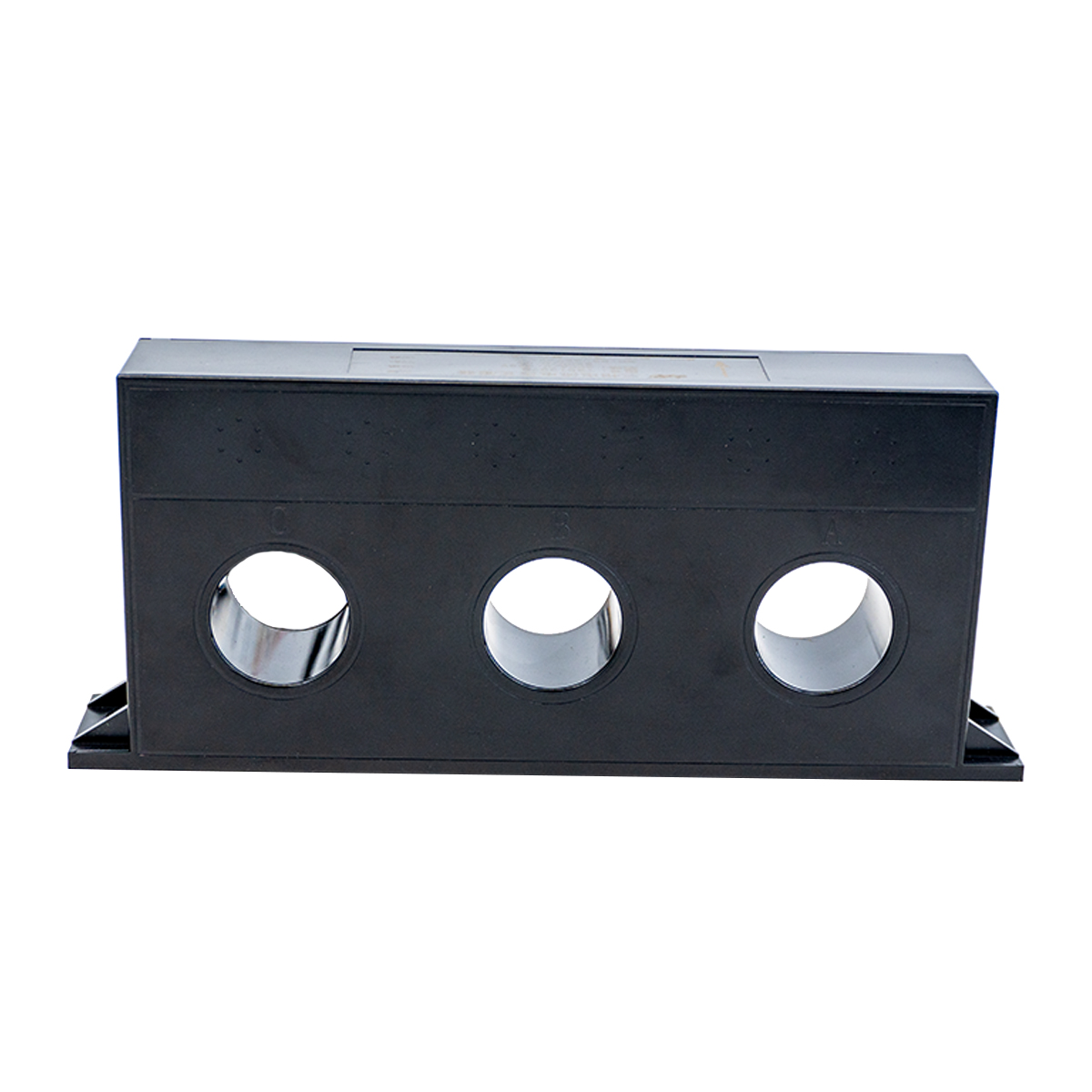

Current transformer (CT) design is a systematic engineering process that combines electromagnetic theory, material science, and practical application requirements to realize the accurate conversion of high AC currents into measurable, low-level signals for measurement, p rotection, and control in power systems. As a critical component in power grids, industrial inverters, and electrical equipment, the design quality of CT directly determines the reliability, accuracy, and safety of the entire electrical system, making it a core focus of power engineering research and practice.
The fundamental principle of current transformer design is based on Faraday’s law of electromagnetic induction and Ampère’s circuital law. A typical CT consists of a primary winding, a secondary winding, and a magnetic core. The primary winding, usually with a small number of turns (even a single turn), is connected in series with the circuit whose current is to be measured. The secondary winding, with more turns, is connected to measuring instruments, protective relays, or control devices. Ideally, the ampere-turn balance (N₁I₁ ≈ N₂I₂) is maintained, ensuring the secondary current is proportional to the primary current and phase-aligned, with the turns ratio (N₂/N₁) determining the conversion ratio.
Core selection is a pivotal step in CT design, as core characteristics directly affect excitation current, which is the main source of ratio and phase errors. High-permeability materials such as cold-rolled silicon steel sheets and nanocrystalline alloys are commonly used to minimize core losses (hysteresis and eddy current losses) and reduce excitation current. The magnetic path length (MPL) and cross-sectional area of the core are also optimized to balance magnetic flux density and core size, ensuring linearity under normal operating conditions and anti-saturation capability during short-circuit faults.
Key design parameters must be rigorously defined to meet application requirements. These include rated primary/secondary current (standard secondary currents are 1A or 5A), accuracy class (0.1S/0.2S for metering, 5P/10P for protection, and TPY/TPZ for transient protection), rated burden (the maximum apparent power the secondary can supply), and insulation level. The turns ratio is calculated based on the rated currents, while the secondary winding resistance and leakage reactance are minimized to reduce errors. Additionally, thermal and dynamic stability parameters are considered to ensure the CT can withstand short-circuit currents without mechanical or thermal damage.
Modern CT design also incorporates optimization strategies to address traditional limitations. For measurement-type CTs, particle swarm optimization (PSO) and other intelligent algorithms are increasingly used to minimize ratio and phase errors while reducing construction costs, outperforming traditional trial-and-error methods. Digital CTs, integrated with CAN bus or other communication technologies, are designed to improve reliability and stability by replacing analog transmission with digital signals, suitable for complex multi-node monitoring systems. Proper termination of the secondary winding, such as using a matched burden resistor and zener diode, is also critical to ensure measurement accuracy and circuit protection.
In summary, current transformer design is a comprehensive process that integrates theoretical analysis, material selection, parameter optimization, and practical validation. By balancing accuracy, reliability, cost, and application scenarios, designers can develop CTs that meet the diverse needs of power measurement, protection, and control, laying a solid foundation for the safe and efficient operation of electrical systems.
