An instrument transformer is a special type of transformer used in electrical power systems to measure high voltage and high current safely and accurately. It allows measuring instruments, meters, relays, and protection devices to operate with standardized low values of voltage and current. Instrument transformers play a critical role in power generation, transmission, distribution, and industrial applications where direct measurement of electrical quantities would be dangerous or impractical.
There are two main types of instrument transformers: Current Transformers (CTs) and Voltage Transformers (VTs), also known as Potential Transformers (PTs).

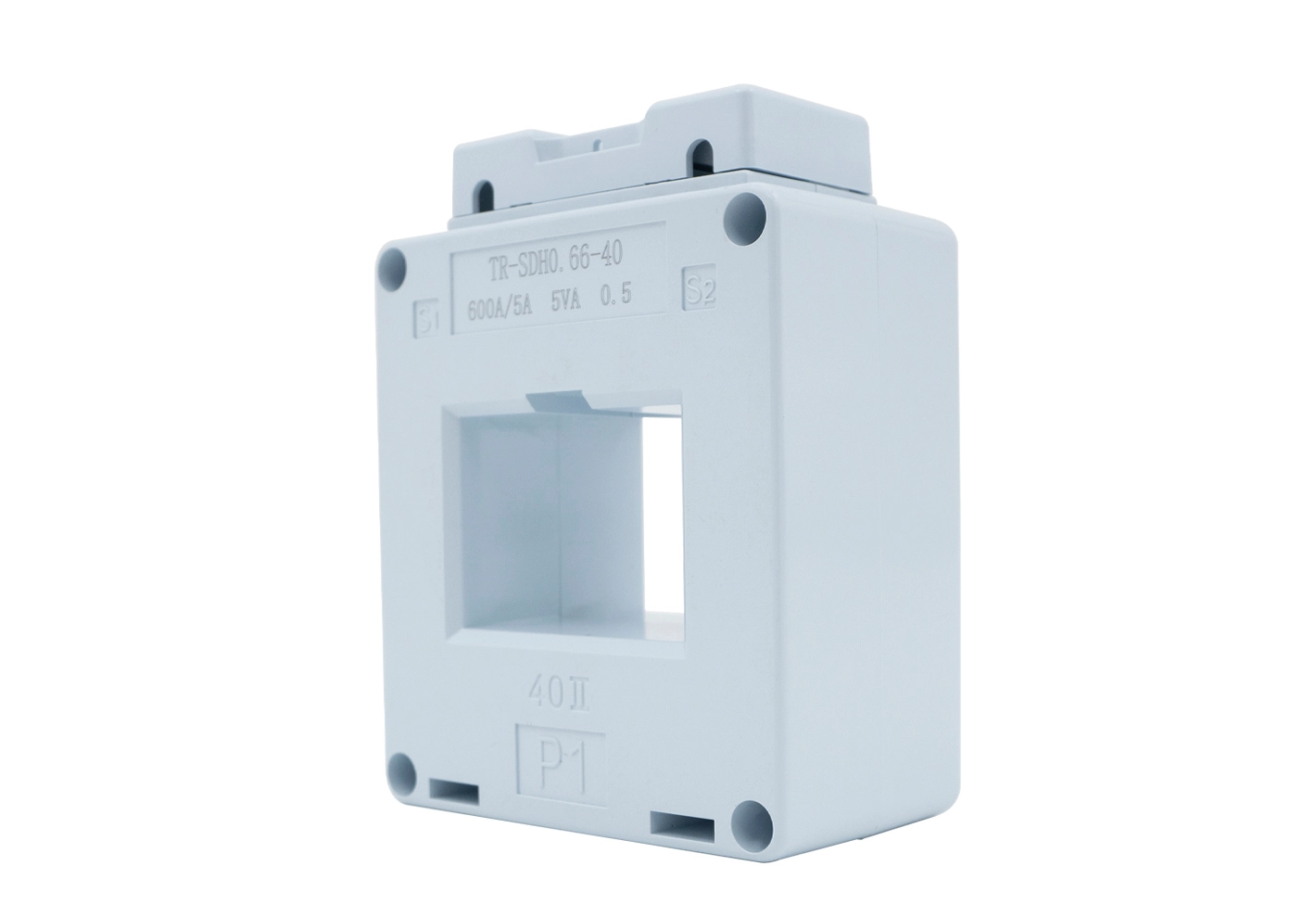

A Current Transformer is designed to reduce high current levels to a standard low current, typically 5A or 1A. The primary winding is connected in series with the power circuit, and the secondary winding provides a proportional current that can be safely measured by meters or protection relays. Current transformers are widely used in power monitoring, energy metering, and protective systems.
A Voltage Transformer is designed to reduce high voltages to lower standardized values, such as 110V or 100V. The primary winding is connected across the high-voltage circuit, while the secondary winding delivers a proportional low voltage suitable for measuring equipment and control devices. Voltage transformers ensure accurate voltage monitoring and provide isolation between the high-voltage system and sensitive instruments.
Instrument transformers offer several important advantages. First, they improve safety by isolating measuring devices and operators from high-voltage and high-current circuits. This reduces the risk of electrical shock and equipment damage. Second, they allow the use of standardized meters and relays regardless of the actual system voltage or current. Third, they improve measurement accuracy and system reliability. Modern instrument transformers are manufactured with high-quality magnetic cores and precision windings to achieve excellent accuracy performance.
In power substations, instrument transformers are essential components of metering and protection systems. Current transformers provide signals to protective relays that detect overloads, short circuits, and ground faults. Voltage transformers supply voltage information for monitoring, synchronization, and protective functions. Together, they help maintain the stability and safety of electrical networks.
Industrial facilities also rely heavily on instrument transformers. They are used in motor control centers, switchgear, energy management systems, renewable energy installations, and manufacturing plants. By providing accurate measurements, instrument transformers help operators monitor power consumption, improve energy efficiency, and maintain equipment performance.
When selecting an instrument transformer, engineers consider several factors, including rated voltage, rated current, accuracy class, burden, insulation level, frequency, and environmental conditions. Choosing the correct transformer ensures reliable operation and compliance with industry standards.
With the development of smart grids and digital substations, instrument transformer technology continues to evolve. Electronic and optical instrument transformers are increasingly being adopted for advanced monitoring and communication systems. These modern solutions offer improved accuracy, wider measurement ranges, and better integration with digital protection and automation equipment.
In conclusion, instrument transformers are fundamental devices in modern electrical systems. By safely converting high voltages and currents into measurable values, they enable accurate metering, effective protection, and efficient system operation. Their importance continues to grow as power networks become more intelligent, automated, and interconnected.
