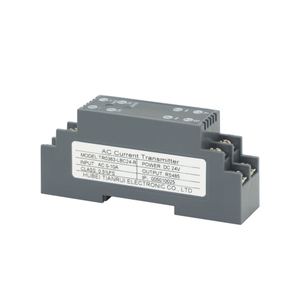

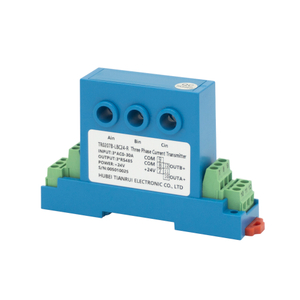

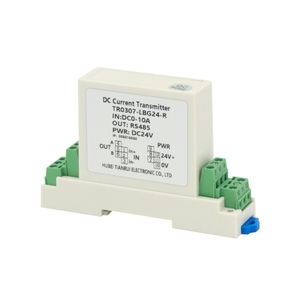

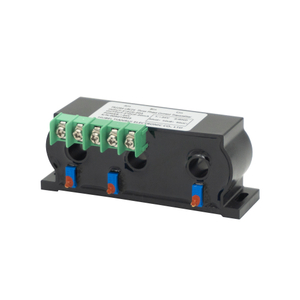

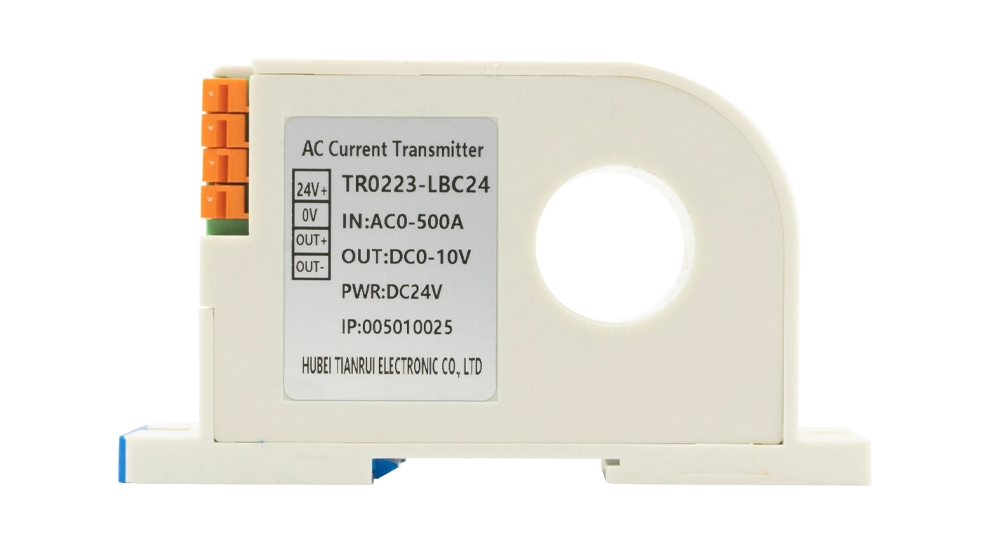

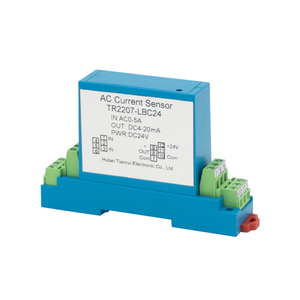

What Is An AC Current Transducer?

An AC current transducer, also known as an AC current sensor or transmitter, is a specialized electronic device designed to convert alternating current (AC) signals of varying magnitudes into standardized, low-level output signals (typically DC voltage or current, such as 0–10 V or 4–20 mA). This conversion enables seamless integration of AC current measurements into data acquisition systems, control panels, and industrial automation platforms, where precise, stable, and compatible electrical signals are required for monitoring, analysis, and regulation.

The core working principle of an AC current transducer relies on electromagnetic induction or Hall-effect technology, depending on its design type. For inductive transducers (often called current transformers for basic applications), the AC current flowing through a primary conductor generates a time-varying magnetic field around it. A secondary winding, wrapped around a magnetic core, intercepts this field and induces a proportional AC voltage, which is then rectified, filtered, and amplified to produce a linear DC output. Hall-effect transducers, by contrast, use a semiconductor Hall element placed in the magnetic field of the primary current. When current passes through the Hall element perpendicular to the magnetic field, a Hall voltage proportional to the magnetic flux (and thus the primary AC current) is generated. This voltage is further processed by signal conditioning circuits to eliminate harmonics and noise, ensuring a highly accurate DC output that reflects the RMS (root mean square) value of the input AC current.

Key characteristics of AC current transducers include high precision and linearity, with many industrial-grade models offering accuracy levels within ±0.5% of the full-scale range. They feature excellent electrical isolation between the primary input circuit and secondary output circuit, which prevents high-voltage interference and protects downstream equipment and personnel from electrical hazards. Additionally, these transducers are engineered for wide frequency response (typically 50/60 Hz for standard applications, and up to several kHz for specialized use cases) and robust performance in harsh environments, resisting temperature fluctuations, vibration, and electromagnetic interference (EMI). Their compact size and easy installation (either through clamp-on, panel-mount, or in-line configurations) further enhance their usability across diverse scenarios.

AC current transducers are indispensable in numerous industrial and commercial applications. In power distribution systems, they monitor load currents in transformers, switchgear, and distribution panels to prevent overloads and ensure grid stability. In industrial automation, they are integrated into motor control units to track motor current draw, enabling predictive maintenance and energy optimization. They also play a critical role in renewable energy systems, such as solar inverters and wind turbines, where they measure AC output currents for performance monitoring and grid synchronization. Beyond industrial settings, these transducers are used in building management systems to monitor HVAC (heating, ventilation, and air conditioning) equipment power consumption, and in electric vehicle charging stations to regulate charging currents safely.
