A Hall current sensor is an essential device used to measure alternating current (AC) or direct current (DC) in various electrical systems. It operates based on the Hall effect, a physical phenomenon discovered by Edwin Hall in 1879.
The core principle involves a Hall element, a semiconductor component that generates a small voltage when exposed to a magnetic field. When current flows through a conductor, it creates a circular magnetic field around the wire. The sensor positions this Hall element near the conductor to detect this magnetic field. The strength of the magnetic field is directly proportional to the magnitude of the current passing through the conductor. As the current changes, the magnetic flux density varies, causing the output voltage of the Hall sensor to change accordingly.

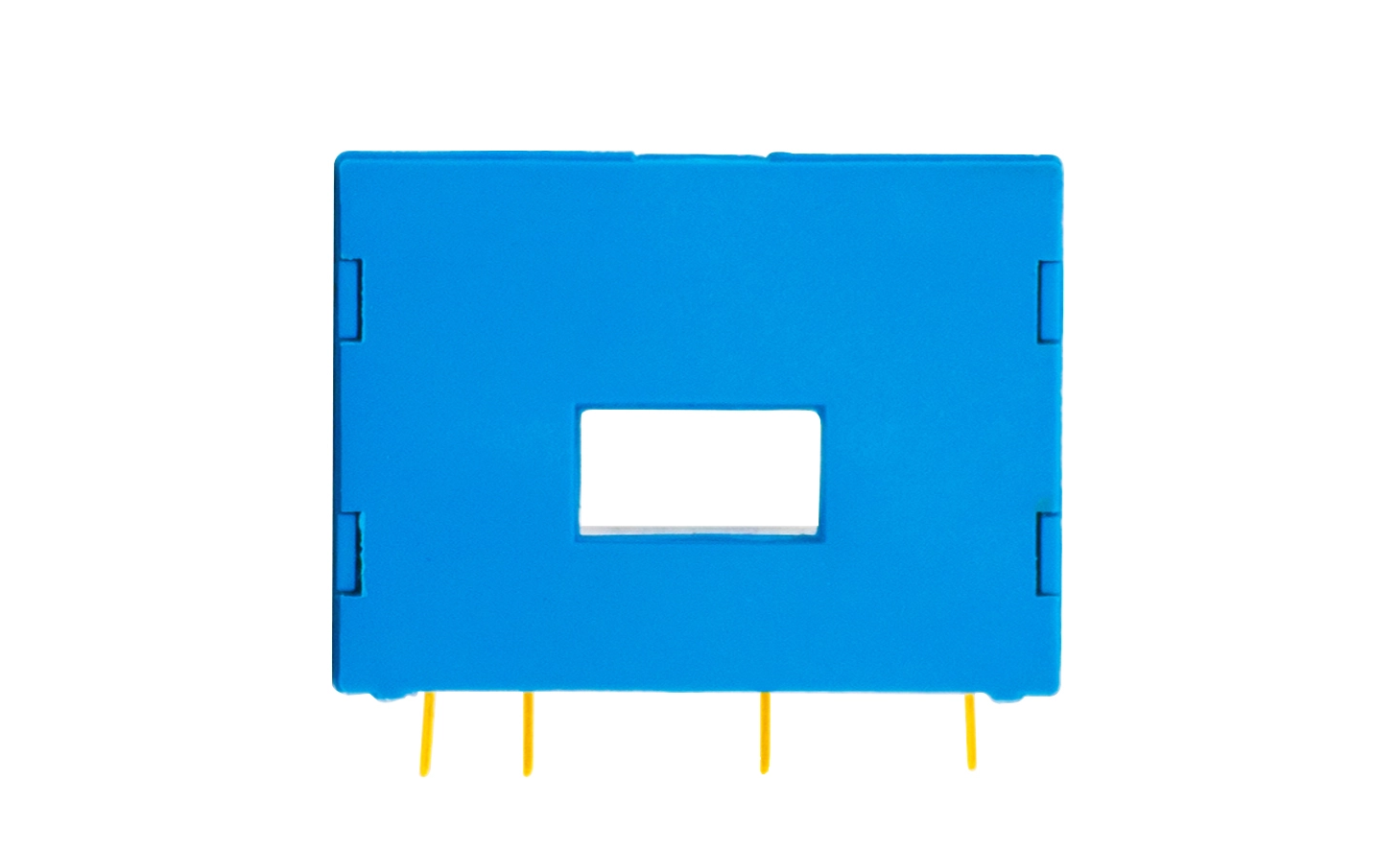

A typical Hall current sensor consists of several key parts. The first is the conductor, through which the measured current flows. The Hall element is precisely placed to sense the magnetic field produced by the conductor. An amplifier circuit is used to boost the weak voltage signal from the Hall element to a usable level. Some sensors also include a feedback coil and a compensation circuit to improve accuracy and reduce interference.
There are two main types of Hall current sensors: open-loop and closed-loop. Open-loop sensors are simple and cost-effective. They directly measure the magnetic field and convert it into an output voltage. However, their accuracy is relatively lower, and they may be affected by external magnetic fields. Closed-loop sensors, also known as zero-flux sensors, use a feedback coil to generate a magnetic field that cancels out the field from the measured current. This keeps the core of the sensor in a state of zero magnetic flux, significantly improving accuracy and linearity. Closed-loop sensors are more expensive but widely used in applications requiring high precision.
Hall current sensors have diverse applications across multiple industries. In industrial automation, they are used to monitor current in motors, power converters, and control systems. In renewable energy systems, such as wind turbines and solar inverters, they help measure and regulate current flow. In electric vehicles and hybrid vehicles, they play a crucial role in battery management systems and motor control. They are also commonly used in power distribution systems, energy meters, and aerospace equipment.
One of the main advantages of Hall current sensors is their electrical isolation between the measured circuit and the sensing circuit. This isolation ensures safety and prevents damage to the sensor and control circuitry from high voltages. They also have a fast response time, allowing them to measure rapidly changing currents. Additionally, they are compact, durable, and easy to install.
However, Hall current sensors do have some limitations. They are sensitive to temperature changes, which can affect the performance of the Hall element and the amplifier circuit. External magnetic interference can also impact measurement accuracy, especially in environments with multiple current-carrying conductors. High-current applications may require larger sensors or multiple sensors in parallel.
Despite these limitations, Hall current sensors remain a popular choice for current measurement due to their reliability, non-contact measurement feature, and wide applicability. Ongoing advancements in semiconductor technology continue to improve their performance, making them smaller, more accurate, and more energy-efficient.
