A current transformer (CT) is an electrical instrument transformer designed to measure alternating current (AC) in power systems safely and accurately. It reduces high primary currents to a lower, standardized secondary current that can be easily monitored by measuring instruments, protection relays, and control systems. Current transformers are widely used in industrial facilities, power distribution networks, renewable energy systems, and commercial buildings where accurate current measurement and electrical protection are essential.
The basic operating principle of a current transformer is electromagnetic induction. The primary winding is connected in series with the conductor carrying the current to be measured. In many designs, the conductor itself acts as the primary winding. When AC flows through the primary conductor, it creates a magnetic field in the transformer core. This magnetic field induces a proportional current in the secondary winding. The secondary current is typically standardized to 5A or 1A, allowing meters and monitoring equipment to safely measure high currents without being directly connected to the power circuit.
One of the most important advantages of a current transformer is electrical isolation. By separating the measurement circuit from the high-voltage power circuit, a CT improves safety for both personnel and equipment. This isolation also protects sensitive instruments from excessive currents and voltage fluctuations. As a result, current transformers are a critical component in power monitoring and protection systems.

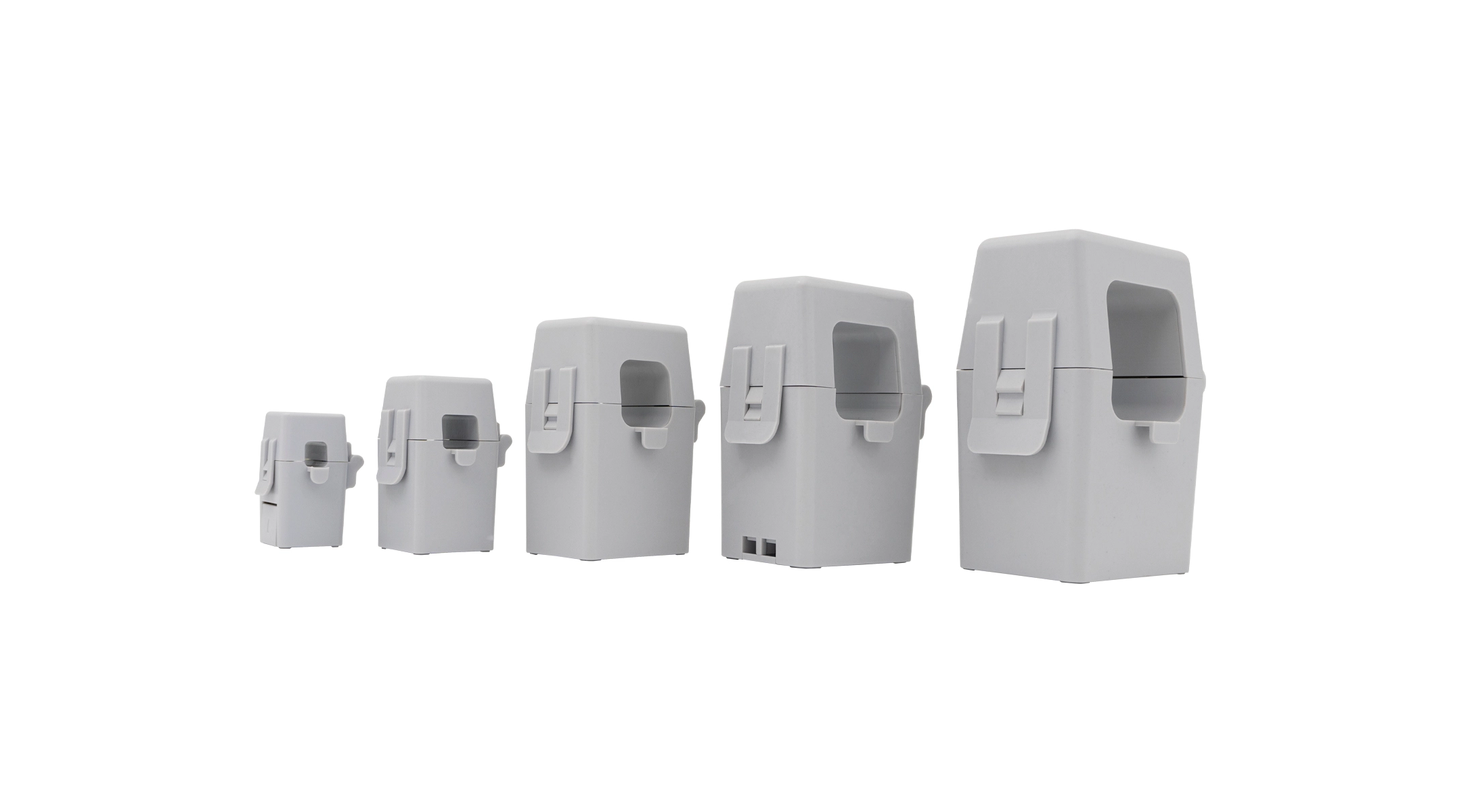

Current transformers are available in various types to suit different applications. Ring-type or donut current transformers feature a hollow center through which the conductor passes. Split-core current transformers can be opened and installed around existing conductors without disconnecting the circuit, making them ideal for retrofit projects and energy management systems. Bar-type current transformers use a built-in conductor as the primary winding and are commonly found in switchgear and electrical panels. Wound-type current transformers include a dedicated primary winding and are used when higher measurement accuracy is required.
Accuracy is another key characteristic of current transformers. Different accuracy classes are available depending on the application. Metering CTs are designed to provide precise current measurements for energy monitoring and billing purposes, while protection CTs are engineered to operate reliably during fault conditions and supply accurate signals to protective relays. Selecting the appropriate accuracy class ensures optimal performance in the intended application.
Current transformers are widely used in power generation plants, substations, industrial automation systems, motor control centers, and renewable energy installations. They enable real-time current monitoring, overload detection, power quality analysis, and equipment protection. In modern smart grid and energy management systems, CTs provide essential data that helps improve energy efficiency and system reliability.
In summary, a current transformer is a vital device for measuring and monitoring electrical current in AC systems. By converting high currents into safe and manageable levels, it enables accurate measurement, effective protection, and reliable operation of electrical equipment. Its versatility, safety benefits, and wide range of applications make the current transformer an indispensable component in modern electrical power systems.
