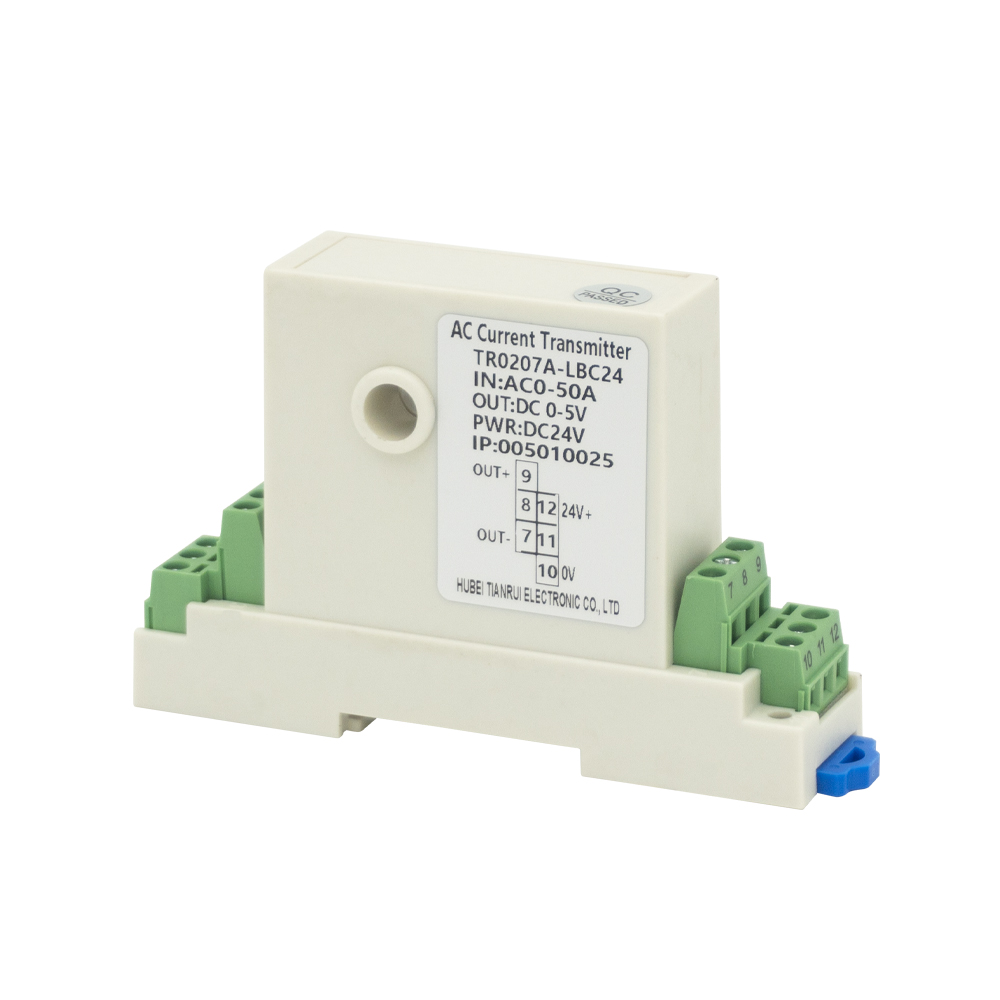

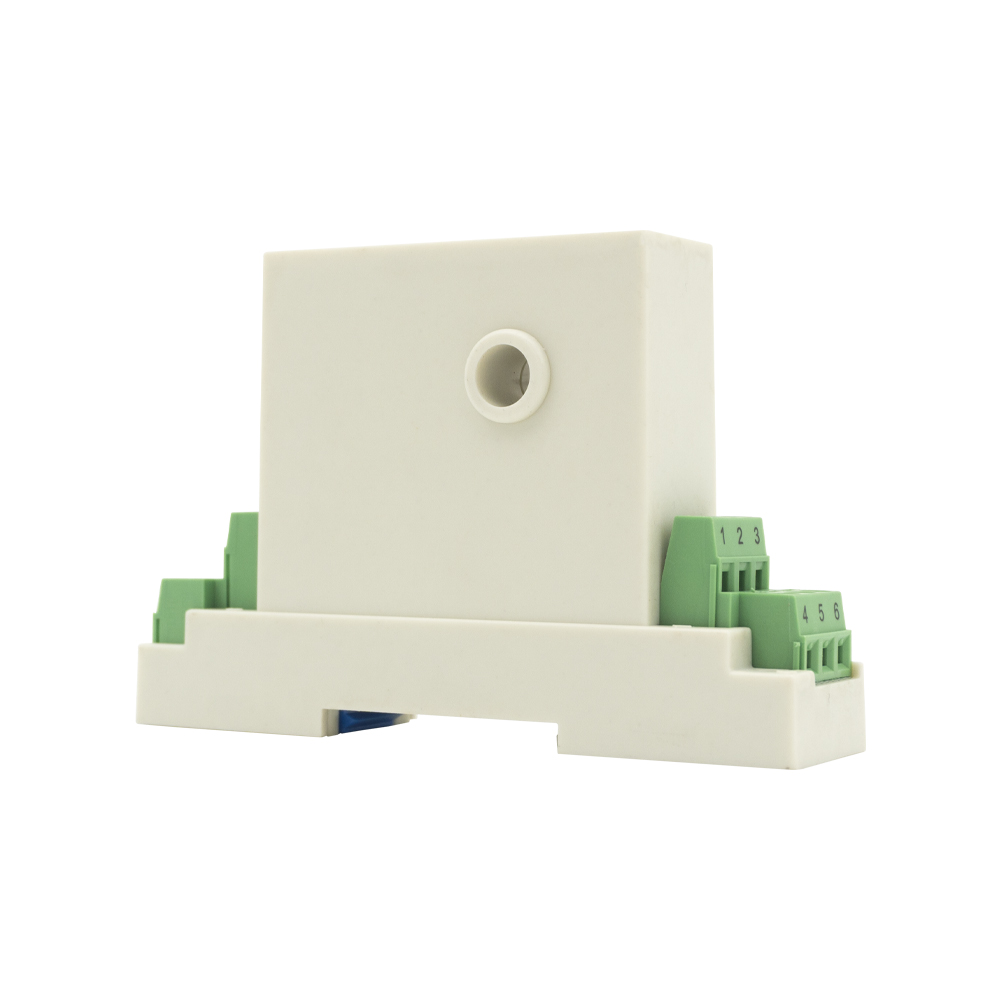

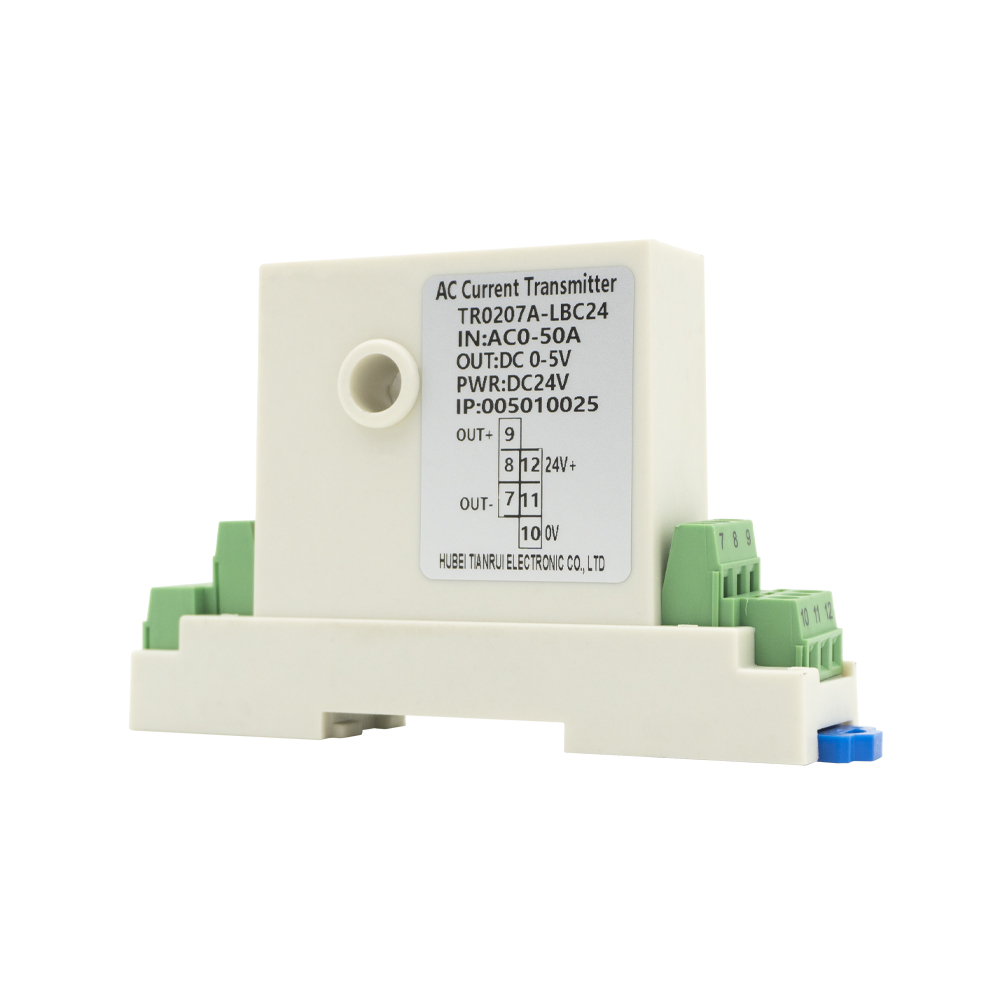

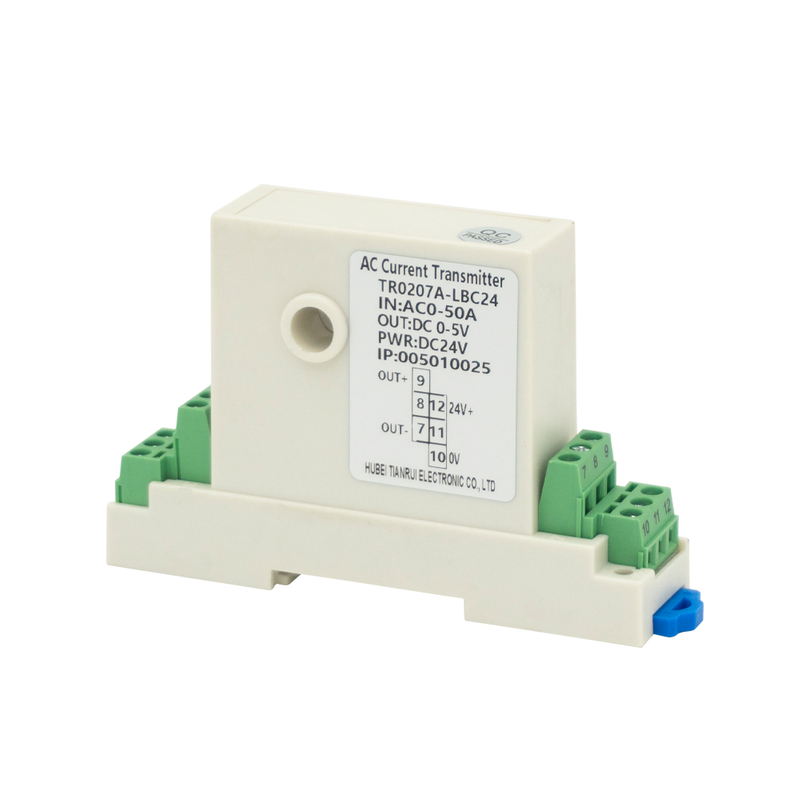

AC Current Transducer Input AC 0-50A Output 0-5V TR0207-LBC24 Current Sensor Manufacturer

Our AC Current Transducer is a high-precision, industrial-grade device engineered for accurate measurement and conversion of alternating current signals. Designed with advanced electromagnetic induction technology, it converts primary AC currents (ranging from 0-5000A) into standard output signals (4-20mA DC, 0-10V DC) compatible with PLCs, DCS, and data acquisition systems.

Availability:



Inquire

Model:
TR0207-LBC24
Brand:
TR

Product Description

Product Overview

Our industrial-grade AC Current Transducer is a high-precision device for measuring and converting alternating current signals. Leveraging advanced electromagnetic induction technology, it transforms primary AC currents (0-5000A) into standard 4-20mA DC/0-10V DC outputs, compatible with PLCs and DCS systems.

With a rugged, compact design, it operates reliably in harsh environments (-40°C to +85°C) with strong anti-interference capabilities, adhering to IEC 60044-1 standards. Ideal for power distribution, motor control, and smart grids, it delivers real-time, stable data to enhance system efficiency and safety, offering easy installation for industrial automation needs.

Product features

* High Accuracy & Wide Dynamic Range

* Galvanic Isolation

* Robust & EMI Resistant Design

* Energy Efficiency & Low Power Consumption

Product Application

* Renewable Energy Systems

* Electric Vehicle (EV) Charging Infrastructure

* Data Centers

* Building Automation & Smart Grids

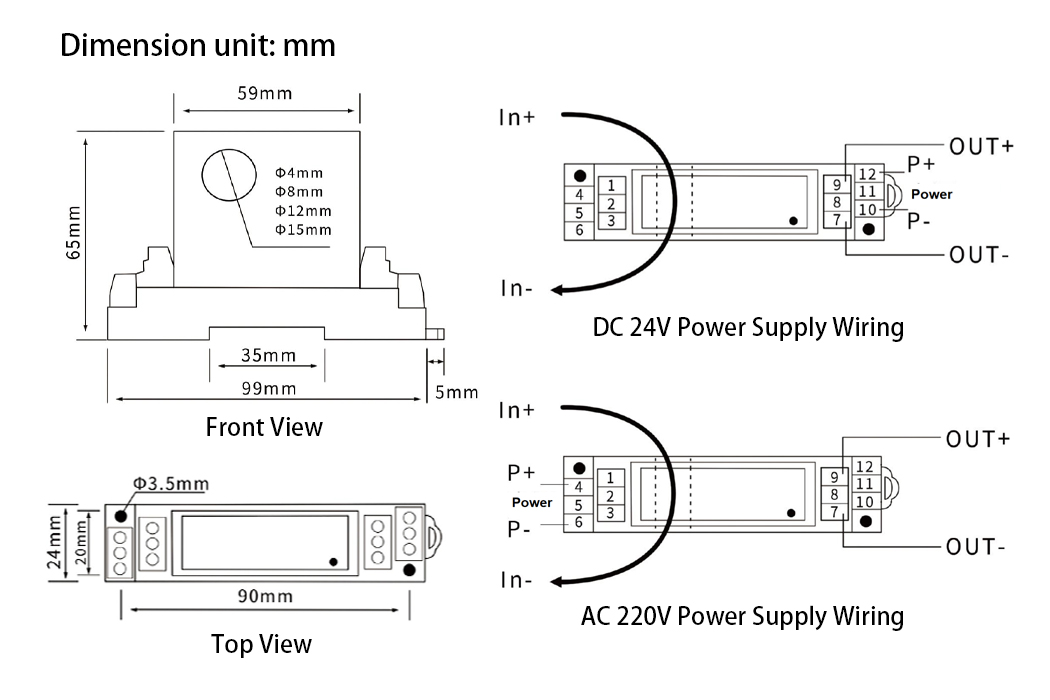

Mechanical Dimension(mm)

TR0207A-LBC24-07

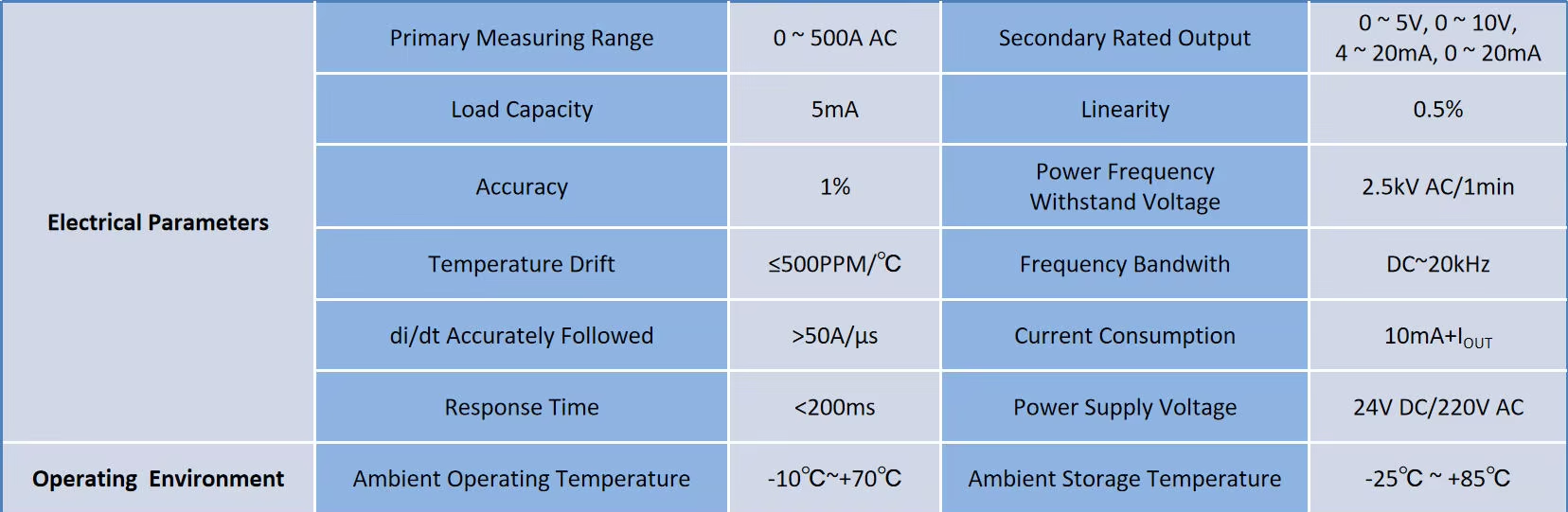

Technical Data

Electrical Parameters	Primary Measuring Range	0-500A AC	Secondary Rated Output	0-5V, 0-10V, 4-20mA, 0-20mA
	Load Capacity	5mA	Linearity	0.5%
	Accuracy	1%	Power Frequency Withstand Voltage	2.5kV AC/1min
	Temperature Drift	≤500PPM/℃	Frequency Bandwith	DC-20kHz
	di/dt Accurately Followed	>50A/μs	Current Consumption	10mA+I_OUT
	Response Time	<200ms	Power Supply Voltage	24V DC/220V AC
Operating Environment	Ambient Operating Temperature	-10℃-+70℃	Ambient Storage Temperature	-25℃-+85℃
