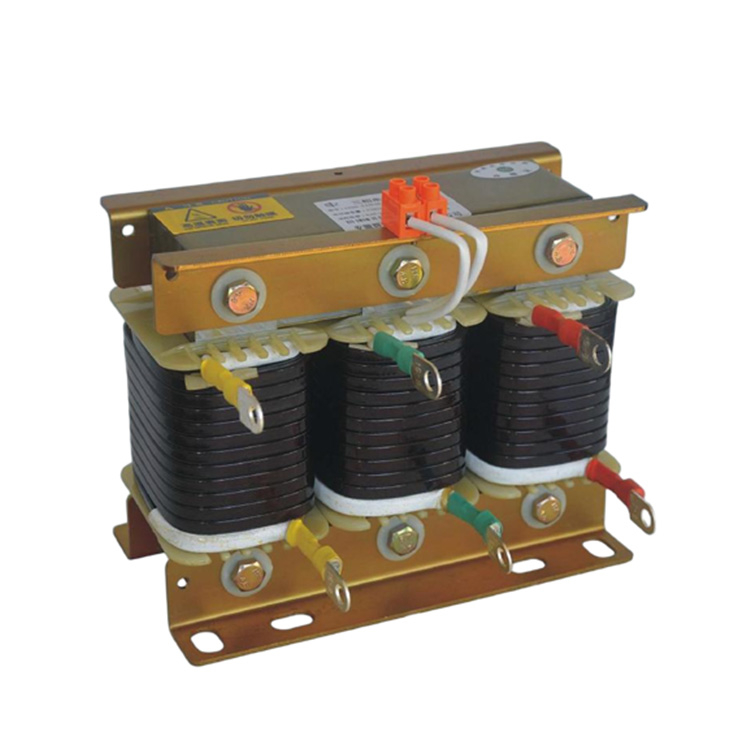

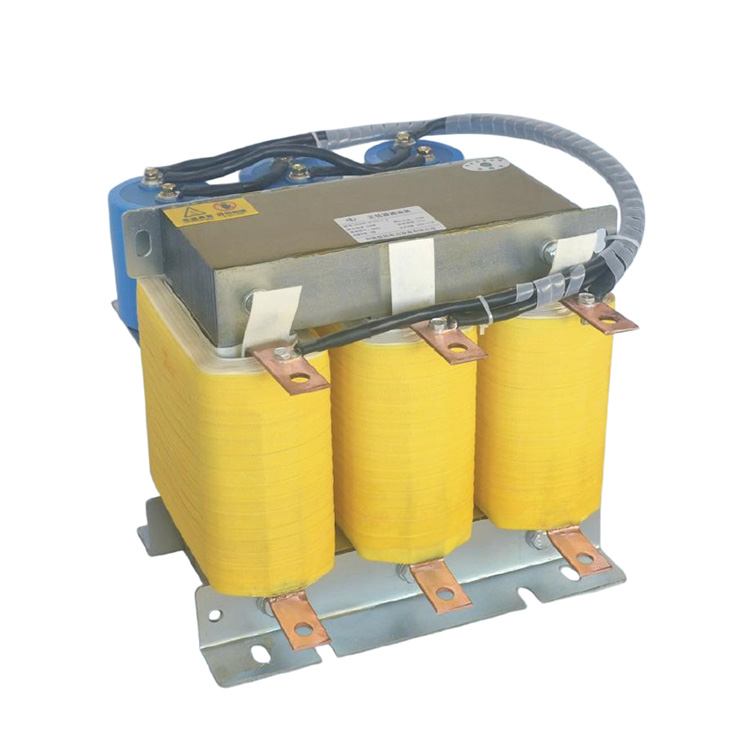

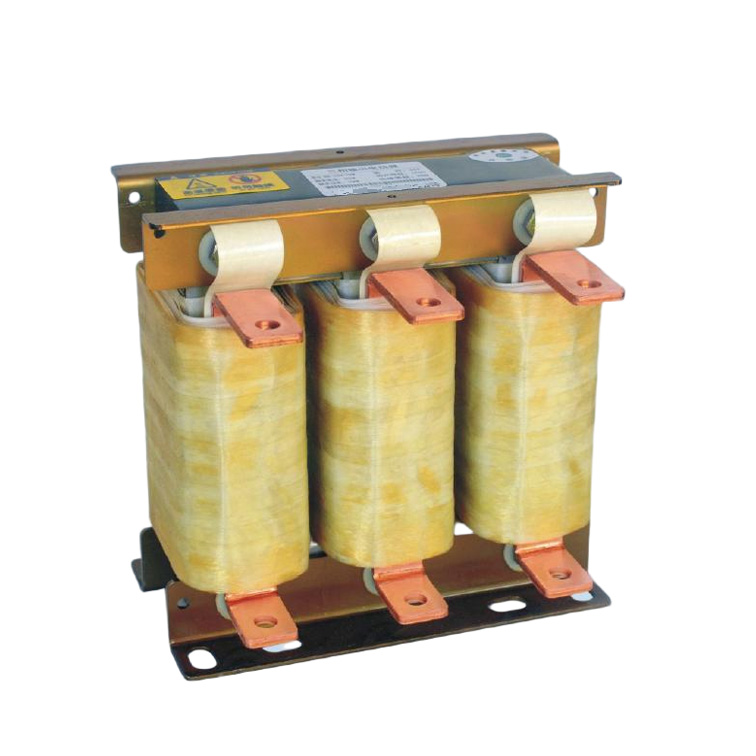

Product Features
Effectively suppresses power harmonics and limits inrush current to protect electrical equipment.
Low loss and stable performance, capable of long-time continuous operation under rated conditions.
Compact three-phase series structure with strong heat dissipation and low noise.
Customizable specifications to match different VFD and power factor correction projects.
Product Application
This three-phase series electric reactor is widely applied in variable frequency drive systems, capacitor bank power factor correction cabinets, power grid harmonic filtering, and other industrial power occasions. It stabilizes power current, reduces harmonic interference and improves the safety and reliability of the whole power system.

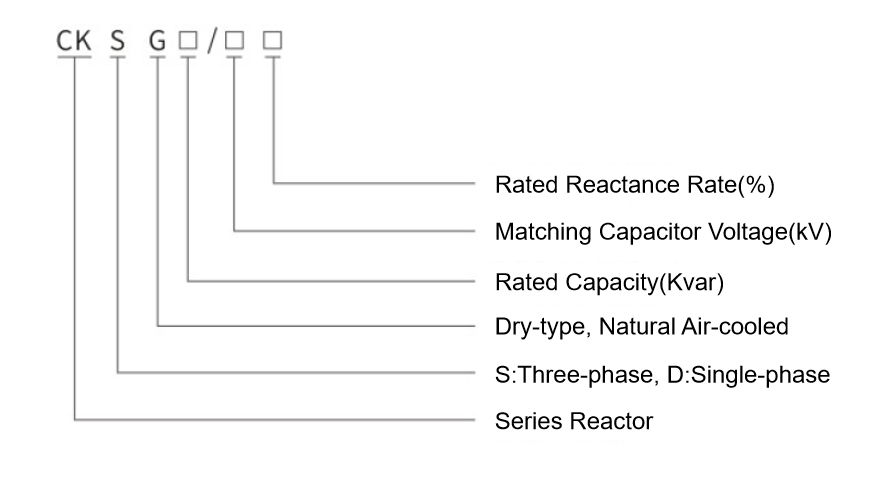

Model Definition

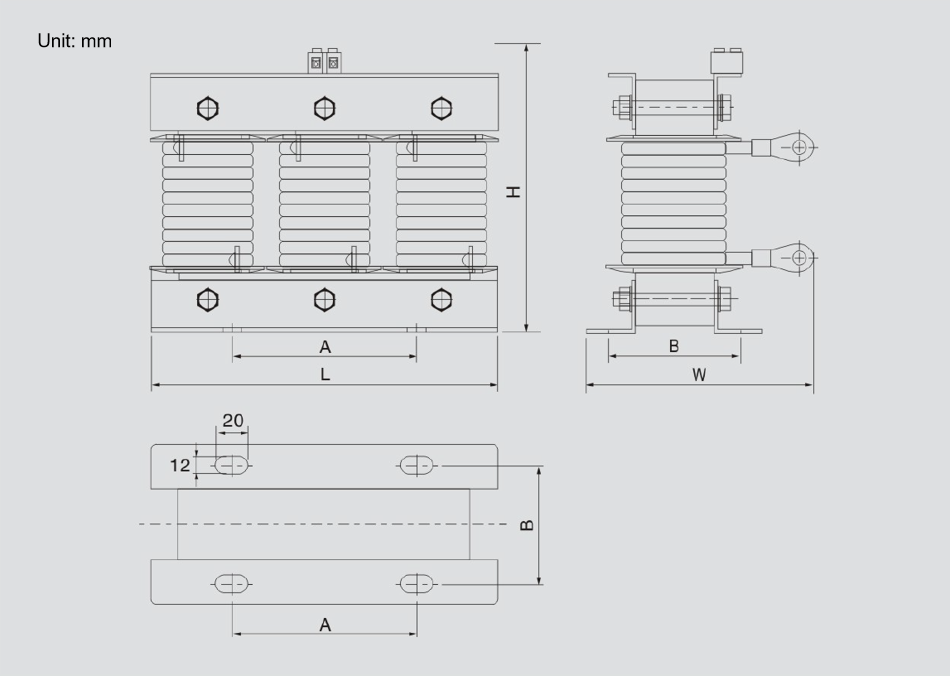

Typical Value and Dimension
| Model |
Matched Capacltor Capaclty(Kyar) |
Rated Current(A) |
Rated Inductance(mH) |
Overall Dimensions(LxWxH）mm |
Mounting Dimensions (AxB）mm |
CKSG-0.3/0.45-6%
|
5 |
6.4 |
7.744 |
155x95x180 |
80x65 |
| CKSG-0.6/0.45-6% |
10 |
12.8 |
3.872 |
155x130x165 |
80x75 |
| CKSG-0.9/0.45-6% |
15 |
19.2 |
2.581 |
155x140x165 |
80x85 |
| CKSG-1.2/0.45-6% |
20 |
25.7 |
1.936 |
190x150x185 |
80x85 |
| CKSG-1.5/0.45-6% |
25 |
32.1 |
1.549 |
190x160x185 |
80x95 |
| CKSG-1.8/0.45-6% |
30 |
38.5 |
1.291 |
225x150x215 |
120x85 |
| CKSG-2.1/0.45-6% |
35 |
44.9 |
1.106 |
225x160x215 |
120x95 |
| CKSG-2.4/0.45-6% |
40 |
51.3 |
0.968 |
225x160x215 |
120x95 |
| CKSG-2.7/0.45-6% |
45 |
57.7 |
0.86 |
225x170x215 |
120x105 |
| CKSG-3.0/0.45-6% |
50 |
64.2 |
0.774 |
225x180x215 |
120x115 |
| Model |
Matched Capacltor Capaclty(Kyar) |
Rated Current(A) |
Rated Inductance(mH) |
Overall Dimensions(LxWxH）mm |
Mounting Dimensions (AxB）mm |
CKSG-0.35/0.48-7%
|
5 |
6 |
10.27 |
155x105x180 |
80x75 |
| CKSG-0.70.48-7% |
10 |
12 |
5.136 |
155x140x165 |
80x85 |
| CKSG-1.05/0.48-7% |
15 |
18 |
3.424 |
190x150x185 |
80x85 |
| CKSG-1.4/0.48-7% |
20 |
24.1 |
2.568 |
190x160x185 |
80x95 |
| CKSG-1.75/0.48-7% |
25 |
30.1 |
2.055 |
225x150x215 |
120x85 |
| CKSG-2.1/0.48-7% |
30 |
36.1 |
1.712 |
225x160x215 |
120x95 |
| CKSG-2.45/0.48-7% |
35 |
42.1 |
1.468 |
225x160x215 |
120x95 |
| CKSG-2.8/0.48-7% |
40 |
48.1 |
1.284 |
225x180x215 |
120x115 |
| CKSG-3.15/0.48-7% |
45 |
54.1 |
1.141 |
225x180x215 |
120x115 |
| CKSG-3.5/0.48-7% |
50 |
60.1 |
1.027 |
260x190x245 |
135x105 |
| Model |
Matched Capacltor Capaclty(Kyar) |
Rated Current(A) |
Rated Inductance(mH) |
Overall Dimensions(LxWxH）mm |
Mounting Dimensions (AxB）mm |
CKSG-0.6/0.525-12%
|
5 |
5.5 |
21.07 |
155x105x180 |
80x75 |
| CKSG-1.2/0.525-12% |
10 |
11 |
10.53 |
190x150x185 |
80x85 |
| CKSG-1.8/0.525-12% |
15 |
16.5 |
7.022 |
225x150x215 |
120x85 |
| CKSG-2.4/0.525-12% |
20 |
22 |
5.267 |
225x160x215 |
120x95 |
| CKSG-3.0/0.525-12% |
25 |
27.5 |
4.213 |
225x180x215 |
120x115 |
| CKSG-3.6/0.525-12% |
30 |
33 |
3.511 |
260x190x245 |
135x105 |
| CKSG-4.2/0.525-12% |
35 |
38.5 |
3.01 |
260x200x245 |
135x115 |
| CKSG-4.8/0.525-12% |
40 |
44 |
2.633 |
260x200x245 |
135x115 |
| CKSG-5.4/0.525-12% |
45 |
49.5 |
2.341 |
290x180x290 |
135x95 |
| CKSG-6.0/0.525-12% |
50 |
55 |
2.107 |
290x180x290 |
135x95 |
| Model |
Matched Capacltor Capaclty(Kyar) |
Rated Current(A) |
Rated Inductance(mH) |
Overall Dimensions(LxWxH）mm |
Mounting Dimensions (AxB）mm |
CKSG-0.7/0.525-14%
|
5 |
5.5 |
24.58 |
155x115x180 |
80x85 |
| CKSG-1.4/0.525-14% |
10 |
11 |
12.29 |
190x160x185 |
80x95 |
| CKSG-2.1/0.525-14% |
15 |
16.5 |
8.193 |
225x160x215 |
120x95 |
| CKSG-2.8/0.525-14% |
20 |
22 |
6.145 |
225x180x215 |
120x115 |
| CKSG-3.5/0.525-14% |
25 |
27.5 |
4.916 |
260x190x245 |
135x105 |
| CKSG-4.2/0.525-14% |
30 |
33 |
4.097 |
260x200x245 |
135x115 |
| CKSG-4.9/0.525-14% |
35 |
38.5 |
3.511 |
260x200x245 |
135x115 |
| CKSG-5.6/0.525-14% |
40 |
44 |
3.073 |
290x180x290 |
135x95 |
| CKSG-6.3/0.525-14% |
45 |
49.5 |
2.731 |
290x180x290 |
135x95 |
| CKSG-7.0/0.525-14% |
50 |
55 |
2.458 |
290x200x290 |
135x105 |
