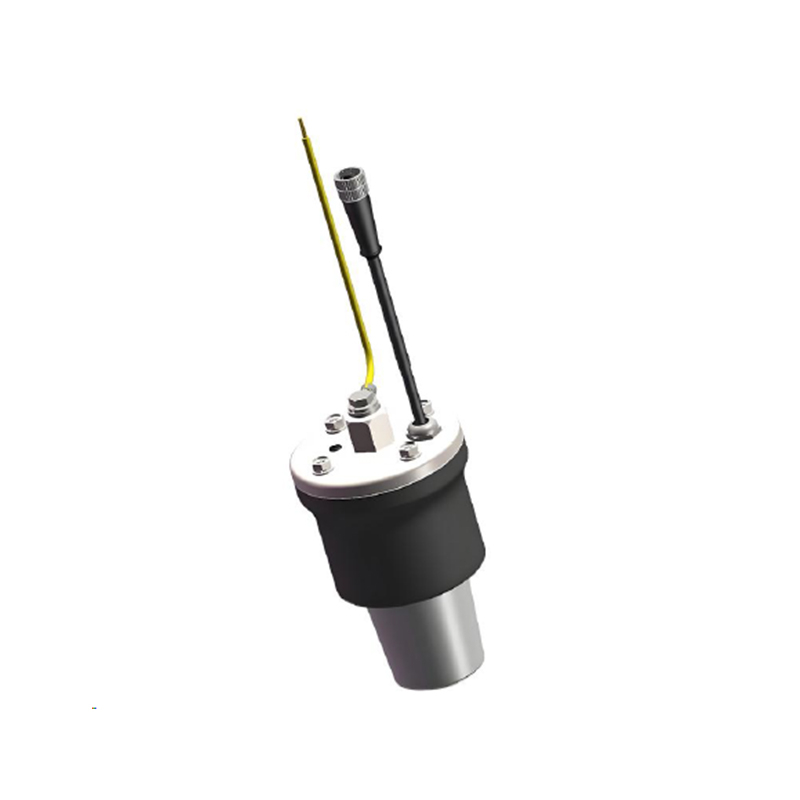

High Precision Electronic Voltage Sensor 10kV–36kV for Medium Voltage Switchgear

This 10kV–36kV Electronic Voltage Sensor features high precision, designed for medium voltage switchgear systems, reliable insulation and stable signal output for power monitoring.

Availability:



Inquire

Product Description

Product Features

High measurement accuracy

Excellent insulation performance

Compact structure for easy installation

Stable signal output with strong anti-interference capability

Product Application

This Electronic Voltage Sensor is widely applied in medium voltage switchgear, power distribution cabinets, intelligent power grids and electrical monitoring units for real-time voltage detection and protection.

Mold and Size

Data	10kV	13.8kV	24kV	35kV
withstand voltage	42kV	56kV	80kV	90kV
lightning impulse voltage	75kV	115kV	150kV	210kV
phase voltage trasformation ratio	10kV/√3: 3.25V/√3	13.8kV/√3: 3.25V/√3	34kV/√3: 3.25V/√3	35kV/√3: 3.25V/√3
phase voltage accuracy	0.5
simulate load resistance	1MΩ/350PF
rated voltage coefficlent	1.9Un for 8h
partial discharge	≤10PC(1.2Un)
frequency	50Hz
ambient temperature	-40℃~+70℃
standard	GB/T 20840.7(GB/T 20840.6)/IEC 60044-7(IEC 61869-6/111)
signal output mode	RVSP Shielde Wire L=3Meters（customizable length) 5-way terminal connector

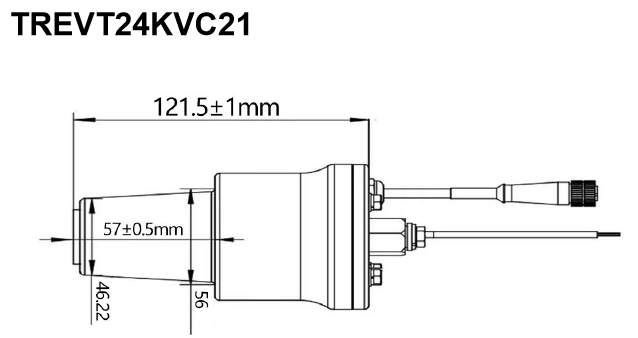

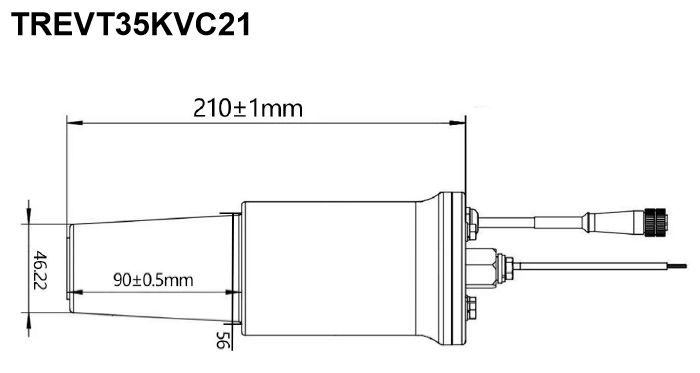

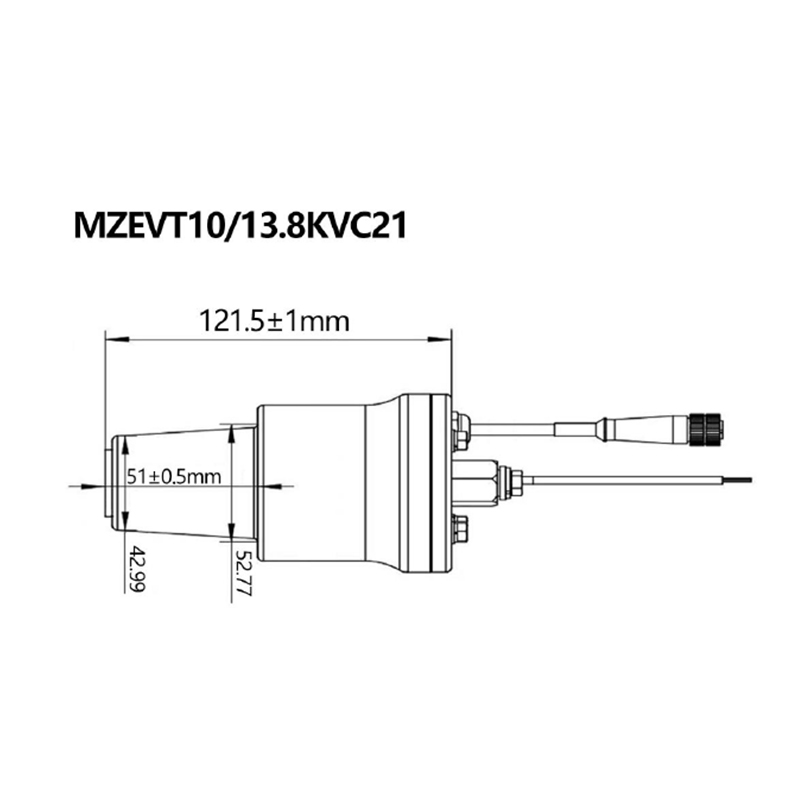

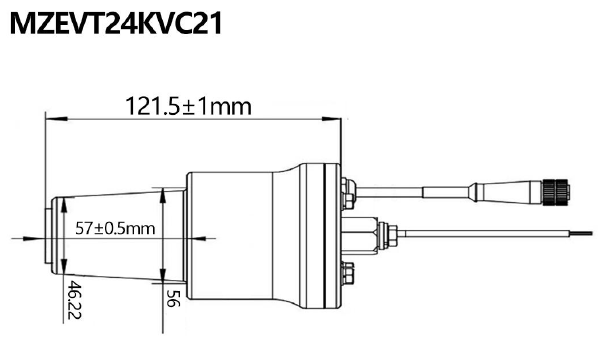

dimensions	Dimensions are subject to change based on output types
